I can't send and receive picture messages on my Vodafone V One 4G Proprietary OS

Cause 1 of 4: The phone has not been correctly set up for MMS

To send and receive MMS, your phone needs to be correctly set up for MMS.

Solution: Set up your phone for picture messaging.

Step 1 of 31

Find "Network account"

Press the Selection key.

Step 2 of 31

Find "Network account"

Select Settings.

Step 3 of 31

Find "Network account"

Select Connections.

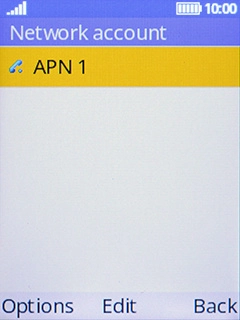

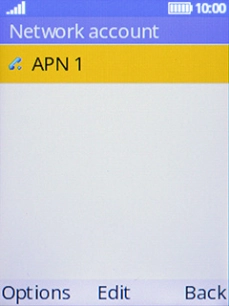

Step 4 of 31

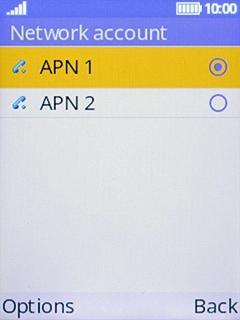

Find "Network account"

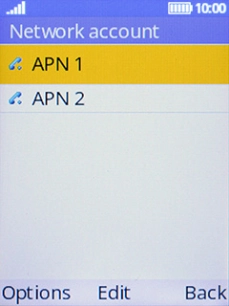

Select Network account.

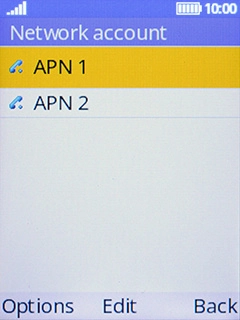

Step 5 of 31

Create new data connection

Press the Left selection key.

Step 6 of 31

Create new data connection

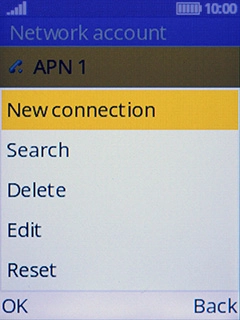

Select New connection.

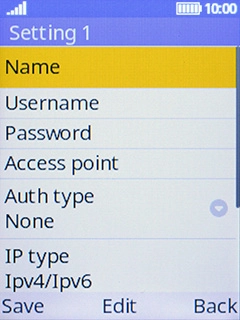

Step 7 of 31

Create new data connection

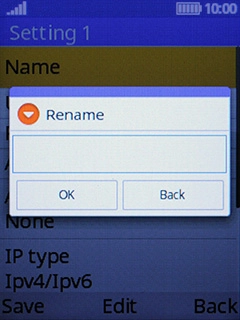

Select Name.

Step 8 of 31

Create new data connection

Key in Vodafone MMS and press the Left selection key.

Step 9 of 31

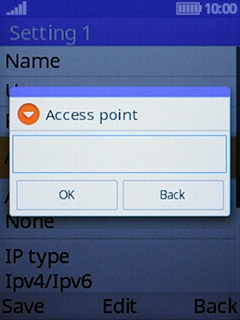

Enter APN

Select Access point.

Step 10 of 31

Enter APN

Key in live.vodafone.com and press the Left selection key.

Step 11 of 31

Select authentication type

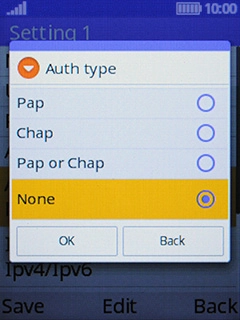

Select the field below "Auth type".

Step 12 of 31

Select authentication type

Select the required setting.

Step 13 of 31

Enter IP address

Select Gateway.

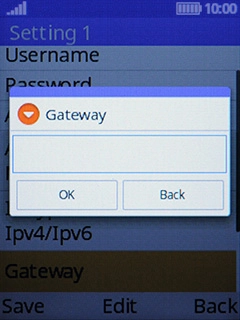

Step 14 of 31

Enter IP address

Key in 10.202.002.060 and press the Left selection key.

Step 15 of 31

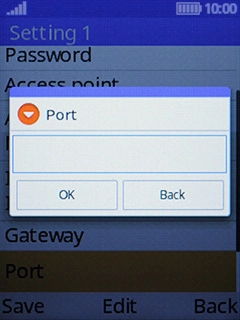

Enter port number

Select Port.

Step 16 of 31

Enter port number

Key in 8080 and press the Left selection key.

Step 17 of 31

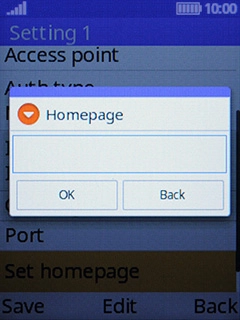

Enter picture messaging server

Select Set homepage.

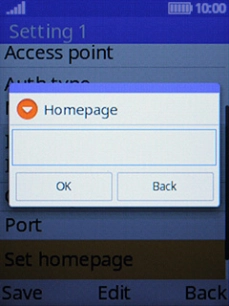

Step 18 of 31

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press the Left selection key.

Step 19 of 31

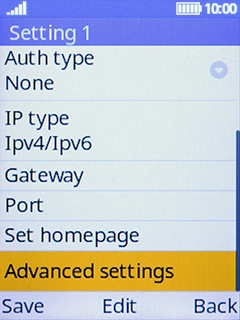

Select connection type

Select Advanced settings.

Step 20 of 31

Select connection type

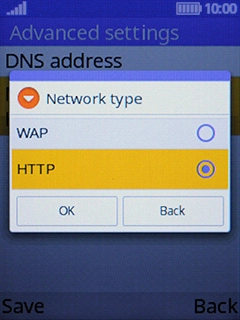

Select Network type.

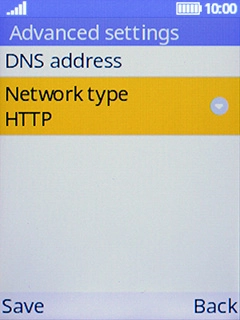

Step 21 of 31

Select connection type

Select HTTP.

Step 22 of 31

Save data connection

Press the Left selection key.

Step 23 of 31

Return to the home screen

Press On/Off to return to the home screen.

Step 24 of 31

Find "MMS account"

Press the Selection key.

Step 25 of 31

Find "MMS account"

Select Message.

Step 26 of 31

Find "MMS account"

Press the Left selection key.

Step 27 of 31

Find "MMS account"

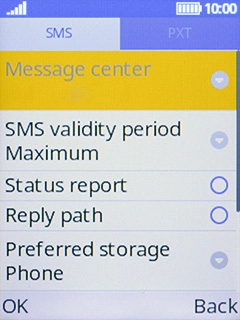

Select Settings.

Step 28 of 31

Find "MMS account"

Select PXT.

Step 29 of 31

Find "MMS account"

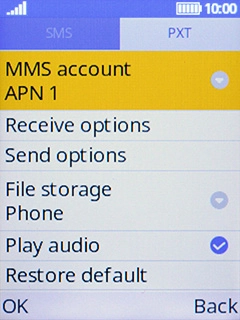

Select MMS account.

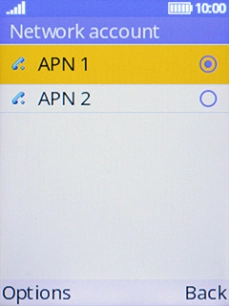

Step 30 of 31

Active data connection

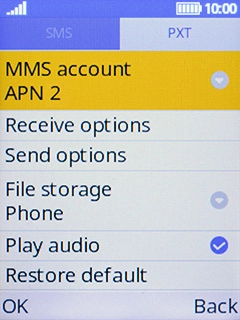

Select the required data connection.

Step 31 of 31

Return to the home screen

Press On/Off to return to the home screen.

1 Find "Network account"

Press the Selection key.

Select Settings.

Select Connections.

Select Network account.

2 Create new data connection

Press the Left selection key.

Select New connection.

Select Name.

Key in Vodafone MMS and press the Left selection key.

3 Enter APN

Select Access point.

Key in live.vodafone.com and press the Left selection key.

4 Select authentication type

Select the field below "Auth type".

Select the required setting.

5 Enter IP address

Select Gateway.

Key in 10.202.002.060 and press the Left selection key.

6 Enter port number

Select Port.

Key in 8080 and press the Left selection key.

7 Enter picture messaging server

Select Set homepage.

Key in http://pxt.vodafone.net.au/pxtsend and press the Left selection key.

8 Select connection type

Select Advanced settings.

Select Network type.

Select HTTP.

9 Save data connection

Press the Left selection key.

10 Return to the home screen

Press On/Off to return to the home screen.

11 Find "MMS account"

Press the Selection key.

Select Message.

Press the Left selection key.

Select Settings.

Select PXT.

Select MMS account.

12 Active data connection

Select the required data connection.

13 Return to the home screen

Press On/Off to return to the home screen.
