1. Find "APNs"
Slide two fingers downwards starting from the top of the screen.
1. Find "APNs"
Press the settings icon.
1. Find "APNs"
Press Network and Internet.
1. Find "APNs"
Press Mobile network.
1. Find "APNs"
Press the name of the SIM.
1. Find "APNs"
Press Advanced.
1. Find "APNs"
Press APNs.
2. Create new data connection
Press the new data connection icon.
3. Enter a name for the connection
Press Name.
3. Enter a name for the connection
Key in Vodafone MMS and press OK.
4. Enter APN
Press APN.
4. Enter APN
Key in live.vodafone.com and press OK.
5. Enter picture messaging server

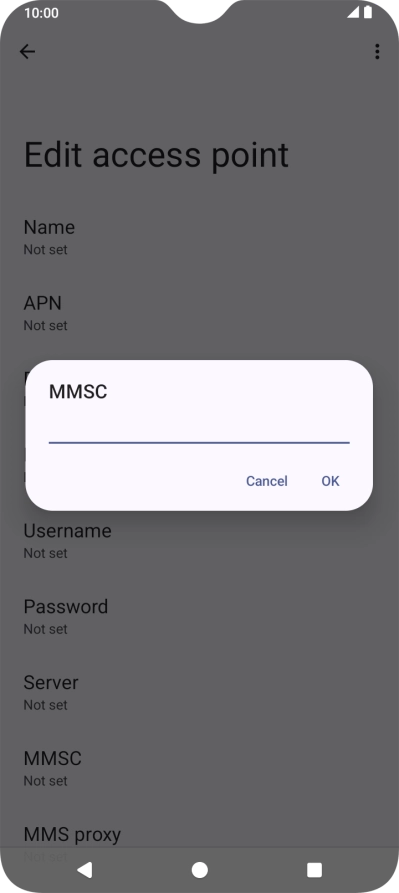

Press MMSC.
5. Enter picture messaging server
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
6. Enter IP address

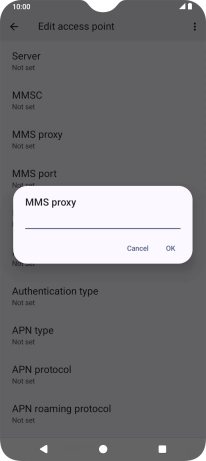

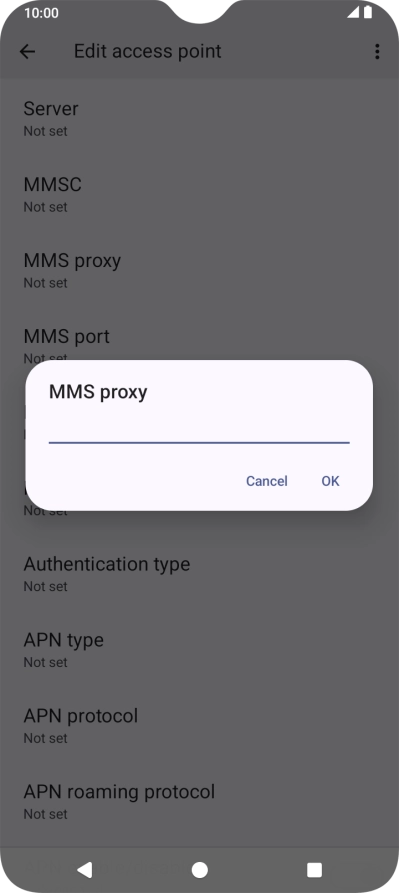

Press MMS proxy.
6. Enter IP address
Key in 10.202.002.060 and press OK.
7. Enter port number

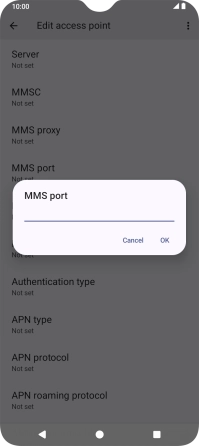

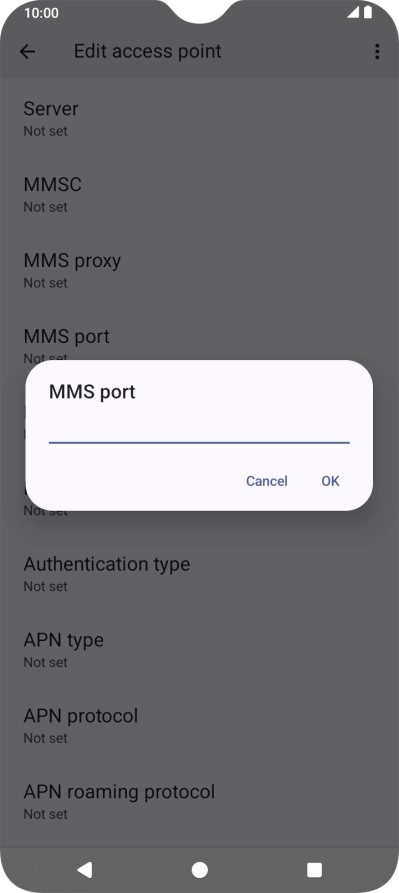

Press MMS port.
7. Enter port number
Key in 8080 and press OK.
8. Enter country code
Press MCC.
8. Enter country code
Key in 505 and press OK.
9. Enter network code
Press MNC.
9. Enter network code
Key in 03 and press OK.
10. Select authentication type
Press Authentication type.
10. Select authentication type
Press PAP.
11. Enter APN type
Press APN type.
11. Enter APN type
Key in mms and press OK.
12. Save data connection
Press the menu icon.
12. Save data connection
Press Save.
13. Return to the home screen
Press the Home key to return to the home screen.
