1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-32cc8eec-6445-4e8f-8b47-bd4d3dda1913.png?width=216&height=386)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-eaee2628-3f3b-4a73-8d68-4905dc65756f.png?width=216&height=386)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0396dc38-5cf4-4528-9a6a-ec776cae8d27.png?width=216&height=386)

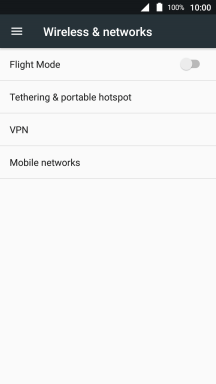

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d9329edc-d631-4ef1-889d-15b2248b72d9.png?width=216&height=386)

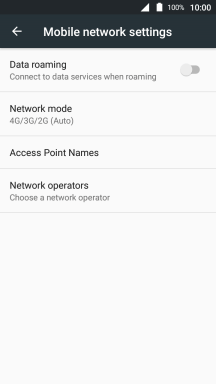

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-614479bb-f72d-40e2-a0dc-0002c5acc027.png?width=216&height=386)
2. Create new data connection

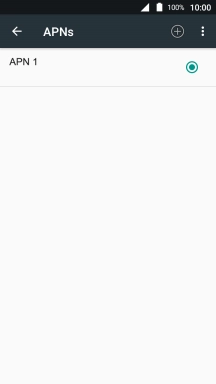

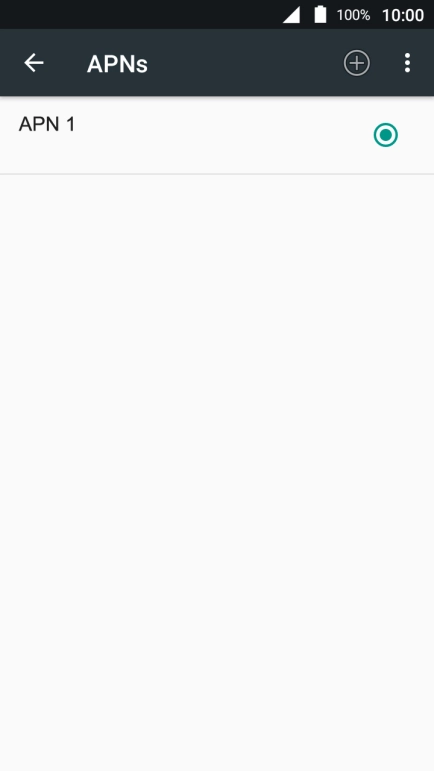

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8c6242c6-981e-454a-a37e-9deaea9f5908.png?width=216&height=386)

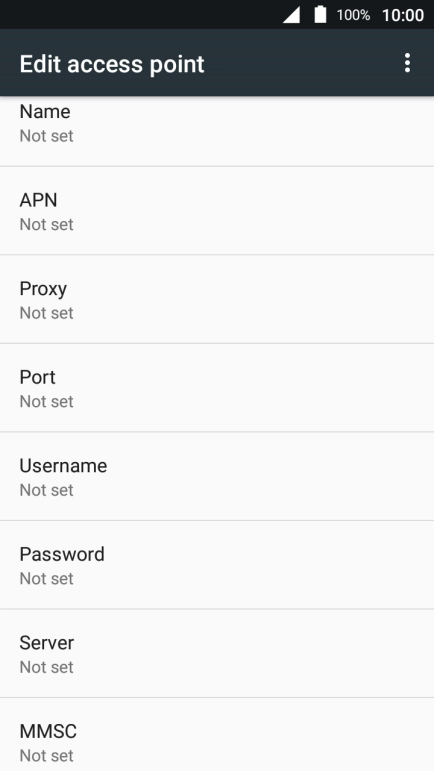

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b28b471d-d360-43c8-afa9-6f4d8f37d67a.png?width=216&height=386)

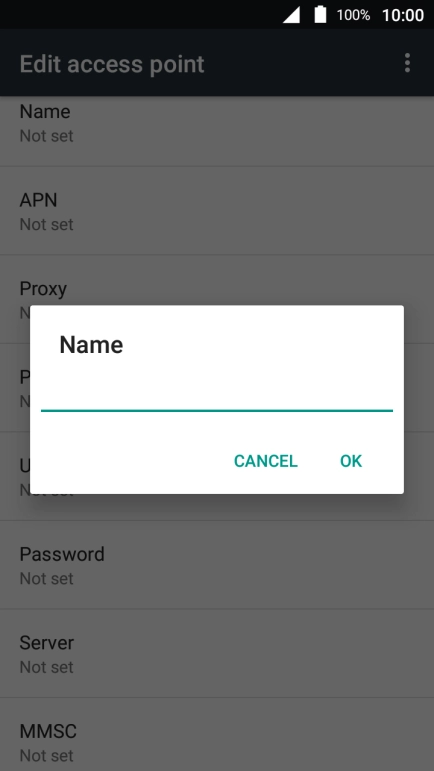

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-297a8464-1497-40bf-af9d-6c89063b4c67.png?width=216&height=386)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b28b471d-d360-43c8-afa9-6f4d8f37d67a.png?width=216&height=386)

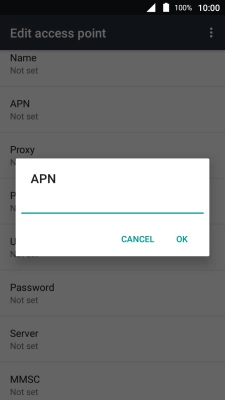

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5ffefc14-a78b-43df-8755-6724b9c76996.png?width=216&height=386)
live.vodafone.com
4. Enter country code

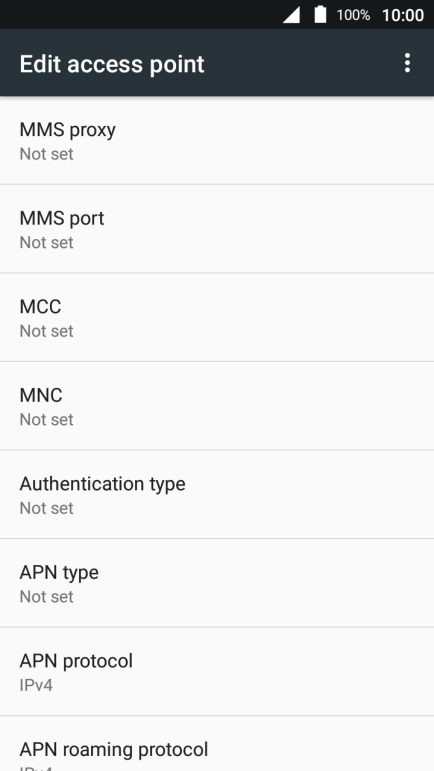

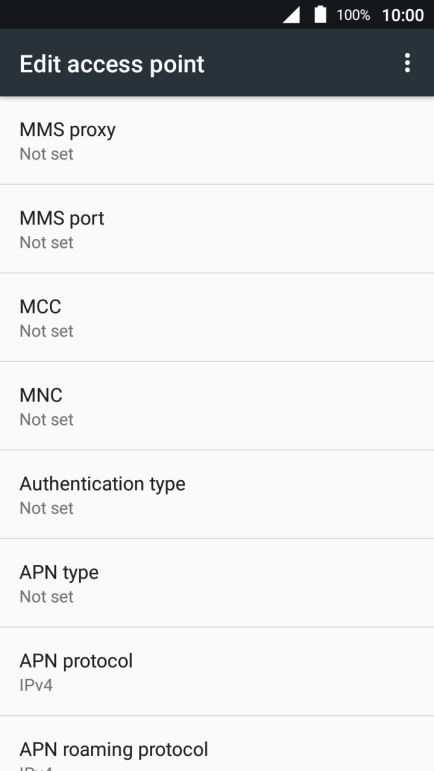

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

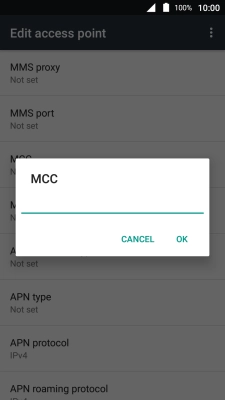

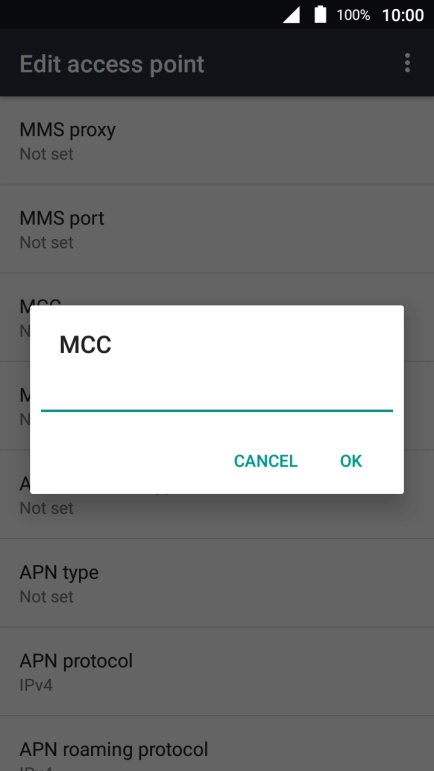

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7f715698-29ec-487b-90dd-eb1838a14e7d.png?width=216&height=386)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

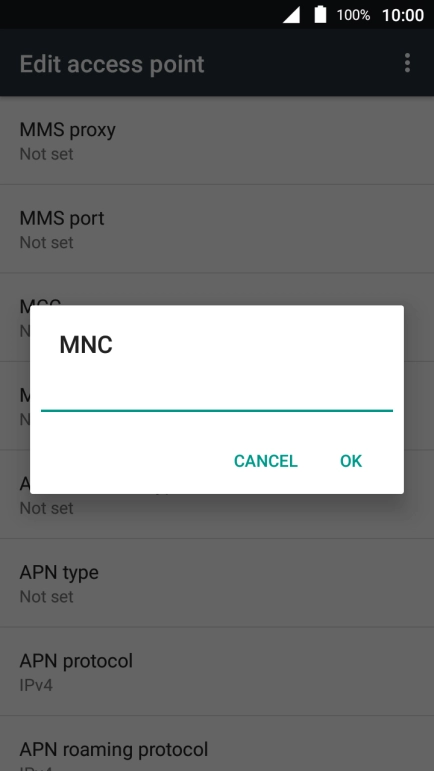

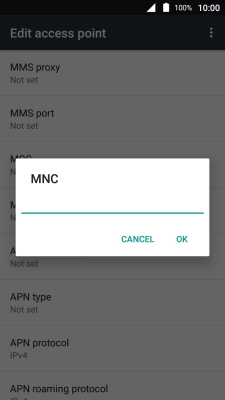

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5a5f0796-6111-4613-9a65-8ccbc15a57af.png?width=216&height=386)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

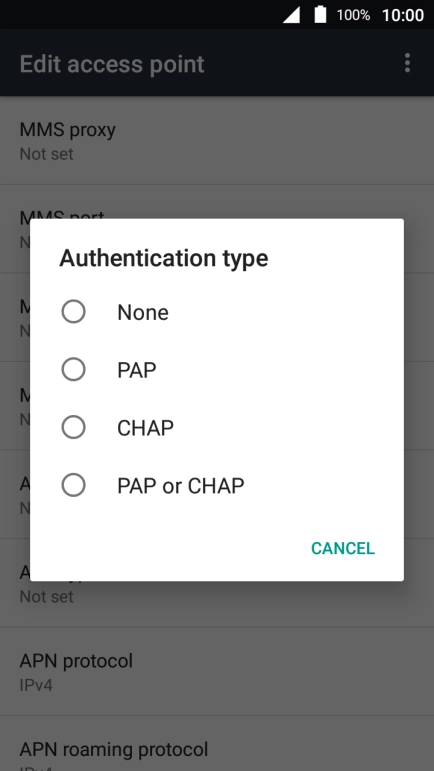

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-166e5d63-d0a8-4ad8-9159-6d389ce073da.png?width=216&height=386)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

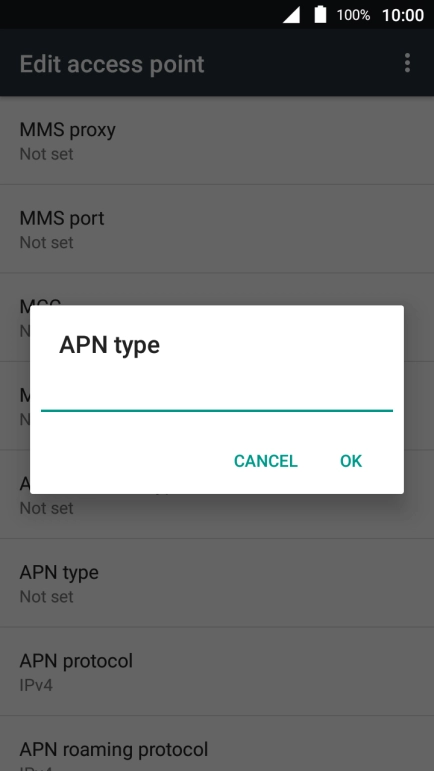

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-76114844-5723-4c32-b93e-12a9ec74c100.png?width=216&height=386)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3270445b-564d-43b7-97c8-17f90f56118c.png?width=216&height=386)

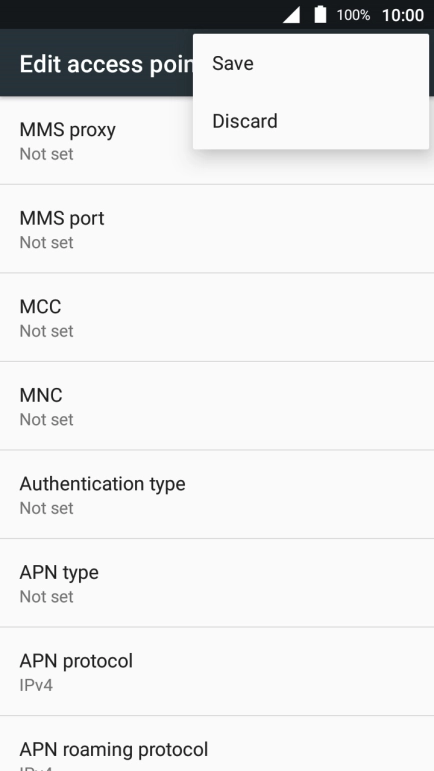

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-643b43c9-113b-48ba-9665-2f5cb3145cbb.png?width=216&height=386)

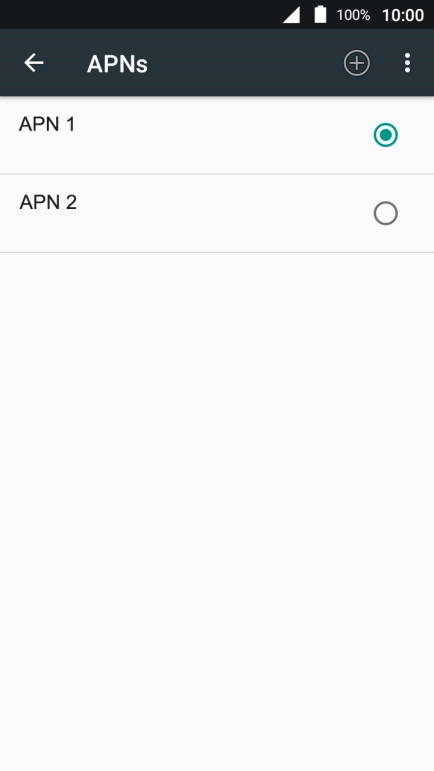

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6b957f3f-73b6-43cb-92ab-963007fe610c.png?width=216&height=386)
9. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7d877127-4808-497c-9de2-869bd70be60b.png?width=216&height=386)
