Guide to phone keys and sockets - Apple iPhone 4S (iOS7)

Read help info

The list below shows you what the different keys and sockets on your phone are used for.

Step 1 of 16

On/Off

Several functions are associated with On/Off:

Step 2 of 16

On/Off

Press On/Off to turn your phone on or off.

Step 3 of 16

On/Off

Press On/Off to turn on the screen lock.

Step 4 of 16

On/Off

To reject an incoming call, press On/Off twice.

Step 5 of 16

The Home key

Several functions are associated with The Home key:

Step 6 of 16

The Home key

Press the Home key to return to the home screen.

Step 7 of 16

The Home key

Press the Home key twice to see a list of active applications.

Step 8 of 16

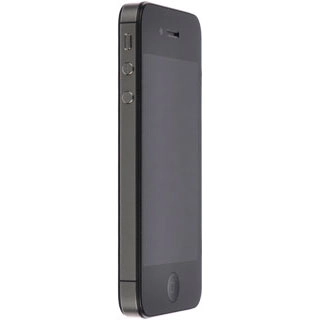

The Silent mode key

Slide the Silent mode key right or left to turn silent mode on or off.

Step 9 of 16

The Volume keys

Several functions are associated with The Volume keys:

Step 10 of 16

The Volume keys

Press the Top volume key or the Bottom volume key to adjust the ring volume.

Step 11 of 16

The Volume keys

Press the Top volume key or the Bottom volume key during a call to adjust the volume.

Step 12 of 16

The Volume keys

Press the Top volume key or the Bottom volume key to silence the incoming call alert.

Step 13 of 16

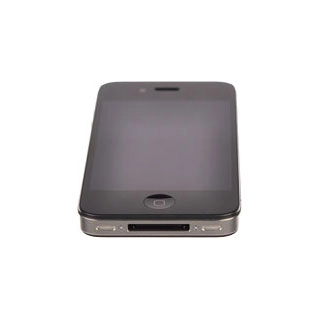

Socket

Connect the charger or data cable to the socket and to a wall socket or your computer's USB port.

Step 14 of 16

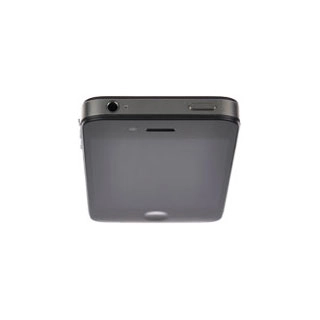

Headset socket

Connect the headset to the headset socket.

Step 15 of 16

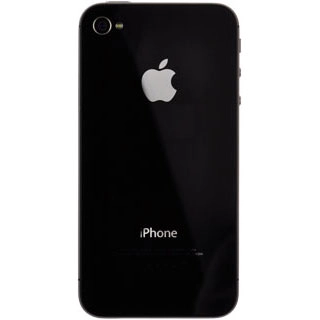

Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

Step 16 of 16

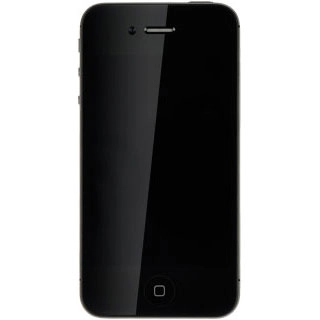

Camera lens at the front of your phone

Point the camera lens at the front of your phone at the required object during a video call.

On/Off

Several functions are associated with On/Off:
Press On/Off to turn your phone on or off.
Press On/Off to turn on the screen lock.
To reject an incoming call, press On/Off twice.

The Home key

Several functions are associated with The Home key:
Press the Home key to return to the home screen.
Press the Home key twice to see a list of active applications.

The Silent mode key

Slide the Silent mode key right or left to turn silent mode on or off.

The Volume keys

Several functions are associated with The Volume keys:
Press the Top volume key or the Bottom volume key to adjust the ring volume.
Press the Top volume key or the Bottom volume key during a call to adjust the volume.
Press the Top volume key or the Bottom volume key to silence the incoming call alert.

Socket

Connect the charger or data cable to the socket and to a wall socket or your computer's USB port.

Headset socket

Connect the headset to the headset socket.

Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

Camera lens at the front of your phone

Point the camera lens at the front of your phone at the required object during a video call.
