1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Network and Internet.
1. Find "Access point names"
Press SIMs.
1. Find "Access point names"
Press the name of the SIM.
1. Find "Access point names"

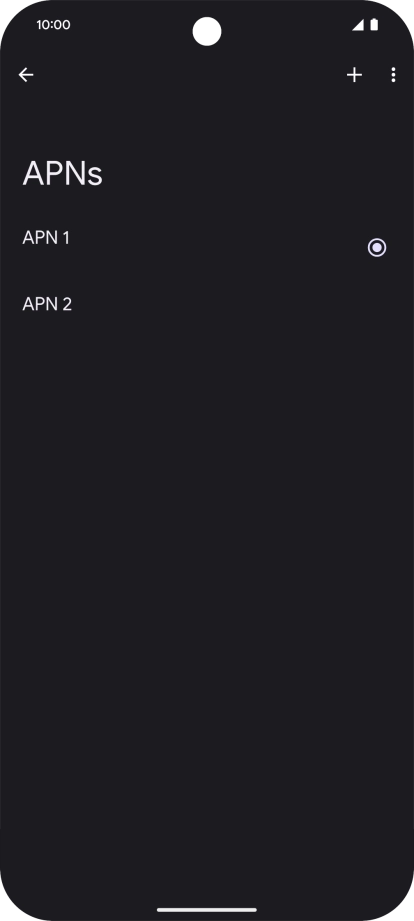

Press Access point names.
2. Create new data connection

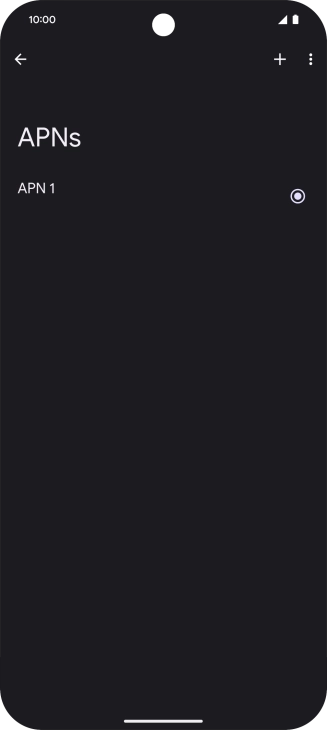

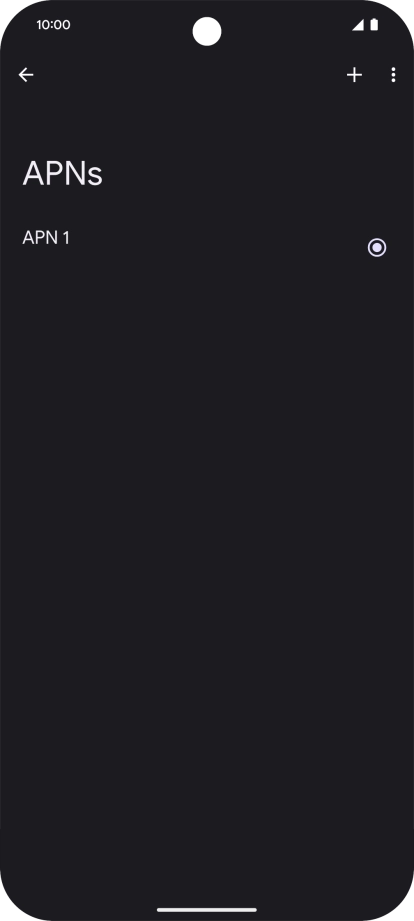

Press the add icon.
2. Create new data connection

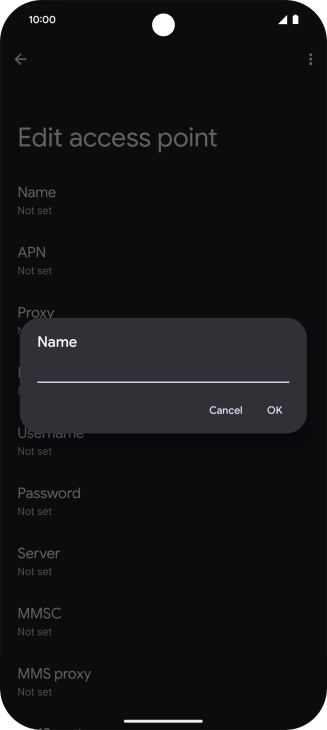

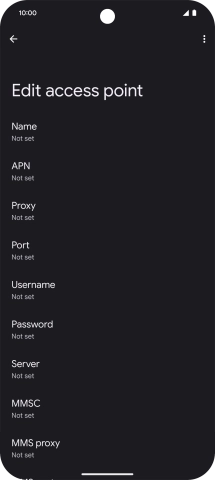

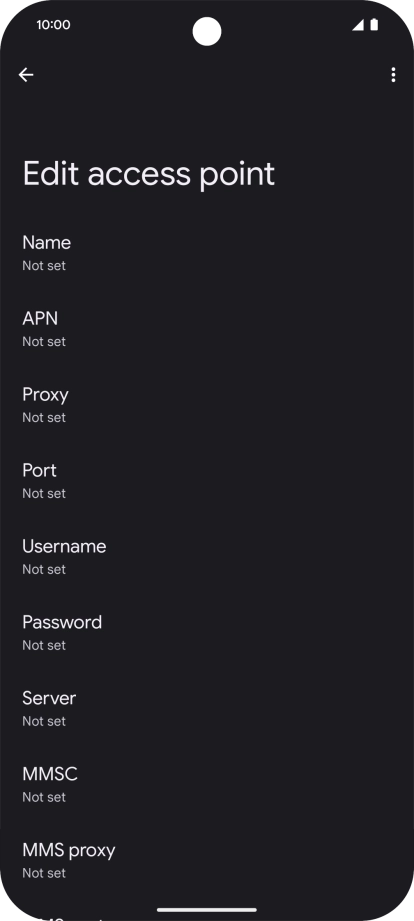

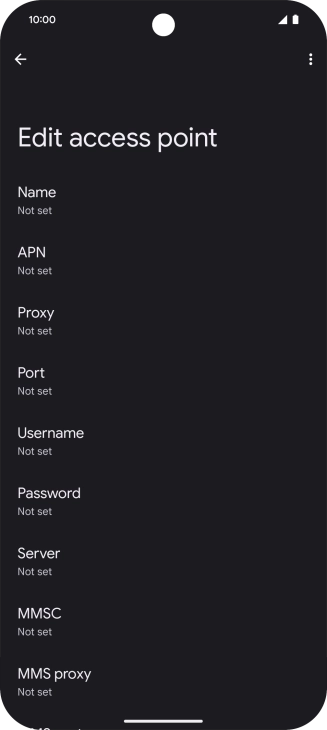

Press Name.

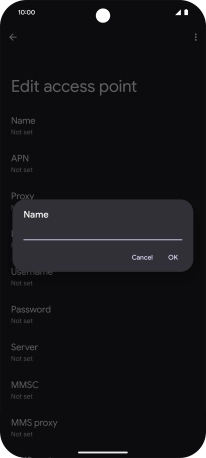

2. Create new data connection
Key in Vodafone MMS and press OK.
3. Enter APN
Press APN.
3. Enter APN

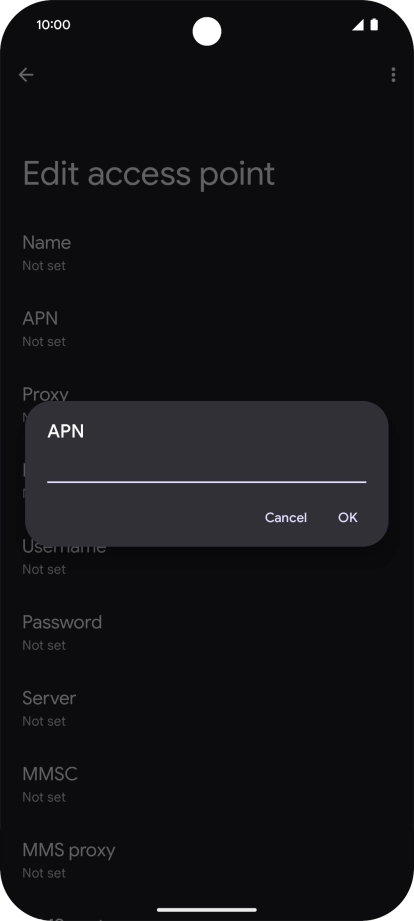

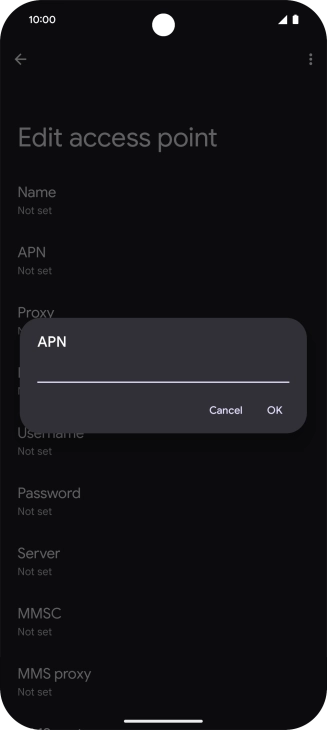

Key in live.vodafone.com and press OK.
4. Enter picture messaging server

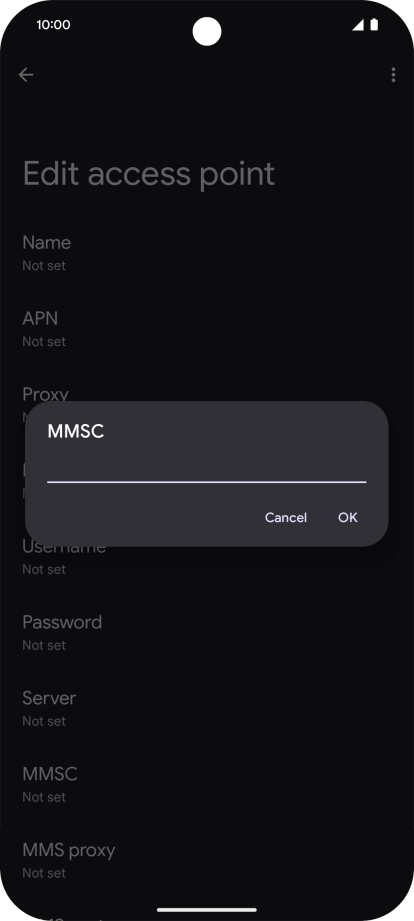

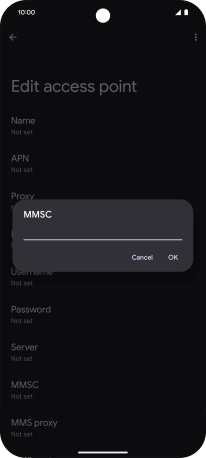

Press MMSC.
4. Enter picture messaging server
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
5. Enter IP address

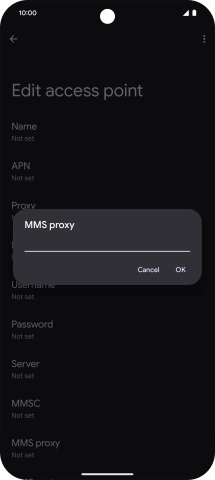

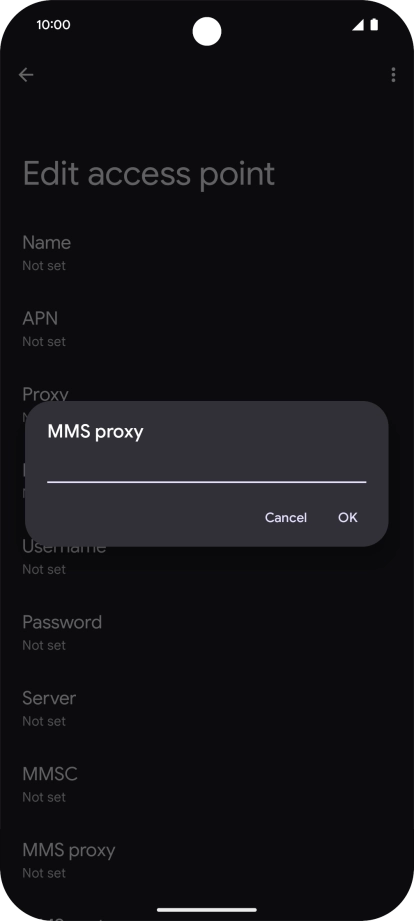

Press MMS proxy.
5. Enter IP address
Key in 10.202.002.060 and press OK.
6. Enter port number

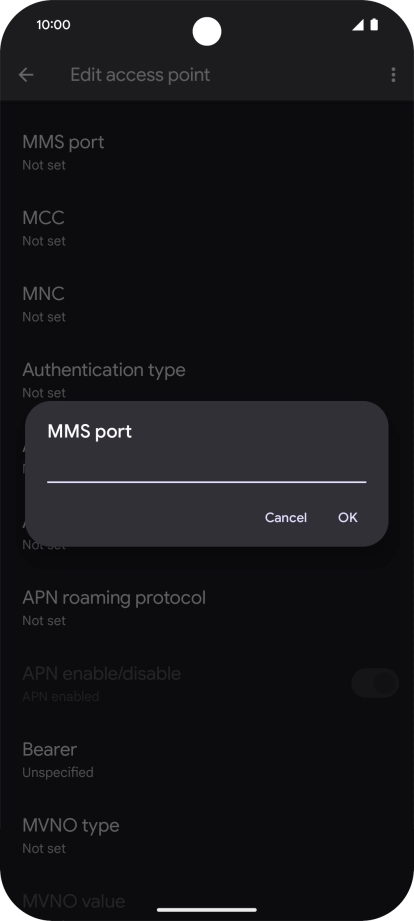

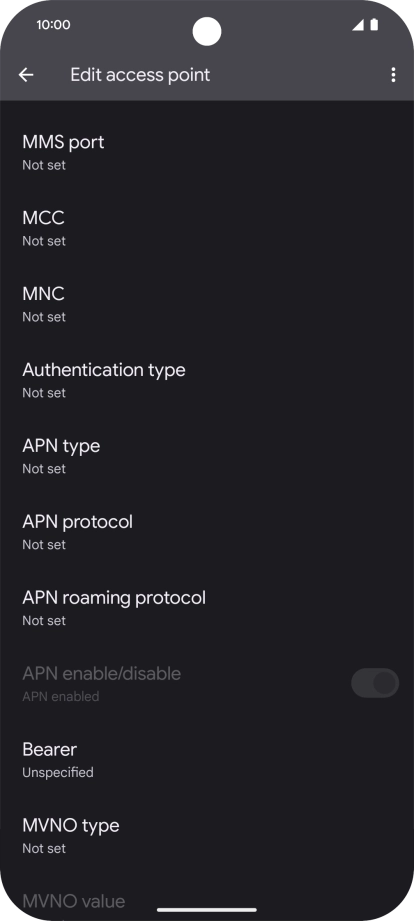

Press MMS port.
6. Enter port number
Key in 8080 and press OK.
7. Enter country code
Press MCC.

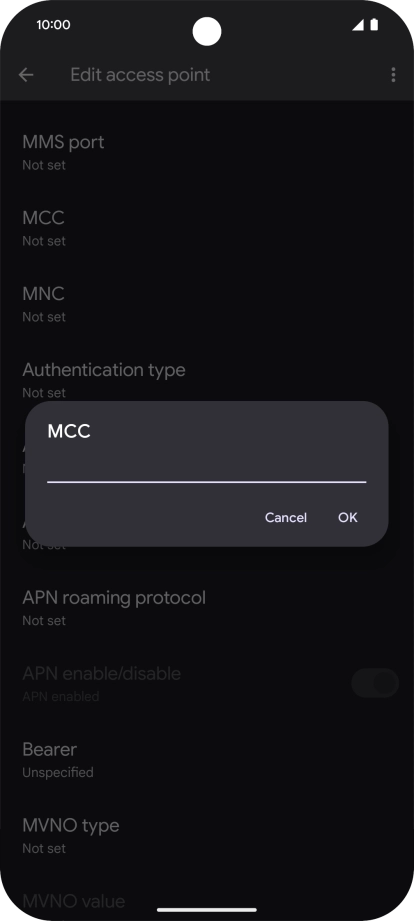

7. Enter country code
Key in 505 and press OK.

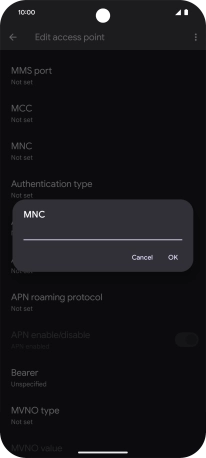

8. Enter network code

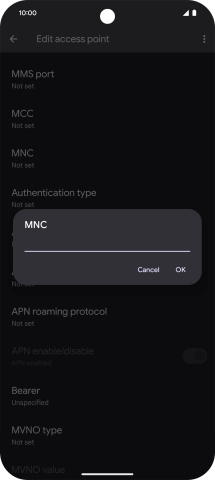

Press MNC.

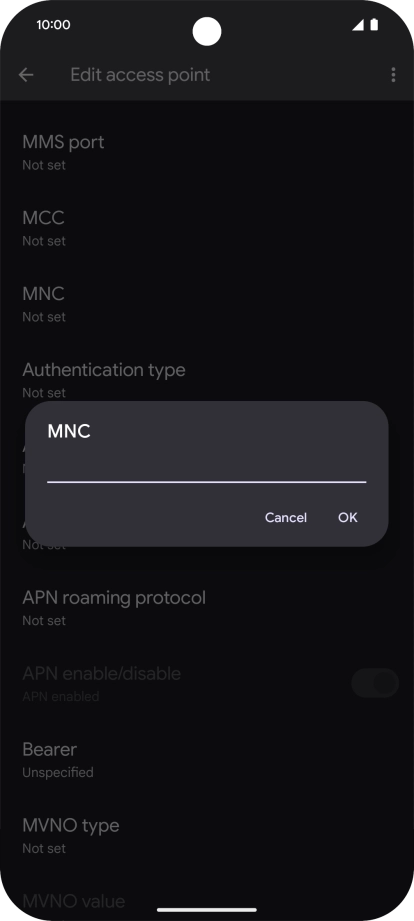

8. Enter network code
Key in 03 and press OK.
9. Select authentication type
Press Authentication type.
9. Select authentication type

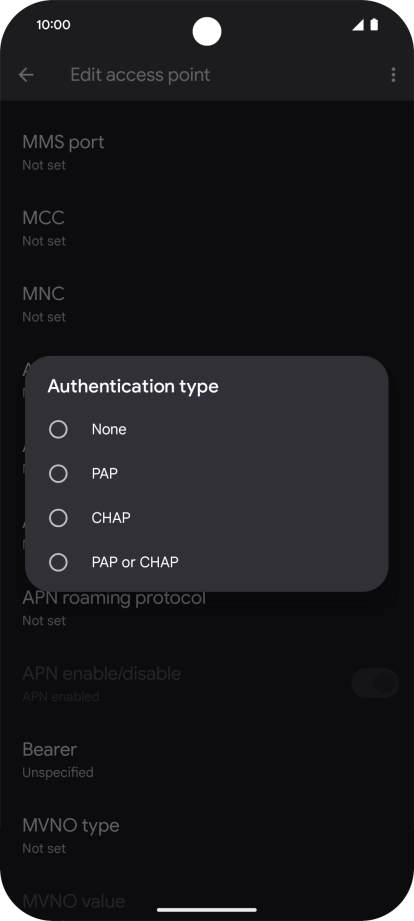

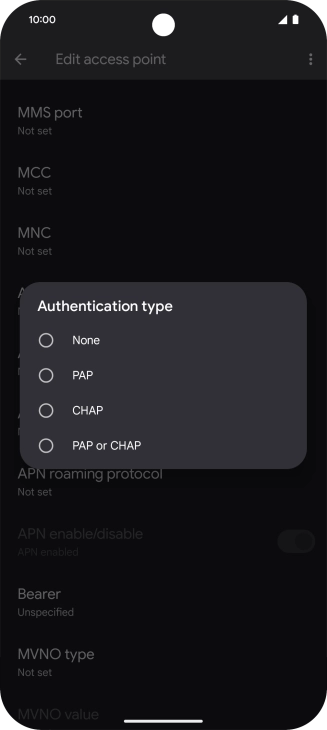

Press PAP.
10. Enter APN type
Press APN type.
10. Enter APN type

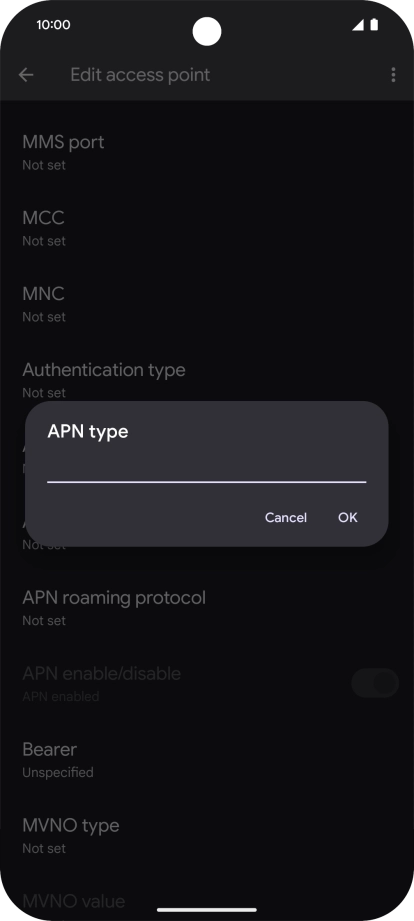

Key in mms and press OK.
11. Save data connection
Press the menu icon.

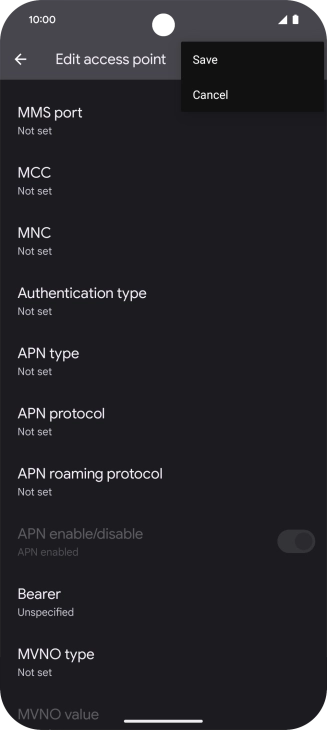

11. Save data connection

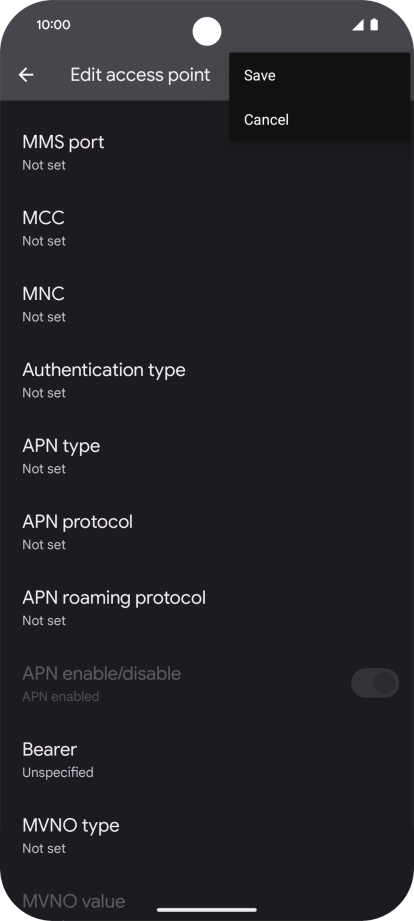

Press Save.
12. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
