Set up your phone for POP3 email - HTC 7 Trophy

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

To send and receive email messages, you need an internet connection. Your phone automatically receives the necessary settings to connect to the internet. If it's not possible, you can set up your phone manually. Click here for information on how to set up your phone for internet.

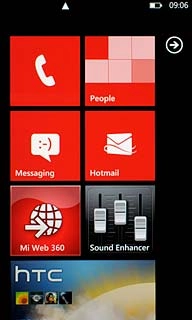

Step 1 of 27

Find "email & accounts"

Press arrow right to access the main menu.

Step 2 of 27

Find "email & accounts"

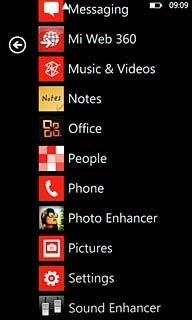

Press Settings.

Step 3 of 27

Find "email & accounts"

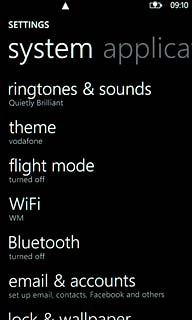

Press email & accounts.

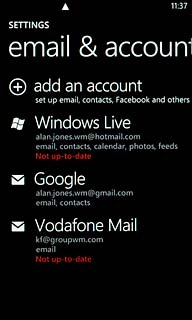

Step 4 of 27

Create new email account

Press add an account.

Step 5 of 27

Create new email account

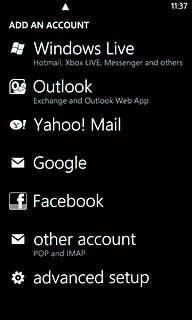

Press advanced setup.

Step 6 of 27

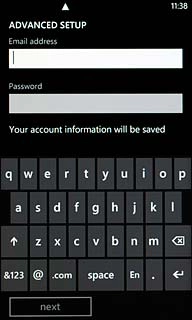

Enter email address

Press the field below Email address and key in your email address.

Step 7 of 27

Enter password

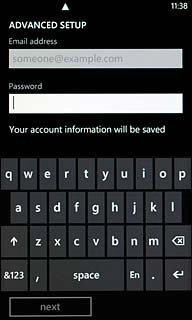

Press the field below Password and key in the password for your email account at your email provider.

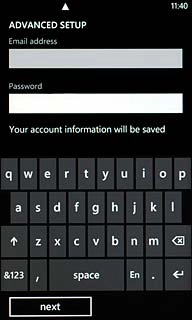

Step 8 of 27

Enter password

Press next.

Step 9 of 27

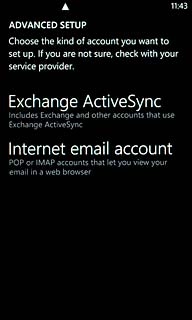

Select account type

Press Internet email account.

Step 10 of 27

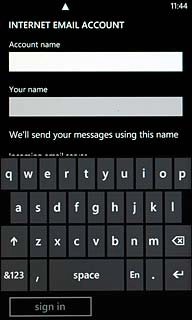

Enter name

Press the field below Account name and key in Vodafone Mail

Step 11 of 27

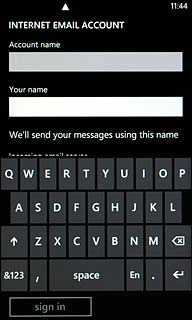

Enter sender name

Press the field below Your name and key in the name you want to use as sender in your email messages.

Step 12 of 27

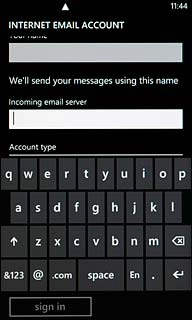

Enter incoming server

Press the field below Incoming email server and key in the name or IP address of your email provider's incoming server.

Step 13 of 27

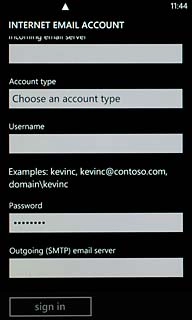

Select server type

Press Choose an account type.

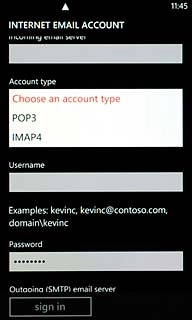

Step 14 of 27

Select server type

Press POP3.

Step 15 of 27

Enter username

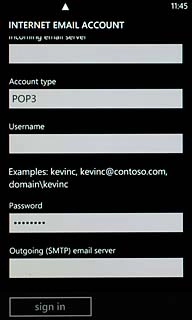

Press the field below Username and key in the username for your email account at your email provider.

Step 16 of 27

Enter outgoing server

Press the field below Outgoing (SMTP) email server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 17 of 27

Turn SMTP authentication on or off

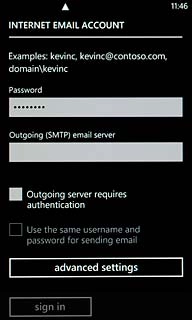

Press Outgoing server requires authentication to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

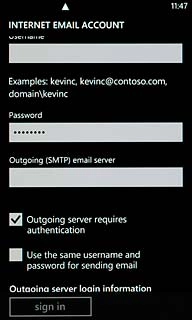

Step 18 of 27

Turn on use of the same username and password

Press Use the same username and password for sending email.

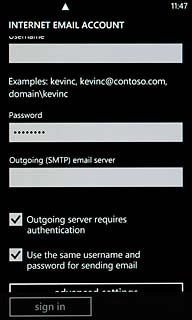

Step 19 of 27

Turn on use of the same username and password

When the box next to the menu item is ticked (V), the function is turned on.

Step 20 of 27

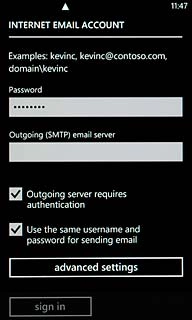

Edit advanced settings

Press advanced settings.

Step 21 of 27

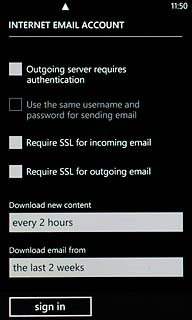

Turn off SSL encryption

Press Require SSL for incoming email and Require SSL for outgoing email to turn off the function.
When the box next to the menu item is empty, the function is turned off.

Step 22 of 27

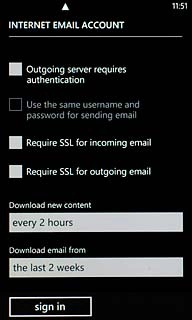

Select setting for retrieving new email messages

Press the field below Download new content.

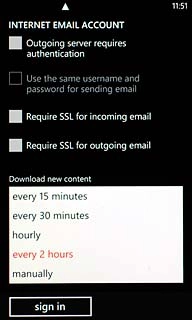

Step 23 of 27

Select setting for retrieving new email messages

Press the required period or manually.

Step 24 of 27

Select time for retrieving email messages

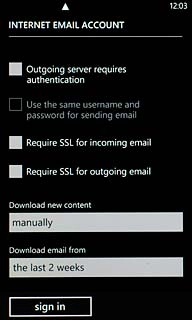

Press the field below Download email from.

Step 25 of 27

Select time for retrieving email messages

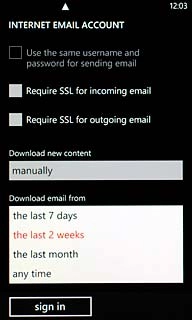

Press the required period or any time.

Step 26 of 27

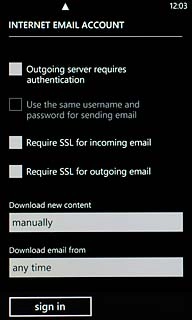

Finish setup

Press sign in.

Step 27 of 27

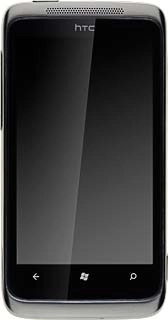

Exit

Press the Home key to return to standby mode.

Find "email & accounts"

Press arrow right to access the main menu.
Press Settings.
Press email & accounts.

Create new email account

Press add an account.
Press advanced setup.

Enter email address

Press the field below Email address and key in your email address.

Enter password

Press the field below Password and key in the password for your email account at your email provider.
Press next.

Select account type

Press Internet email account.

Enter name

Press the field below Account name and key in Vodafone Mail

Enter sender name

Press the field below Your name and key in the name you want to use as sender in your email messages.

Enter incoming server

Press the field below Incoming email server and key in the name or IP address of your email provider's incoming server.

Select server type

Press Choose an account type.
Press POP3.

Enter username

Press the field below Username and key in the username for your email account at your email provider.

Enter outgoing server

Press the field below Outgoing (SMTP) email server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Turn SMTP authentication on or off

Press Outgoing server requires authentication to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

Turn on use of the same username and password

Press Use the same username and password for sending email.
When the box next to the menu item is ticked (V), the function is turned on.

Edit advanced settings

Press advanced settings.

Turn off SSL encryption

Press Require SSL for incoming email and Require SSL for outgoing email to turn off the function.
When the box next to the menu item is empty, the function is turned off.

Select setting for retrieving new email messages

Press the field below Download new content.
Press the required period or manually.

Select time for retrieving email messages

Press the field below Download email from.
Press the required period or any time.

Finish setup

Press sign in.

Exit

Press the Home key to return to standby mode.
