Set up your phone for Exchange email - HTC ChaCha

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 45

Find "Access Point Names"

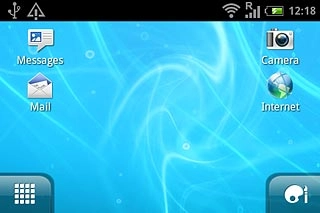

Press the menu icon.

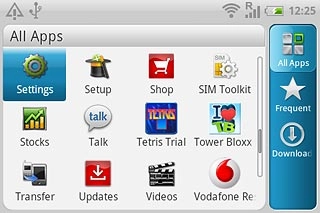

Step 2 of 45

Find "Access Point Names"

Press Settings.

Step 3 of 45

Find "Access Point Names"

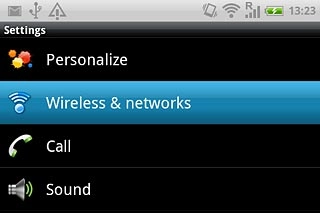

Press Wireless & networks.

Step 4 of 45

Find "Access Point Names"

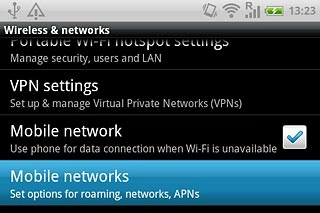

Press Mobile networks.

Step 5 of 45

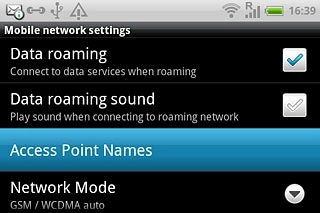

Find "Access Point Names"

Press Access Point Names.

Step 6 of 45

Create new data connection

Press the Menu key.

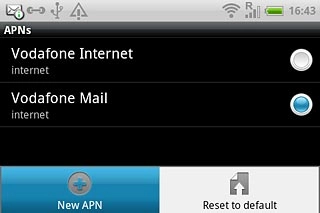

Step 7 of 45

Create new data connection

Press New APN.

Step 8 of 45

Enter data connection name

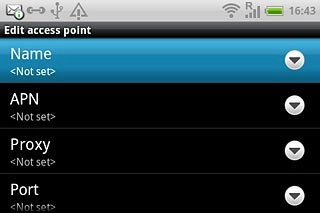

Press Name.

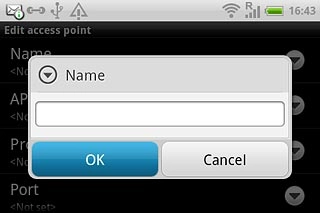

Step 9 of 45

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 45

Enter APN

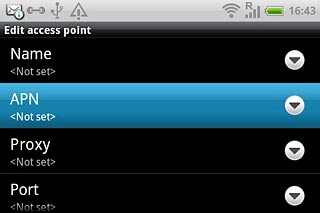

Press APN.

Step 11 of 45

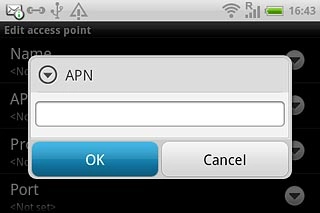

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 45

Enter country code

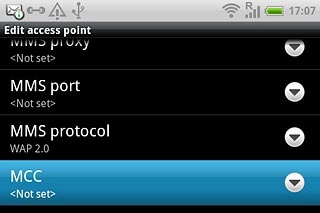

Press MCC.

Step 13 of 45

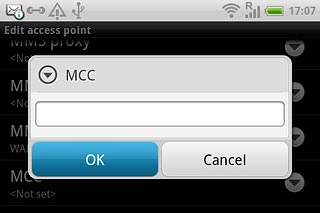

Enter country code

Key in 505 and press OK.

Step 14 of 45

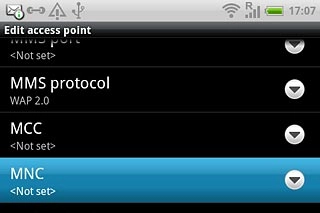

Enter network code

Press MNC.

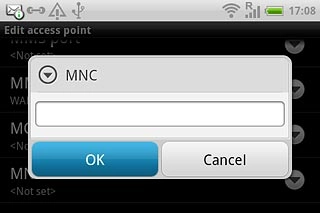

Step 15 of 45

Enter network code

Key in 03 and press OK.

Step 16 of 45

Select authentication

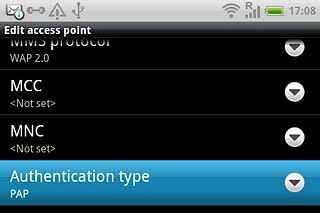

Press Authentication type.

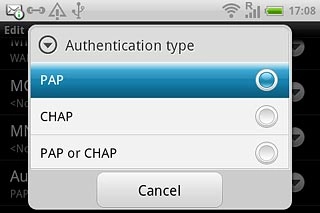

Step 17 of 45

Select authentication

Press PAP.

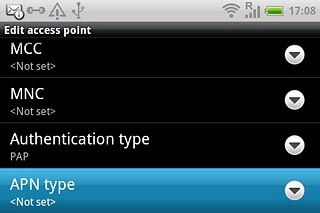

Step 18 of 45

Enter APN type

Press APN type.

Step 19 of 45

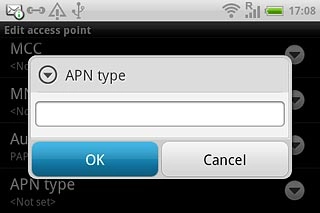

Enter APN type

Key in default and press OK.

Step 20 of 45

Save and activate data connection

Press the Menu key.

Step 21 of 45

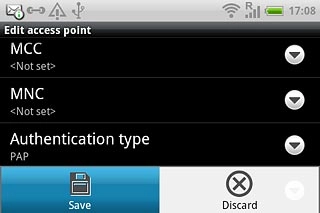

Save and activate data connection

Press Save.

Step 22 of 45

Save and activate data connection

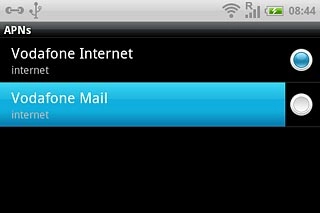

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 45

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 45

Find "Mail"

Press the menu icon.

Step 25 of 45

Find "Mail"

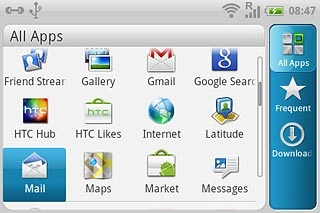

Press Mail.

Step 26 of 45

Create new email account

If email accounts have been created already:
Press the Menu key.

Step 27 of 45

Create new email account

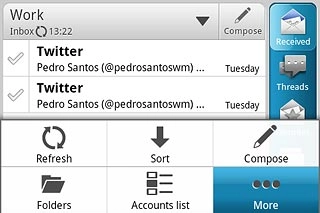

Press More.

Step 28 of 45

Create new email account

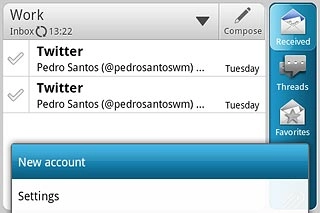

Press New account.

Step 29 of 45

Create new email account

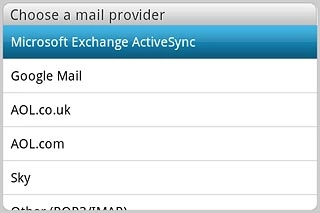

Press Microsoft Exchange ActiveSync.

Step 30 of 45

Enter email address

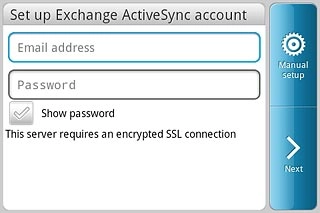

Press Email address and key in your email address.

Step 31 of 45

Enter password

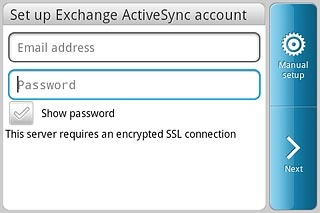

Press Password and key in your password.

Step 32 of 45

Enter password

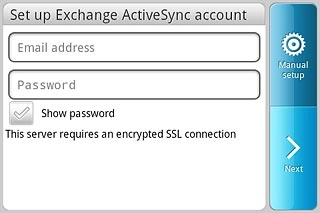

Press Next.

Step 33 of 45

Enter server address

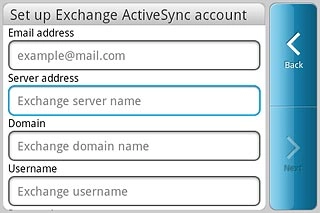

Press the field below Server address and key in the server address.

Step 34 of 45

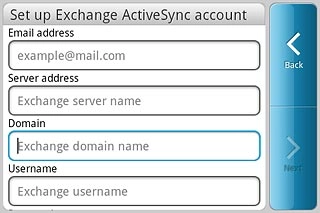

Enter domain

Press the field below Domain and key in the domain.

Step 35 of 45

Enter username

Press the field below Username and key in the username.

Step 36 of 45

Turn SSL encryption on or off

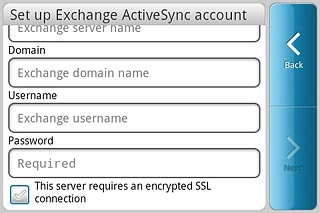

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.

Step 37 of 45

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 38 of 45

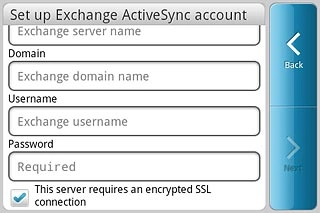

Turn SSL encryption on or off

Press Next.

Step 39 of 45

Select data types

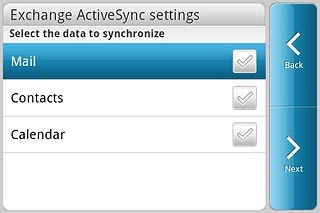

Press Mail, Contacts and Calendar to turn synchronisation on or off.

Step 40 of 45

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

Step 41 of 45

Select data types

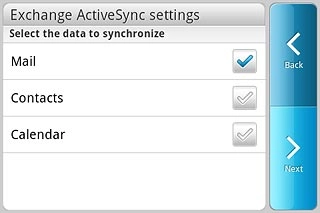

Press Next.

Step 42 of 45

Select setting for retrieval of new email messages

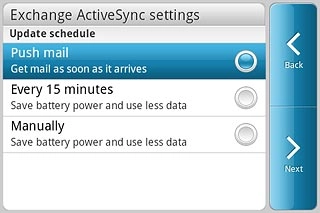

Press Push mail, Every 15 minutes or Manually.

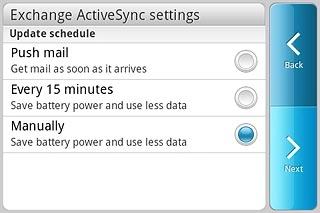

Step 43 of 45

Select setting for retrieval of new email messages

Press Next.
Please note: Each time your phone connects to the server to synchronise, data charges will apply.

Step 44 of 45

Enter email account name

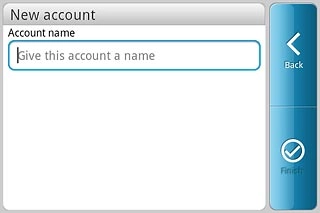

Key in a name for your email account (such as Private or Work).
Press Finish.

Step 45 of 45

Exit

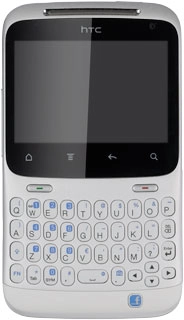

Press the Home key to return to standby mode.
