HTC Desire 530

HTC Desire 530

Android 6.0

Set up your HTC Desire 530 Android 6.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 21

1. Find "Access point names"

Slide your finger downwards starting from the top of the screen.

Step 2 of 21

1. Find "Access point names"

Press the settings icon.

Step 3 of 21

1. Find "Access point names"

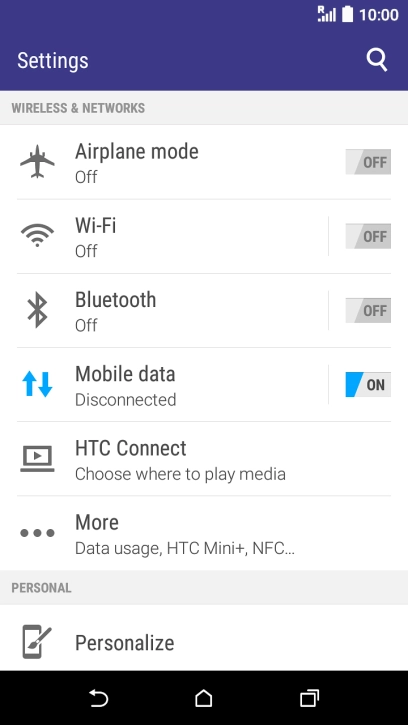

Press Mobile data.

Step 4 of 21

1. Find "Access point names"

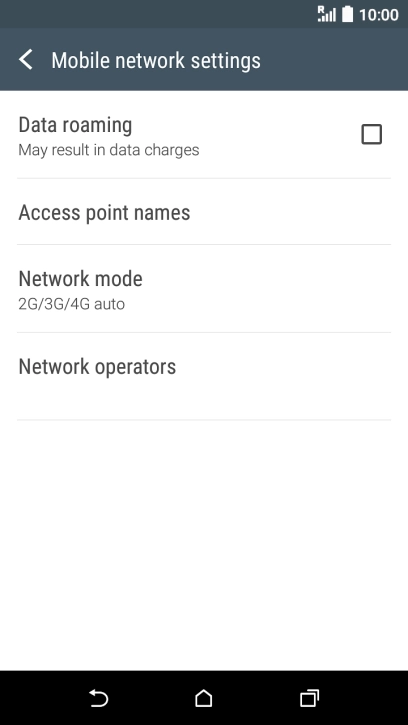

Press Access point names.

Step 5 of 21

2. Create new data connection

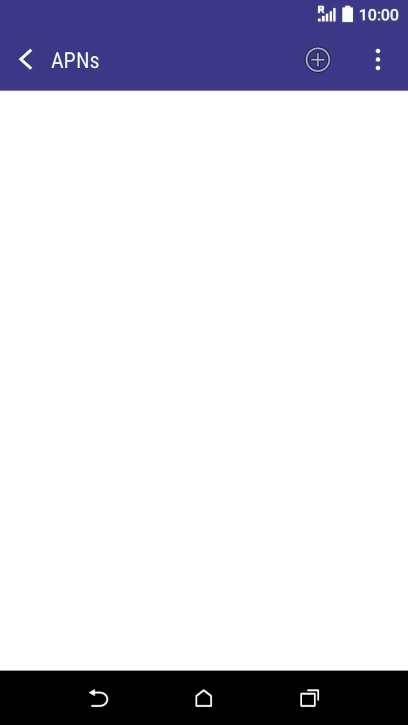

Press the new data connection icon.

Step 6 of 21

2. Create new data connection

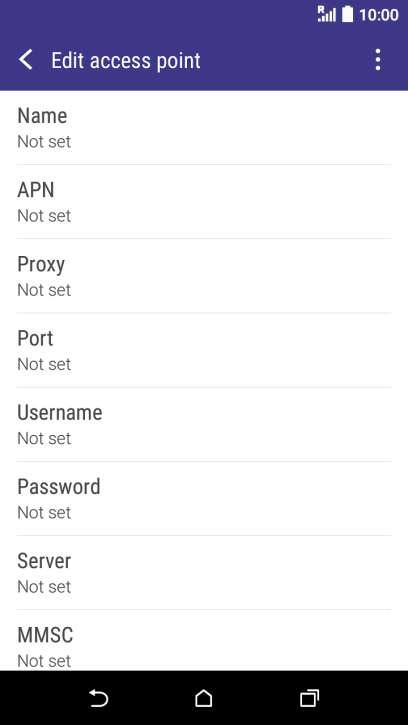

Press Name.

Vodafone Internet
Step 7 of 21

2. Create new data connection

Key in Vodafone Internet and press OK.

Step 8 of 21

3. Enter APN

Press APN.

live.vodafone.com
Step 9 of 21

3. Enter APN

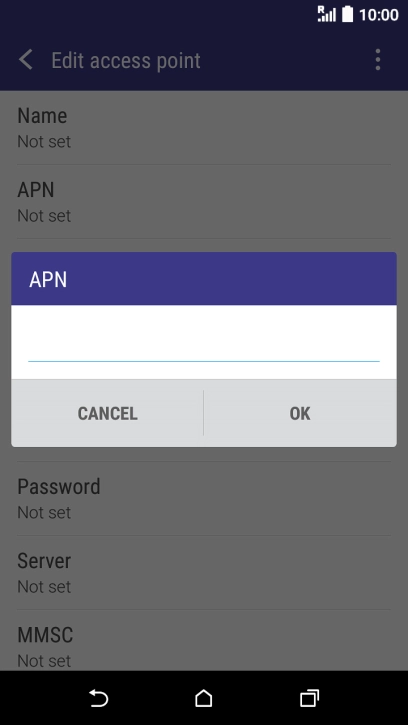

Key in live.vodafone.com and press OK.

Step 10 of 21

4. Enter country code

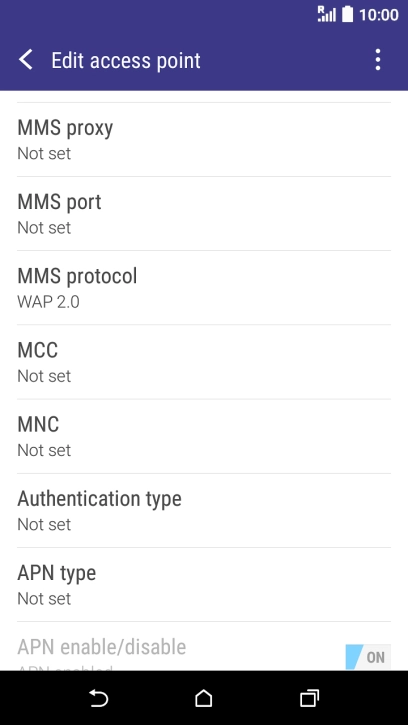

Press MCC.

505
Step 11 of 21

4. Enter country code

Key in 505 and press OK.

Step 12 of 21

5. Enter network code

Press MNC.

03
Step 13 of 21

5. Enter network code

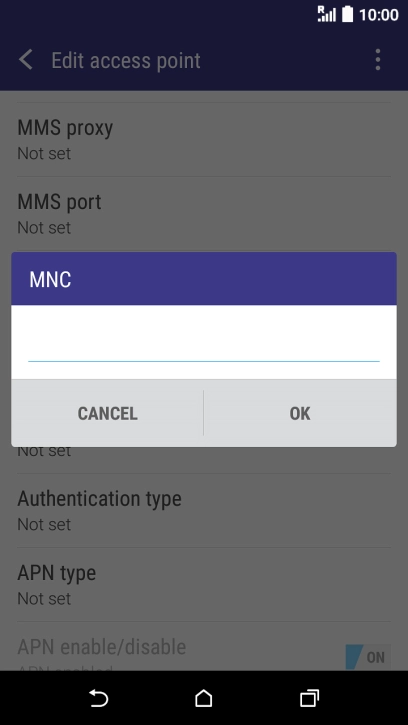

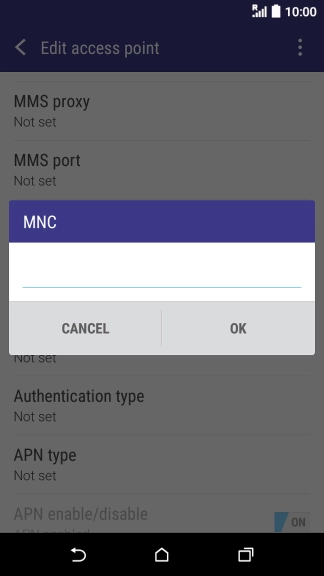

Key in 03 and press OK.

Step 14 of 21

6. Select authentication type

Press Authentication type.

Step 15 of 21

6. Select authentication type

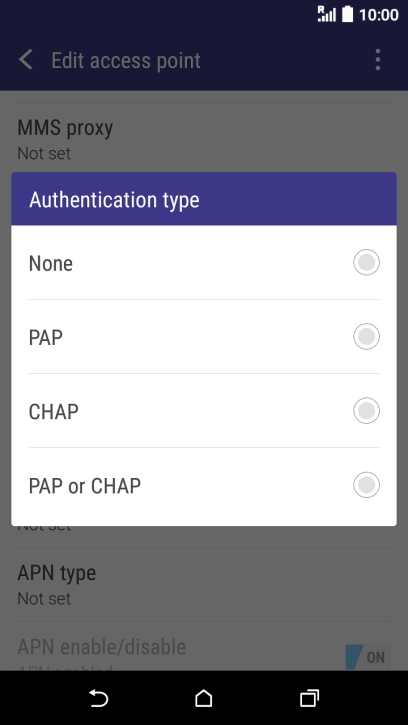

Press PAP.

Step 16 of 21

7. Select APN type

Press APN type.

default
Step 17 of 21

7. Select APN type

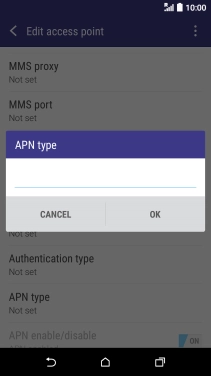

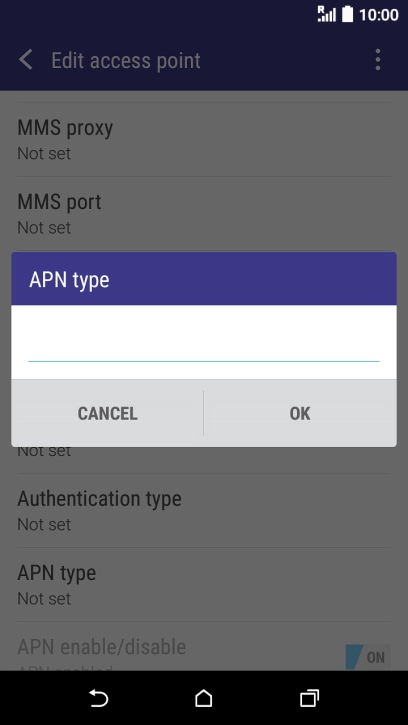

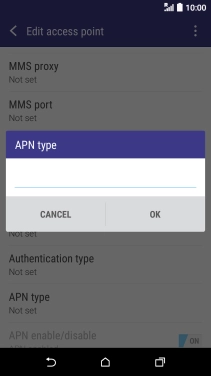

Key in default and press OK.

Step 18 of 21

8. Save data connection

Press the menu icon.

Step 19 of 21

8. Save data connection

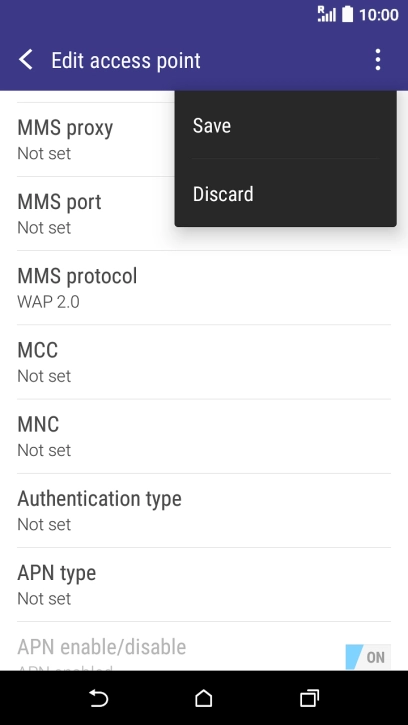

Press Save.

Step 20 of 21

8. Save data connection

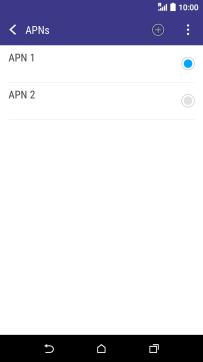

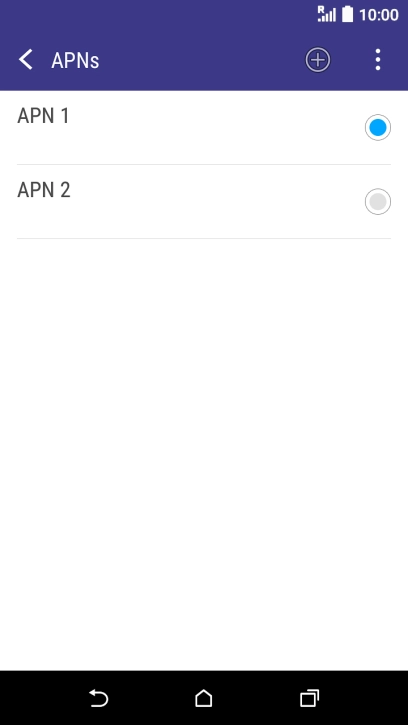

Press the field next to the data connection to activate it.

Step 21 of 21

9. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile data.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Enter country code

Press MCC.
Key in 505 and press OK.
505

5. Enter network code

Press MNC.
Key in 03 and press OK.
03

6. Select authentication type

Press Authentication type.
Press PAP.

7. Select APN type

Press APN type.
Key in default and press OK.
default

8. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

9. Return to the home screen

Press the Home key to return to the home screen.
