Set up your phone for Exchange email - HTC Desire HD

Read help info

Follow these instructions to set up your phone for Exchange email.
You need to set up your phone for internet to use this function. Click here for information on how to set up your phone for internet.

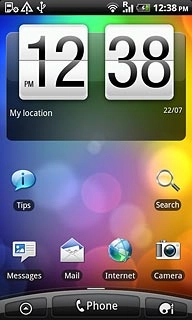

Press arrow up to access the main menu.
Step 1 of 21

Find "Microsoft Exchange ActiveSync"

Press arrow up to access the main menu.

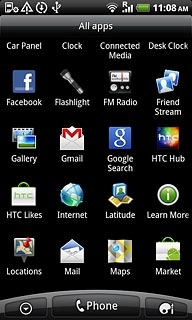

Press Mail.
Step 2 of 21

Find "Microsoft Exchange ActiveSync"

Press Mail.

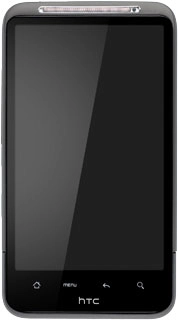

Press the Menu key.
Step 3 of 21

Find "Microsoft Exchange ActiveSync"

Press the Menu key.

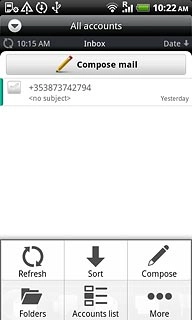

Press More.
Step 4 of 21

Find "Microsoft Exchange ActiveSync"

Press More.

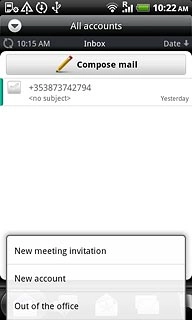

Press New account.
Step 5 of 21

Find "Microsoft Exchange ActiveSync"

Press New account.

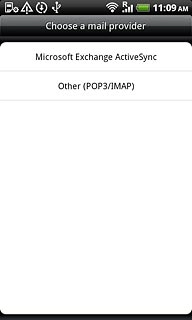

Press Microsoft Exchange ActiveSync.
Step 6 of 21

Find "Microsoft Exchange ActiveSync"

Press Microsoft Exchange ActiveSync.

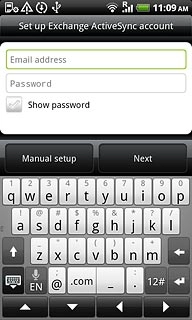

Press Email address and key in your email address.
Step 7 of 21

Enter email address

Press Email address and key in your email address.

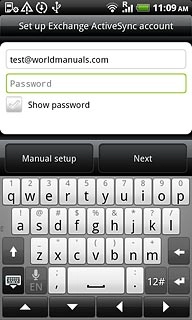

Press Password and key in your password.
Step 8 of 21

Enter password

Press Password and key in your password.

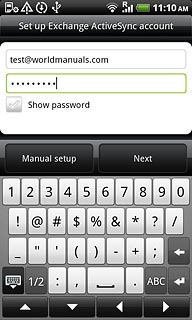

Press Next.
Step 9 of 21

Enter password

Press Next.

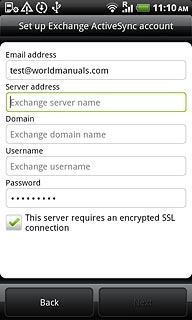

Press the field below Server address and key in the server address.
Step 10 of 21

Enter server address

Press the field below Server address and key in the server address.

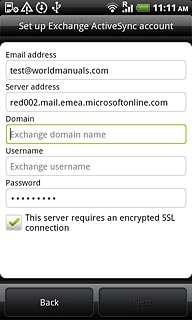

Press the field below Domain and key in the domain.
Step 11 of 21

Enter domain

Press the field below Domain and key in the domain.

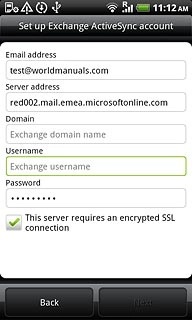

Press the field below Username and key in the username.
Step 12 of 21

Enter username

Press the field below Username and key in the username.

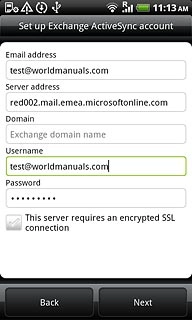

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.
Step 13 of 21

Turn SSL encryption on or off

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.

When the box next to the menu item is ticked (V), the function is turned on.
Step 14 of 21

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Press Next.
Step 15 of 21

Turn SSL encryption on or off

Press Next.

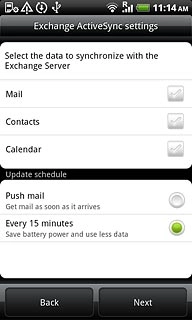

Press Mail, Contacts and Calendar to turn synchronisation on or off.
Step 16 of 21

Select data types

Press Mail, Contacts and Calendar to turn synchronisation on or off.

When the box next to the menu item is ticked (V), synchronisation is turned on.
Step 17 of 21

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

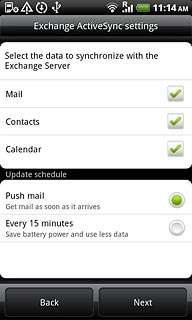

Press Push mail, or Every 15 minutes.
Step 18 of 21

Select settings for retrieval of new email messages

Press Push mail, or Every 15 minutes.

Press Next.
Step 19 of 21

Select settings for retrieval of new email messages

Press Next.

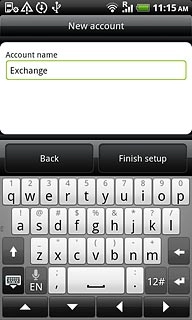

Key in a name for your email account (such as Private or Work).Press Finish setup.
Step 20 of 21

Enter email account name

Key in a name for your email account (such as Private or Work).
Press Finish setup.

Press the Home key to return to standby mode.
Step 21 of 21

Exit

Press the Home key to return to standby mode.

Find "Microsoft Exchange ActiveSync"

Press arrow up to access the main menu.
Press Mail.
Press the Menu key.
Press More.
Press New account.
Press Microsoft Exchange ActiveSync.

Enter email address

Press Email address and key in your email address.

Enter password

Press Password and key in your password.
Press Next.

Enter server address

Press the field below Server address and key in the server address.

Enter domain

Press the field below Domain and key in the domain.

Enter username

Press the field below Username and key in the username.

Turn SSL encryption on or off

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Select data types

Press Mail, Contacts and Calendar to turn synchronisation on or off.
When the box next to the menu item is ticked (V), synchronisation is turned on.

Select settings for retrieval of new email messages

Press Push mail, or Every 15 minutes.
Press Next.

Enter email account name

Key in a name for your email account (such as Private or Work).
Press Finish setup.

Exit

Press the Home key to return to standby mode.
