Set up your phone for Exchange email - HTC Explorer

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 43

Find "Access Point Names"

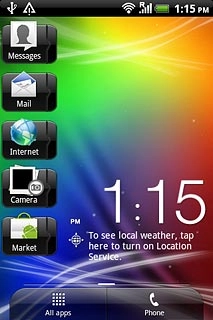

Press All apps to access the main menu.

Step 2 of 43

Find "Access Point Names"

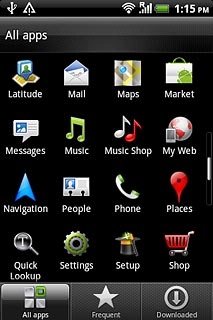

Press Settings.

Step 3 of 43

Find "Access Point Names"

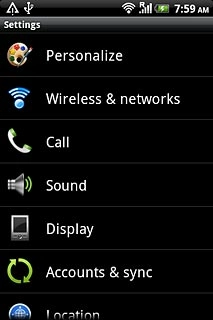

Press Wireless & networks.

Step 4 of 43

Find "Access Point Names"

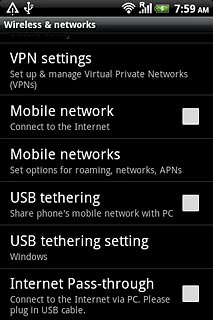

Press Mobile networks.

Step 5 of 43

Find "Access Point Names"

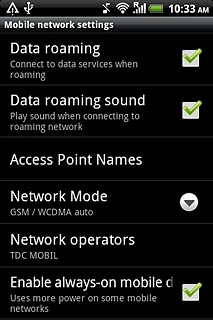

Press Access Point Names.

Step 6 of 43

Create new data connection

Press the Menu key.

Step 7 of 43

Create new data connection

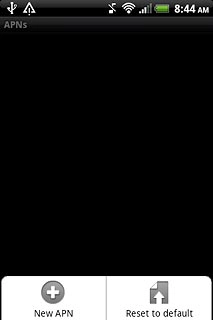

Press New APN.

Step 8 of 43

Enter data connection name

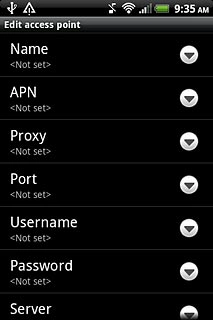

Press Name.

Step 9 of 43

Enter data connection name

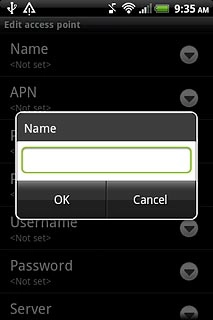

Key in Vodafone Mail and press OK.

Step 10 of 43

Enter APN

Press APN.
Key in live.vodafone.com

An APN (Access Point Name) is used to establish a connection from your phone to the internet.
Step 11 of 43

Enter country code

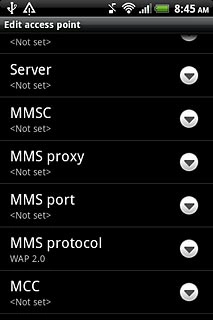

Press MCC.

Step 12 of 43

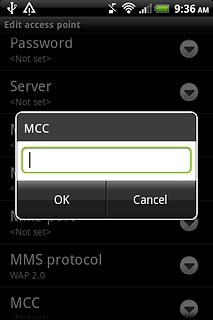

Enter country code

Key in 505 and press OK.

Step 13 of 43

Enter network code

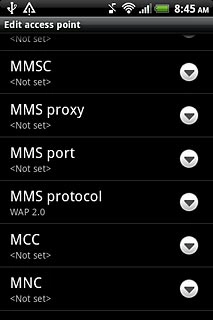

Press MNC.

Step 14 of 43

Enter network code

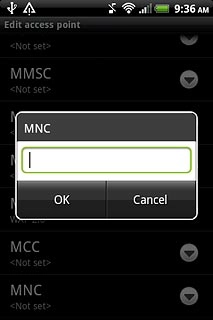

Key in 03 and press OK.

Step 15 of 43

Select authentication

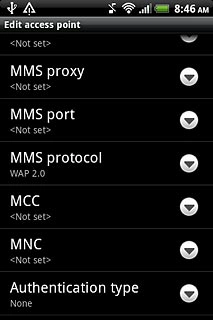

Press Authentication type.

Step 16 of 43

Select authentication

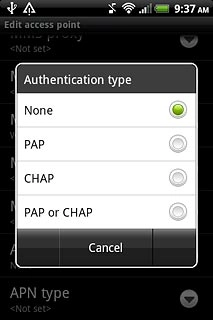

Press PAP.

Step 17 of 43

Select APN type

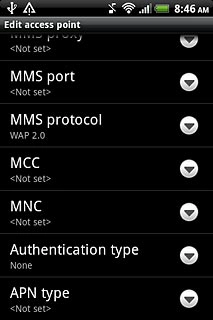

Press APN type.

Step 18 of 43

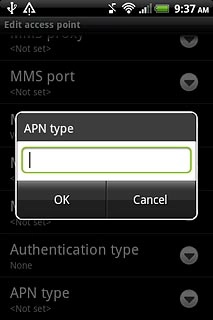

Select APN type

Key in default and press OK.

Step 19 of 43

Save and activate data connection

Press the Menu key.

Step 20 of 43

Save and activate data connection

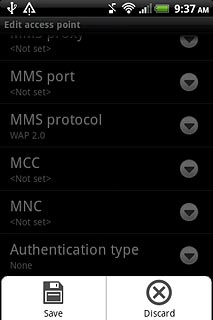

Press Save.

Step 21 of 43

Save and activate data connection

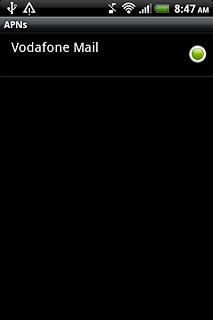

Press the field next to Vodafone Mail to fill in the field.

Step 22 of 43

Save and activate data connection

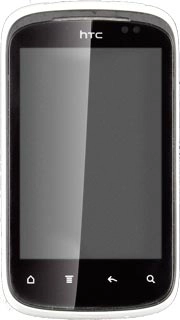

Press the Home key to return to standby mode.

Step 23 of 43

Find "Mail"

Press All apps to access the main menu.

Step 24 of 43

Find "Mail"

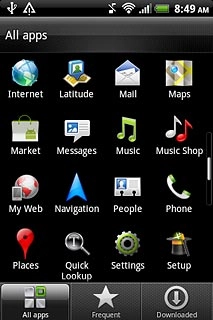

Press Mail.

Step 25 of 43

Create new email account

If email accounts have been created already:
Press the Menu key.

Step 26 of 43

Create new email account

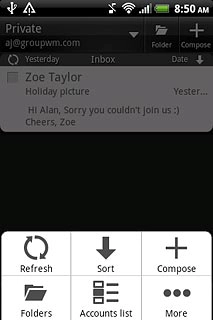

If required, press More.

Step 27 of 43

Create new email account

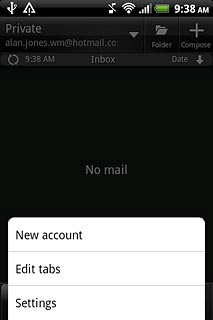

Press New account.

Step 28 of 43

Create new email account

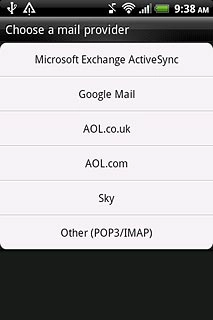

Press Microsoft Exchange ActiveSync.

Step 29 of 43

Enter email address

Press Email address and key in your email address.

Step 30 of 43

Enter password

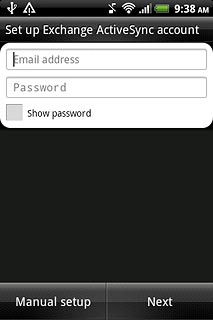

Press Password and key in your password.

Step 31 of 43

Enter password

Press Next.

Step 32 of 43

Enter server address

Press the field below Server address and key in the server address.

Step 33 of 43

Enter domain

Press the field below Domain and key in the domain.

Step 34 of 43

Enter username

Press the field below Username and key in the username.

Step 35 of 43

Turn SSL encryption on or off

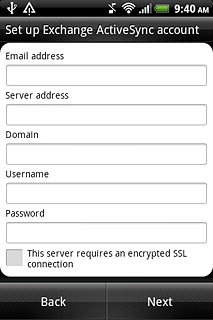

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 36 of 43

Turn SSL encryption on or off

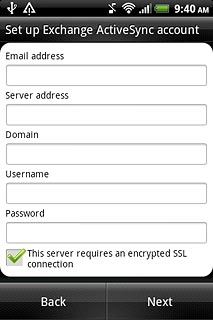

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 37 of 43

Turn SSL encryption on or off

Press Next.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 38 of 43

Select data types

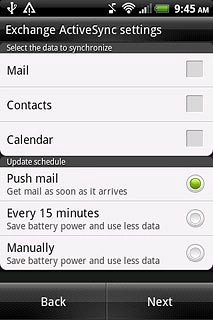

Press Mail, Contacts and Calendar to turn synchronisation on or off.

Step 39 of 43

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

Step 40 of 43

Select settings for retrieval of new email messages

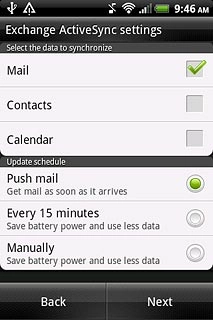

Press Push mail, Every 15 minutes or Manually.

Step 41 of 43

Select settings for retrieval of new email messages

Press Next.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 42 of 43

Enter email account name

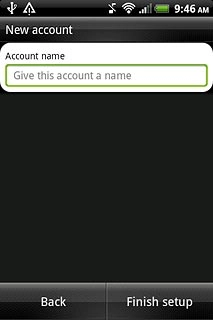

Key in a name for your email account (such as Private or Work).
Press Finish setup.

Step 43 of 43

Exit

Press the Home key to return to standby mode.
