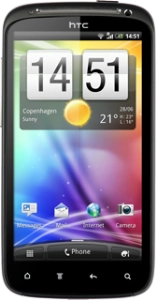

HTC Sensation

HTC Sensation

Set up your phone for Exchange email - HTC Sensation

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 44

Find "Access Point Names"

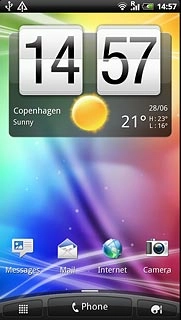

Press the menu icon.

Step 2 of 44

Find "Access Point Names"

Press Settings.

Step 3 of 44

Find "Access Point Names"

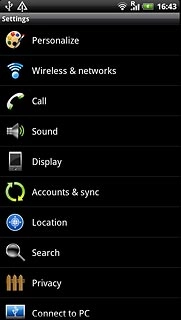

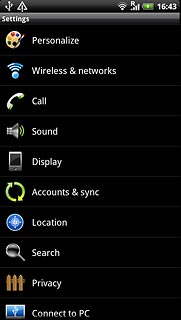

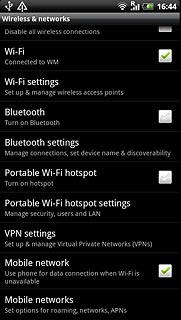

Press Wireless and networks.

Step 4 of 44

Find "Access Point Names"

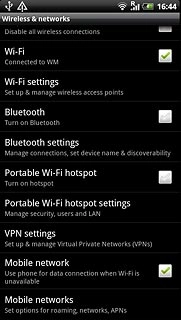

Press Mobile networks.

Step 5 of 44

Find "Access Point Names"

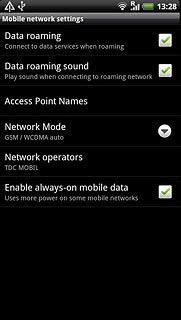

Press Access Point Names.

Step 6 of 44

Create new data connection

Press the Menu key.

Step 7 of 44

Create new data connection

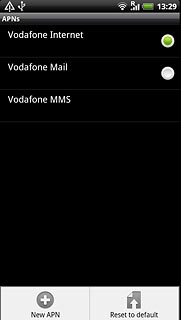

Press New APN.

Step 8 of 44

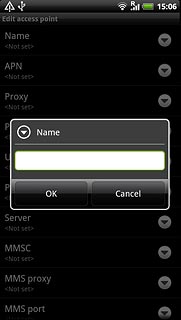

Enter data connection name

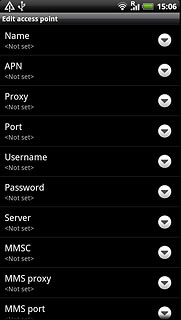

Press Name.

Step 9 of 44

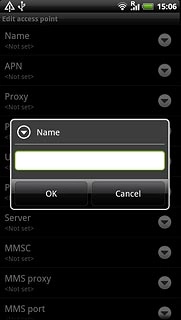

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 44

Enter APN

Press APN.
Key in live.vodafone.com

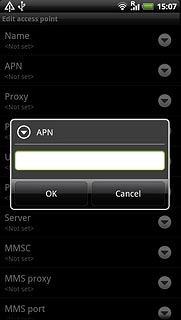

Step 11 of 44

Enter APN

Press OK.

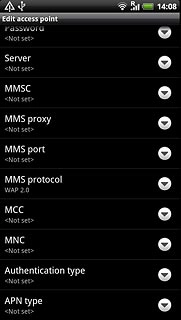

Step 12 of 44

Enter country code

Press MCC.

Step 13 of 44

Enter country code

Key in 505 and press OK.

Step 14 of 44

Enter network code

Press MNC.

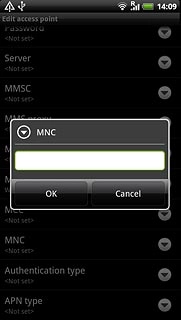

Step 15 of 44

Enter network code

Key in 03 and press OK.

Step 16 of 44

Select authentication

Press Authentication type.

Step 17 of 44

Select authentication

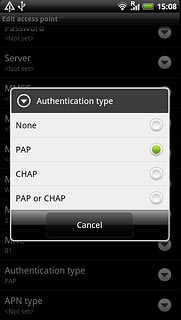

Press PAP.

Step 18 of 44

Select APN type

Press APN type.

Step 19 of 44

Select APN type

Key in default and press OK.

Step 20 of 44

Save and activate data connection

Press the Menu key.

Step 21 of 44

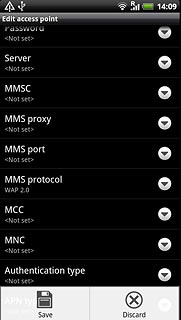

Save and activate data connection

Press Save.

Step 22 of 44

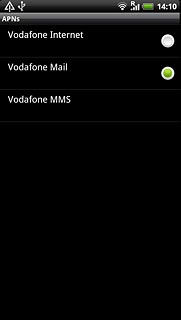

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 44

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 44

Find "Microsoft Exchange ActiveSync"

Press the menu icon.

Step 25 of 44

Find "Microsoft Exchange ActiveSync"

Press Mail.

Step 26 of 44

Find "Microsoft Exchange ActiveSync"

Press the Menu key.

Step 27 of 44

Find "Microsoft Exchange ActiveSync"

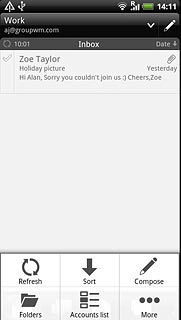

Press More.

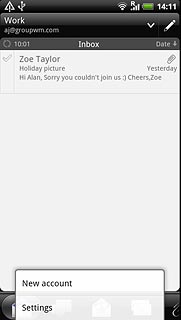

Step 28 of 44

Find "Microsoft Exchange ActiveSync"

Press New account.

Step 29 of 44

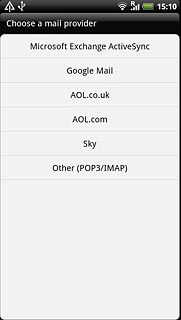

Find "Microsoft Exchange ActiveSync"

Press Microsoft Exchange ActiveSync.

Step 30 of 44

Enter email address

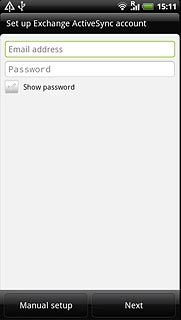

Press Email address and key in your email address.

Step 31 of 44

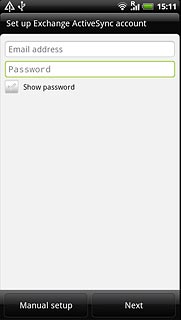

Enter password

Press Password and key in your password.

Step 32 of 44

Enter password

Press Next.

Step 33 of 44

Enter server address

Press the field below Server address and key in the server address.

Step 34 of 44

Enter domain

Press the field below Domain and key in the domain.

Step 35 of 44

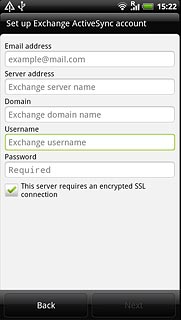

Enter username

Press the field below Username and key in the username.

Step 36 of 44

Turn SSL encryption on or off

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.

Step 37 of 44

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 38 of 44

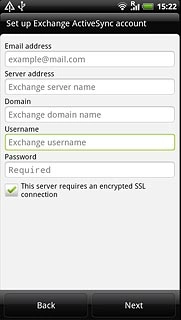

Turn SSL encryption on or off

Press Next.

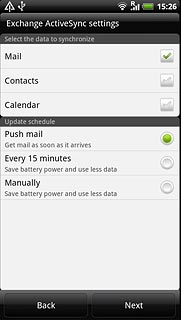

Step 39 of 44

Select data types

Press Mail, Contacts and Calendar to turn synchronisation on or off.

Step 40 of 44

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

Step 41 of 44

Select settings for retrieval of new email messages

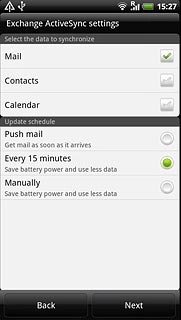

Press Push mail, Every 15 minutes or Manually.

Step 42 of 44

Select settings for retrieval of new email messages

Press Next.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

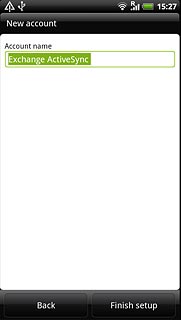

Step 43 of 44

Enter email account name

Key in a name for your email account (such as Private or Work).
Press Finish setup.

Step 44 of 44

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

Find "Microsoft Exchange ActiveSync"

Press the menu icon.
Press Mail.
Press the Menu key.
Press More.
Press New account.
Press Microsoft Exchange ActiveSync.

Enter email address

Press Email address and key in your email address.

Enter password

Press Password and key in your password.
Press Next.

Enter server address

Press the field below Server address and key in the server address.

Enter domain

Press the field below Domain and key in the domain.

Enter username

Press the field below Username and key in the username.

Turn SSL encryption on or off

Press This server requires an encrypted SSL connection to turn SSL encryption on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Select data types

Press Mail, Contacts and Calendar to turn synchronisation on or off.
When the box next to the menu item is ticked (V), synchronisation is turned on.

Select settings for retrieval of new email messages

Press Push mail, Every 15 minutes or Manually.
Press Next.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Enter email account name

Key in a name for your email account (such as Private or Work).
Press Finish setup.

Exit

Press the Home key to return to standby mode.
