Set up your phone for POP3 email - HTC Sensation

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

Step 1 of 50

Find "Access Point Names"

Press the menu icon.

Step 2 of 50

Find "Access Point Names"

Press Settings.

Step 3 of 50

Find "Access Point Names"

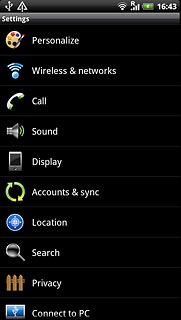

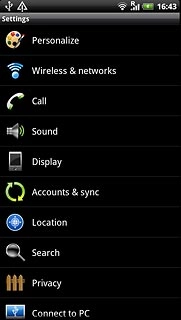

Press Wireless and networks.

Step 4 of 50

Find "Access Point Names"

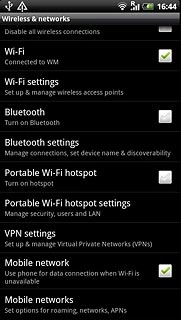

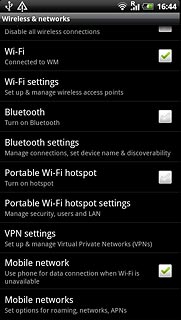

Press Mobile networks.

Step 5 of 50

Find "Access Point Names"

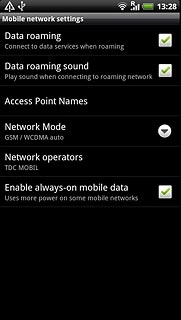

Press Access Point Names.

Step 6 of 50

Create new data connection

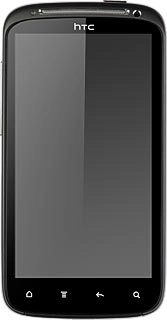

Press the Menu key.

Step 7 of 50

Create new data connection

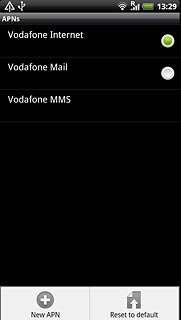

Press New APN.

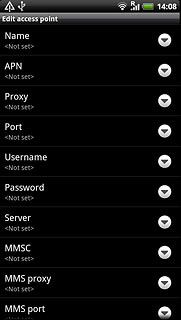

Step 8 of 50

Enter data connection name

Press Name.

Step 9 of 50

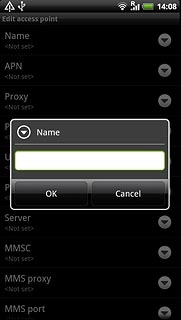

Enter data connection name

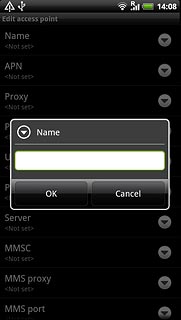

Key in Vodafone Mail and press OK.

Step 10 of 50

Enter APN

Press APN.
Key in live.vodafone.com

Step 11 of 50

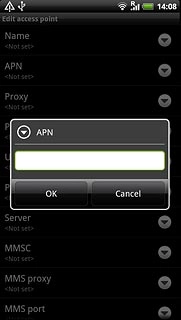

Enter APN

Press OK.

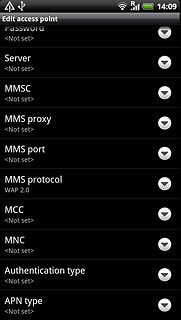

Step 12 of 50

Enter country code

Press MCC.

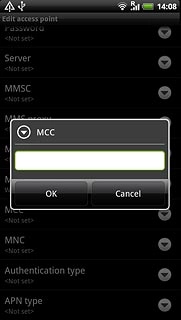

Step 13 of 50

Enter country code

Key in 505 and press OK.

Step 14 of 50

Enter network code

Press MNC.

Step 15 of 50

Enter network code

Key in 03 and press OK.

Step 16 of 50

Select authentication

Press Authentication type.

Step 17 of 50

Select authentication

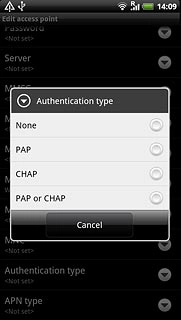

Press PAP.

Step 18 of 50

Select APN type

Press APN type.

Step 19 of 50

Select APN type

Key in default and press OK.

Step 20 of 50

Save and activate data connection

Press the Menu key.

Step 21 of 50

Save and activate data connection

Press Save.

Step 22 of 50

Save and activate data connection

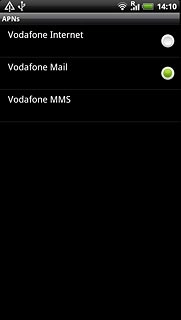

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 50

Save and activate data connection

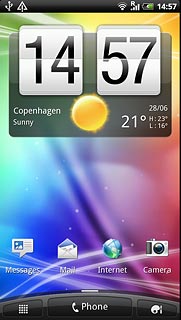

Press the Home key to return to standby mode.

Step 24 of 50

Find "Mail"

Press the menu icon.

Step 25 of 50

Find "Mail"

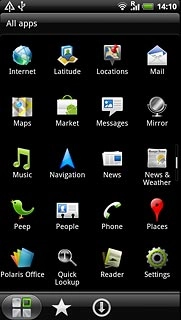

Press Mail.

Step 26 of 50

Create new email account

If email accounts have been created already:

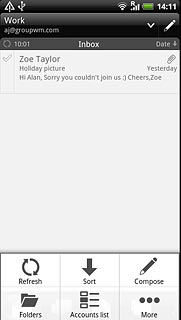

Press the Menu key.

Step 27 of 50

Create new email account

If required, press More.

Step 28 of 50

Create new email account

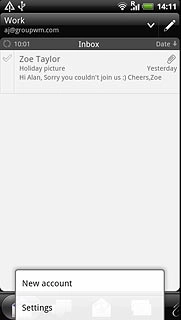

Press New account.

Step 29 of 50

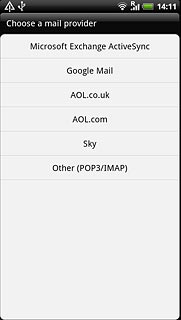

Create new email account

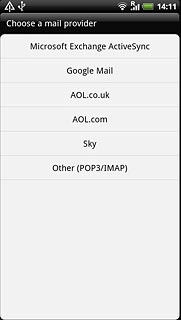

Press Other (POP3/IMAP).

Step 30 of 50

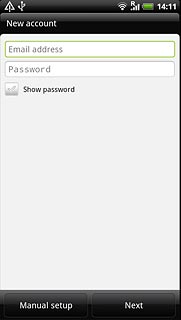

Enter email address

Press Email address and key in your email address.

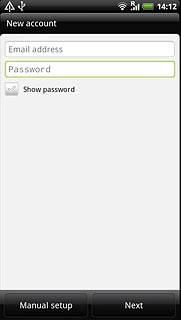

Step 31 of 50

Enter password

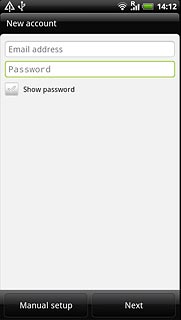

Press Password and key in the password for your email account.

Step 32 of 50

Enter password

Press Next.

Step 33 of 50

Select server type

Press the drop down list below Protocol.

Step 34 of 50

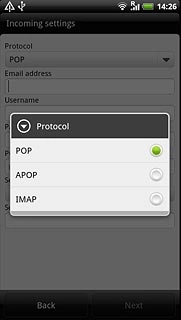

Select server type

Press POP.

Step 35 of 50

Enter username

Press the field below Username and key in the username for your email account.

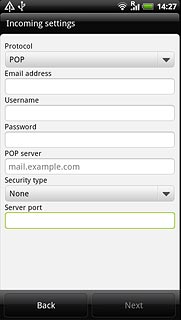

Step 36 of 50

Enter incoming server

Press the field below POP server and key in the address of the incoming server.

Step 37 of 50

Turn off SSL encryption of incoming email messages

Press the drop down list below Security type.

Step 38 of 50

Turn off SSL encryption of incoming email messages

Press None.

Step 39 of 50

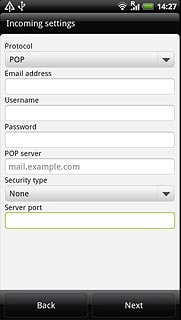

Enter incoming port

Press the field below Server port and key in 110

Step 40 of 50

Enter incoming port

Press Next.

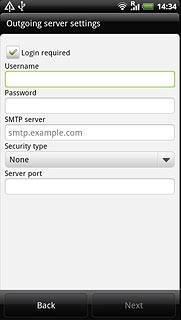

Step 41 of 50

Turn SMTP authentication on or off

Press Login required to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

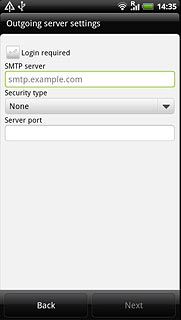

Step 42 of 50

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 43 of 50

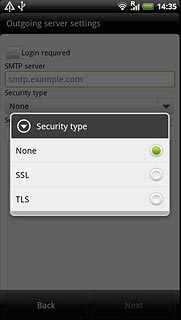

Turn off SSL encryption of outgoing email messages

Press the drop down list below Security type.

Step 44 of 50

Turn off SSL encryption of outgoing email messages

Press None.

Step 45 of 50

Enter outgoing port

Press the field below Server port and key in 25

Step 46 of 50

Enter outgoing port

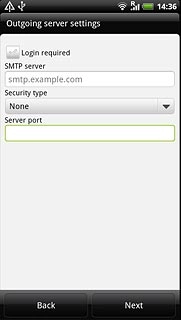

Press Next.

Step 47 of 50

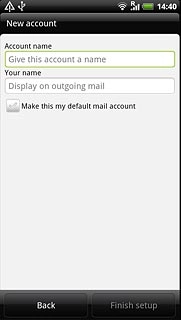

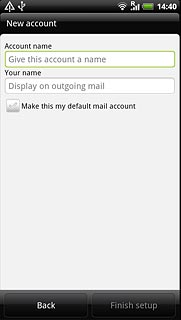

Enter email account name

Press the field below Account name and key in a name for your email account (such as Private or Work).

Step 48 of 50

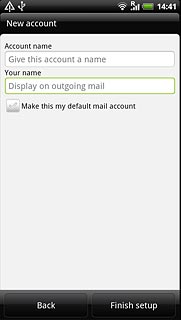

Enter sender name

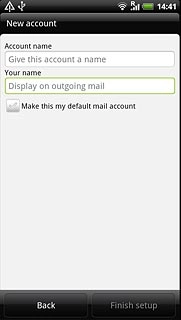

Press the field below Your name and key in the required sender name.

Step 49 of 50

Retrieve email messages

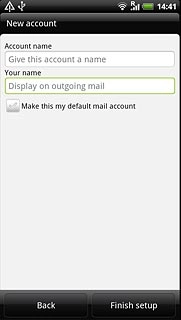

Press Finish setup.
Wait while your phone retrieves new email messages.

Step 50 of 50

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

Find "Mail"

Press the menu icon.
Press Mail.

Create new email account

If email accounts have been created already:
Press the Menu key.
If required, press More.
Press New account.
Press Other (POP3/IMAP).

Enter email address

Press Email address and key in your email address.

Enter password

Press Password and key in the password for your email account.
Press Next.

Select server type

Press the drop down list below Protocol.
Press POP.

Enter username

Press the field below Username and key in the username for your email account.

Enter incoming server

Press the field below POP server and key in the address of the incoming server.

Turn off SSL encryption of incoming email messages

Press the drop down list below Security type.
Press None.

Enter incoming port

Press the field below Server port and key in 110
Press Next.

Turn SMTP authentication on or off

Press Login required to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Turn off SSL encryption of outgoing email messages

Press the drop down list below Security type.
Press None.

Enter outgoing port

Press the field below Server port and key in 25
Press Next.

Enter email account name

Press the field below Account name and key in a name for your email account (such as Private or Work).

Enter sender name

Press the field below Your name and key in the required sender name.

Retrieve email messages

Press Finish setup.
Wait while your phone retrieves new email messages.

Exit

Press the Home key to return to standby mode.
