Set up your phone for POP3 email - Huawei Ascend G300

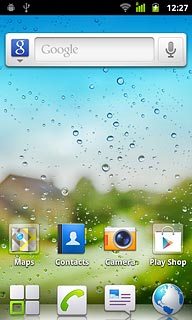

Step 1 of 56

Find "Access Point Names"

Press the menu icon.

Step 2 of 56

Find "Access Point Names"

Press Settings.

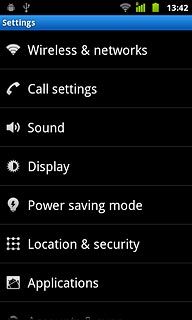

Step 3 of 56

Find "Access Point Names"

Press Wireless & networks.

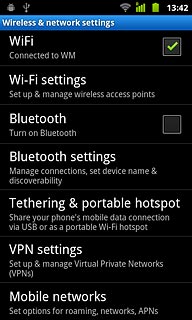

Step 4 of 56

Find "Access Point Names"

Press Mobile networks.

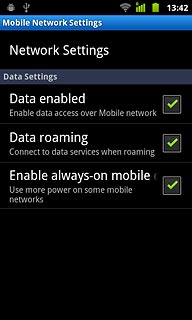

Step 5 of 56

Find "Access Point Names"

Press Network Settings.

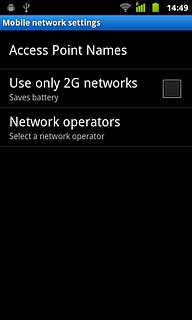

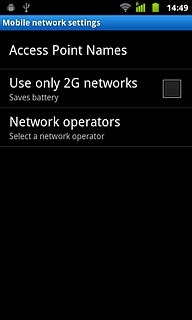

Step 6 of 56

Find "Access Point Names"

Press Access Point Names.

Step 7 of 56

Create new data connection

Press the Menu key.

Step 8 of 56

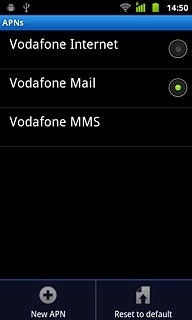

Create new data connection

Press New APN.

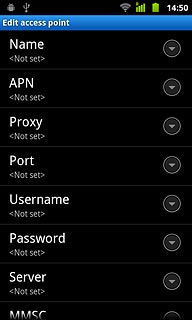

Step 9 of 56

Enter data connection name

Press Name.

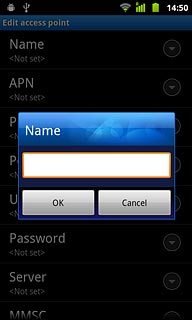

Step 10 of 56

Enter data connection name

Key in Vodafone Mail and press OK.

Step 11 of 56

Enter APN

Press APN.

An APN is used to establish a data connection.

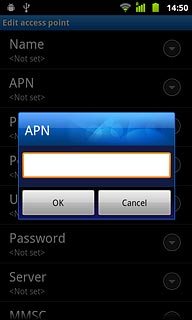

Step 12 of 56

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 13 of 56

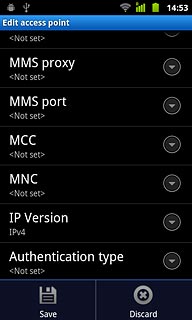

Enter country code

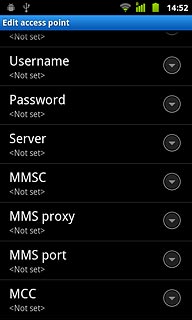

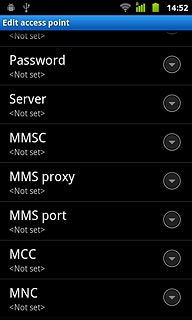

Press MCC.

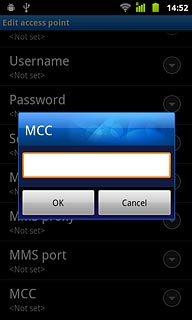

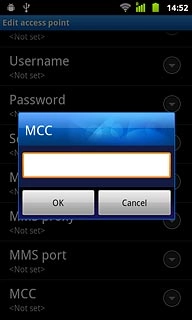

Step 14 of 56

Enter country code

Key in 505 and press OK.

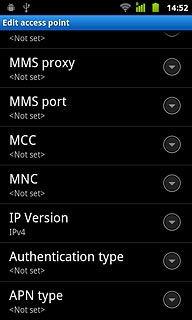

Step 15 of 56

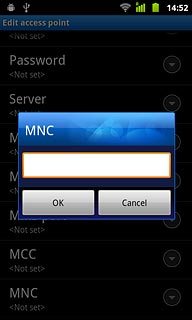

Enter network code

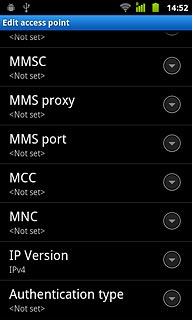

Press MNC.

Step 16 of 56

Enter network code

Key in 03 and press OK.

Step 17 of 56

Select authentication type

Press Authentication type.

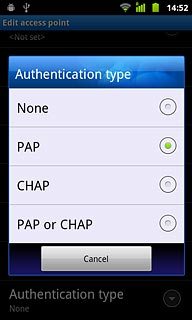

Step 18 of 56

Select authentication type

Press PAP.

Step 19 of 56

Select APN type

Press APN type.

Step 20 of 56

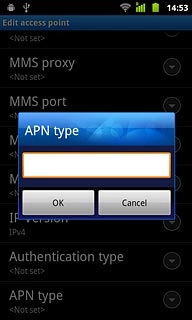

Select APN type

Key in default and press OK.

Step 21 of 56

Save and activate data connection

Press the Menu key.

Step 22 of 56

Save and activate data connection

Press Save.

Step 23 of 56

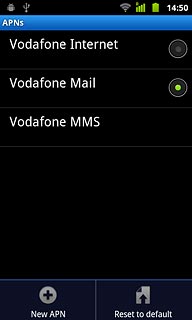

Save and activate data connection

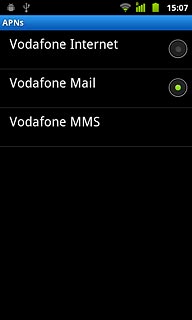

Press the field next to Vodafone Mail to fill in the field.

Step 24 of 56

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 56

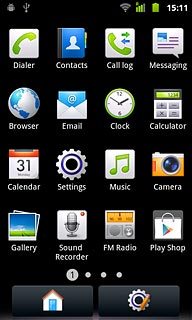

Find "Email"

Press the menu icon.

Step 26 of 56

Find "Email"

Press Email.

Step 27 of 56

Create new email account

If you're not in the accounts list:
Press the Menu key.

Step 28 of 56

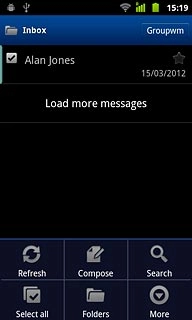

Create new email account

Press More.

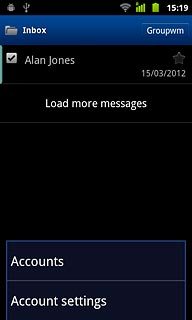

Step 29 of 56

Create new email account

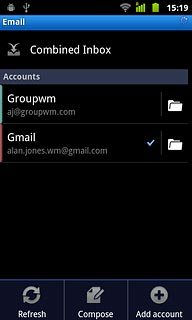

Press Accounts.

Step 30 of 56

Create new email account

Press the Menu key.

Step 31 of 56

Create new email account

Press Add account.

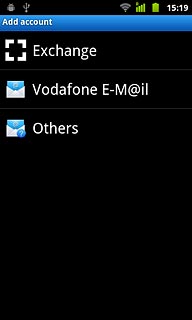

Step 32 of 56

Create new email account

Press Others.

Huawei Ascend G300
Step 33 of 56

Enter email address

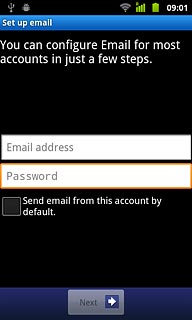

Key in your email address.

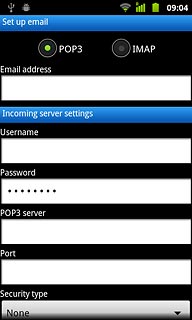

Step 34 of 56

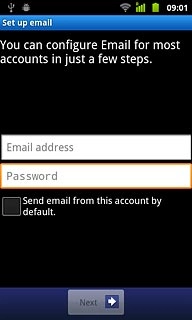

Enter password

Press Password and key in the password for your email account.

Step 35 of 56

Enter password

Press Next.

Step 36 of 56

Select server type

Press POP3.

Step 37 of 56

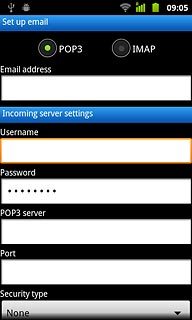

Enter username

Press the field below Username and key in the username for your email account.

Step 38 of 56

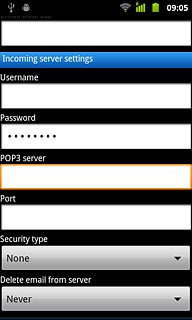

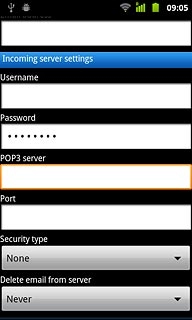

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

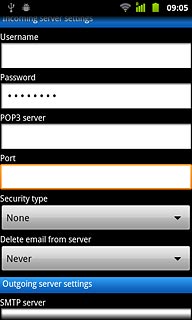

Step 39 of 56

Enter incoming port

Press the field below Port and key in 110

Step 40 of 56

Turn off encryption of incoming email messages

Press the drop down list below Security type.

Step 41 of 56

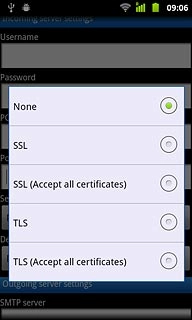

Turn off encryption of incoming email messages

Press None.

Step 42 of 56

Turn deletion of email messages on server on or off

Press the drop down list below Delete email from server.

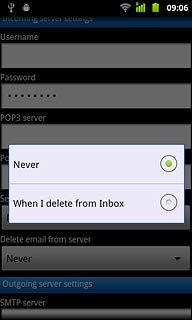

Step 43 of 56

Turn deletion of email messages on server on or off

Press Never or When I delete from Inbox.

Step 44 of 56

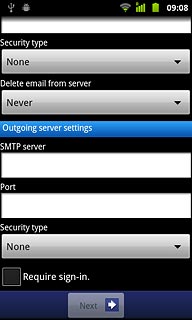

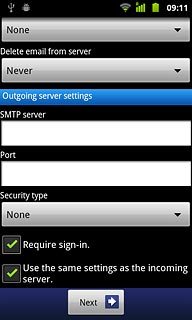

Enter outgoing server

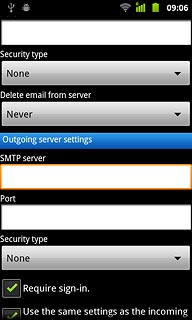

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

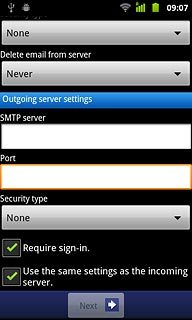

Step 45 of 56

Enter outgoing port

Press the field below Port and key in 25

Step 46 of 56

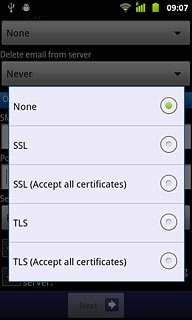

Turn off encryption of outgoing email messages

Press the drop down list below Security type.

Step 47 of 56

Turn off encryption of outgoing email messages

Press None.

Step 48 of 56

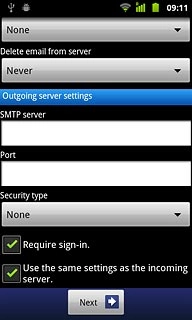

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 49 of 56

Turn SMTP authentication on or off

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

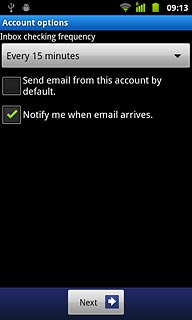

Step 50 of 56

Select setting for retrieving new email messages

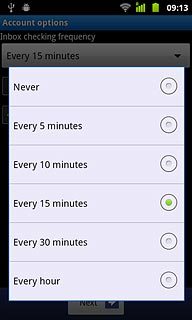

Press the drop down list below Inbox checking frequency.

Step 51 of 56

Select setting for retrieving new email messages

Press the required period.

Step 52 of 56

Select setting for retrieving new email messages

Press Next.

Huawei Ascend G300
Step 53 of 56

Enter sender name

Key in the required sender name.

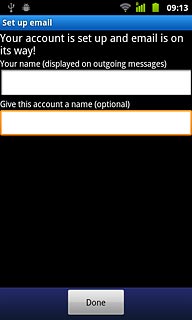

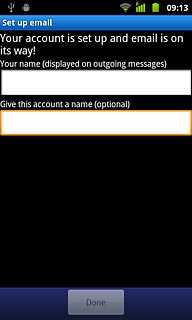

Step 54 of 56

Enter account name

Press the field below Give this account a name (optional) and key in the required name.

Step 55 of 56

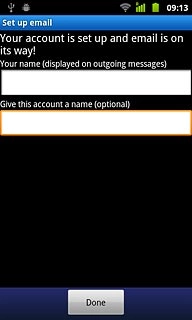

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Step 56 of 56

Exit

Press the Home key to return to standby mode.

1. Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless & networks.
Press Mobile networks.
Press Network Settings.
Press Access Point Names.

2. Create new data connection

Press the Menu key.
Press New APN.

3. Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

4. Enter APN

Press APN.
An APN is used to establish a data connection.
Key in live.vodafone.com and press OK.
An APN is used to establish a data connection.

5. Enter country code

Press MCC.
Key in 505 and press OK.

6. Enter network code

Press MNC.
Key in 03 and press OK.

7. Select authentication type

Press Authentication type.
Press PAP.

8. Select APN type

Press APN type.
Key in default and press OK.

9. Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

10. Find "Email"

Press the menu icon.
Press Email.

11. Create new email account

If you're not in the accounts list:
Press the Menu key.
Press More.
Press Accounts.
Press the Menu key.
Press Add account.
Press Others.

12. Enter email address

Key in your email address.
Huawei Ascend G300

13. Enter password

Press Password and key in the password for your email account.
Press Next.

14. Select server type

Press POP3.

15. Enter username

Press the field below Username and key in the username for your email account.

16. Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

17. Enter incoming port

Press the field below Port and key in 110

18. Turn off encryption of incoming email messages

Press the drop down list below Security type.
Press None.

19. Turn deletion of email messages on server on or off

Press the drop down list below Delete email from server.
Press Never or When I delete from Inbox.

20. Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

21. Enter outgoing port

Press the field below Port and key in 25

22. Turn off encryption of outgoing email messages

Press the drop down list below Security type.
Press None.

23. Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

24. Select setting for retrieving new email messages

Press the drop down list below Inbox checking frequency.
Press the required period.
Press Next.

25. Enter sender name

Key in the required sender name.
Huawei Ascend G300

26. Enter account name

Press the field below Give this account a name (optional) and key in the required name.

27. Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

28. Exit

Press the Home key to return to standby mode.
