Set up your phone for picture messaging - Huawei Ascend Y550

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

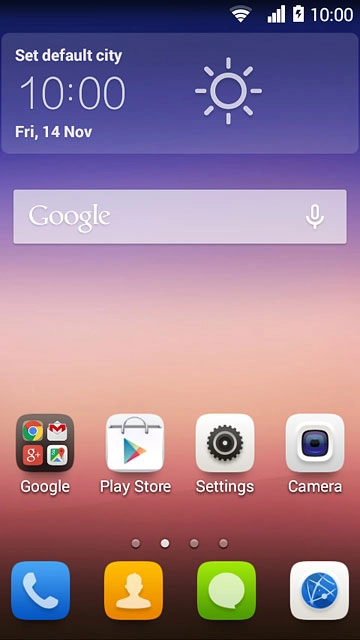

Step 1 of 26

Find "Access Point Names"

Press Settings.

Step 2 of 26

Find "Access Point Names"

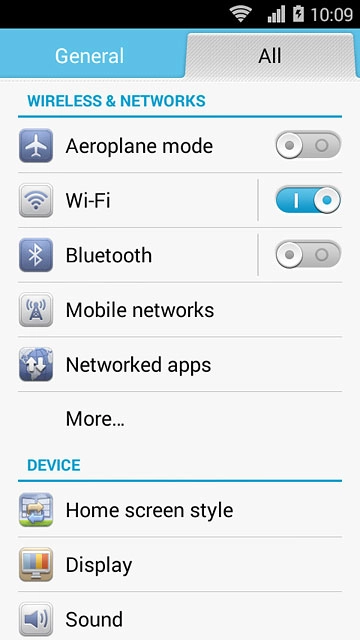

Press All.

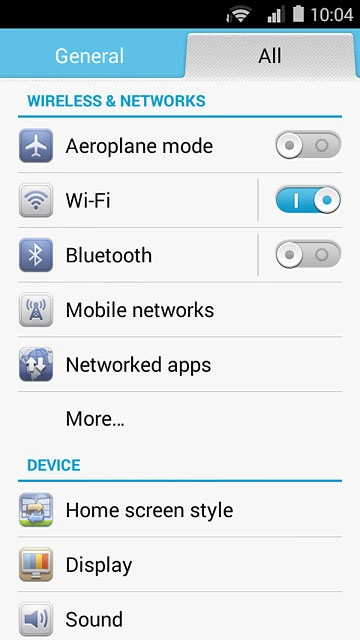

Step 3 of 26

Find "Access Point Names"

Press Mobile networks.

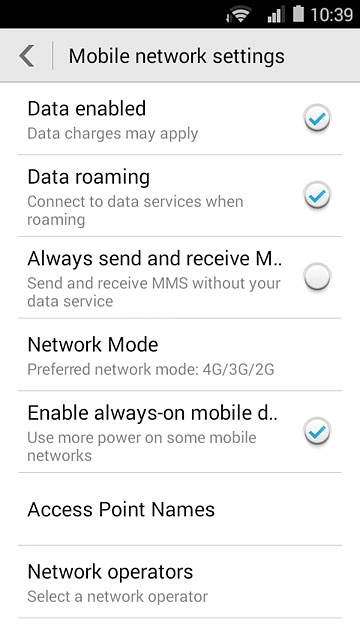

Step 4 of 26

Find "Access Point Names"

Press Access Point Names.

Step 5 of 26

Create new data connection

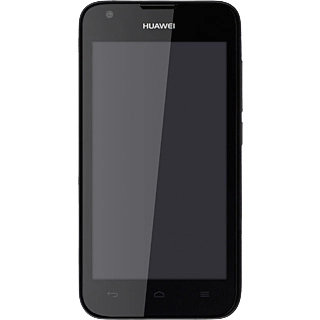

Press the Menu key.

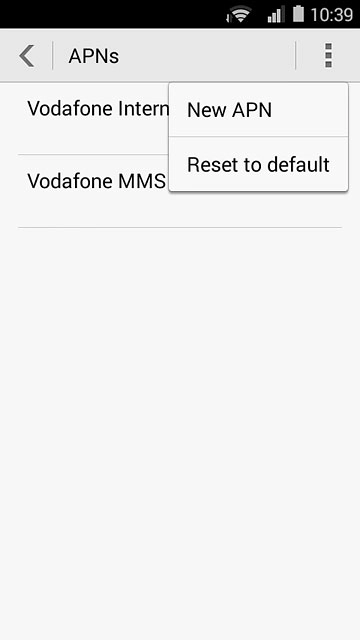

Step 6 of 26

Create new data connection

Press New APN.

Step 7 of 26

Enter data connection name

Press Name.

Step 8 of 26

Enter data connection name

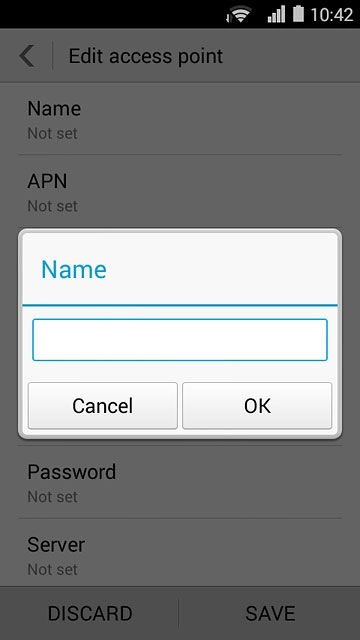

Key in Vodafone MMS and press OK.

Step 9 of 26

Enter APN

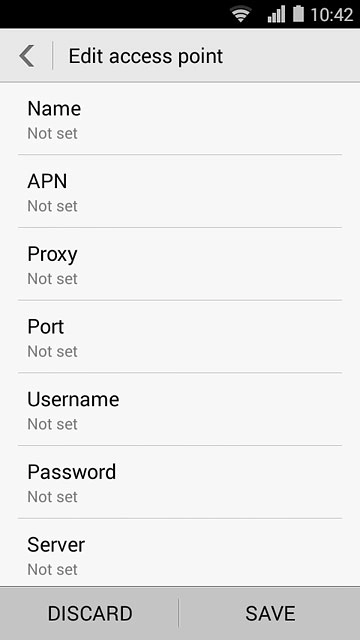

Press APN.
Key in live.vodafone.com

Step 10 of 26

Enter APN

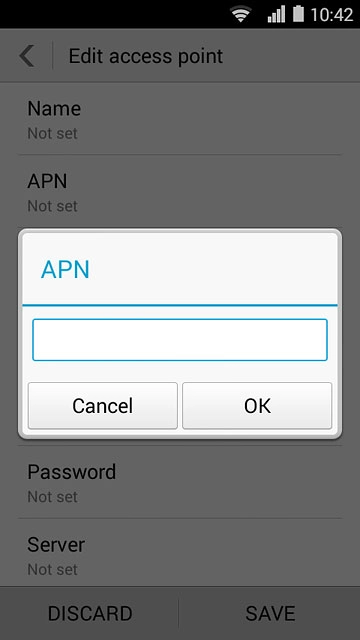

Press OK.

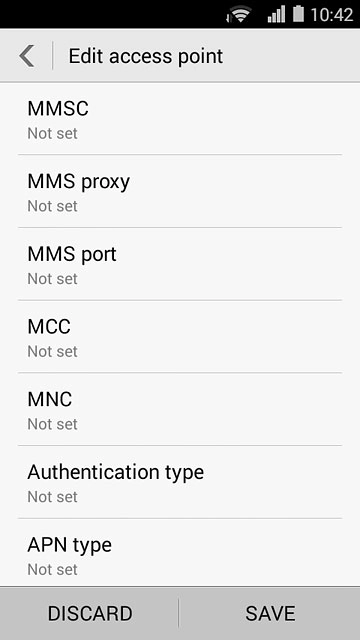

Step 11 of 26

Enter picture messaging server

Press MMSC.

Step 12 of 26

Enter picture messaging server

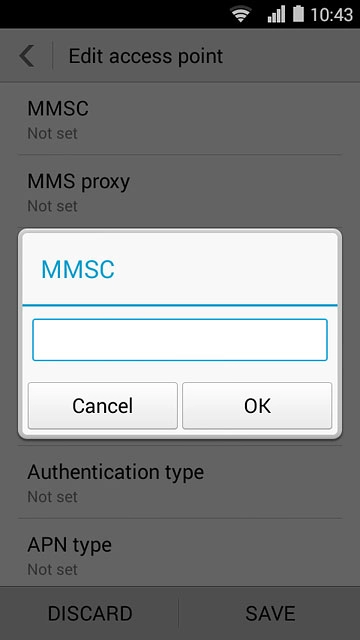

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 13 of 26

Enter IP address

Press MMS proxy.

Step 14 of 26

Enter IP address

Key in 10.202.002.060 and press OK.

Step 15 of 26

Enter port number

Press MMS port.

Step 16 of 26

Enter port number

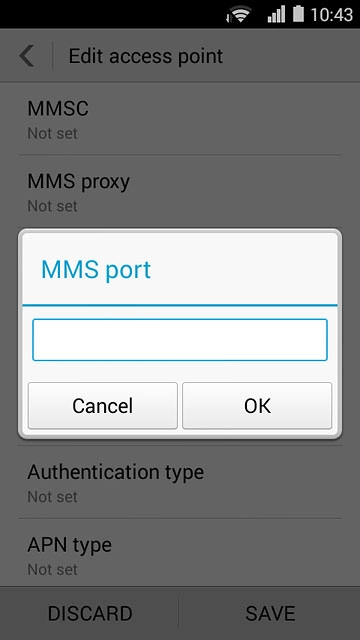

Key in 8080 and press OK.

Step 17 of 26

Enter country code

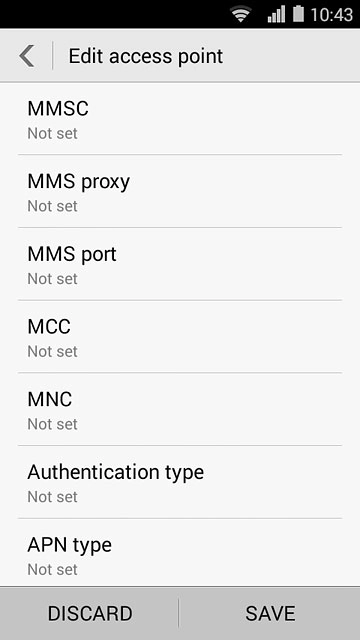

Press MCC.

Step 18 of 26

Enter country code

Key in 505 and press OK.

Step 19 of 26

Enter network code

Press MNC.

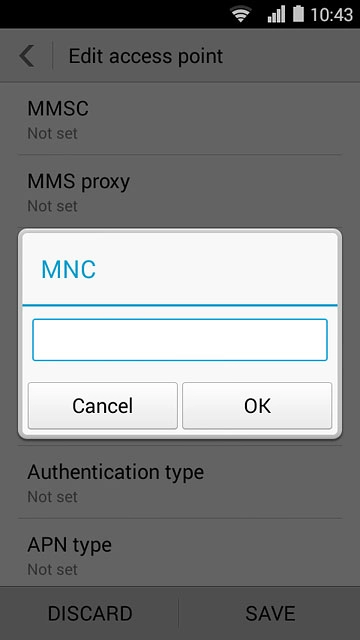

Step 20 of 26

Enter network code

Key in 03 and press OK.

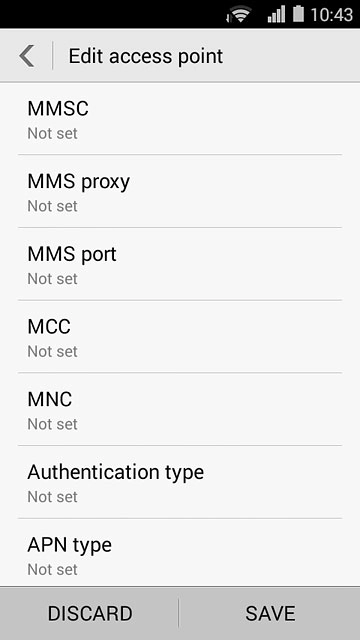

Step 21 of 26

Select authentication type

Press Authentication type.

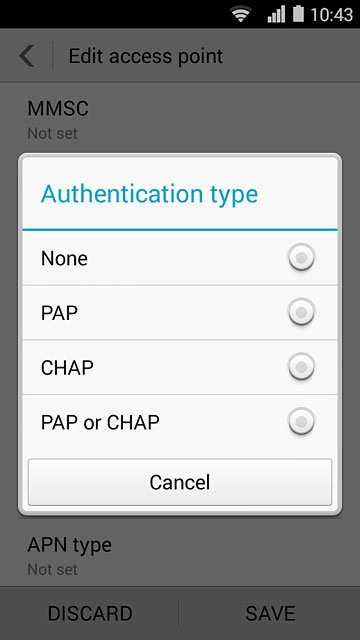

Step 22 of 26

Select authentication type

Press PAP.

Step 23 of 26

Select APN type

Press APN type.

Step 24 of 26

Select APN type

Key in mms and press OK.

Step 25 of 26

Save data connection

Press SAVE.

Step 26 of 26

Return to the home screen

Press the Home key to return to the home screen.
