Android 6.0

Set up your Huawei GR5 2017 Android 6.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 26

1. Find "Access Point Names"

Press Settings.

Step 2 of 26

1. Find "Access Point Names"

Press More.

Step 3 of 26

1. Find "Access Point Names"

Press Mobile network.

Step 4 of 26

1. Find "Access Point Names"

Press Access Point Names.

Step 5 of 26

2. Create new data connection

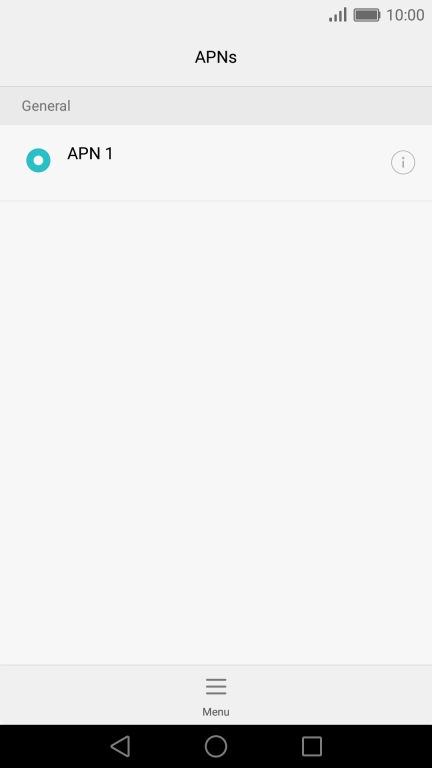

Press Menu.

Step 6 of 26

2. Create new data connection

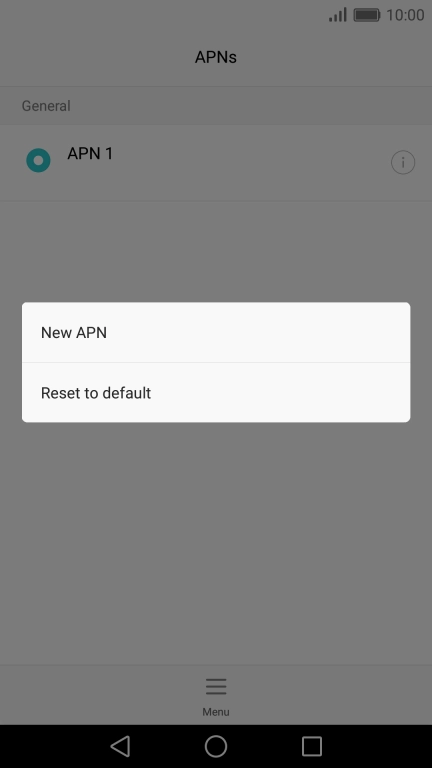

Press New APN.

Step 7 of 26

3. Enter a name for the connection

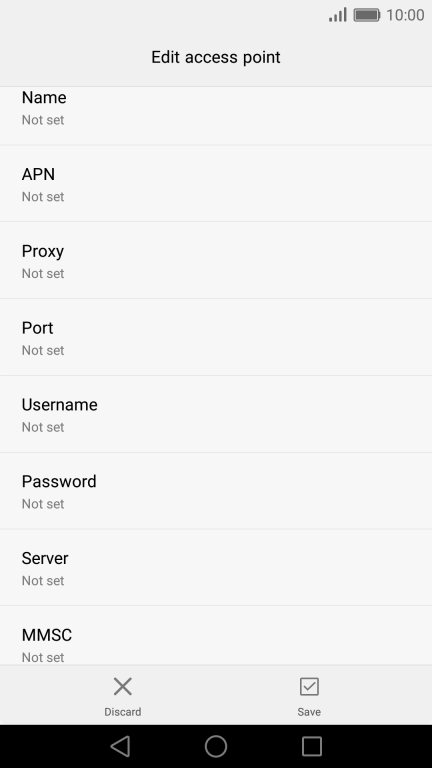

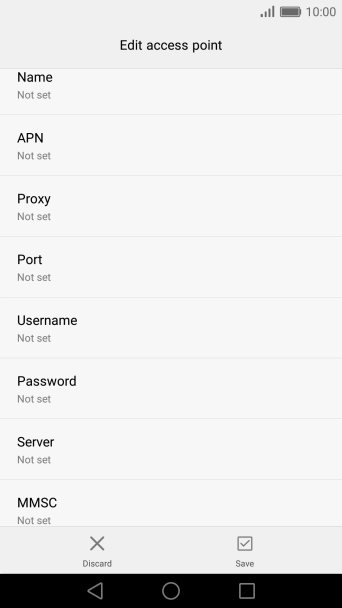

Press Name.

Vodafone MMS
Step 8 of 26

3. Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 9 of 26

4. Enter APN

Press APN.

live.vodafone.com
Step 10 of 26

4. Enter APN

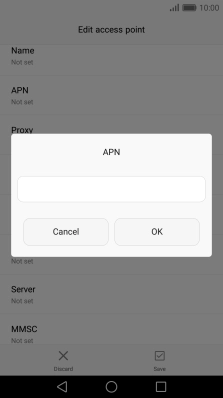

Key in live.vodafone.com and press OK.

Step 11 of 26

5. Enter picture messaging server

Press MMSC.

http://pxt.vodafone.net.au/pxtsend
Step 12 of 26

5. Enter picture messaging server

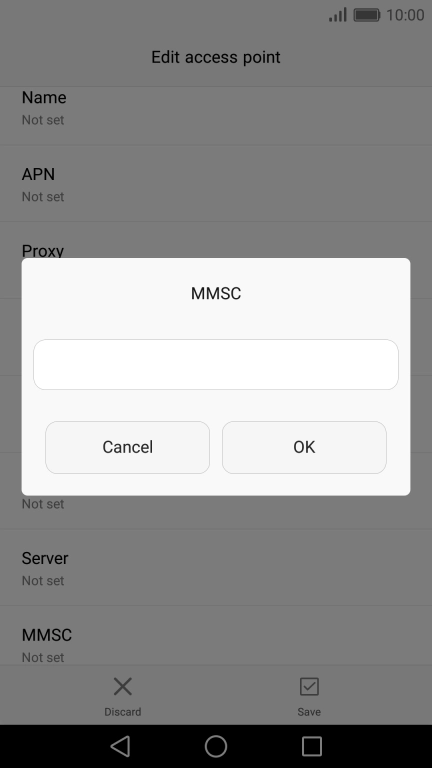

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 13 of 26

6. Enter IP address

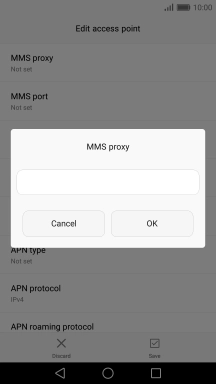

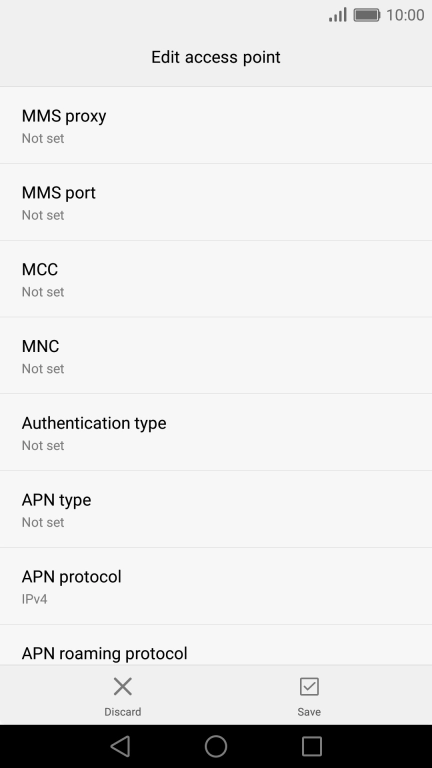

Press MMS proxy.

10.202.002.060
Step 14 of 26

6. Enter IP address

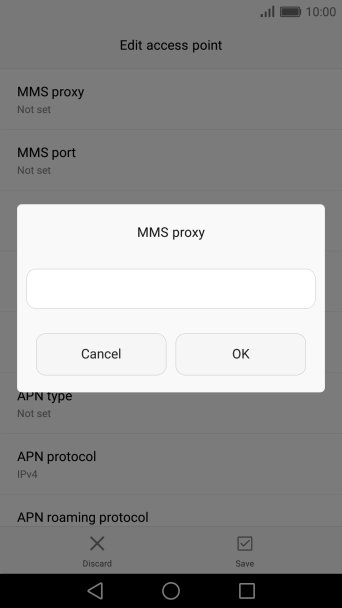

Key in 10.202.002.060 and press OK.

Step 15 of 26

7. Enter port number

Press MMS port.

8080
Step 16 of 26

7. Enter port number

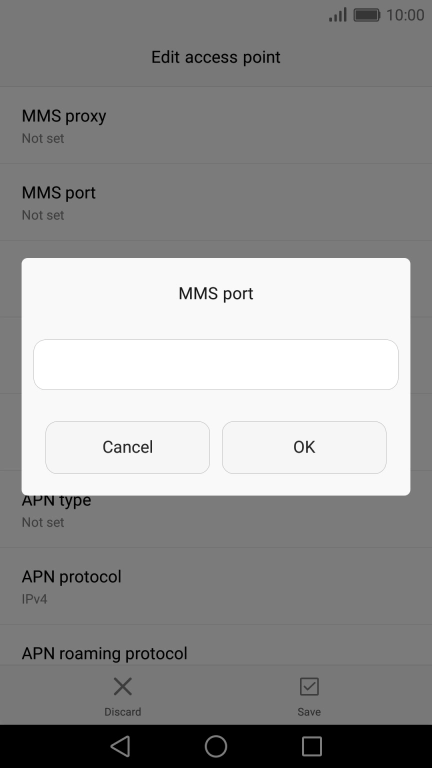

Key in 8080 and press OK.

Step 17 of 26

8. Enter country code

Press MCC.

505
Step 18 of 26

8. Enter country code

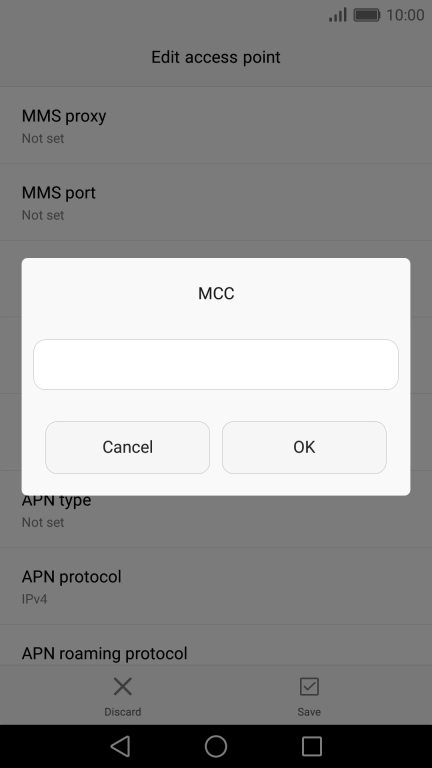

Key in 505 and press OK.

Step 19 of 26

9. Enter network code

Press MNC.

03
Step 20 of 26

9. Enter network code

Key in 03 and press OK.

Step 21 of 26

10. Select authentication type

Press Authentication type.

Step 22 of 26

10. Select authentication type

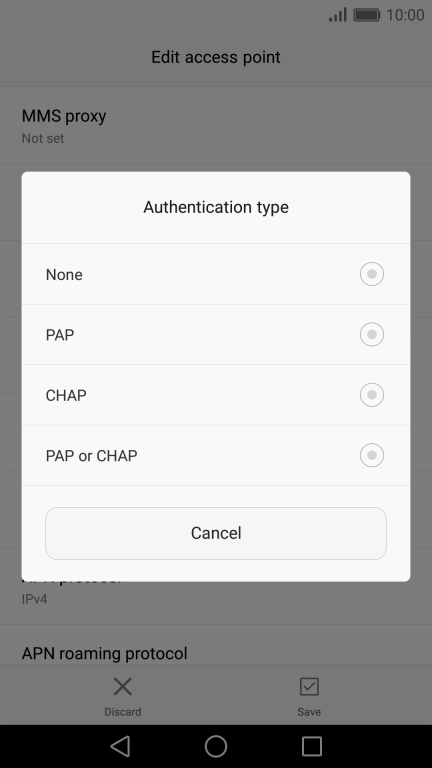

Press PAP.

Step 23 of 26

11. Select APN type

Press APN type.

mms
Step 24 of 26

11. Select APN type

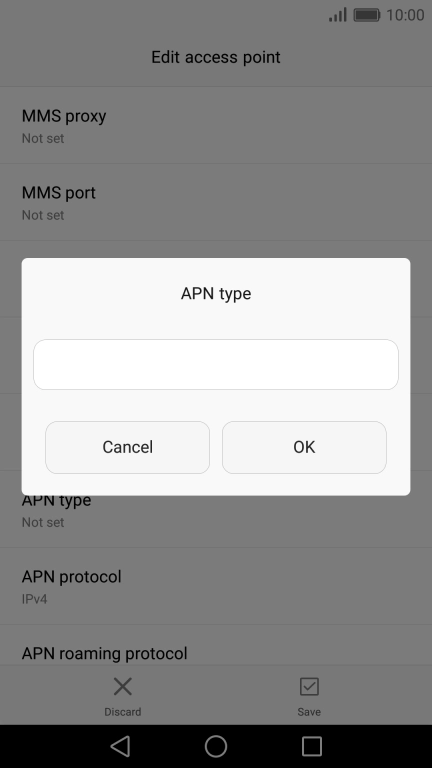

Key in mms and press OK.

Step 25 of 26

12. Save data connection

Press Save.

Step 26 of 26

13. Return to the home screen

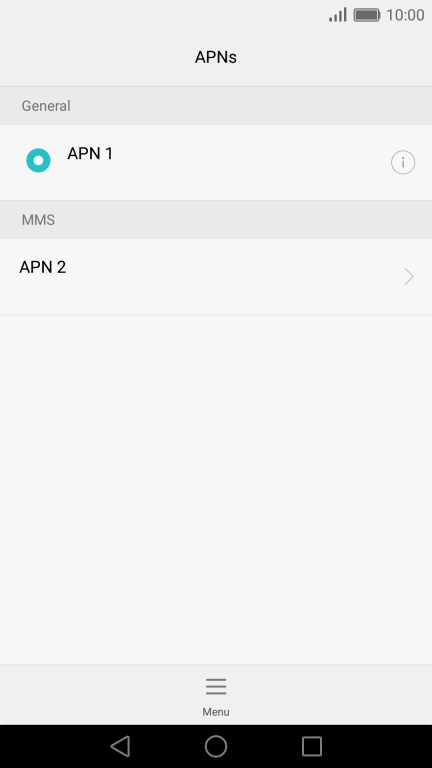

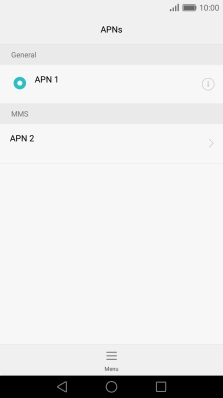

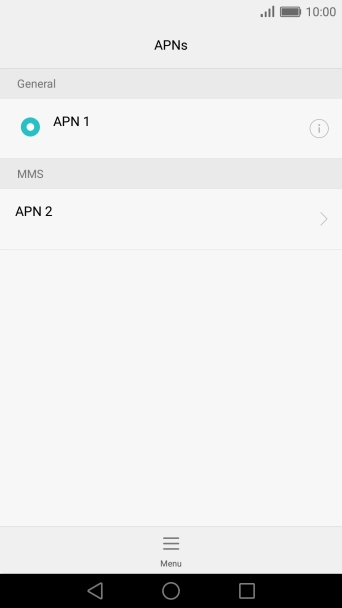

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Press Settings.
Press More.
Press Mobile network.
Press Access Point Names.

2. Create new data connection

Press Menu.
Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend

6. Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.
10.202.002.060

7. Enter port number

Press MMS port.
Key in 8080 and press OK.
8080

8. Enter country code

Press MCC.
Key in 505 and press OK.
505

9. Enter network code

Press MNC.
Key in 03 and press OK.
03

10. Select authentication type

Press Authentication type.
Press PAP.

11. Select APN type

Press APN type.
Key in mms and press OK.
mms

12. Save data connection

Press Save.

13. Return to the home screen

Press the Home key to return to the home screen.
