1. Find "Access Point Names"

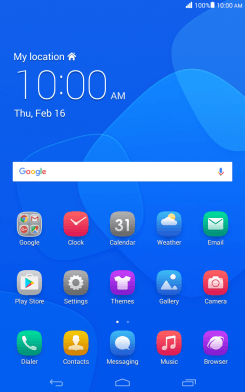

Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-9982fe59-6644-4ba4-a163-3cc4beb8e99e.png?width=246&height=392)

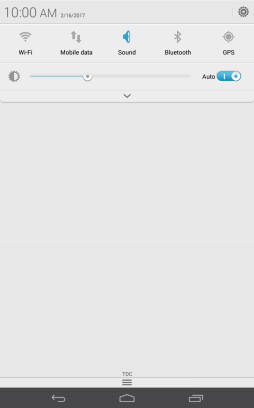

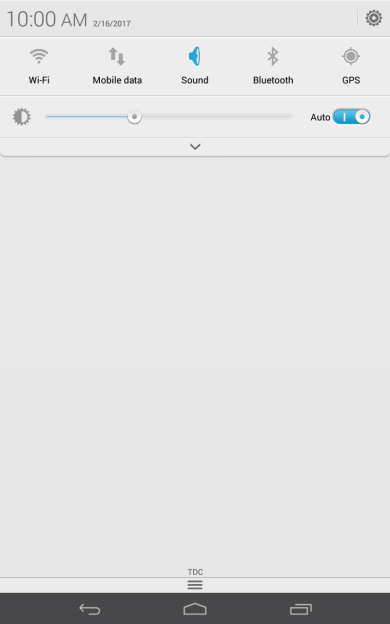

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-c57b7f3f-9196-4e3b-a733-cc38ab2fd467.png?width=246&height=392)

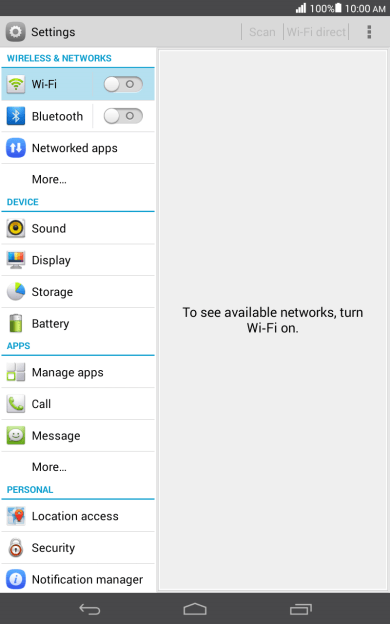

Press More....
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-8f76c80d-529c-4f17-b852-c8377970bc88.png?width=246&height=392)

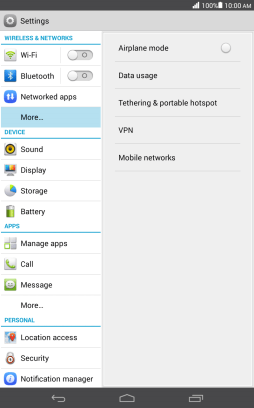

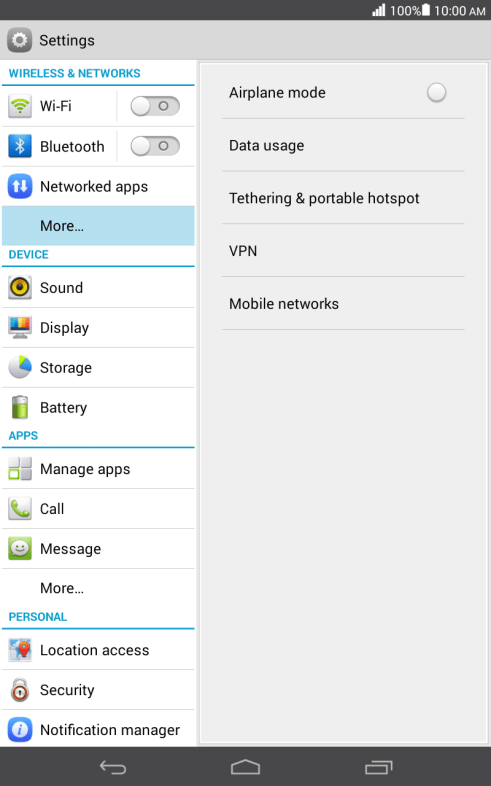

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b184a195-6359-495a-974f-98ec6fdb40b2.png?width=246&height=392)

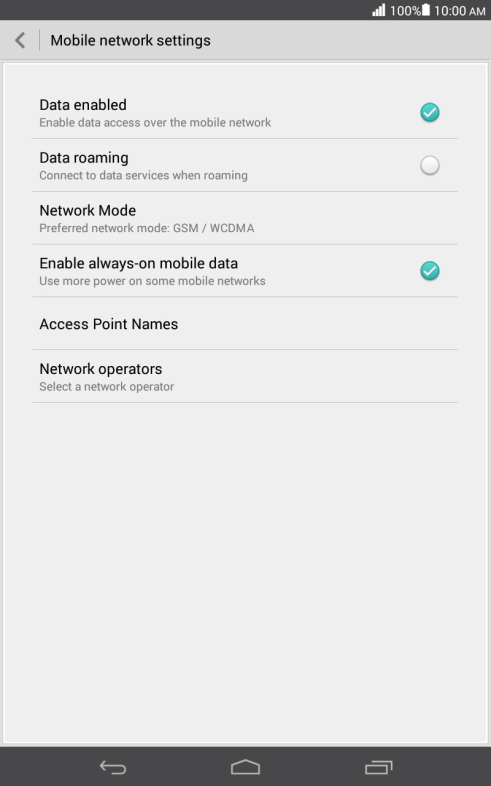

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b517e2de-7784-45cc-965e-5bf378614973.png?width=246&height=392)
2. Create new data connection

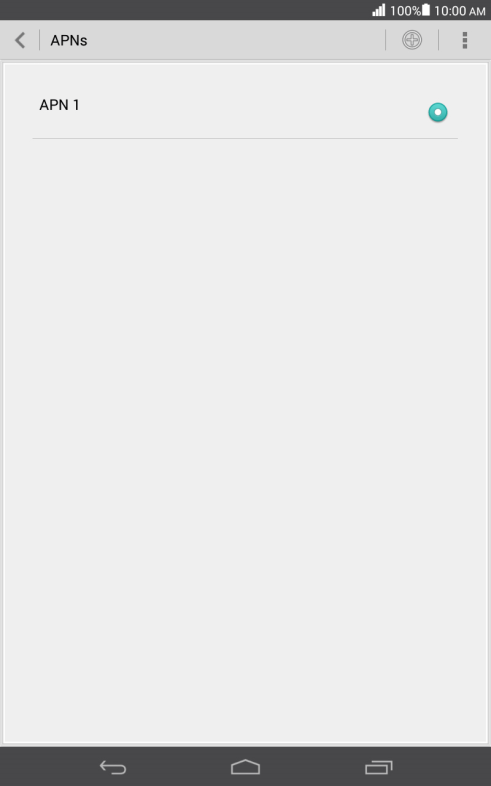

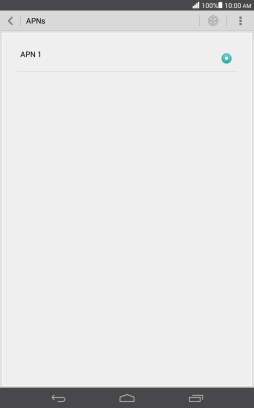

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-65aadfc1-64b0-41a7-8720-72079f36d77e.png?width=246&height=392)

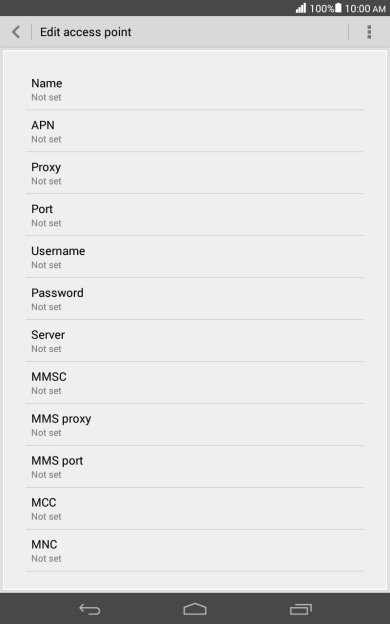

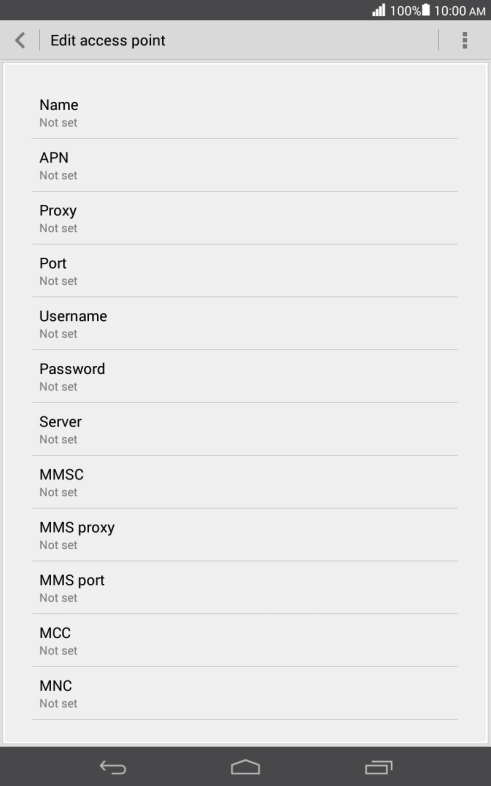

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-f872a5be-7bf7-4f40-a6d6-96f29b39ee82.png?width=246&height=392)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-c81aca8c-1ac6-42c5-ab91-0e945eb0084b.png?width=246&height=392)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-cc3d17e8-7ab4-4101-a15c-4713094bef61.png?width=246&height=392)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)

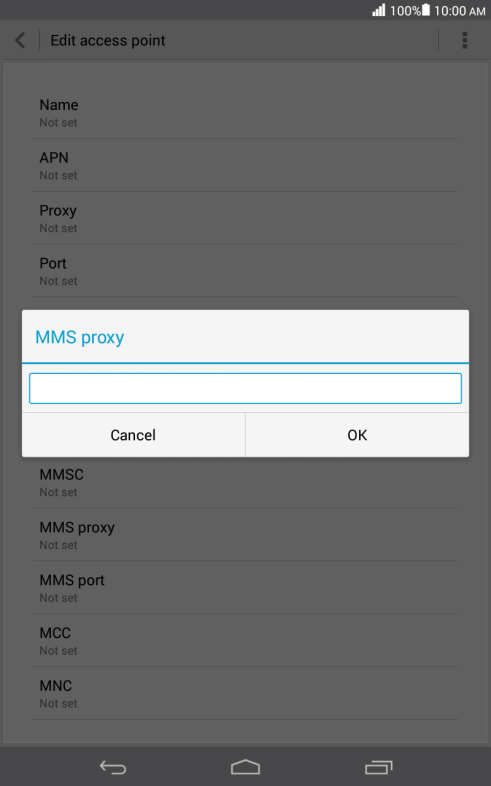

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-2c3f1648-4338-4767-80ad-3442db0c2fd6.png?width=246&height=392)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)

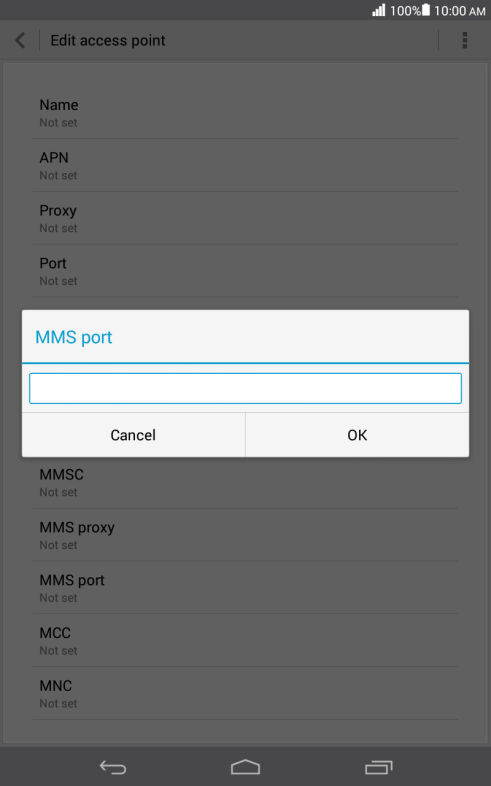

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-408c737b-3257-4348-8739-3f43af796964.png?width=246&height=392)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-bbddc914-8268-4648-83ed-a0feb24757c3.png?width=246&height=392)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a614623a-9d81-4a41-8184-254ffa1ad1af.png?width=246&height=392)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-5082fe60-369a-4f7b-8a0e-0ada2667ed3d.png?width=246&height=392)
03
9. Select authentication type

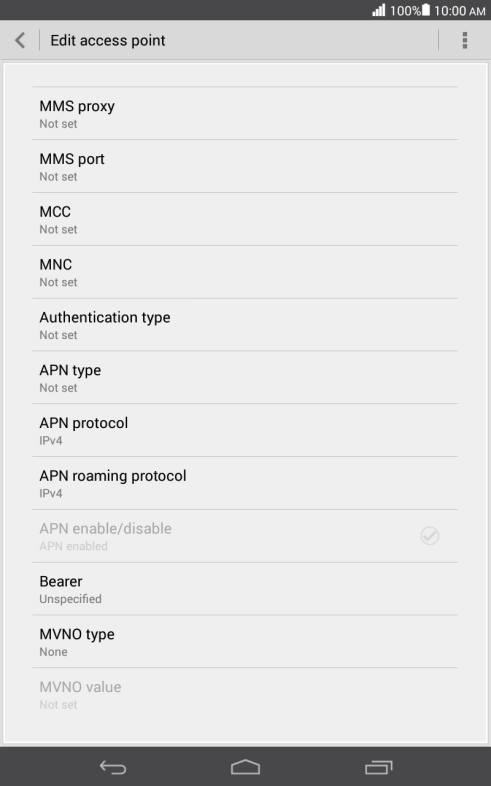

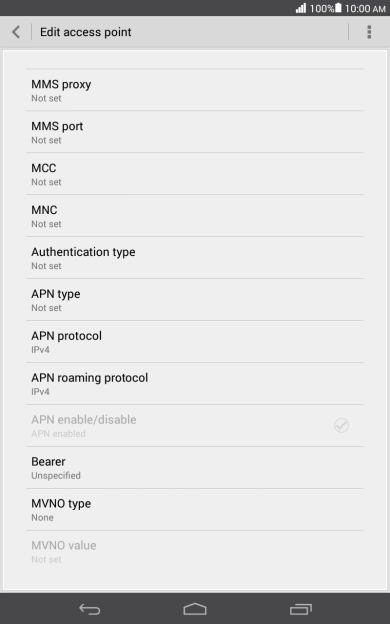

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b19720c0-08c8-443d-9c13-c25af21631d9.png?width=246&height=392)

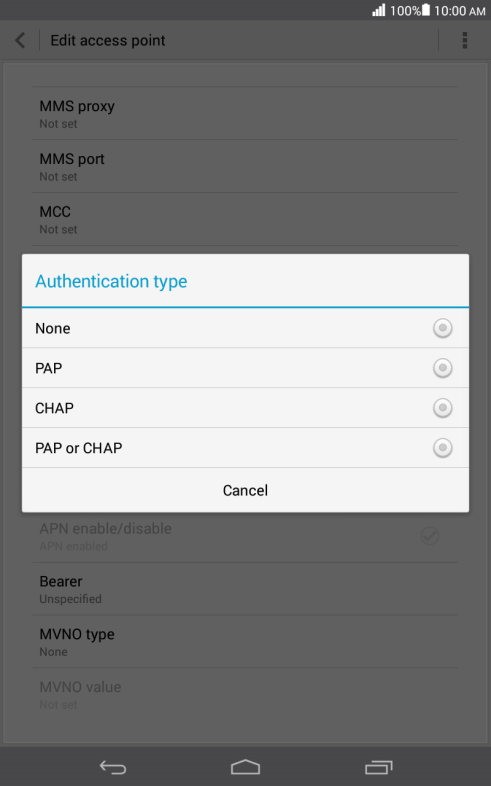

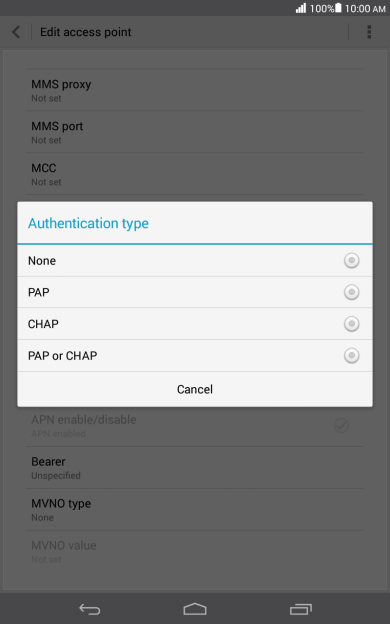

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-bd7e20dd-d20d-41e3-a4a4-9731c08dcd1e.png?width=246&height=392)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b19720c0-08c8-443d-9c13-c25af21631d9.png?width=246&height=392)

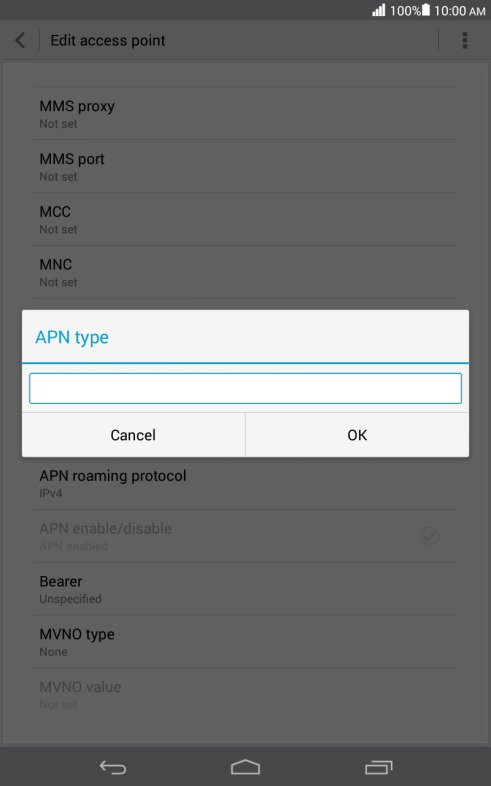

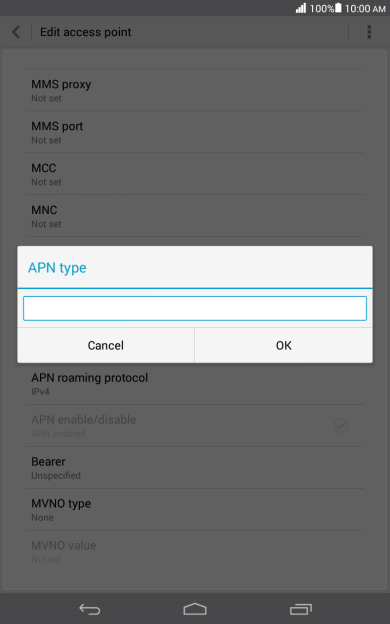

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-11739661-1e48-4333-81d7-b63777969f29.png?width=246&height=392)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b19720c0-08c8-443d-9c13-c25af21631d9.png?width=246&height=392)

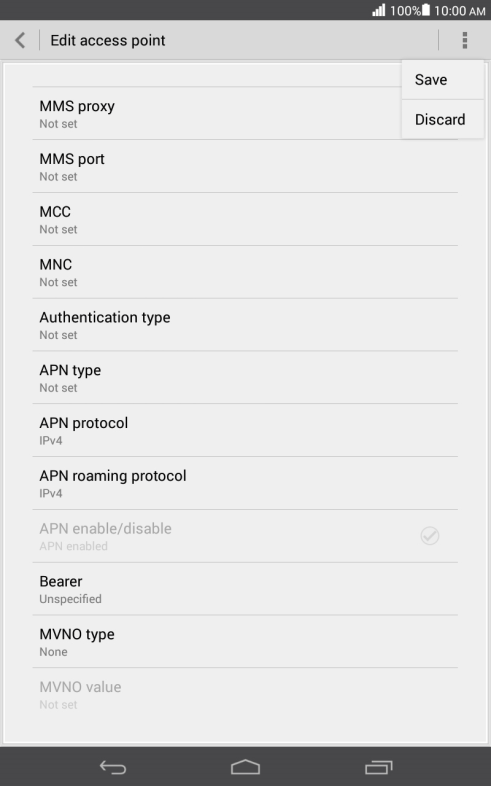

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-ebbe77ce-66c1-4713-b9bb-fb53161c8803.png?width=246&height=392)
12. Return to the home screen

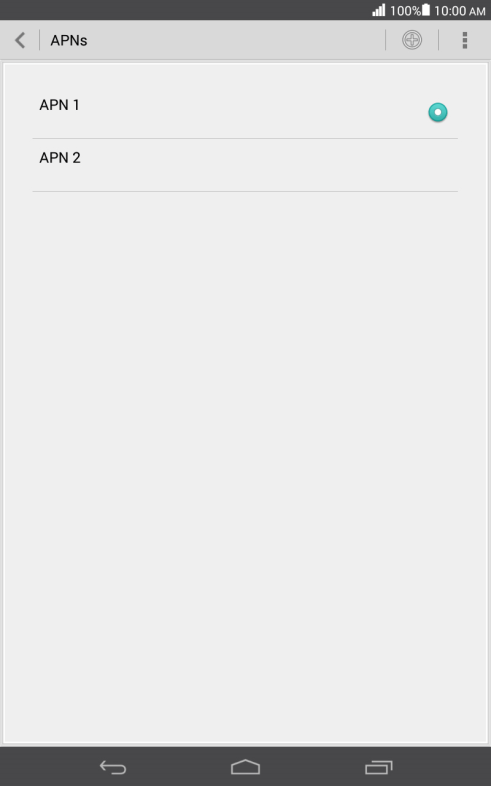

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d474b959-ea82-4443-8c9d-3170cc26b446.png?width=246&height=392)
