Huawei Pocket WiFi 3G/Yosemite

Huawei Pocket WiFi 3G

Mac OS X

Set up your router for internet manually - Huawei Pocket WiFi 3G/Yosemite

Read help info

Usually, your router automatically uses the necessary settings to connect to the internet. If this isn't the case, it may help to set up your router for internet manually.

Step 1 of 18

Turn on your router

Press and hold On/Off.

Step 2 of 18

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.

Step 3 of 18

Connect to Wi-Fi hotspot

Click the name of your Wi-Fi hotspot.

Step 4 of 18

Connect to Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

Step 5 of 18

Connect to Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Huawei Pocket WiFi 3G/Yosemite
Step 6 of 18

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 7 of 18

Establish a connection to your router's web interface

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 8 of 18

Establish a connection to your router's web interface

Click Submit.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 9 of 18

Establish a connection to your router's web interface

Highlight the field next to "Password" and key in admin

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 10 of 18

Establish a connection to your router's web interface

Click Login.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 11 of 18

Find "Connection"

Click Mobile Broadband.

Step 12 of 18

Find "Connection"

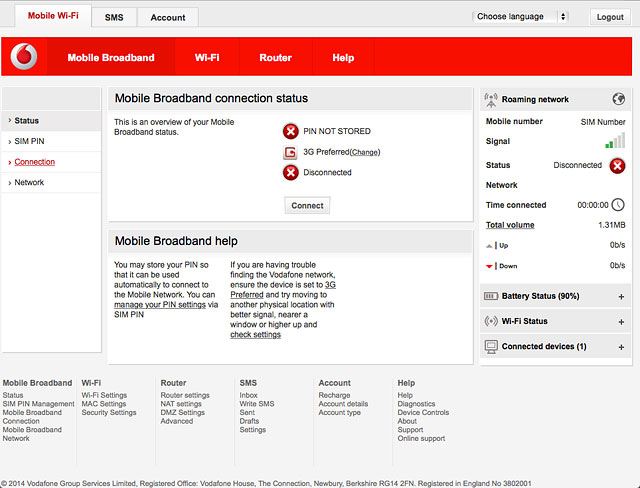

Click Connection.

Step 13 of 18

Create new data connection

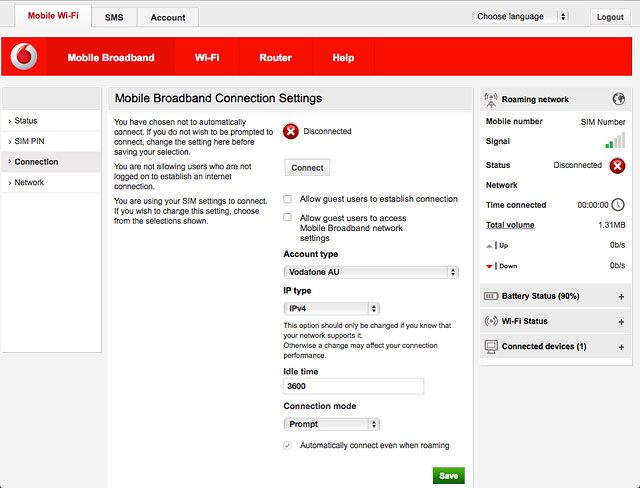

Click the drop down list below "Account type".

Step 14 of 18

Create new data connection

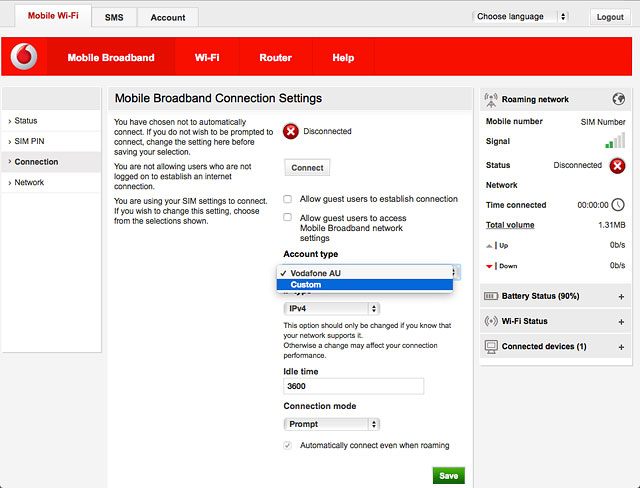

Highlight Custom.

Step 15 of 18

Enter APN

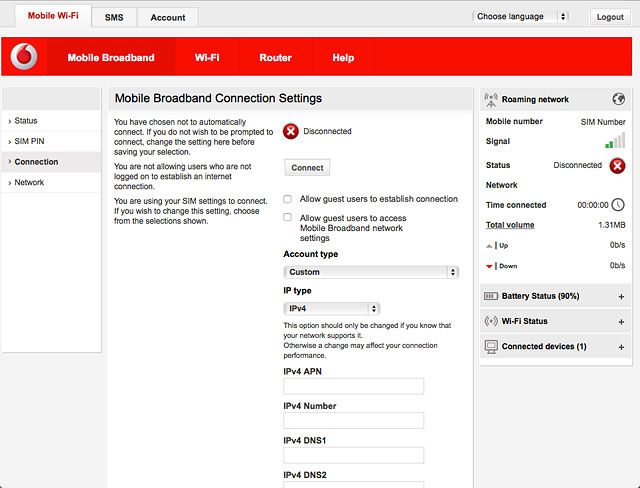

Highlight the field below "IPv4 APN" and key in vfinternet.au

Step 16 of 18

Enter dial-up number

Highlight the field below "IPv4 Number" and key in *99#

Step 17 of 18

Save and exit

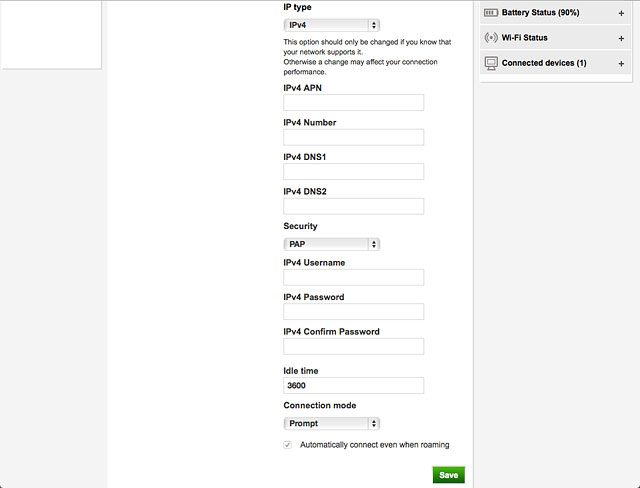

Click Save.

Step 18 of 18

Save and exit

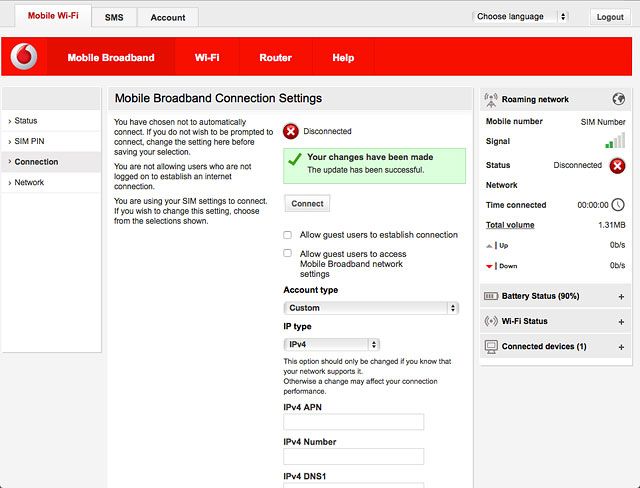

Click Logout.

Turn on your router

Press and hold On/Off.

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Huawei Pocket WiFi 3G/Yosemite
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Submit.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Highlight the field next to "Password" and key in admin
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Login.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

Find "Connection"

Click Mobile Broadband.
Click Connection.

Create new data connection

Click the drop down list below "Account type".
Highlight Custom.

Enter APN

Highlight the field below "IPv4 APN" and key in vfinternet.au

Enter dial-up number

Highlight the field below "IPv4 Number" and key in *99#

Save and exit

Click Save.
Click Logout.
