Huawei Pocket WiFi 3G/Yosemite

Huawei Pocket WiFi 3G

Mac OS X

Start using your router - Huawei Pocket WiFi 3G/Yosemite

Read help info

Before you start using your router, you need to follow these initial steps.

Step 1 of 16

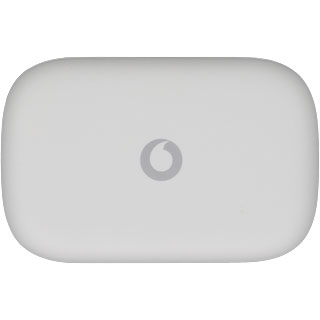

Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom left corner of the back cover and remove it.

Step 2 of 16

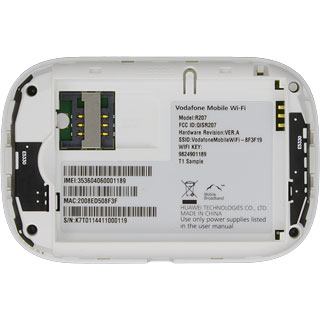

Insert your SIM

Place your SIM as illustrated in the SIM holder.

Step 3 of 16

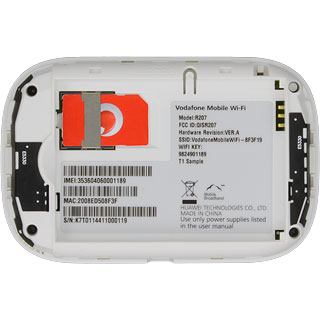

Insert your SIM

Slide your SIM into the holder.

Step 4 of 16

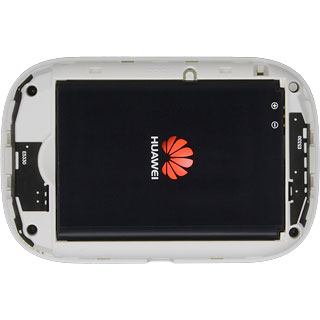

Insert the battery

Place the battery in your router (right side first), matching the battery contacts with the router contacts and press the battery into place.

Step 5 of 16

Replace the back cover

Place the back cover on your router and press it into place.

Step 6 of 16

Turn on your router

Press and hold On/Off.

Step 7 of 16

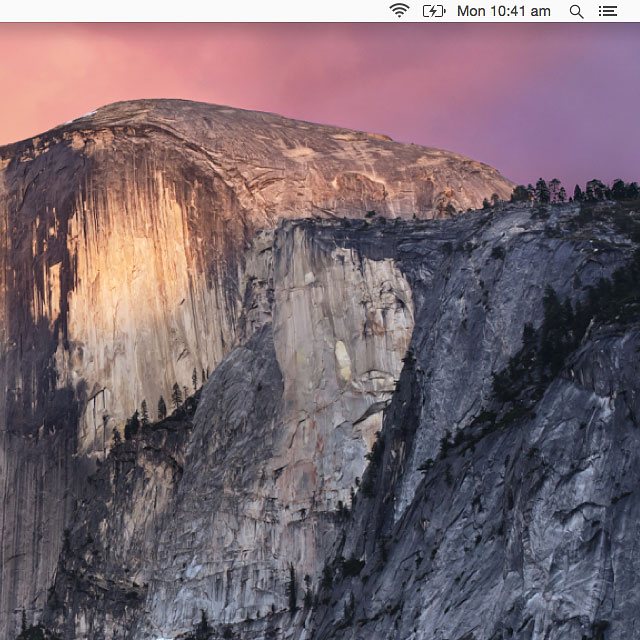

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.

Step 8 of 16

Connect to Wi-Fi hotspot

Click the name of your Wi-Fi hotspot.

Step 9 of 16

Connect to Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

Step 10 of 16

Connect to Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Huawei Pocket WiFi 3G/Yosemite
Step 11 of 16

Establish a connection to the internet

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 12 of 16

Establish a connection to the internet

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 13 of 16

Establish a connection to the internet

Click Submit.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 14 of 16

Establish a connection to the internet

If your router's web interface shows that no connection has been established:
Highlight the field next to "Password" and key in admin

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 15 of 16

Establish a connection to the internet

Click Login.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 16 of 16

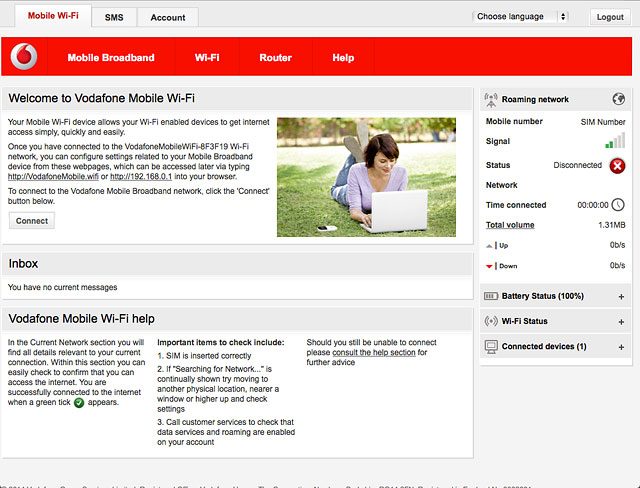

Establish a connection to the internet

Click Connect.
A connection to the internet is established.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom left corner of the back cover and remove it.

Insert your SIM

Place your SIM as illustrated in the SIM holder.
Slide your SIM into the holder.

Insert the battery

Place the battery in your router (right side first), matching the battery contacts with the router contacts and press the battery into place.

Replace the back cover

Place the back cover on your router and press it into place.

Turn on your router

Press and hold On/Off.

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Establish a connection to the internet

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Huawei Pocket WiFi 3G/Yosemite
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Submit.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
If your router's web interface shows that no connection has been established:
Highlight the field next to "Password" and key in admin
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Login.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Connect.
A connection to the internet is established.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
