1. Find "Data accounts"
Press the Navigation key.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9eea8af1-64d7-4fde-be2e-9272c857e24a.png?width=138&height=184)
Select Connected.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-65d50d1c-62f2-432a-a5eb-b36291702724.png?width=138&height=184)
Select Data accounts.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1cc3bbe1-63ef-4b14-a454-a28b20fada4b.png?width=138&height=184)
2. Create new data connection

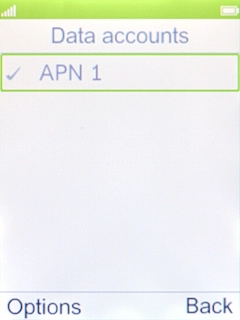

Press the Left selection key.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42b6d9a2-6872-4e60-9f4f-d0b3826d11d8.png?width=138&height=184)

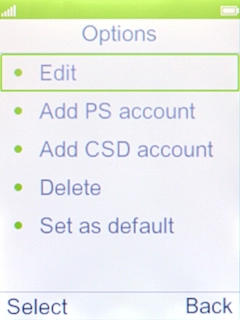

Select Add PS account.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e501b142-3151-460c-85fd-3cd1a9e614ed.png?width=138&height=184)

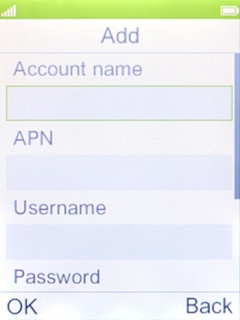

Highlight the field below "Account name" and key in Vodafone Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-71cde206-0b3b-4eff-b1f1-20b4c469f05d.png?width=138&height=184)
Vodafone Internet
3. Enter APN
Highlight the field below "APN" and key in live.vodafone.com.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-71cde206-0b3b-4eff-b1f1-20b4c469f05d.png?width=138&height=184)
live.vodafone.com
4. Select authentication type

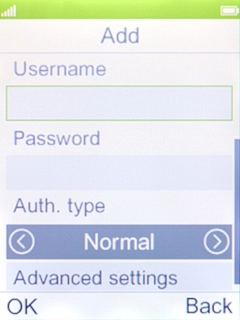

Highlight the field below "Auth. type".
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-be88e05e-7b23-4459-979e-e22f57982821.png?width=138&height=184)

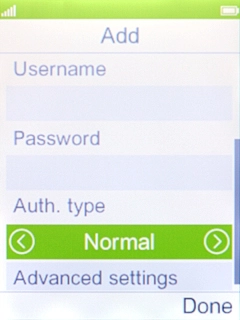

Select Normal.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1d725349-f6df-4d42-9222-f7170ce11d23.png?width=138&height=184)
5. Select connection type
Select Advanced settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1d725349-f6df-4d42-9222-f7170ce11d23.png?width=138&height=184)

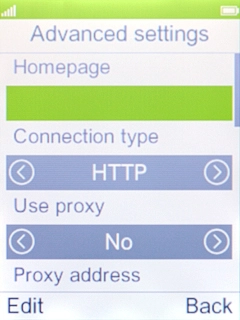

Highlight the field below "Connection type".
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-14fc5c56-2749-408e-9283-b06c719c94fc.png?width=138&height=184)

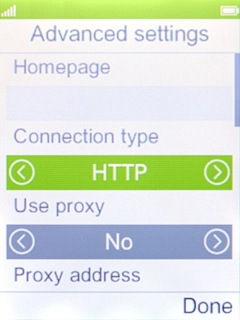

Select HTTP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-40c8a391-cf35-4999-90d2-d4c6663d1503.png?width=138&height=184)
6. Turn on use of proxy
Highlight the field below "Use proxy".
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-40c8a391-cf35-4999-90d2-d4c6663d1503.png?width=138&height=184)

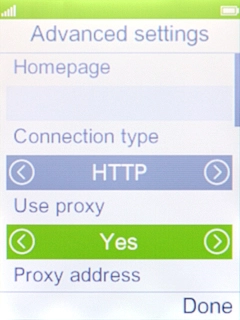

Select Yes to turn on the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e51939b4-2f03-4ae9-a549-5c574f62319f.png?width=138&height=184)
7. Enter IP address

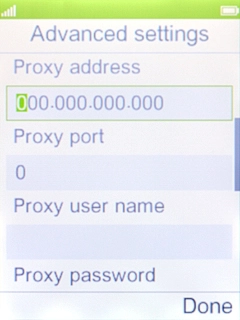

Highlight the field below "Proxy address" and key in 10.202.2.60.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-02d3aafa-ccb9-46b3-a0fc-ea8a2ff96d8e.png?width=138&height=184)
10.202.2.60
8. Enter port number
Highlight the field below "Proxy port" and key in 8080.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-02d3aafa-ccb9-46b3-a0fc-ea8a2ff96d8e.png?width=138&height=184)
8080
Press the Right selection key.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-02d3aafa-ccb9-46b3-a0fc-ea8a2ff96d8e.png?width=138&height=184)
9. Save data connection
Press the Right selection key.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1d725349-f6df-4d42-9222-f7170ce11d23.png?width=138&height=184)
10. Return to the home screen
Press Disconnect to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-220bf7ea-29b8-4ad2-ba56-7d0d2f98a3e3.png?width=138&height=184)
11. Find "Multimedia message"
Press the Navigation key.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9eea8af1-64d7-4fde-be2e-9272c857e24a.png?width=138&height=184)
Select Browser.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-65d50d1c-62f2-432a-a5eb-b36291702724.png?width=138&height=184)

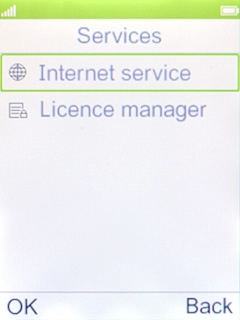

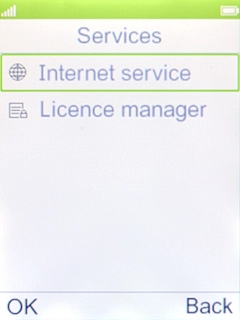

Select Internet service.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d7004331-d312-4631-9425-ccdc65ca18d3.png?width=138&height=184)

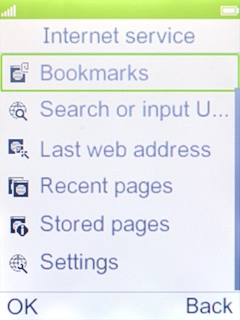

Select Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-91b3be10-b2ac-4be6-a3f8-762b0dcb45f5.png?width=138&height=184)
12. Active data connection

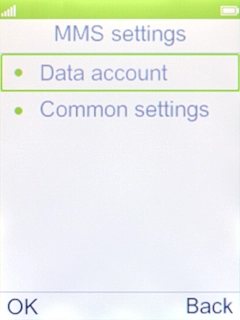

Select Data account.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f9c247a9-60ff-4ad2-9130-2b2289899056.png?width=138&height=184)

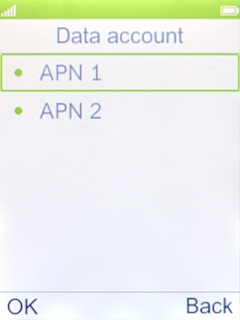

Select the required data connection.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cf12e91c-129c-4124-b728-5b455d034e0a.png?width=138&height=184)
13. Return to the home screen
Press Disconnect to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9e68805c-91bb-424a-8aba-aa41ecda54cd.png?width=138&height=184)
