1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9a85f82a-1652-4994-a53f-55ff0e85dd8d.png?width=192&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1d5142fc-865c-4f3e-99eb-500aca484d1a.png?width=192&height=448)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b4ec8384-0a63-4726-8af9-12cbefad3f27.png?width=192&height=448)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1e946304-6cf2-411f-ae6b-ecbe31414cc2.png?width=192&height=448)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0e069e56-3151-493f-a1a0-350c3b7e6635.png?width=192&height=448)

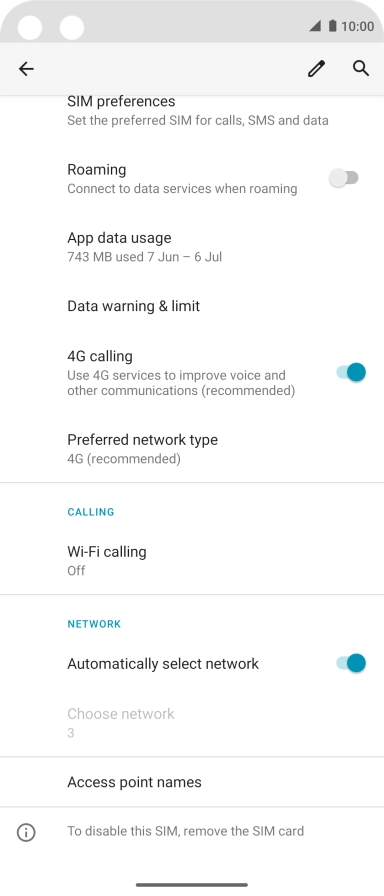

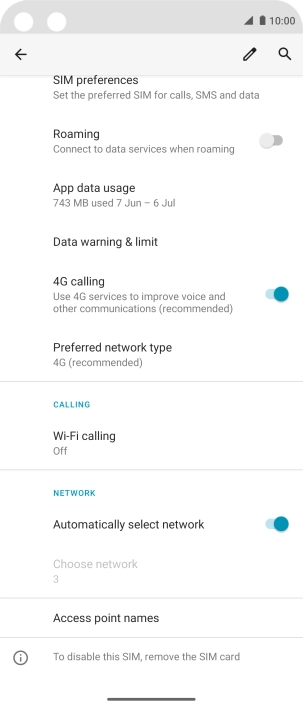

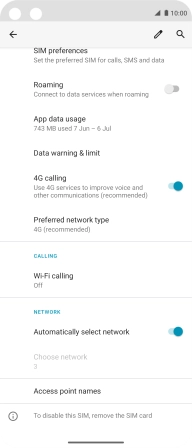

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-316b94c4-aeea-4e26-a2c6-241b9cfa0bcc.png?width=192&height=448)
2. Create new data connection

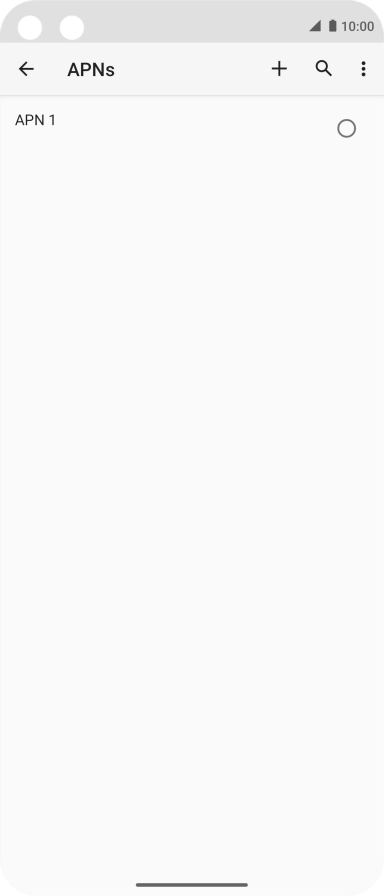

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-462b1f77-3c56-4b61-b2ec-b5b95c160a49.png?width=192&height=448)
3. Enter a name for the connection

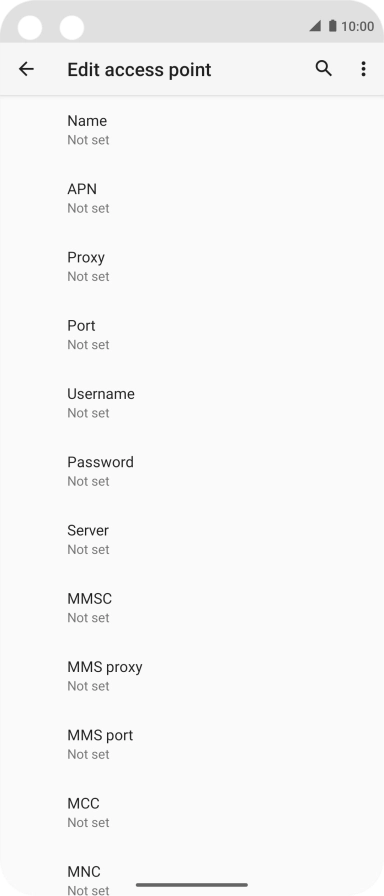

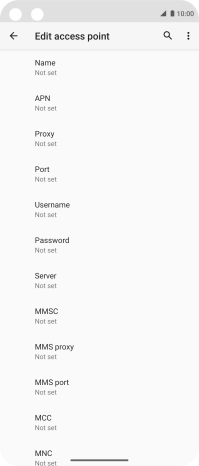

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b122952b-b379-473a-a6a7-f597d2972114.png?width=192&height=448)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9e9c1a05-fd1c-4d5a-b834-3194c3656740.png?width=192&height=448)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b122952b-b379-473a-a6a7-f597d2972114.png?width=192&height=448)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c4624d88-5e24-4816-8c55-a40c83c33e0d.png?width=192&height=448)
live.vodafone.com
5. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b122952b-b379-473a-a6a7-f597d2972114.png?width=192&height=448)

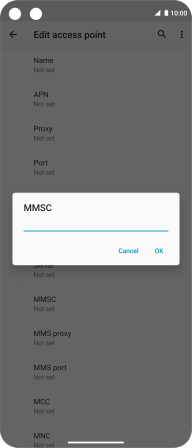

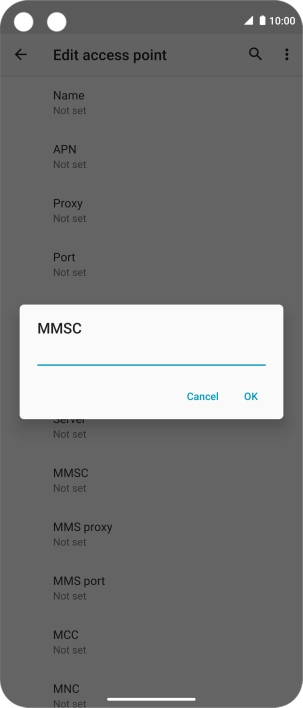

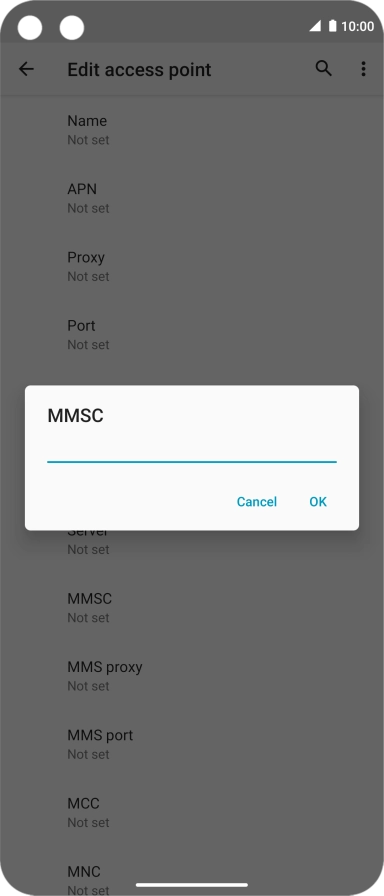

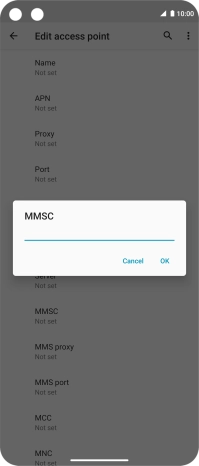

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d3ebabba-7ac3-40dd-9eab-8e175159e5ef.png?width=192&height=448)
http://pxt.vodafone.net.au/pxtsend
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b122952b-b379-473a-a6a7-f597d2972114.png?width=192&height=448)

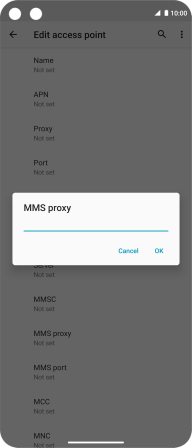

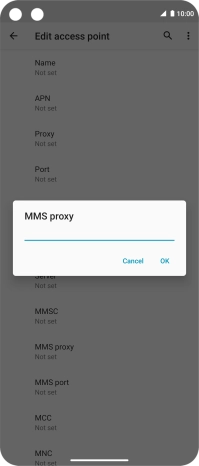

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2e79cc8d-4027-4dfe-a103-4dde616397ab.png?width=192&height=448)
10.202.002.060
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b122952b-b379-473a-a6a7-f597d2972114.png?width=192&height=448)

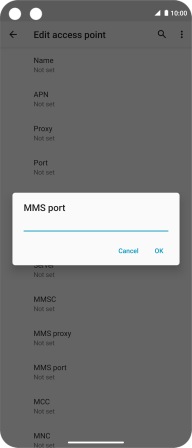

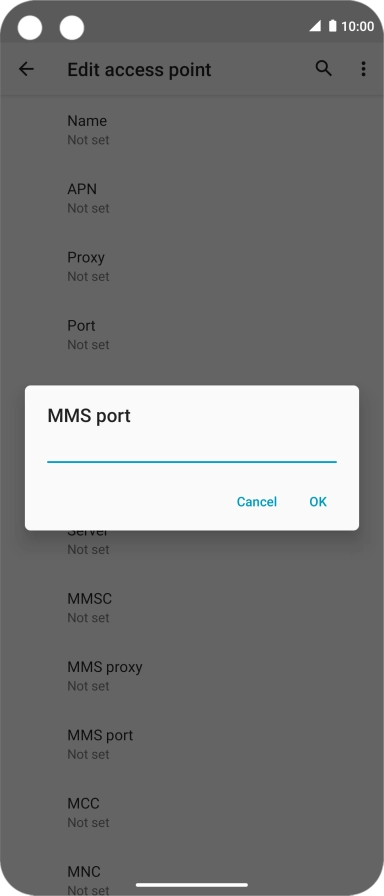

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb0f52e3-f1f2-4850-99a6-4bbcb7ba1a0a.png?width=192&height=448)
8080
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b122952b-b379-473a-a6a7-f597d2972114.png?width=192&height=448)

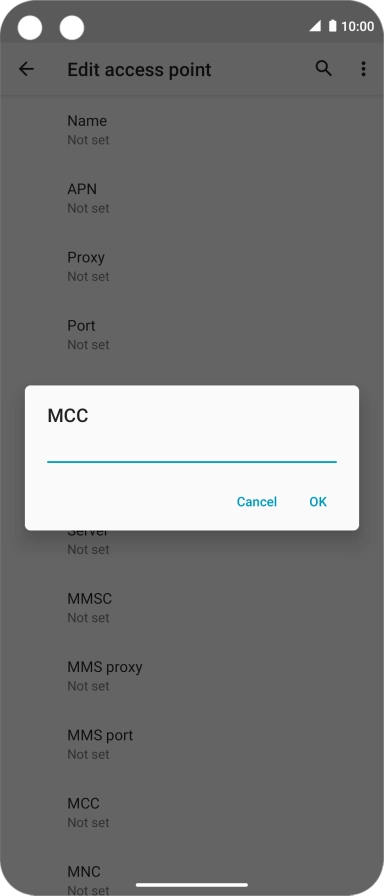

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f1272db1-5d91-44b7-adf7-30b34d87126b.png?width=192&height=448)
505
9. Enter network code

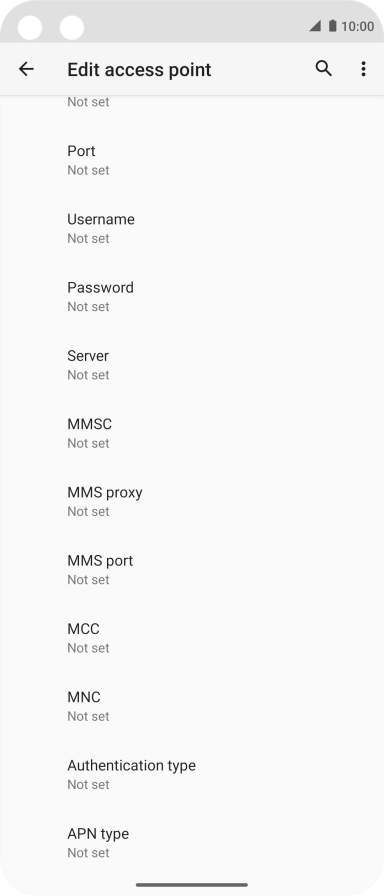

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-06a92771-a4ac-4b16-a4dd-ceef6b01ee10.png?width=192&height=448)

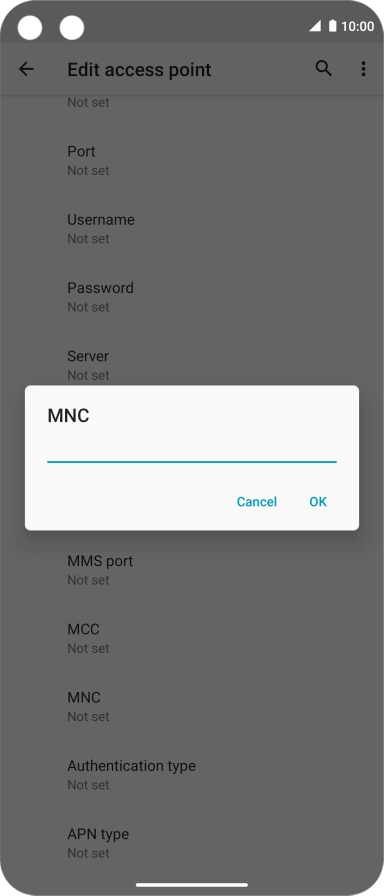

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b9723608-7be8-41cc-a055-b18b078790d1.png?width=192&height=448)
03
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-06a92771-a4ac-4b16-a4dd-ceef6b01ee10.png?width=192&height=448)

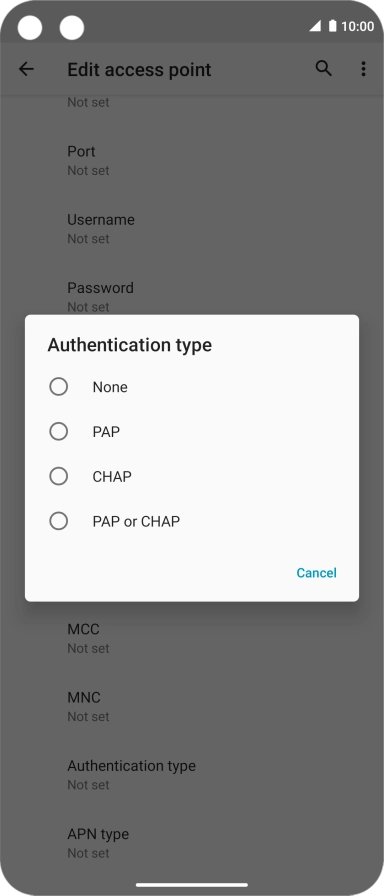

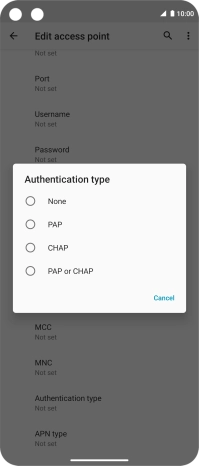

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-23ca9fa8-d6c4-44ab-b2d2-4b5e27d50bc6.png?width=192&height=448)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-06a92771-a4ac-4b16-a4dd-ceef6b01ee10.png?width=192&height=448)

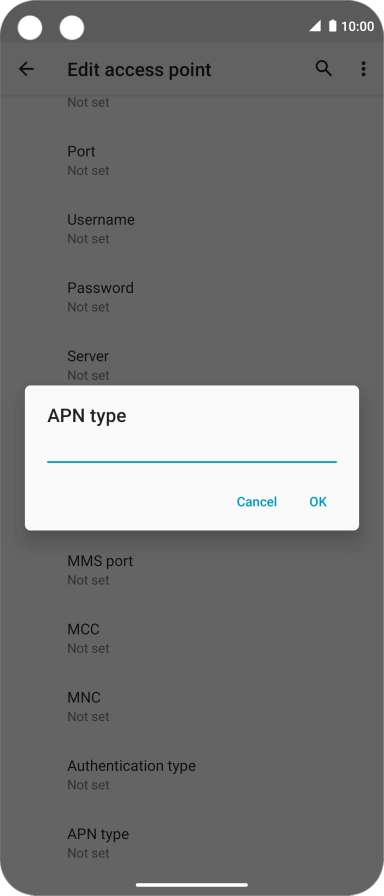

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-49ff6bf2-6f02-4fa7-98c5-0b22ab545596.png?width=192&height=448)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-06a92771-a4ac-4b16-a4dd-ceef6b01ee10.png?width=192&height=448)

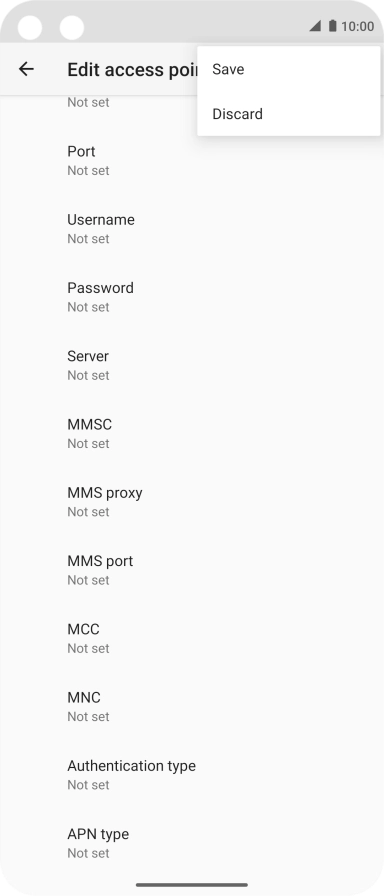

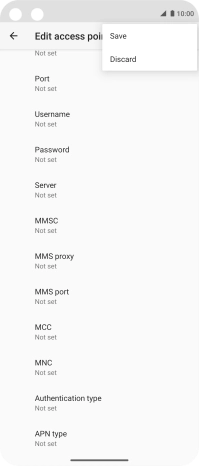

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c726073e-367f-402e-b528-26658a8ed93a.png?width=192&height=448)
13. Return to the home screen

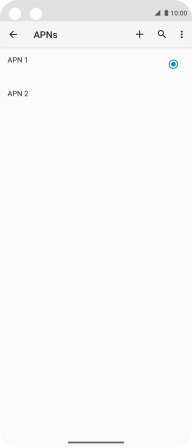

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-00edf18f-8040-406b-a9e6-899c92f0216f.png?width=192&height=448)
