1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-99a5aefd-723c-449c-bf49-40173841f468.png?width=206&height=412)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4db3e4f1-ec4f-4a95-8568-f783c96fe20a.png?width=206&height=412)

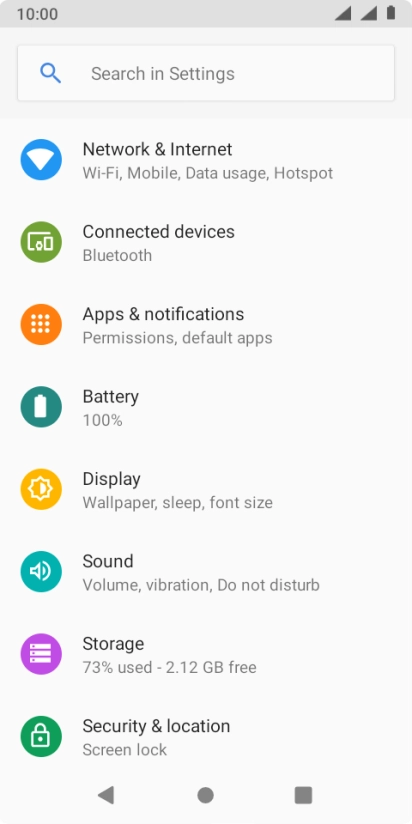

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f788ea76-6c02-4f23-96c0-1dfd66a57020.png?width=206&height=412)

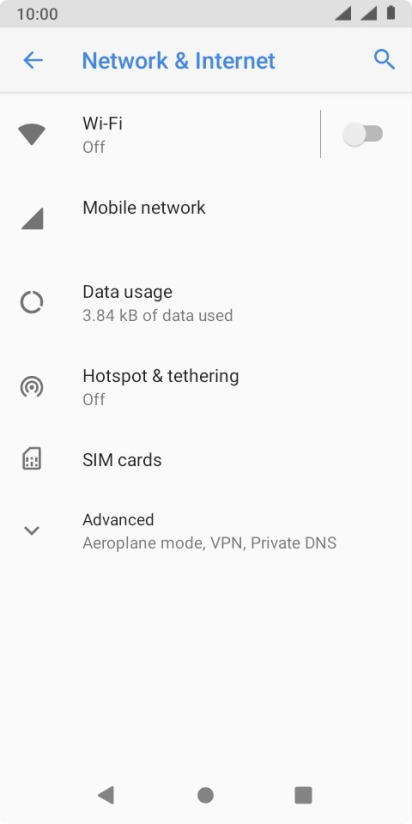

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1490f08b-a079-4501-a24d-ce0d58d49127.png?width=206&height=412)

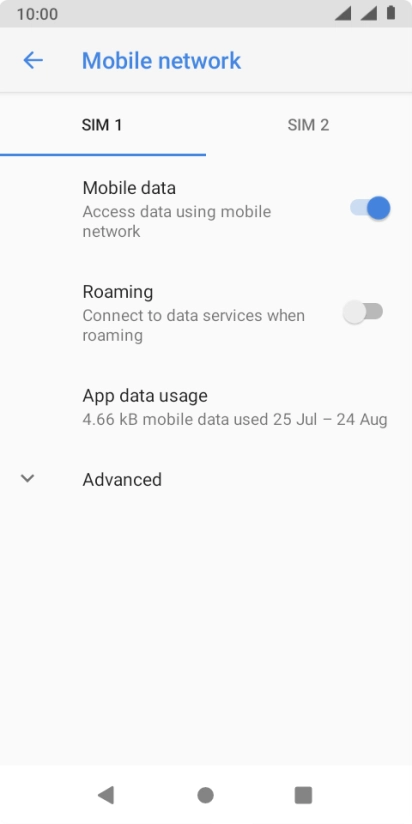

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-41d054f7-0f2e-4951-9615-7b58dc4cea96.png?width=206&height=412)

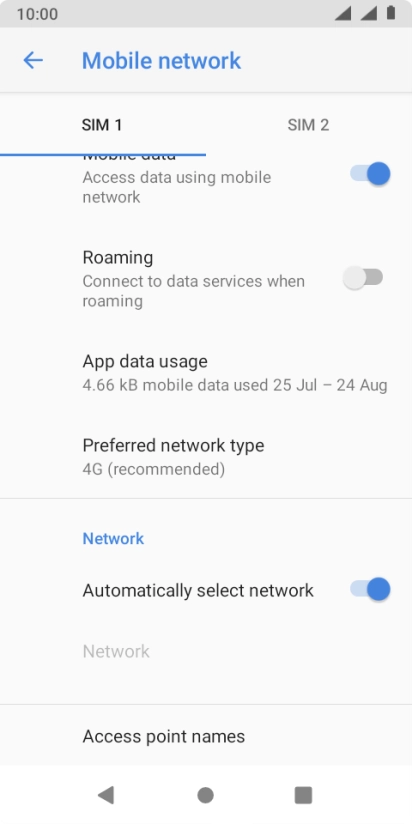

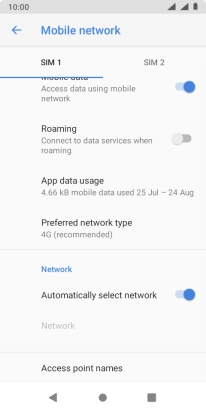

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-297cea5f-600e-4261-a362-86e1c5528af8.png?width=206&height=412)
2. Create new data connection

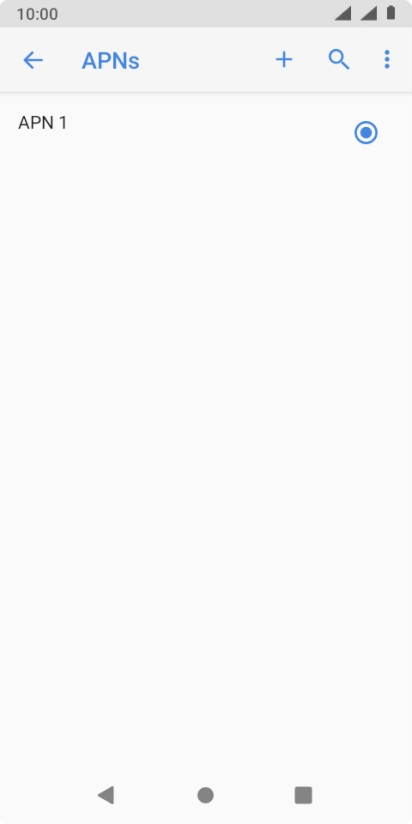

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-449d8e9e-ee22-45cf-9868-5da5aa6d4a9a.png?width=206&height=412)

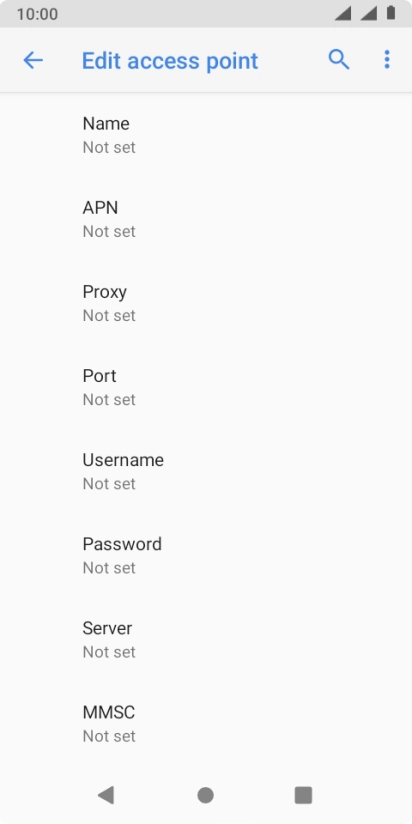

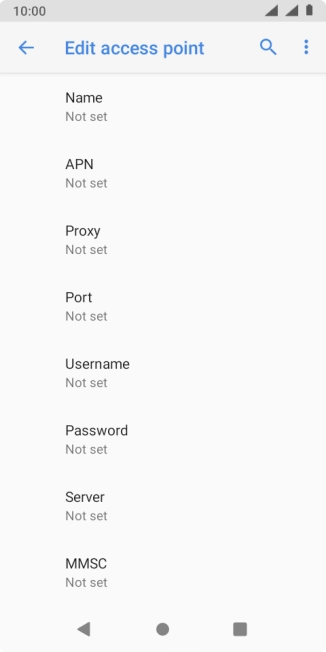

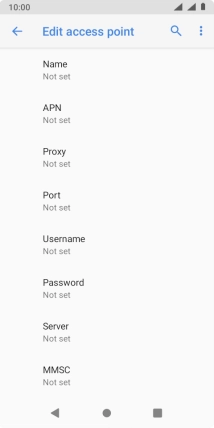

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ea7a047c-8879-4004-bf1c-d33884065026.png?width=206&height=412)

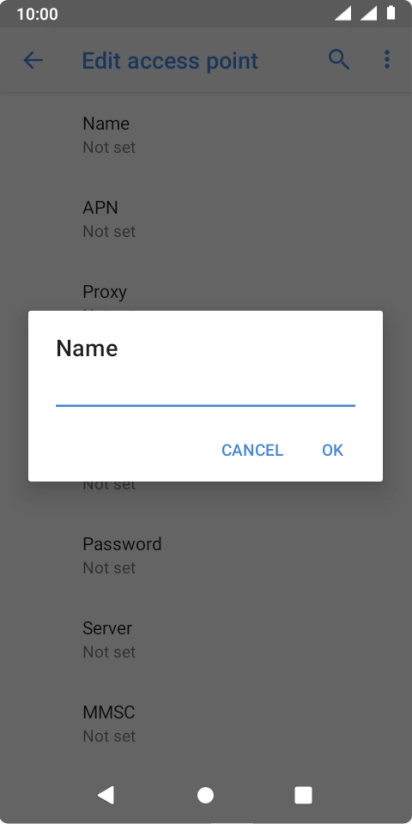

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b007ef85-0daa-424a-bb19-b75aa027fdab.png?width=206&height=412)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ea7a047c-8879-4004-bf1c-d33884065026.png?width=206&height=412)

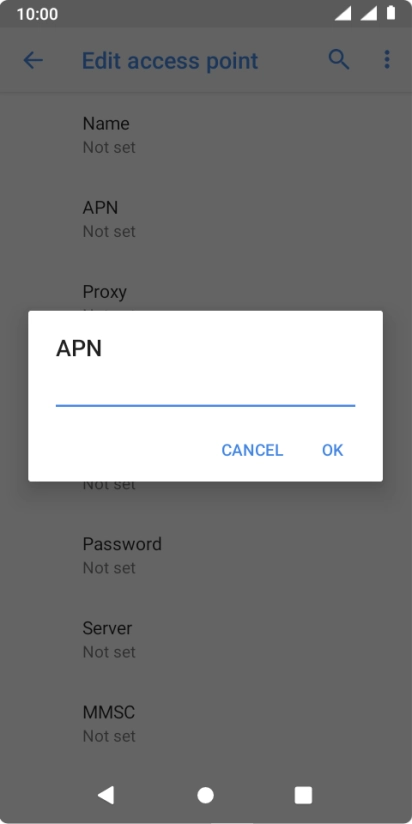

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9c1f774-af63-4888-8405-57e89adc2387.png?width=206&height=412)
live.vodafone.com
4. Enter country code

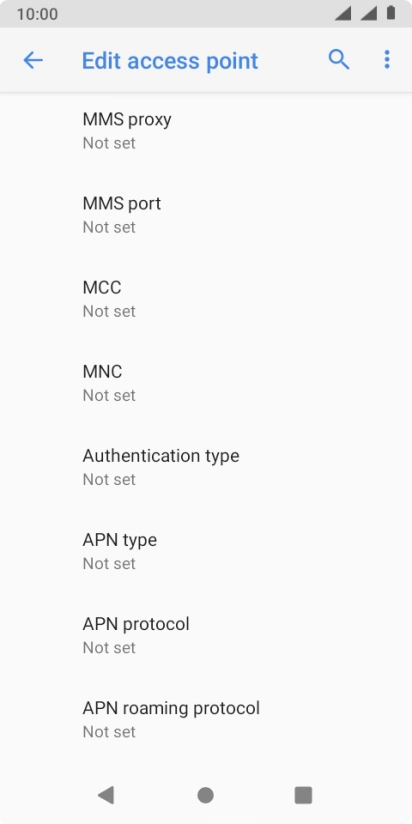

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

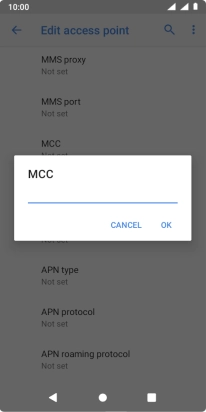

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8cf1778e-e66d-40da-bc4e-21a4fb31e998.png?width=206&height=412)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

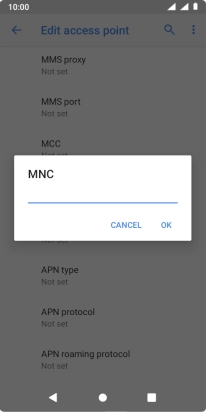

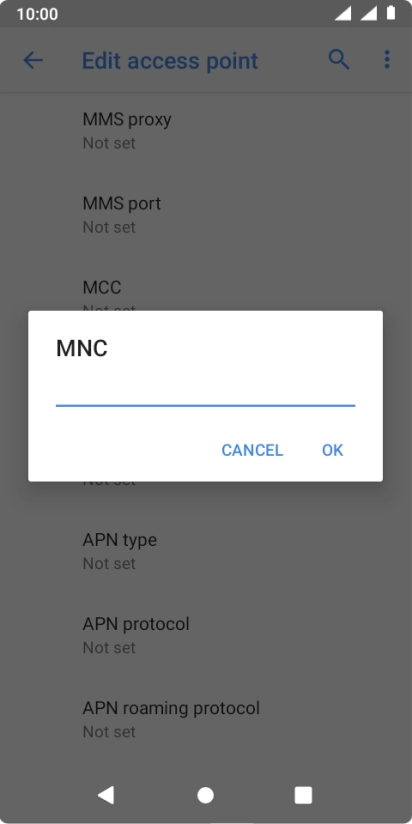

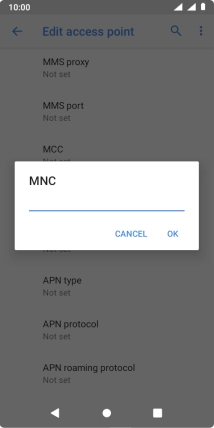

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6b7f4b15-898a-4ae1-b8c1-314a76e0fb3c.png?width=206&height=412)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

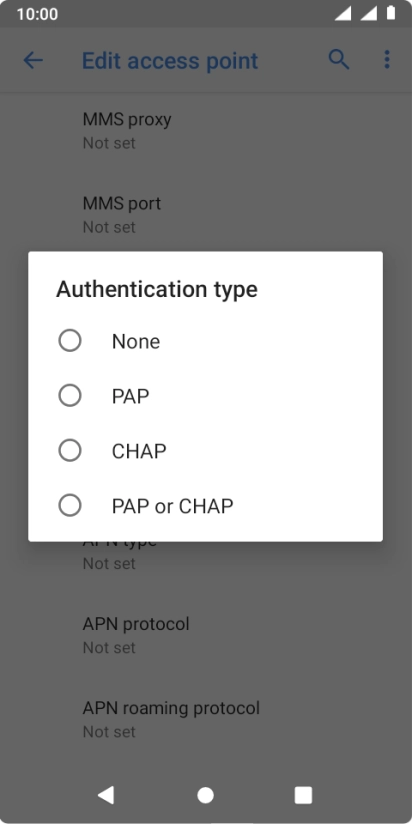

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ea3894e-06dd-411a-b15b-1f647f885bab.png?width=206&height=412)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

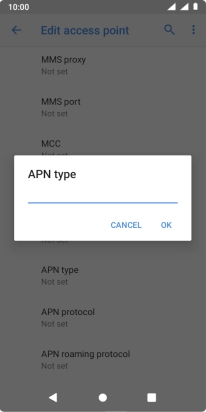

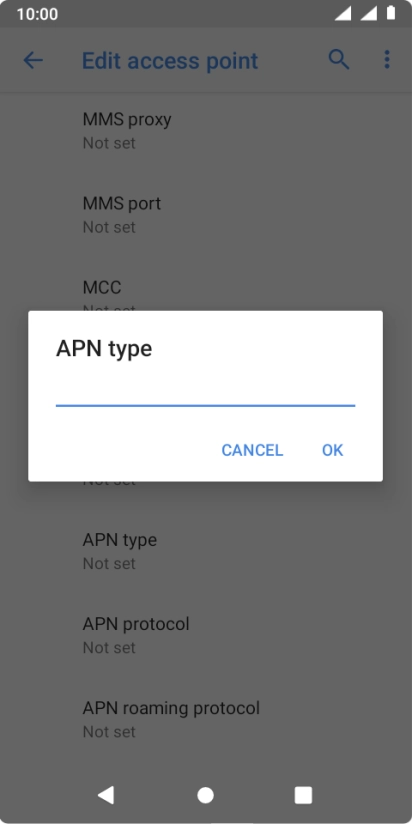

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81860fbb-fbca-494a-afdb-e6e704cfbea0.png?width=206&height=412)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

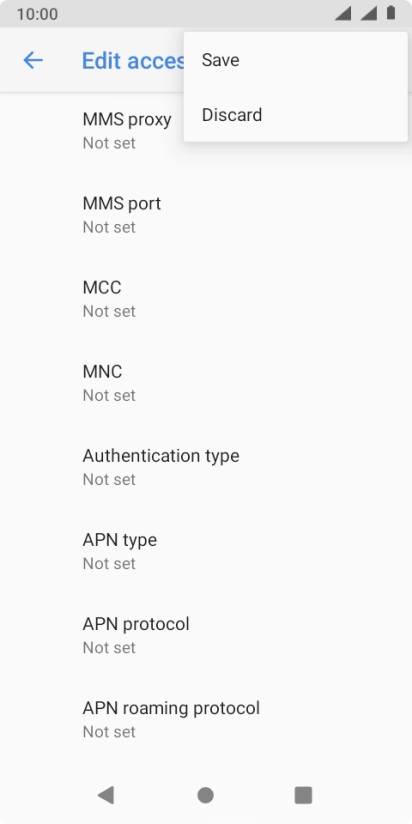

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cfd372e2-7bd4-4eee-92fd-75b14d61005f.png?width=206&height=412)

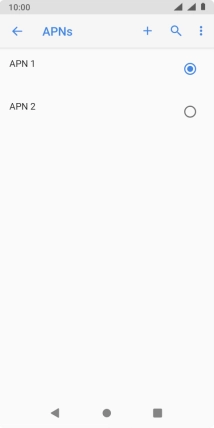

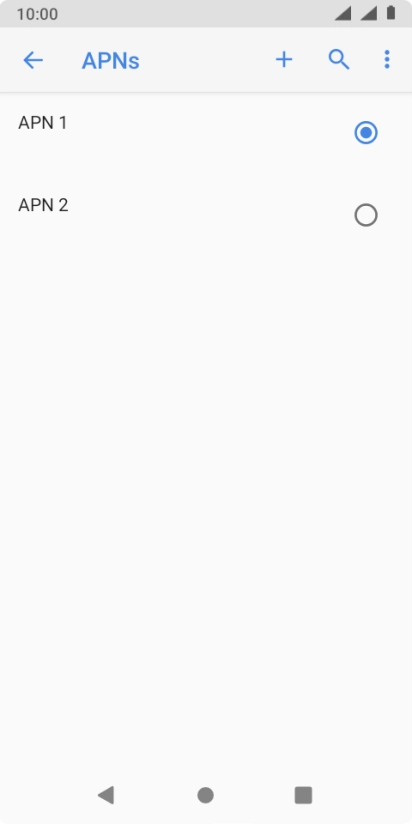

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3e0f4706-3652-41a4-9370-7dbe63ba1fe3.png?width=206&height=412)
9. Return to the home screen

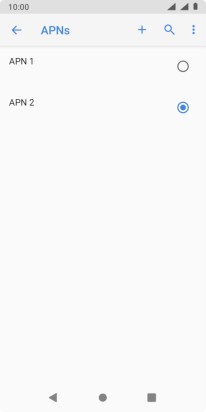

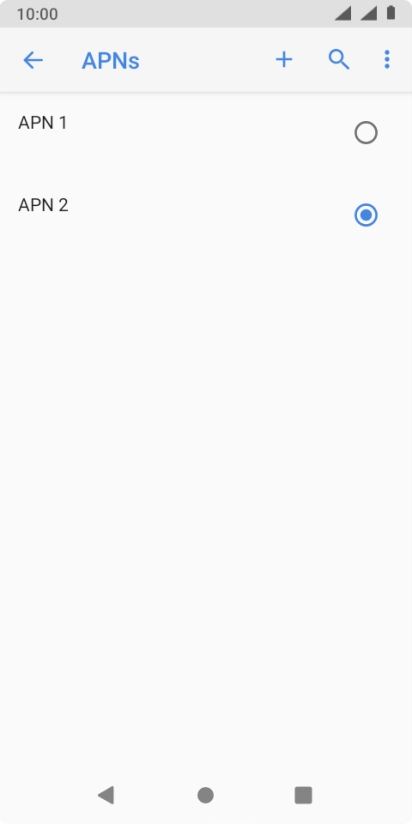

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb3388f1-26df-4125-923f-3e04a8a8e946.png?width=206&height=412)
