1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3df21d6c-8ad6-4e10-aba5-675fc9fbdf62.png?width=206&height=368)

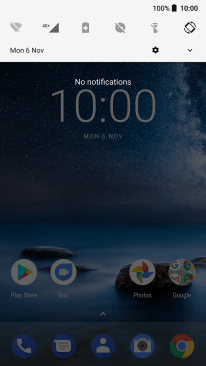

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b0f7ca45-2176-42df-880c-15f069bfb2f6.png?width=206&height=368)

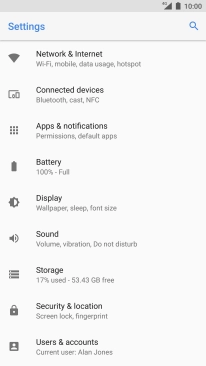

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6a340402-b126-4adf-9a26-f4d5393e80c8.png?width=206&height=368)

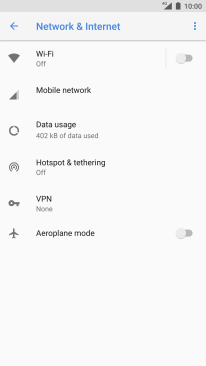

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-485a3bf2-8632-4224-b518-345c352e5dc4.png?width=206&height=368)

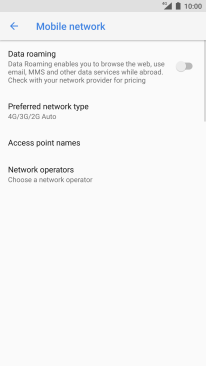

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-62550090-da7b-45ec-b257-fcaaef7df44f.png?width=206&height=368)
2. Create new data connection

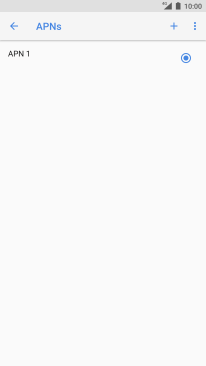

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f2f9660e-0563-49d1-bb9b-d1aa7f5dd862.png?width=206&height=368)

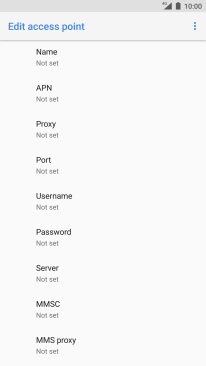

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81944ff6-852c-413b-aa92-cbee42a4505f.png?width=206&height=368)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-73e76c64-4ffc-48e5-96c4-e288842dad43.png?width=206&height=368)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81944ff6-852c-413b-aa92-cbee42a4505f.png?width=206&height=368)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-05e28333-c447-4f4f-bd62-4fe61cc5ac6d.png?width=206&height=368)
live.vodafone.com
4. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81944ff6-852c-413b-aa92-cbee42a4505f.png?width=206&height=368)

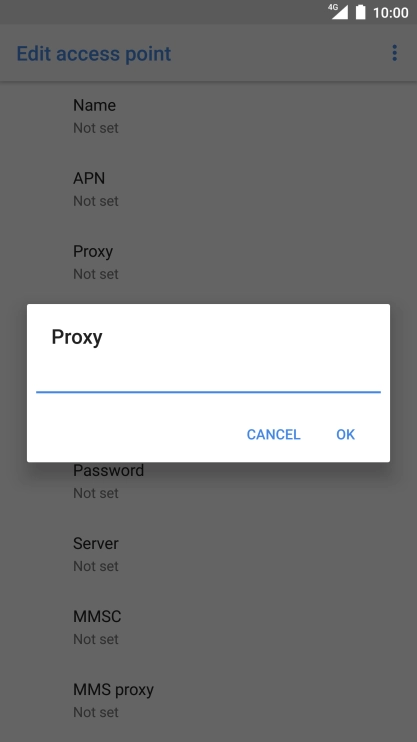

Key in 10.202.2.60 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c74105eb-6b1d-441f-aa8f-878ef9cdf94e.png?width=206&height=368)
10.202.2.60
5. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81944ff6-852c-413b-aa92-cbee42a4505f.png?width=206&height=368)

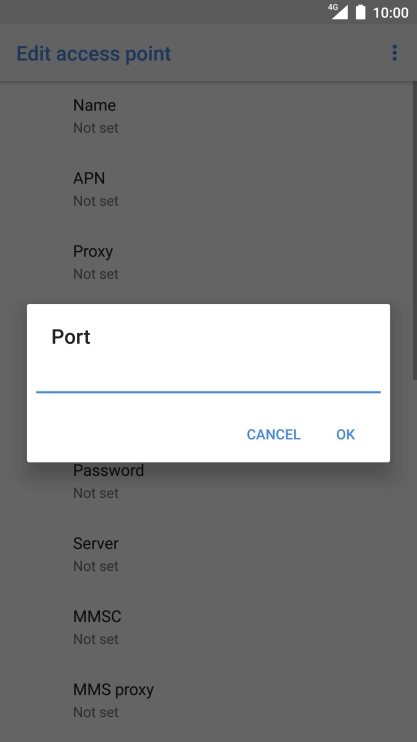

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-93bd5e6e-abba-4917-a5a7-e6266fbaa4ff.png?width=206&height=368)
8080
6. Enter country code

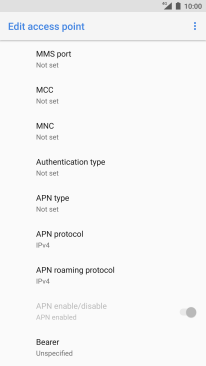

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-915b33db-fa5f-46f0-9e77-489b5df6ca26.png?width=206&height=368)

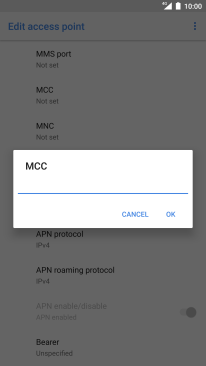

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1f28d7ad-30f4-40fe-a8c5-03a8a609d9ea.png?width=206&height=368)
505
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-915b33db-fa5f-46f0-9e77-489b5df6ca26.png?width=206&height=368)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-303ab6f2-c39e-410d-b7bd-997f1f7de5c3.png?width=206&height=368)
03
8. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-915b33db-fa5f-46f0-9e77-489b5df6ca26.png?width=206&height=368)

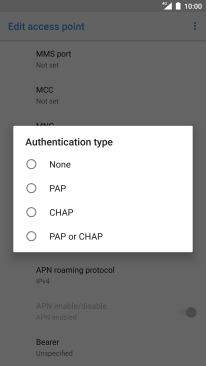

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6f67898b-1311-4c74-be17-e4e39819c019.png?width=206&height=368)
9. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-915b33db-fa5f-46f0-9e77-489b5df6ca26.png?width=206&height=368)

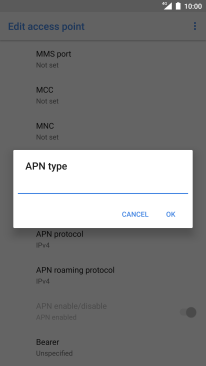

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ead29e40-74b6-48a3-9f33-d8ce0e928748.png?width=206&height=368)
default
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-915b33db-fa5f-46f0-9e77-489b5df6ca26.png?width=206&height=368)

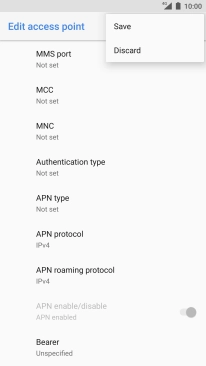

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-56c2dc10-2adb-4a8c-bcaf-2a306924a6f6.png?width=206&height=368)

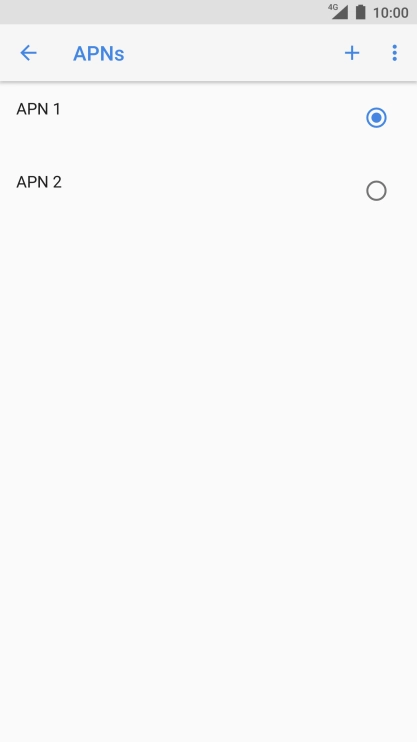

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5cdd8ab6-8f75-4e63-966e-2f603bfac1ab.png?width=206&height=368)
11. Return to the home screen

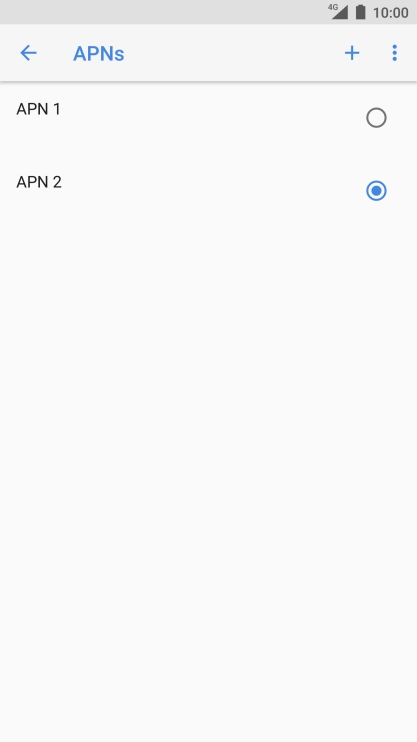

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fb6ef599-8188-400f-85cb-37b6f5418a4b.png?width=206&height=368)
