Set up your phone for picture messaging - Nokia C2-01

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 44

Find "Personal config. sett."

Press the Navigation key.

Step 2 of 44

Find "Personal config. sett."

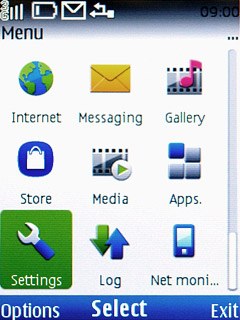

Scroll to Settings and press the Navigation key.

Step 3 of 44

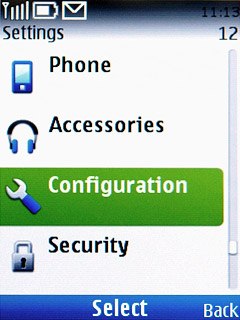

Find "Personal config. sett."

Scroll to Configuration and press the Navigation key.

Step 4 of 44

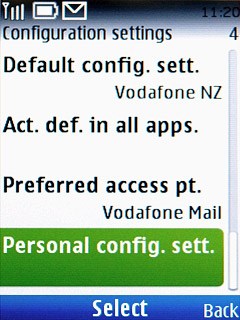

Find "Personal config. sett."

Scroll to Personal config. sett. and press the Navigation key.

Step 5 of 44

Create new data connection

Press Options.

Step 6 of 44

Create new data connection

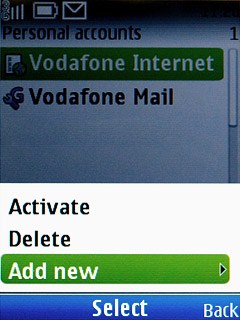

Scroll to Add new and press the Navigation key.

Step 7 of 44

Create new data connection

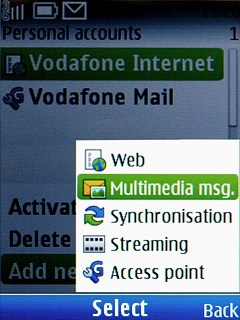

Scroll to Multimedia msg. and press the Navigation key.

Step 8 of 44

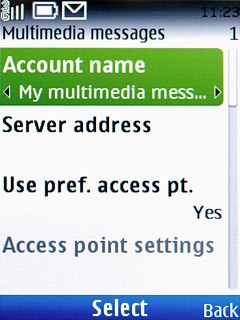

Enter data connection name

Scroll to Account name and press the Navigation key.

Step 9 of 44

Enter data connection name

Key in Vodafone MMS and press the Navigation key.

Step 10 of 44

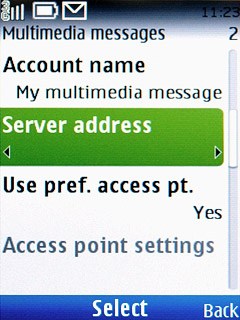

Enter picture messaging server

Scroll to Server address and press the Navigation key.

Step 11 of 44

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press the Navigation key.

Step 12 of 44

Turn off default data connection

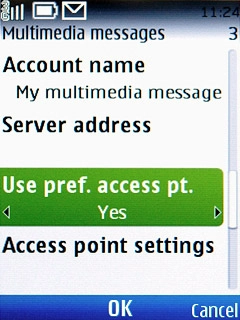

Scroll to Use pref. access pt. and press the Navigation key.

Step 13 of 44

Turn off default data connection

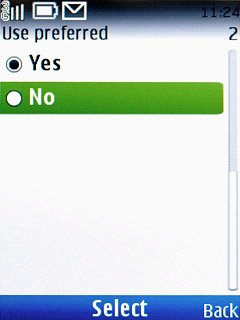

Scroll to No and press the Navigation key.

Step 14 of 44

Enable proxy

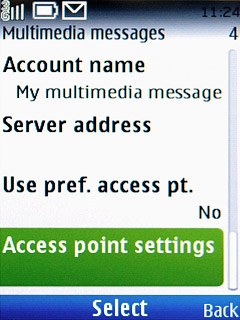

Scroll to Access point settings and press the Navigation key.

Step 15 of 44

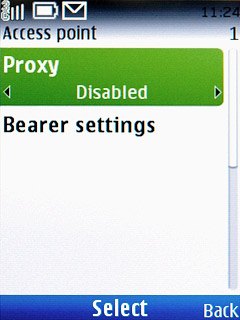

Enable proxy

Scroll to Proxy and press the Navigation key.

Step 16 of 44

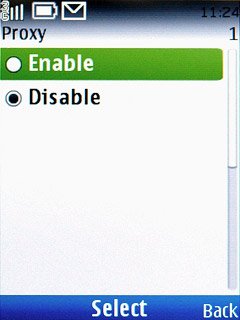

Enable proxy

Scroll to Enable and press the Navigation key.

Step 17 of 44

Enter IP address

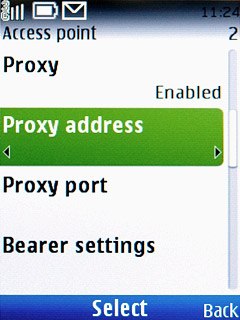

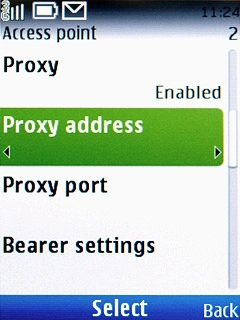

Scroll to Proxy address and press the Navigation key.

Step 18 of 44

Enter IP address

Key in 10.202.002.060 and press the Navigation key.

Step 19 of 44

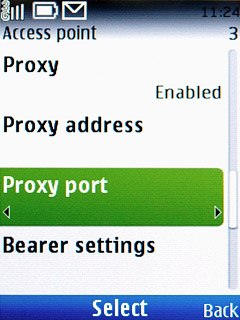

Enter port

Scroll to Proxy port and press the Navigation key.

Step 20 of 44

Enter port

Key in 8080 and press the Navigation key.

Step 21 of 44

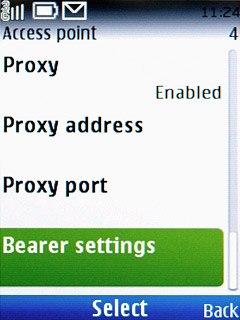

Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

Step 22 of 44

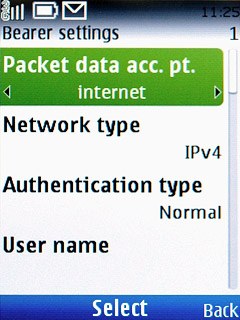

Enter APN

Scroll to Packet data acc. pt. and press the Navigation key.
Key in live.vodafone.com

Step 23 of 44

Enter APN

Press the Navigation key.

Step 24 of 44

Select authentication type

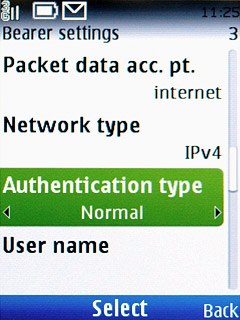

Scroll to Authentication type and press the Navigation key.

Step 25 of 44

Select authentication type

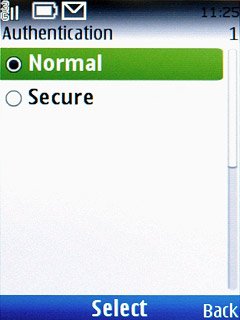

Scroll to Normal and press the Navigation key.

Step 26 of 44

Activate data connection

Press Back three times to save the settings and return to the list of data connections.

Step 27 of 44

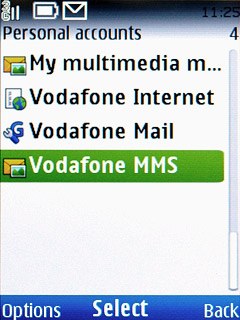

Activate data connection

Scroll to Vodafone MMS.

Step 28 of 44

Activate data connection

Press Options.

Step 29 of 44

Activate data connection

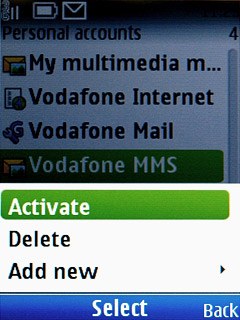

Scroll to Activate and press the Navigation key.

Step 30 of 44

Activate data connection

Press Disconnect to return to standby mode.

Step 31 of 44

Find "Message settings"

Press the Navigation key.

Step 32 of 44

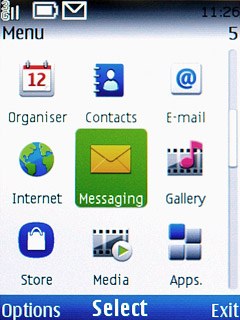

Find "Message settings"

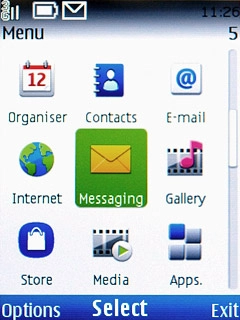

Scroll to Messaging and press the Navigation key.

Step 33 of 44

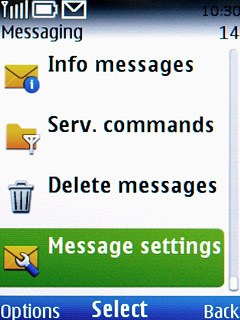

Find "Message settings"

Scroll to Message settings and press the Navigation key.

Step 34 of 44

Turn request for delivery reports on or off

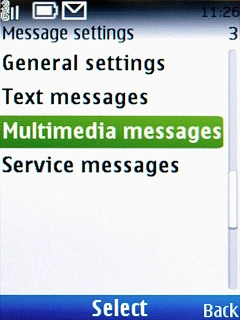

Scroll to Multimedia messages and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 35 of 44

Turn request for delivery reports on or off

Scroll to Request reports and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 36 of 44

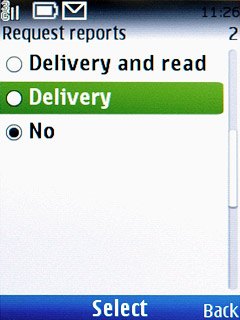

Turn request for delivery reports on or off

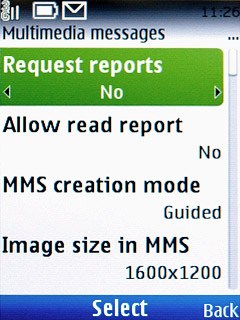

Highlight Delivery or No and press the Navigation key.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 37 of 44

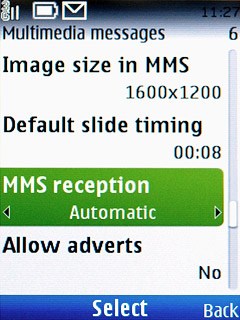

Select settings for picture message download

Scroll to MMS reception and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 38 of 44

Select settings for picture message download

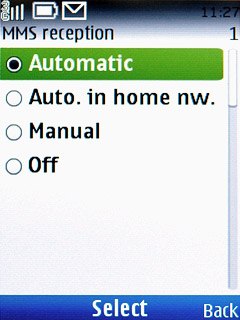

Scroll to Automatic and press the Navigation key.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home nw., you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 39 of 44

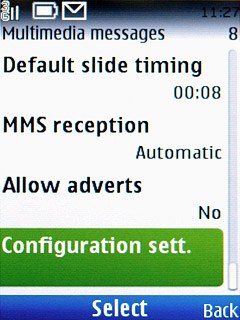

Select data connection

Scroll to Configuration sett. and press the Navigation key.

Step 40 of 44

Select data connection

Scroll to Configuration and press the Navigation key.

Step 41 of 44

Select data connection

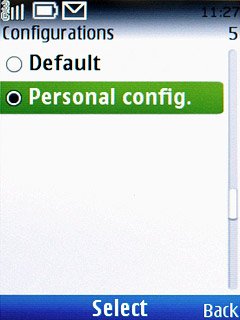

Scroll to Personal config. and press the Navigation key.

Step 42 of 44

Select data connection

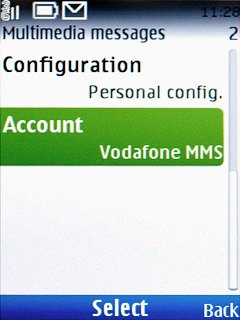

Scroll to Account and press the Navigation key.

Step 43 of 44

Select data connection

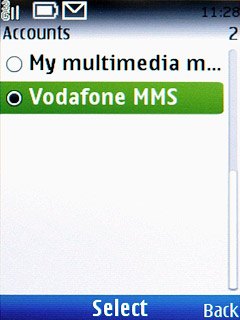

Scroll to Vodafone MMS and press the Navigation key.

Step 44 of 44

Exit

Press Disconnect to return to standby mode.
