Set up your phone for Exchange email - Nokia N700

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 62

Find "Destinations"

Press the Menu key.

Step 2 of 62

Find "Destinations"

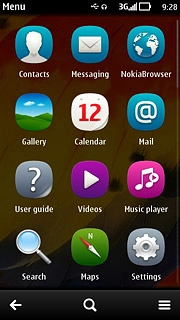

Press Settings.

Step 3 of 62

Find "Destinations"

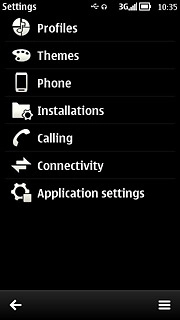

Press Connectivity.

Step 4 of 62

Find "Destinations"

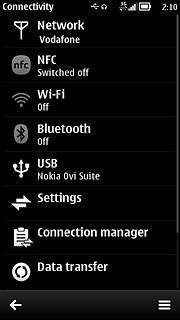

Press Settings.

Step 5 of 62

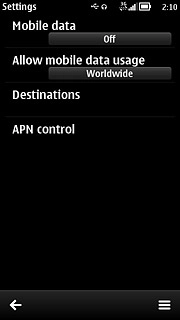

Find "Destinations"

Press Destinations.

Step 6 of 62

Create new data connection group

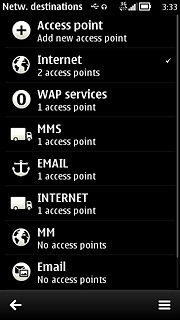

Press the menu icon.

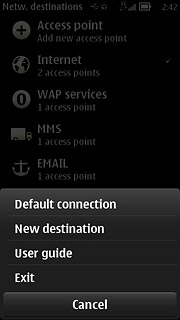

Step 7 of 62

Create new data connection group

Press New destination.
Key in EMAIL

Step 8 of 62

Create new data connection group

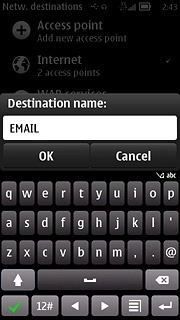

Press OK.

Step 9 of 62

Create new data connection group

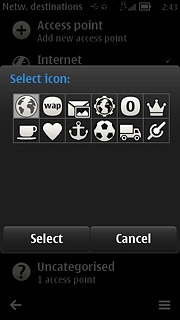

Press the required icon.

Step 10 of 62

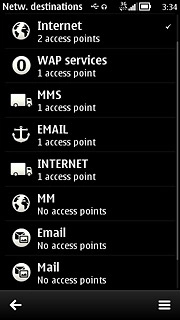

Create new data connection

Press EMAIL.

Step 11 of 62

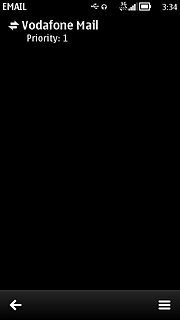

Create new data connection

Press the menu icon.

Step 12 of 62

Create new data connection

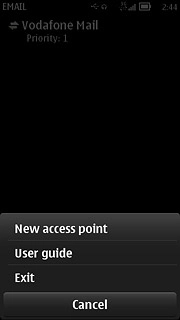

Press New access point.

Step 13 of 62

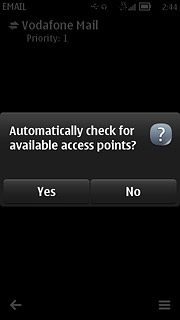

Create new data connection

Press No.

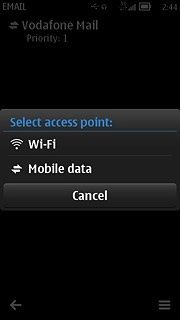

Step 14 of 62

Create new data connection

Press Mobile data.

Step 15 of 62

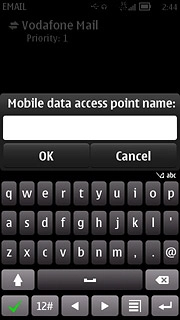

Enter APN

Key in live.vodafone.com
Press OK.

Step 16 of 62

Edit data connection settings

Press the data connection you've just created.

Step 17 of 62

Enter data connection name

Press Connection name.
Key in Vodafone Mail

Step 18 of 62

Enter data connection name

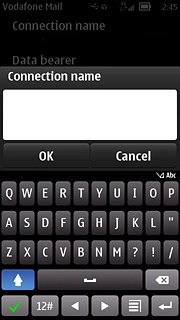

Press OK.

Step 19 of 62

Select authentication type

Press Authentication to select Normal.

Step 20 of 62

Save data connection

Press the return icon to save the settings and return to the list of data connections.

Step 21 of 62

Save data connection

Press the Menu key to return to standby mode.

Step 22 of 62

Find "Mail"

Press the Menu key.

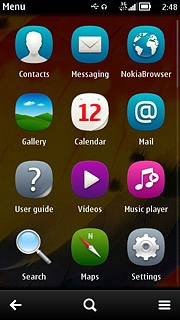

Step 23 of 62

Find "Mail"

Press Mail.

Step 24 of 62

Create new email account

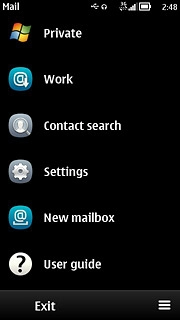

If email accounts have been created already:
Press New mailbox.

Step 25 of 62

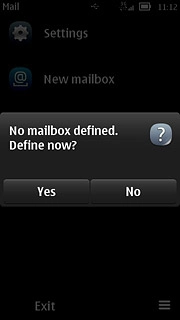

Create new email account

If no email accounts have been created:
Press Yes.

Step 26 of 62

Create new email account

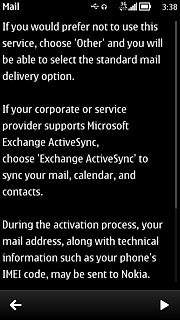

Press the next icon.

Step 27 of 62

Create new email account

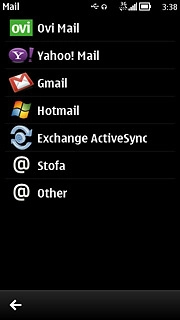

Press Exchange ActiveSync.

Step 28 of 62

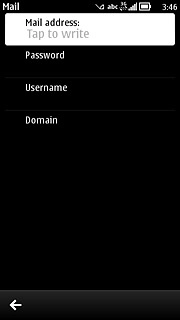

Enter email address

Press Mail address and key in your email address.

Step 29 of 62

Enter password

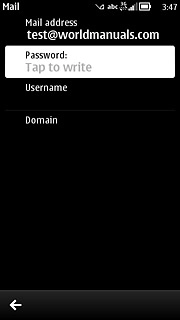

Press Password and key in your password.

Step 30 of 62

Enter username

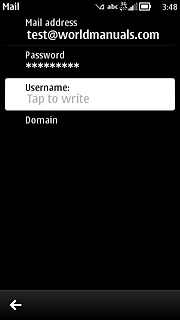

Press Username and key in your username.

Step 31 of 62

Enter domain name

Press Domain and key in the domain name.

Step 32 of 62

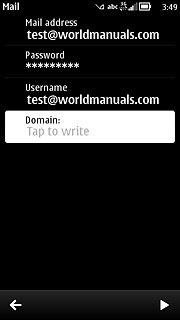

Enter domain name

Press the next icon.

Step 33 of 62

Enter server address

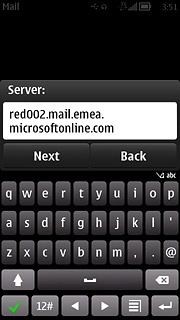

Key in the server address and press Next.

Step 34 of 62

Enter server address

Press OK.

Step 35 of 62

Select data types

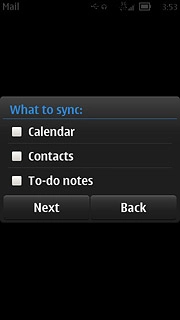

Press Calendar, Contacts and To-do notes to turn synchronisation on or off.

Step 36 of 62

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

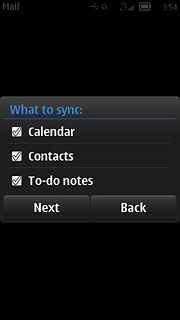

Step 37 of 62

Select data types

Press Next.

Step 38 of 62

Select data types

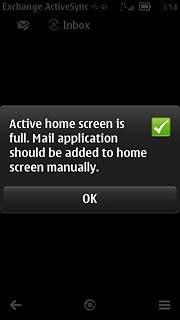

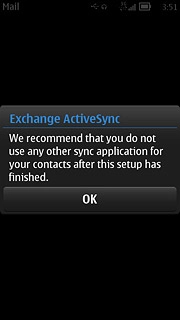

Press OK.

Step 39 of 62

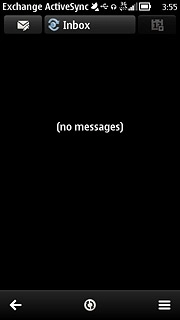

Edit email account settings

Press the menu icon.

Step 40 of 62

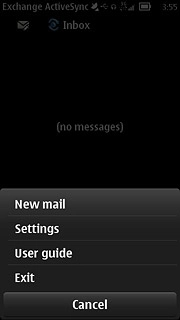

Edit email account settings

Press Settings.

Step 41 of 62

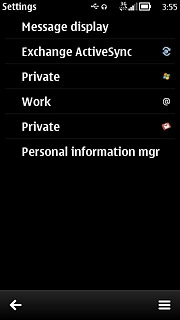

Edit email account settings

Press Exchange ActiveSync.

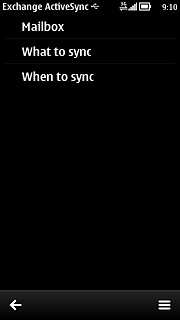

Step 42 of 62

Edit email account settings

Press Mailbox.

Step 43 of 62

Edit email account settings

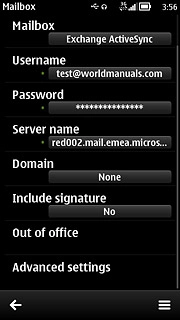

Press Advanced settings.

Step 44 of 62

Select data connection

Press Access point.

Step 45 of 62

Select data connection

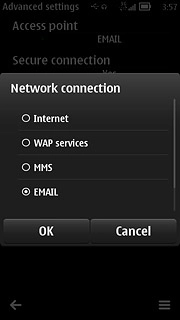

Press EMAIL.

Step 46 of 62

Turn SSL encryption on or off

Press Secure connection.

Step 47 of 62

Turn SSL encryption on or off

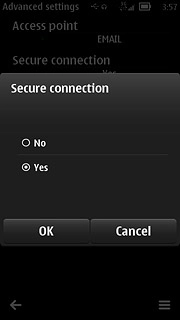

Press Yes or No.

Step 48 of 62

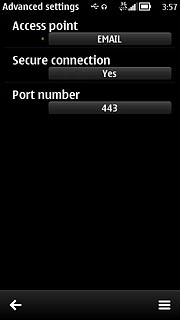

Turn SSL encryption on or off

Press the return icon twice.

Step 49 of 62

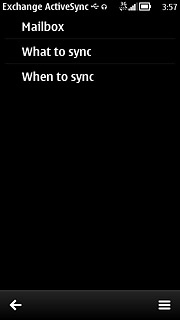

Turn synchronisation of email messages on or off

Press What to sync.

Step 50 of 62

Turn synchronisation of email messages on or off

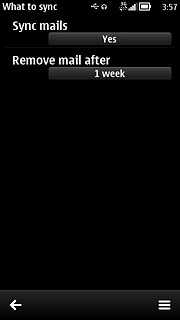

Press Sync mails.

Step 51 of 62

Turn synchronisation of email messages on or off

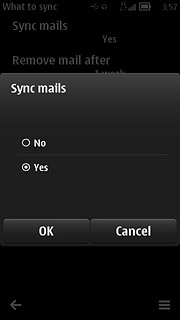

Press Yes or No.

Step 52 of 62

Select setting for deleting email messages

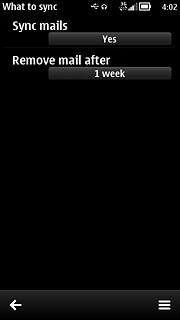

Press Remove mail after.

Step 53 of 62

Select setting for deleting email messages

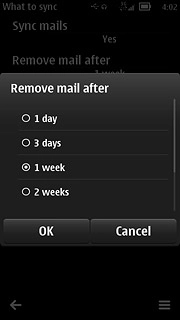

Press the required period.

Step 54 of 62

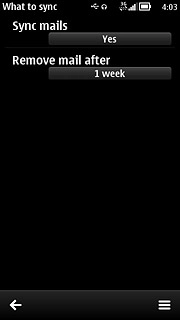

Select setting for deleting email messages

Press the return icon.

Step 55 of 62

Select synchronisation setting

Press When to sync.

Step 56 of 62

Select synchronisation setting

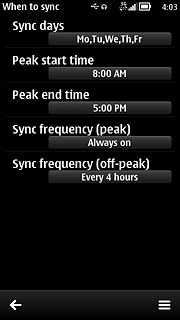

Press Sync days, Peak start time and Peak end time and follow the instructions on the display to select synchronisation days, peak start time and peak end time.

Step 57 of 62

Select synchronisation setting

Press Sync frequency (peak).

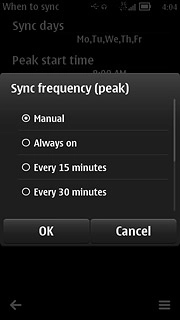

Step 58 of 62

Select synchronisation setting

Press Manual or the required period.

Step 59 of 62

Select synchronisation setting

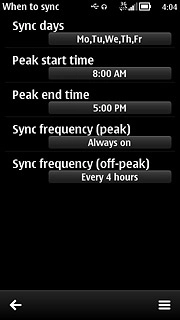

Press Sync frequency (off-peak).

Step 60 of 62

Select synchronisation setting

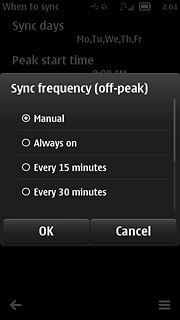

Press Manual or the required period.

Step 61 of 62

Select synchronisation setting

Press the return icon three times to return to the inbox.

Step 62 of 62

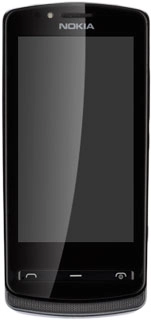

Exit

Press the Menu key to return to standby mode.

1. Find "Destinations"

Press the Menu key.
Press Settings.
Press Connectivity.
Press Settings.
Press Destinations.

2. Create new data connection group

Press the menu icon.
Press New destination.
Key in EMAIL
Press OK.
Press the required icon.

3. Create new data connection

Press EMAIL.
Press the menu icon.
Press New access point.
Press No.
Press Mobile data.

4. Enter APN

Key in live.vodafone.com
Press OK.

5. Edit data connection settings

Press the data connection you've just created.

6. Enter data connection name

Press Connection name.
Key in Vodafone Mail
Press OK.

7. Select authentication type

Press Authentication to select Normal.

8. Save data connection

Press the return icon to save the settings and return to the list of data connections.
Press the Menu key to return to standby mode.

9. Find "Mail"

Press the Menu key.
Press Mail.

10. Create new email account

If email accounts have been created already:
Press New mailbox.
If no email accounts have been created:
Press Yes.
Press the next icon.
Press Exchange ActiveSync.

11. Enter email address

Press Mail address and key in your email address.

12. Enter password

Press Password and key in your password.

13. Enter username

Press Username and key in your username.

14. Enter domain name

Press Domain and key in the domain name.
Press the next icon.

15. Enter server address

Key in the server address and press Next.
Press OK.

16. Select data types

Press Calendar, Contacts and To-do notes to turn synchronisation on or off.
When the box next to the menu item is ticked (V), synchronisation is turned on.
Press Next.
Press OK.

17. Edit email account settings

Press the menu icon.
Press Settings.
Press Exchange ActiveSync.
Press Mailbox.
Press Advanced settings.

18. Select data connection

Press Access point.
Press EMAIL.

19. Turn SSL encryption on or off

Press Secure connection.
Press Yes or No.
Press the return icon twice.

20. Turn synchronisation of email messages on or off

Press What to sync.
Press Sync mails.
Press Yes or No.

21. Select setting for deleting email messages

Press Remove mail after.
Press the required period.
Press the return icon.

22. Select synchronisation setting

Press When to sync.
Press Sync days, Peak start time and Peak end time and follow the instructions on the display to select synchronisation days, peak start time and peak end time.
Press Sync frequency (peak).
Press Manual or the required period.
Press Sync frequency (off-peak).
Press Manual or the required period.
Press the return icon three times to return to the inbox.

23. Exit

Press the Menu key to return to standby mode.
