Guide for the Nokia N9 - Guide to phone keys and sockets

Step 1 of 8

On/Off

Several functions are associated with On/Off:

Step 2 of 8

On/Off

Press and hold On/Off to turn your phone on or off.

Step 3 of 8

On/Off

Briefly press On/Off to turn the key lock on or off.

Step 4 of 8

The Volume key

Press the upper or lower part of the Volume key to adjust the volume.

Step 5 of 8

Socket

Connect the charger or data cable to the phone socket at the top of your phone and to a wall socket or your computer's USB port.

Step 6 of 8

Headset socket

Connect the headset to the headset socket at the top of your phone.

Step 7 of 8

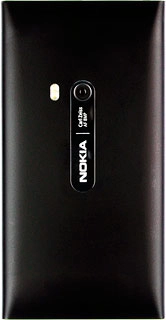

Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

Step 8 of 8

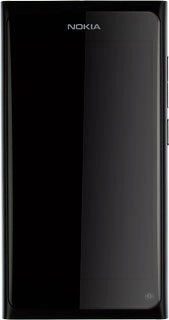

Camera lens at the front of your device

Point the camera lens at the front of your phone at the required object to take a picture or record a video clip.
