OPPO A57 4G

OPPO A57 4G

Android 12.0

Set up your OPPO A57 4G Android 12.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 18

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 18

1. Find "Access point names"

Press the settings icon.

Step 3 of 18

1. Find "Access point names"

Press Mobile network.

Step 4 of 18

1. Find "Access point names"

Press the name of the SIM.

Step 5 of 18

1. Find "Access point names"

Press Access point names.

Step 6 of 18

2. Create new data connection

Press the new data connection icon.

Vodafone MMS
Step 7 of 18

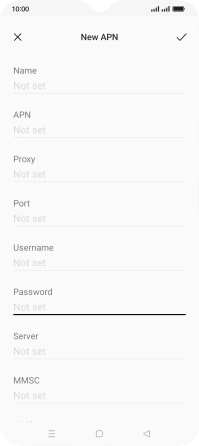

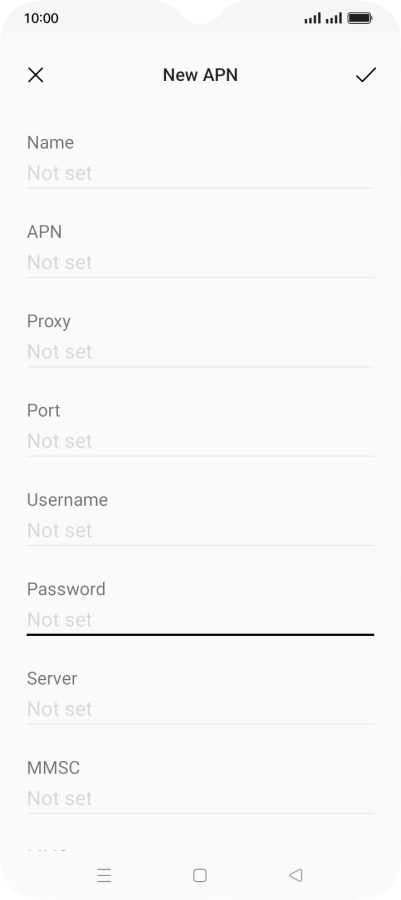

2. Create new data connection

Press the field below "Name" and key in Vodafone MMS.

live.vodafone.com
Step 8 of 18

3. Enter APN

Press the field below "APN" and key in live.vodafone.com.

http://pxt.vodafone.net.au/pxtsend
Step 9 of 18

4. Enter MMSC

Press the field below "MMSC" and key in http://pxt.vodafone.net.au/pxtsend.

10.202.002.060
Step 10 of 18

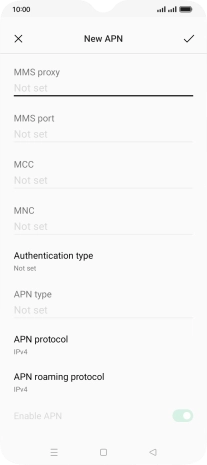

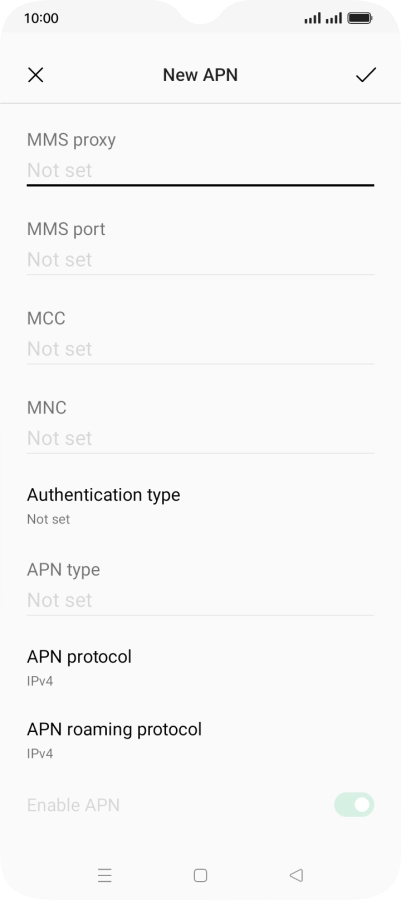

5. Enter IP address

Press the field below "MMS proxy" and key in 10.202.002.060.

8080
Step 11 of 18

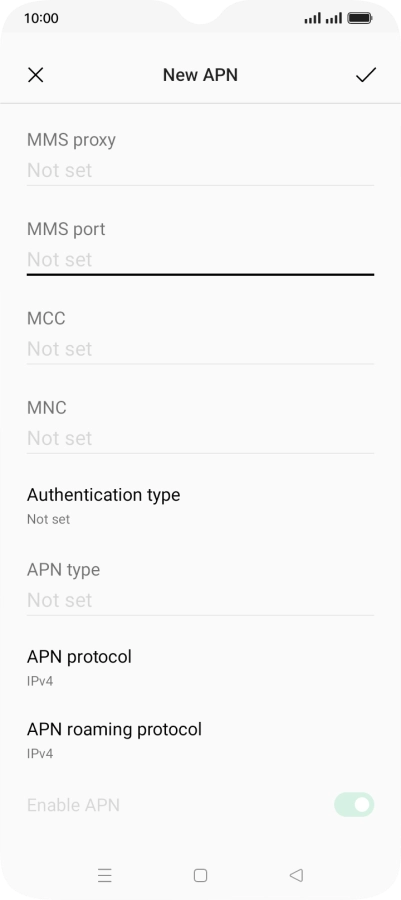

6. Enter port number

Press the field below "MMS port" and key in 8080.

505
Step 12 of 18

7. Enter country code

Press the field below "MCC" and key in 505.

03
Step 13 of 18

8. Enter network code

Press the field below "MNC" and key in 03.

Step 14 of 18

9. Select authentication type

Press Authentication type.

Step 15 of 18

9. Select authentication type

Press PAP.

mms
Step 16 of 18

10. Enter APN type

Press the field below "APN type" and key in mms.

Step 17 of 18

11. Save data connection

Press the confirm icon.

Step 18 of 18

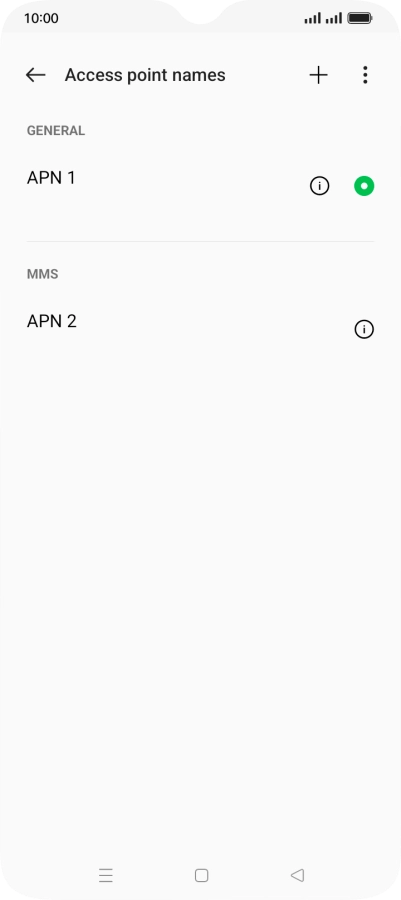

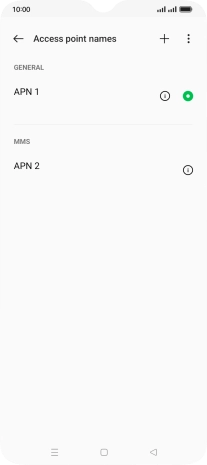

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Mobile network.
Press the name of the SIM.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press the field below "Name" and key in Vodafone MMS.
Vodafone MMS

3. Enter APN

Press the field below "APN" and key in live.vodafone.com.
live.vodafone.com

4. Enter MMSC

Press the field below "MMSC" and key in http://pxt.vodafone.net.au/pxtsend.
http://pxt.vodafone.net.au/pxtsend

5. Enter IP address

Press the field below "MMS proxy" and key in 10.202.002.060.
10.202.002.060

6. Enter port number

Press the field below "MMS port" and key in 8080.
8080

7. Enter country code

Press the field below "MCC" and key in 505.
505

8. Enter network code

Press the field below "MNC" and key in 03.
03

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press the field below "APN type" and key in mms.
mms

11. Save data connection

Press the confirm icon.

12. Return to the home screen

Press the Home key to return to the home screen.
