Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
Find "Access point names"
Press the settings icon.
Find "Access point names"

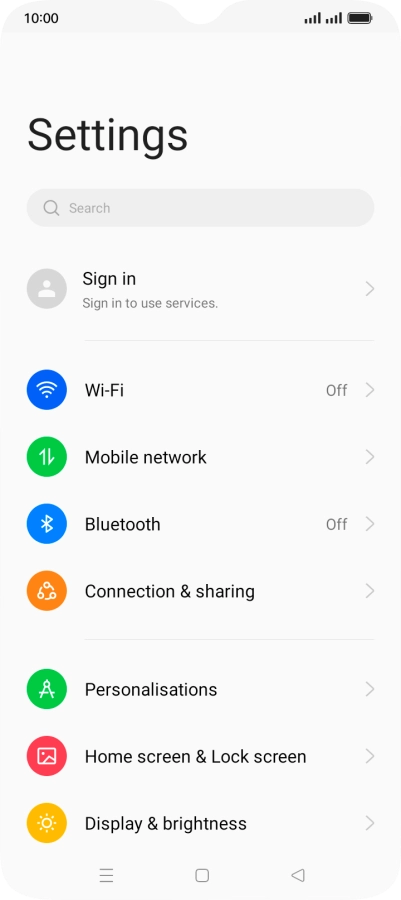

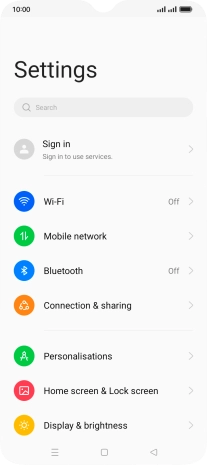

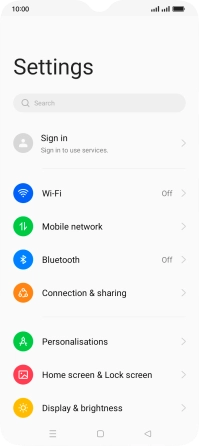

Press Mobile network.
Find "Access point names"

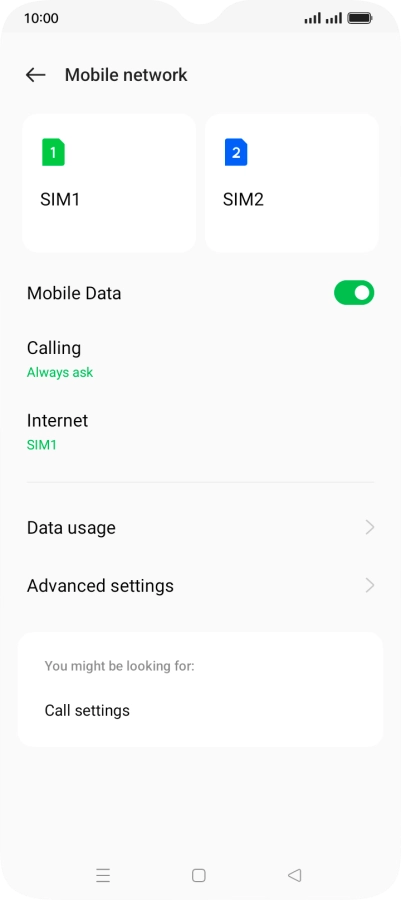

Press the name of the SIM.
Find "Access point names"

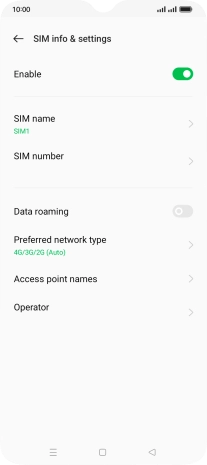

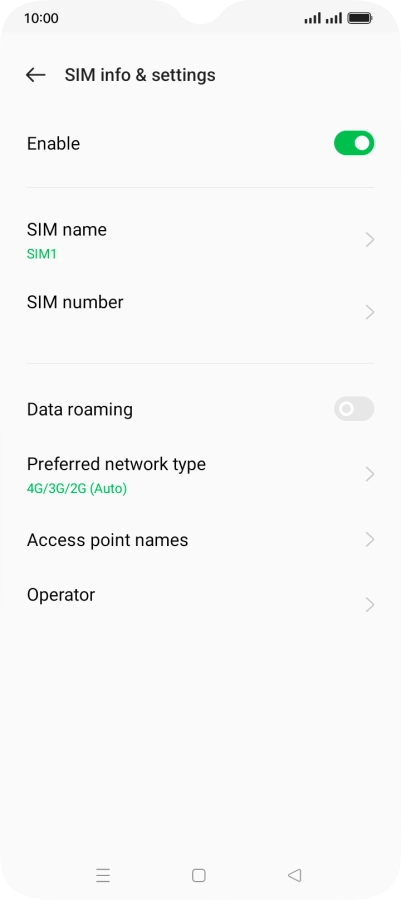

Press Access point names.
Create new data connection

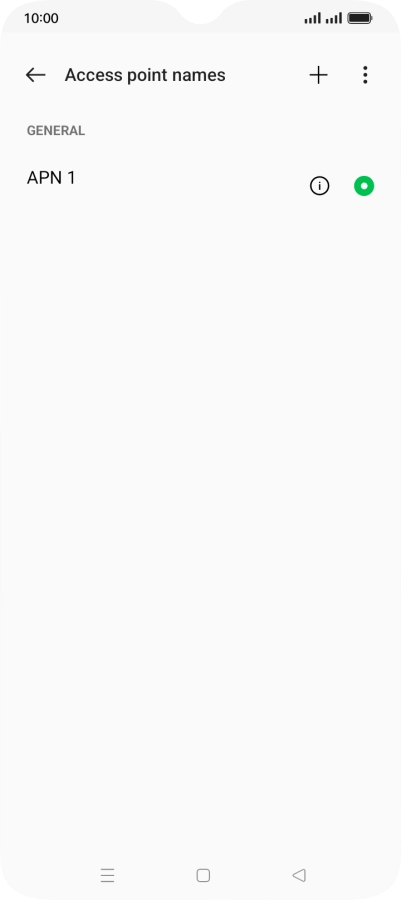

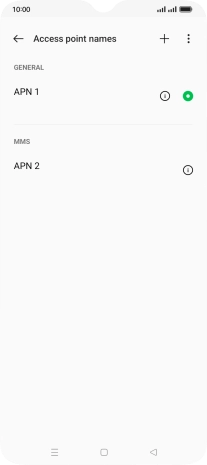

Press the new data connection icon.
Create new data connection

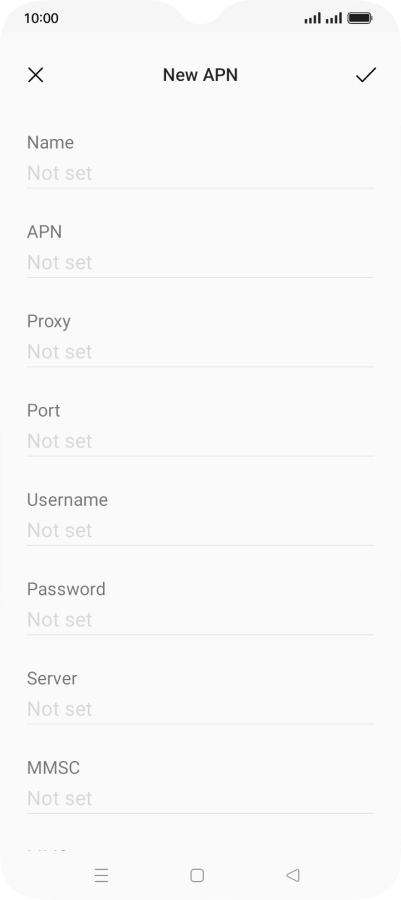

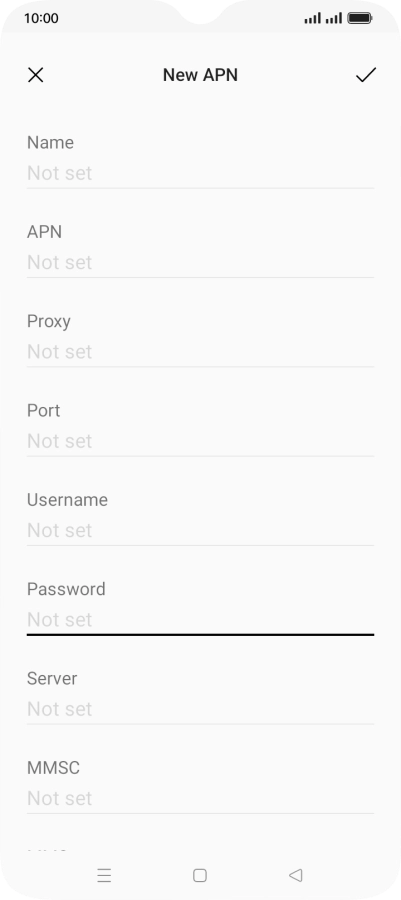

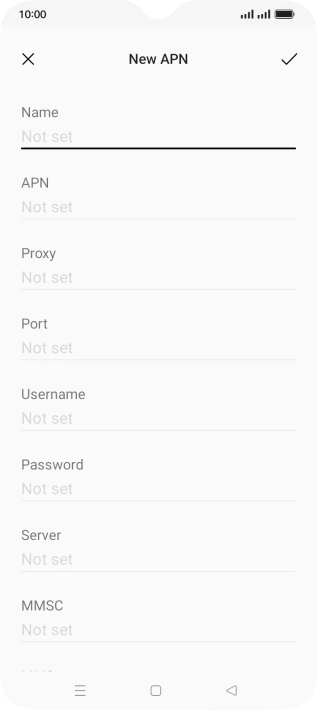

Press the field below "Name" and key in Vodafone MMS.
Enter APN
Press the field below "APN" and key in live.vodafone.com.
Enter MMSC
Press the field below "MMSC" and key in http://pxt.vodafone.net.au/pxtsend.
Enter IP address

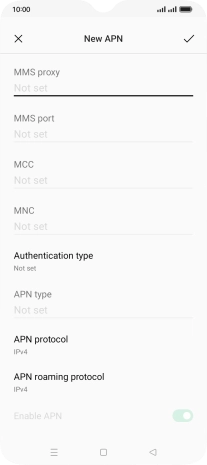

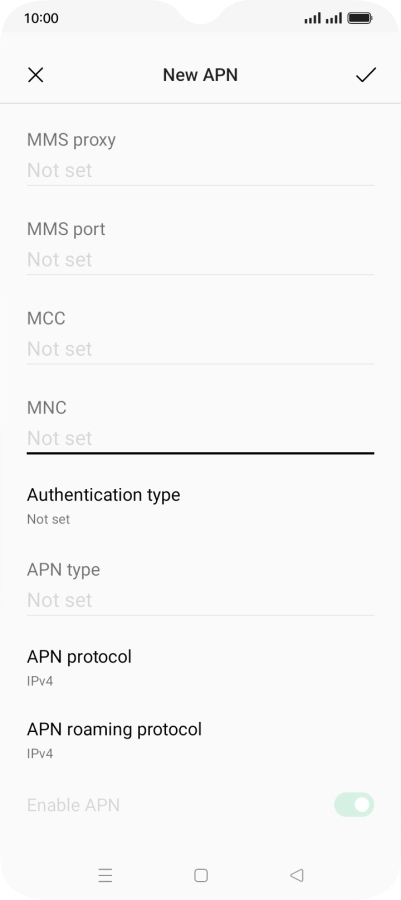

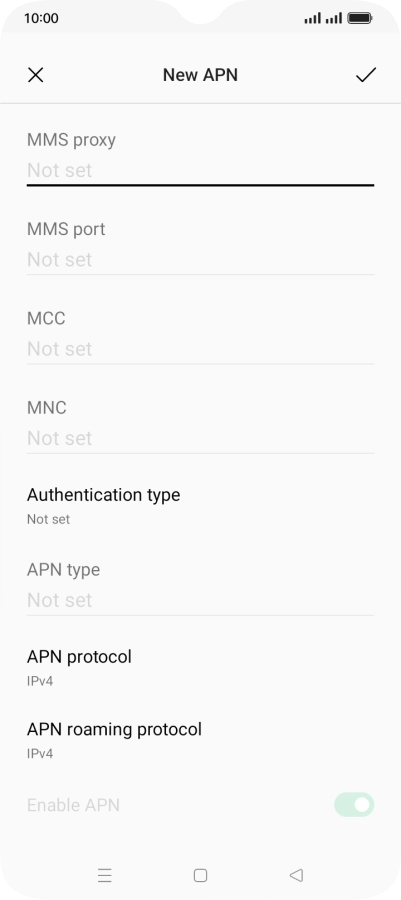

Press the field below "MMS proxy" and key in 10.202.002.060.
Enter port number

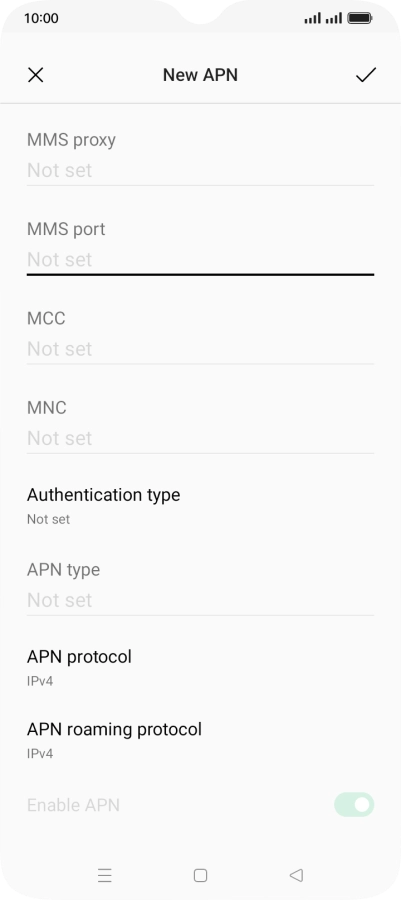

Press the field below "MMS port" and key in 8080.
Enter country code

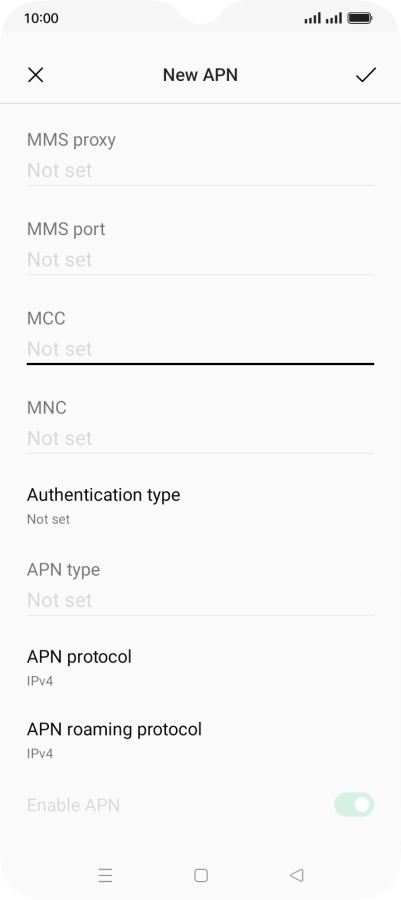

Press the field below "MCC" and key in 505.
Enter network code
Press the field below "MNC" and key in 03.
Select authentication type

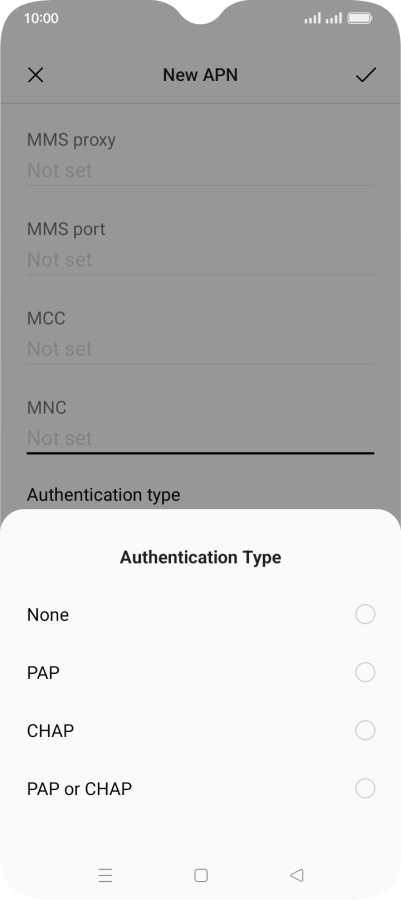

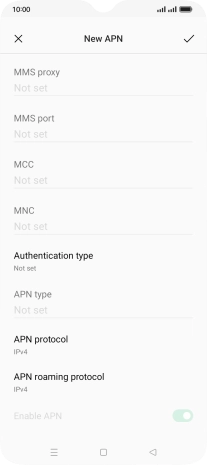

Press Authentication type.
Select authentication type

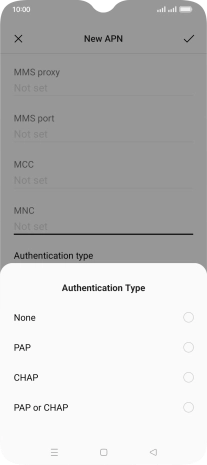

Press PAP.
Enter APN type
Press the field below "APN type" and key in mms.
Save data connection
Press the confirm icon.
Return to the home screen

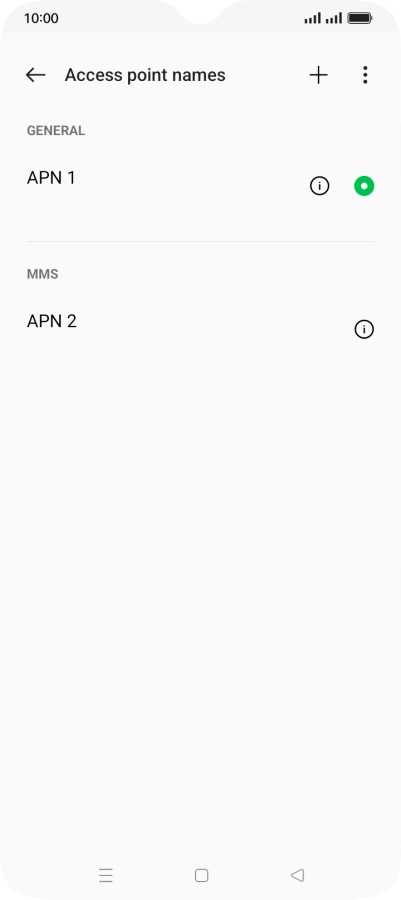

Press the Home key to return to the home screen.
1 Find "Access point names"
2 Create new data connection
3 Enter APN
4 Enter MMSC
5 Enter IP address
6 Enter port number
7 Enter country code
8 Enter network code
9 Select authentication type
10 Enter APN type
11 Save data connection
12 Return to the home screen
