1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-b79d3af0-4c93-471e-9a87-1521f07e71b7.png?width=200&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-3b01aceb-1130-4ee0-b240-be5223bca65e.png?width=200&height=444)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-49405079-0de6-406a-8af7-e10afe9312c7.png?width=200&height=444)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-b5285d1d-b977-4a20-920b-8fef3b83257e.png?width=200&height=444)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-3551246a-e410-44d3-bb57-cac8083753e6.png?width=200&height=444)
2. Create new data connection

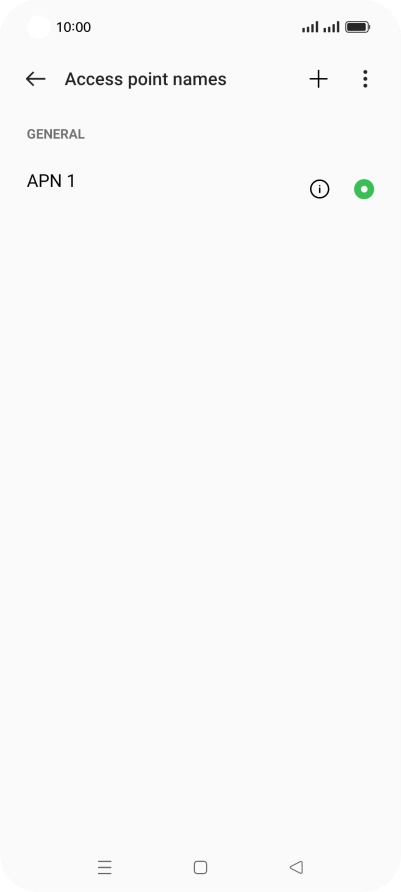

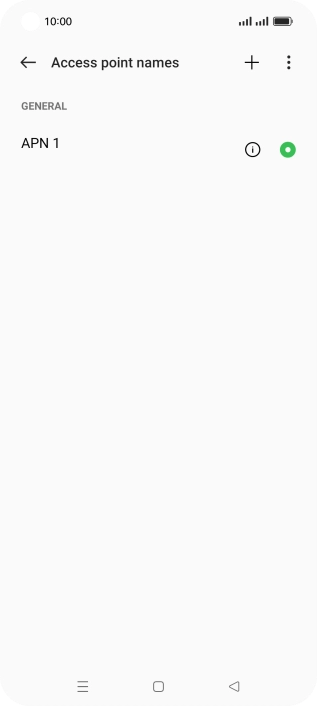

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-6d0d69e2-1c6b-479b-9b00-47bc49656e59.png?width=200&height=444)

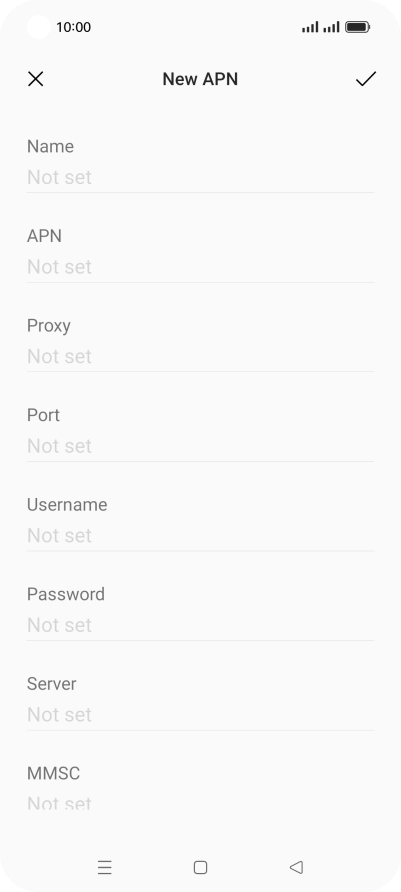

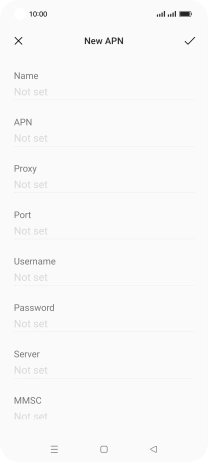

Press the field below "Name" and key in Vodafone Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-b1815e2d-ce54-440f-92ee-114468138d9c.png?width=200&height=444)
Vodafone Internet
3. Enter APN
Press the field below "APN" and key in live.vodafone.com.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-b1815e2d-ce54-440f-92ee-114468138d9c.png?width=200&height=444)
live.vodafone.com
4. Enter country code

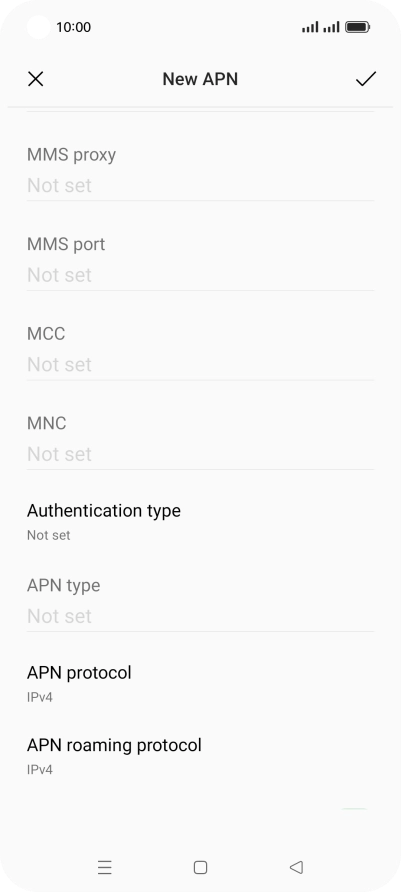

Press the field below "MCC" and key in 505.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-0cfda4b0-fdcb-47b5-aced-dcf44018e29f.png?width=200&height=444)
505
5. Enter network code
Press the field below "MNC" and key in 03.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-0cfda4b0-fdcb-47b5-aced-dcf44018e29f.png?width=200&height=444)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-0cfda4b0-fdcb-47b5-aced-dcf44018e29f.png?width=200&height=444)

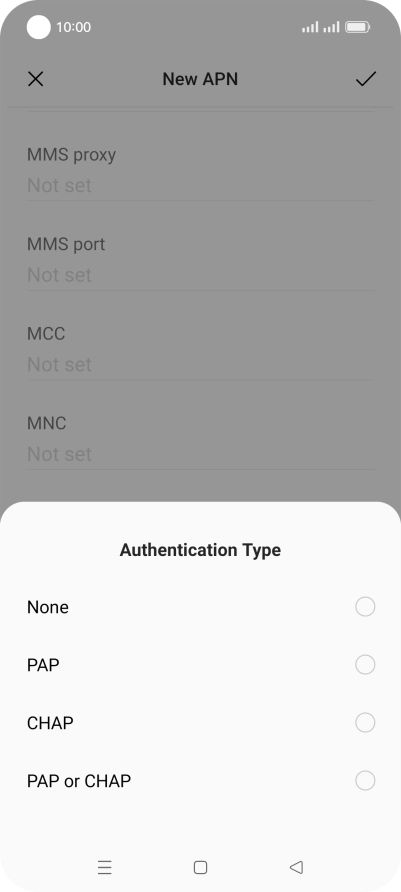

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-b7073f98-4cf9-4fef-a410-c74d9f323c7a.png?width=200&height=444)
7. Enter APN type
Press the field below "APN type" and key in default.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-0cfda4b0-fdcb-47b5-aced-dcf44018e29f.png?width=200&height=444)
default
8. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-0cfda4b0-fdcb-47b5-aced-dcf44018e29f.png?width=200&height=444)

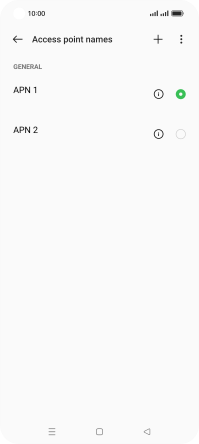

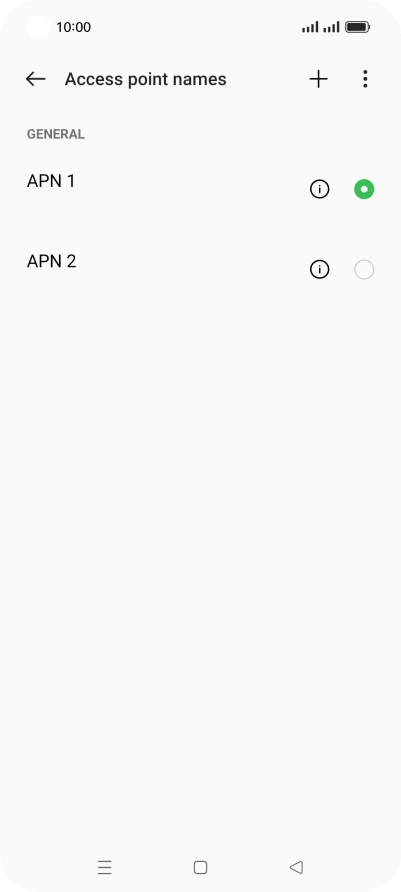

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-4f655085-da78-4e85-9a81-1eedab76e461.png?width=200&height=444)
9. Return to the home screen

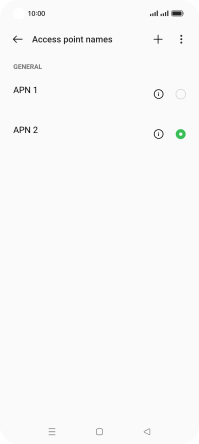

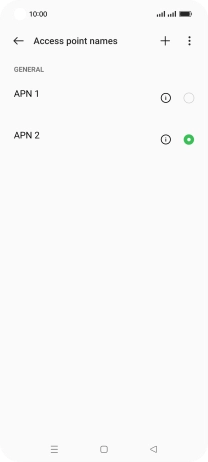

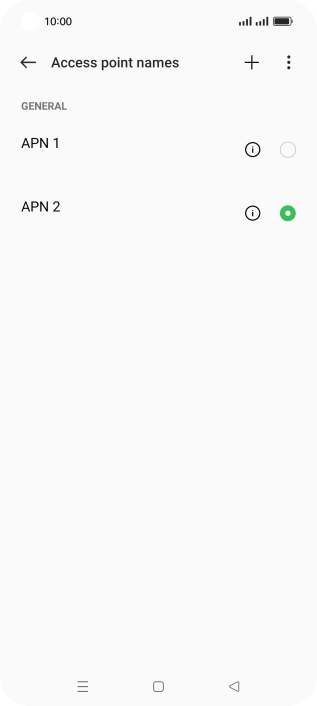

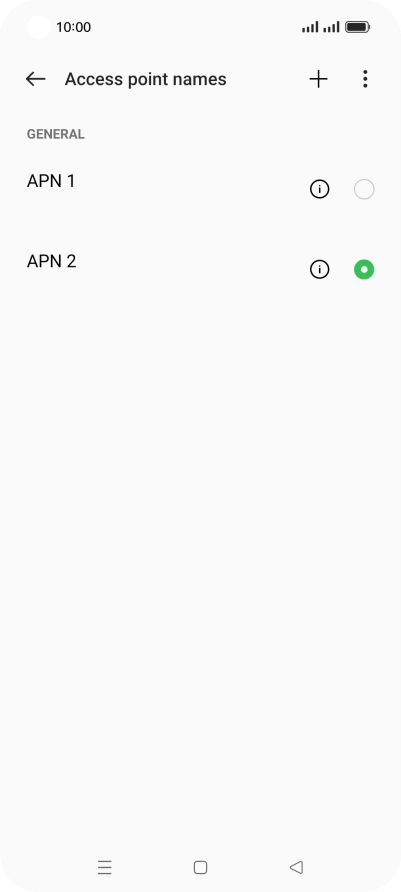

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-9174d061-ba64-4f75-ad54-64ea827f5540.png?width=200&height=444)
