1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-09014f63-549c-445c-aad8-331d70c074f4.png?width=204&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-40a4563d-fb7e-4bd1-a469-e7298d2e1dd3.png?width=204&height=454)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-a8bc2ca9-ed2b-4ea4-90a5-0df7681b1733.png?width=204&height=454)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-8539430c-40e3-4664-83bf-466f62a8ff1c.png?width=204&height=454)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-2e197bea-3fa3-44cb-b0e8-00ffff954d43.png?width=204&height=454)
2. Create new data connection
Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0f629bc-afd6-42f0-9612-163f783aaacb.png?width=204&height=454)
Press the field below "Name" and key in Vodafone Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0d7126d-fc28-4d2e-8cc1-f7577ad7751d.png?width=204&height=454)
Vodafone Internet
3. Enter APN
Press the field below "APN" and key in live.vodafone.com.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0d7126d-fc28-4d2e-8cc1-f7577ad7751d.png?width=204&height=454)
live.vodafone.com
4. Enter country code
Press the field below "MCC" and key in 505.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
505
5. Enter network code
Press the field below "MNC" and key in 03.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-ac508519-dd40-4d61-9650-1f11f7c6dc76.png?width=204&height=454)
7. Enter APN type
Press the field below "APN type" and key in default.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
default
8. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)

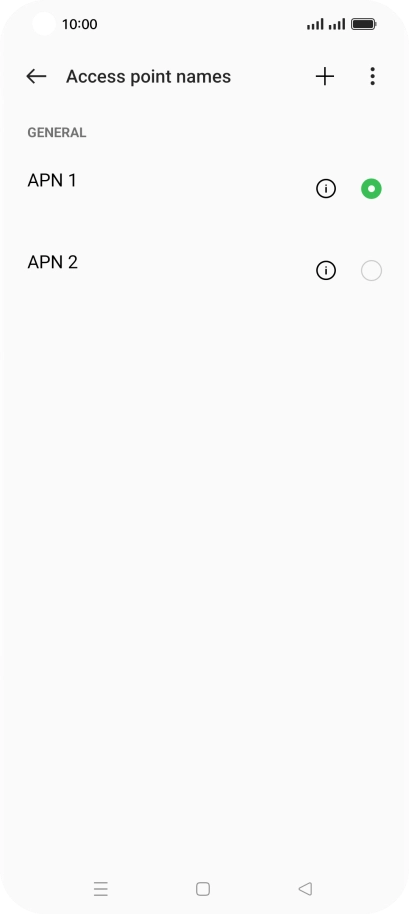

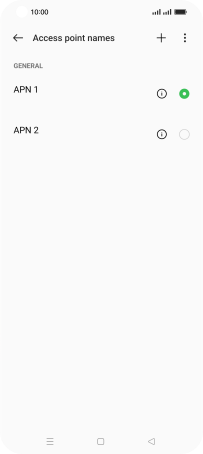

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-2ffbd652-e69b-446e-81f0-dec547301db0.png?width=204&height=454)
9. Return to the home screen

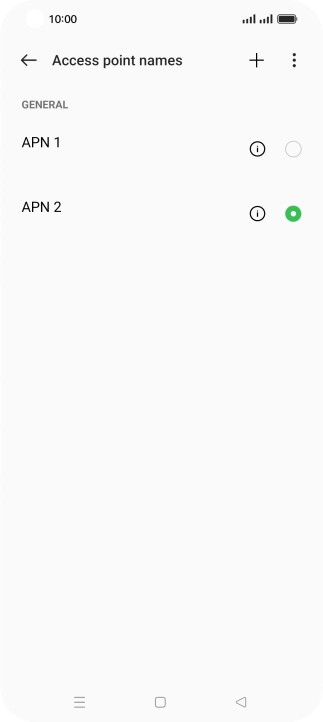

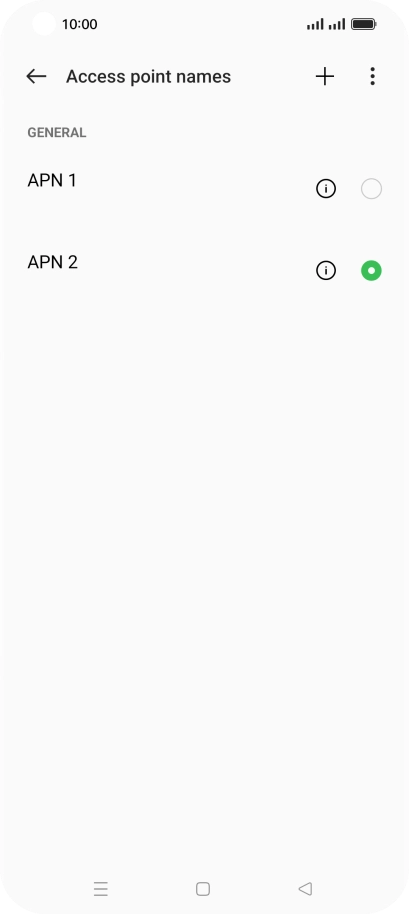

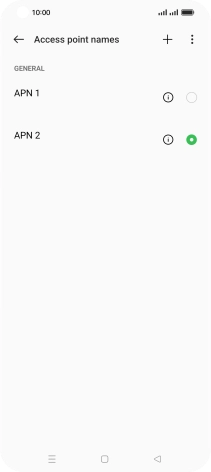

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-7036f98c-84eb-418f-a1ba-08cf16fd121f.png?width=204&height=454)
