OPPO R11

OPPO R11

Android 7.1

Set up your OPPO R11 Android 7.1 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 25

1. Find "Access Point Name"

Press Settings.

Step 2 of 25

1. Find "Access Point Name"

Press Dual SIM & Cellular.

Step 3 of 25

1. Find "Access Point Name"

Press SIM1.

Step 4 of 25

1. Find "Access Point Name"

Press Access Point Name.

Step 5 of 25

2. Create new data connection

Press the new data connection icon.

Step 6 of 25

3. Enter a name for the connection

Press Name.

Vodafone MMS
Step 7 of 25

3. Enter a name for the connection

Key in Vodafone MMS and press Save.

Step 8 of 25

4. Enter APN

Press APN.

live.vodafone.com
Step 9 of 25

4. Enter APN

Key in live.vodafone.com and press Save.

Step 10 of 25

5. Enter picture messaging server

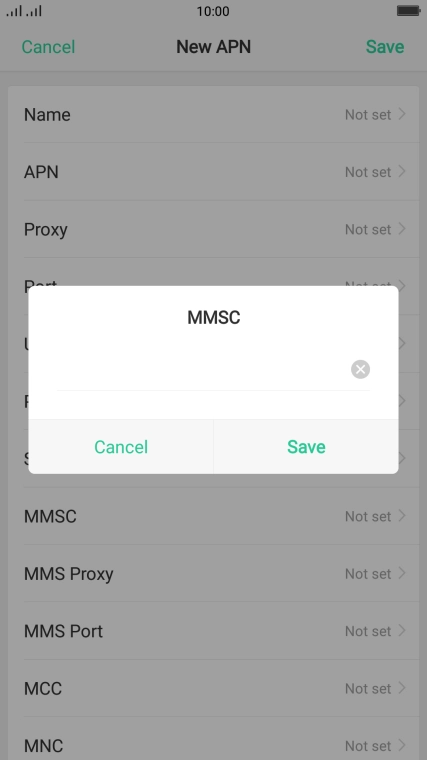

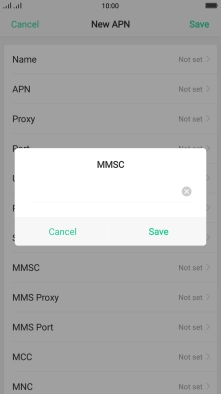

Press MMSC.

http://pxt.vodafone.net.au/pxtsend
Step 11 of 25

5. Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press Save.

Step 12 of 25

6. Enter IP address

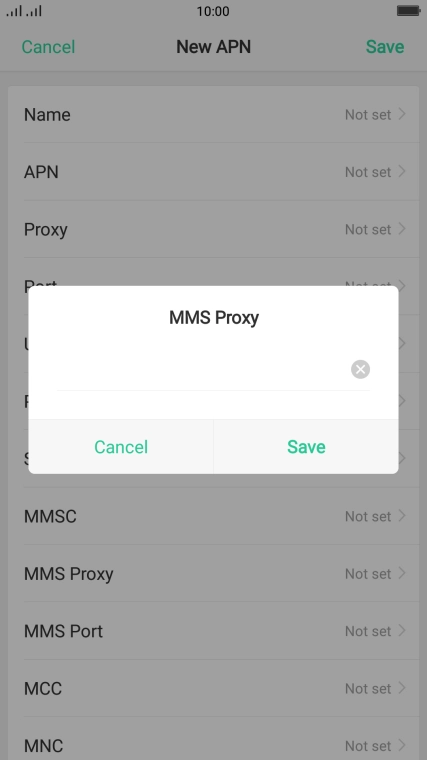

Press MMS Proxy.

10.202.002.060
Step 13 of 25

6. Enter IP address

Key in 10.202.002.060 and press Save.

Step 14 of 25

7. Enter port number

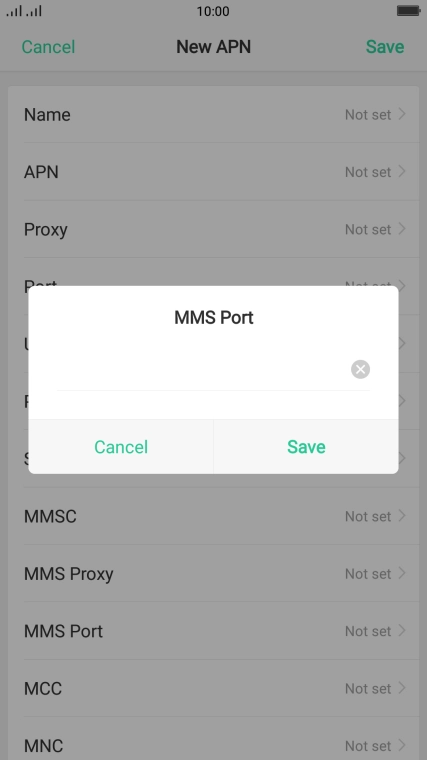

Press MMS Port.

8080
Step 15 of 25

7. Enter port number

Key in 8080 and press Save.

Step 16 of 25

8. Enter country code

Press MCC.

505
Step 17 of 25

8. Enter country code

Key in 505 and press Save.

Step 18 of 25

9. Enter network code

Press MNC.

03
Step 19 of 25

9. Enter network code

Key in 03 and press Save.

Step 20 of 25

10. Select authentication type

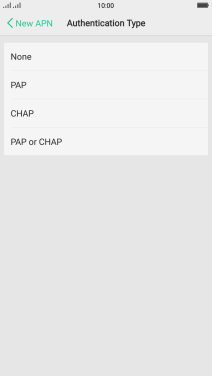

Press Authentication Type.

Step 21 of 25

10. Select authentication type

Press PAP.

Step 22 of 25

11. Enter APN type

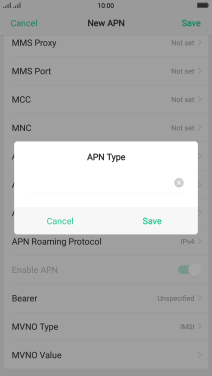

Press APN Type.

mms
Step 23 of 25

11. Enter APN type

Key in mms and press Save.

Step 24 of 25

12. Save data connection

Press Save.

Step 25 of 25

13. Return to the home screen

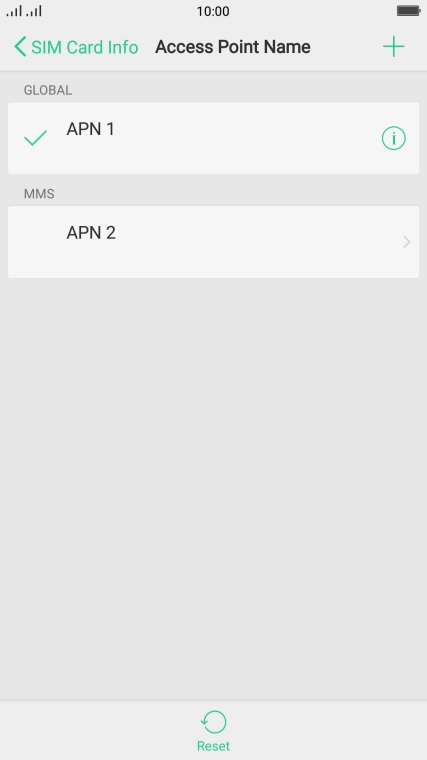

Press the Home key to return to the home screen.

1. Find "Access Point Name"

Press Settings.
Press Dual SIM & Cellular.
Press SIM1.
Press Access Point Name.

2. Create new data connection

Press the new data connection icon.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press Save.
Vodafone MMS

4. Enter APN

Press APN.
Key in live.vodafone.com and press Save.
live.vodafone.com

5. Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press Save.
http://pxt.vodafone.net.au/pxtsend

6. Enter IP address

Press MMS Proxy.
Key in 10.202.002.060 and press Save.
10.202.002.060

7. Enter port number

Press MMS Port.
Key in 8080 and press Save.
8080

8. Enter country code

Press MCC.
Key in 505 and press Save.
505

9. Enter network code

Press MNC.
Key in 03 and press Save.
03

10. Select authentication type

Press Authentication Type.
Press PAP.

11. Enter APN type

Press APN Type.
Key in mms and press Save.
mms

12. Save data connection

Press Save.

13. Return to the home screen

Press the Home key to return to the home screen.
