1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ed94474e-4f8b-4884-89ea-387ae192e64f.png?width=212&height=446)
Press Dual SIM & Mobile.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-836648a6-b36b-4aee-8766-a0e44a7953c8.png?width=212&height=446)
Press SIM1.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c139d874-31e3-4412-9919-945cb3589420.png?width=212&height=446)

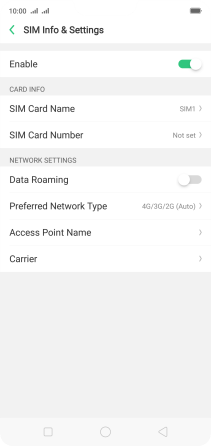

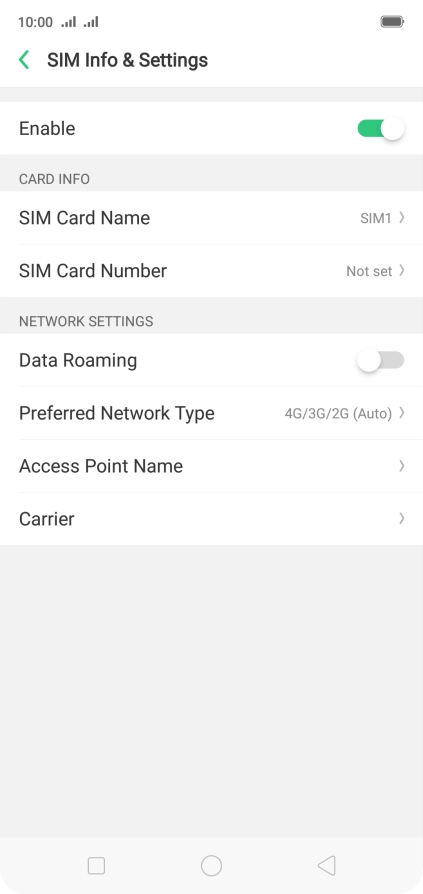

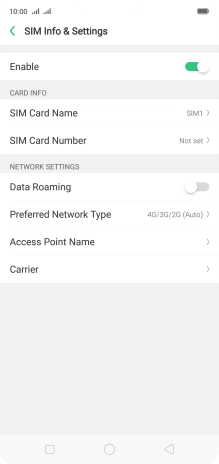

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f94833b3-db09-47f9-a91c-77f8d0d12b2e.png?width=212&height=446)
2. Create new data connection

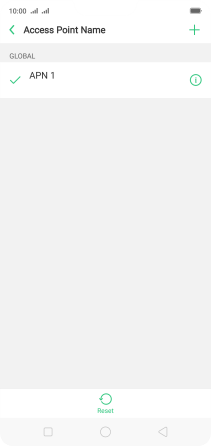

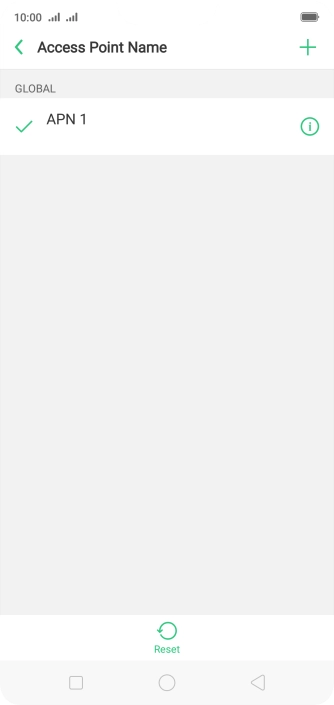

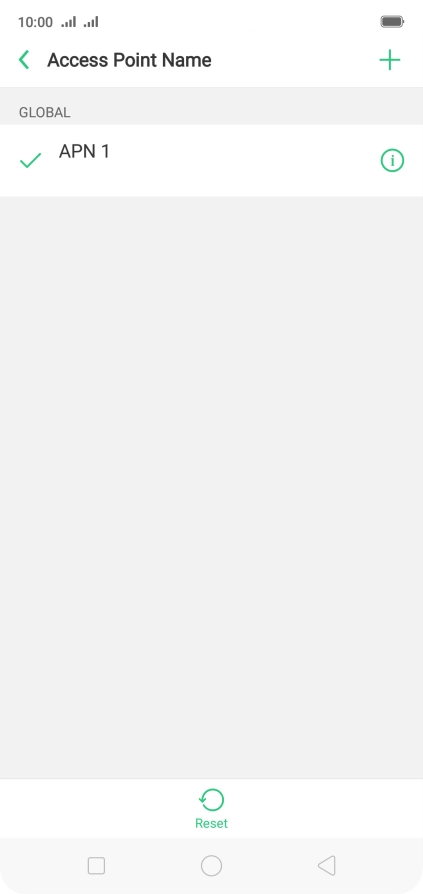

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4dd0d885-9bf8-4965-ad3e-6ff0b2c4ffda.png?width=212&height=446)
3. Enter a name for the connection

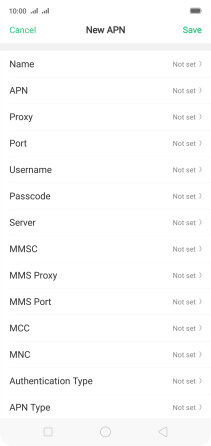

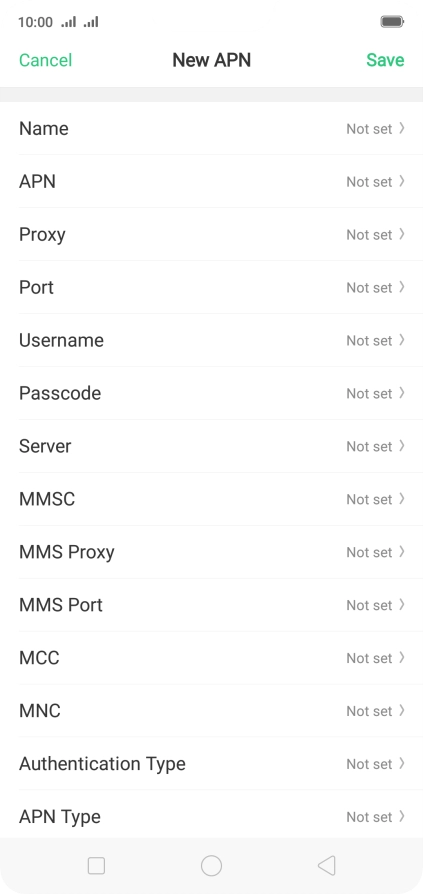

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)

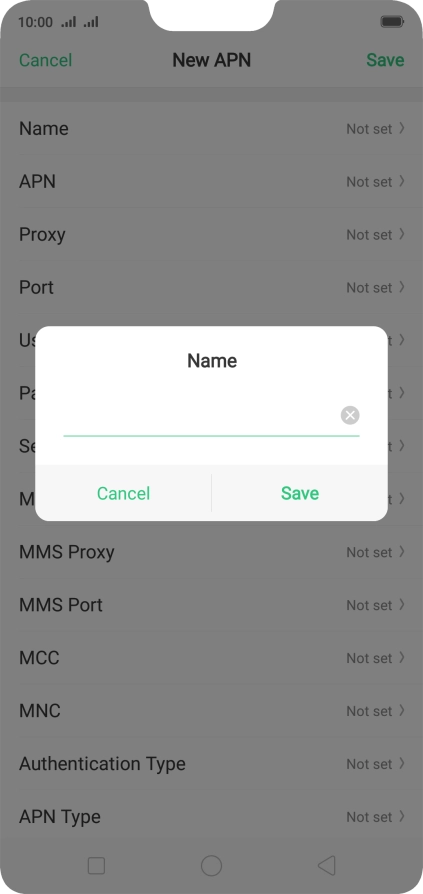

Key in Vodafone Internet and press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e8e0ba6c-2fdf-4642-b931-5602925ffe2e.png?width=212&height=446)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)

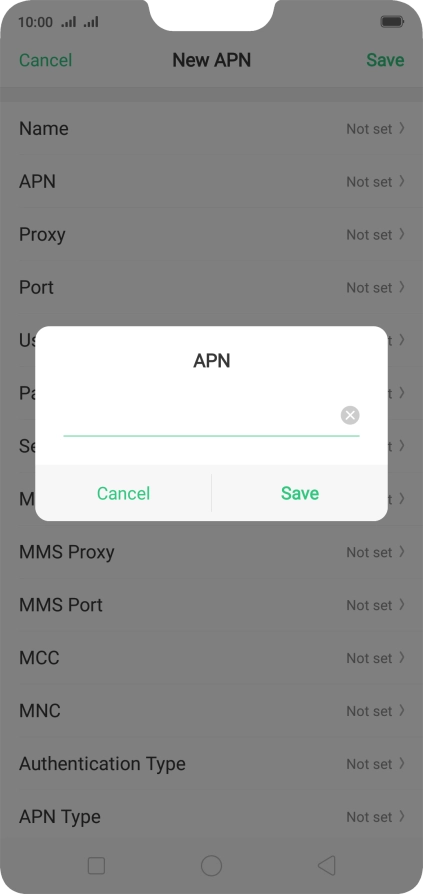

Key in live.vodafone.com and press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3ec4ca80-c3b6-46a9-8cd4-e66526e2f810.png?width=212&height=446)
live.vodafone.com
5. Enter country code

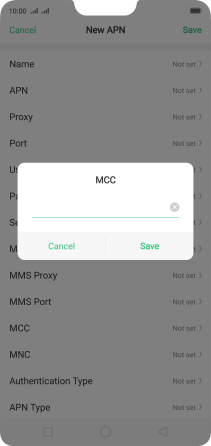

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)
Key in 505 and press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1946b5e1-6a24-49f0-9556-a546f61abe65.png?width=212&height=446)
505
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)
Key in 03 and press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c57b1e14-dc51-4485-8650-79a9610b39d5.png?width=212&height=446)
03
7. Select authentication type
Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)

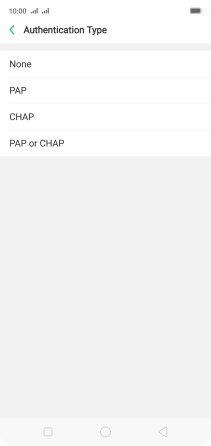

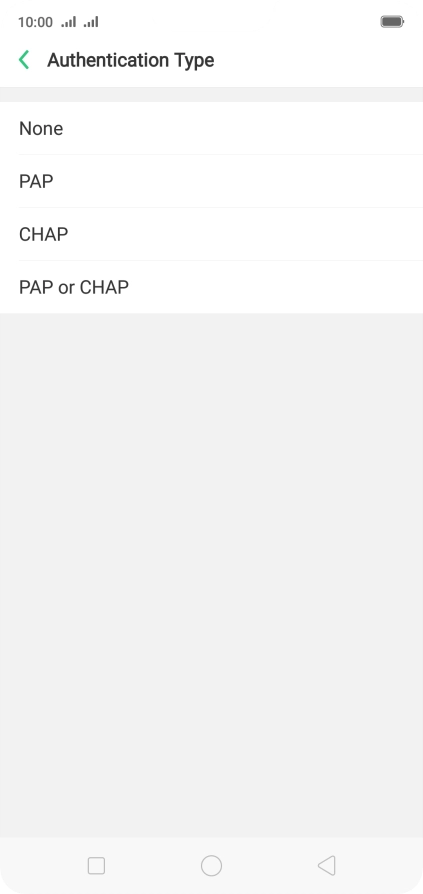

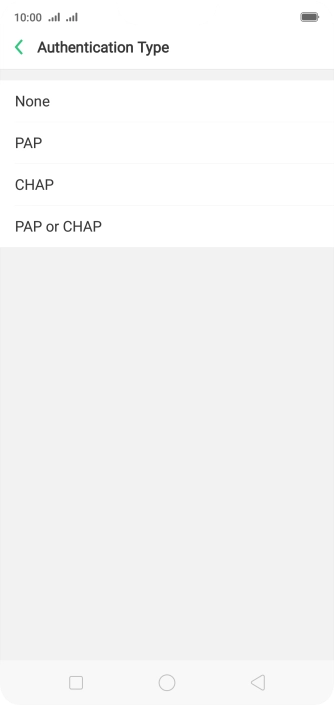

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1ca31c0a-9034-4931-940e-d861845efc07.png?width=212&height=446)
8. Enter APN type
Press APN Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)

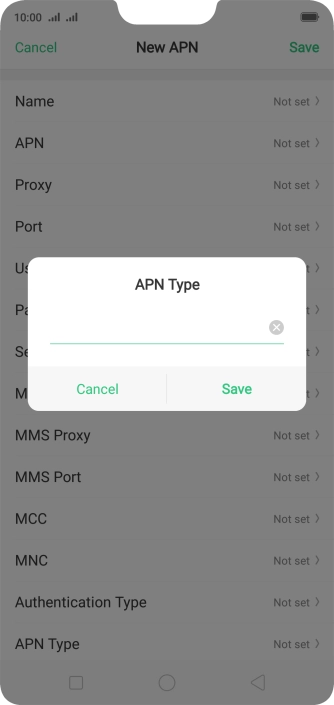

Key in default and press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-efe5c127-59c7-4c7a-9dd0-5d02e93a2205.png?width=212&height=446)
default
9. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-69d16714-83a1-4098-bf1f-66a11962353b.png?width=212&height=446)

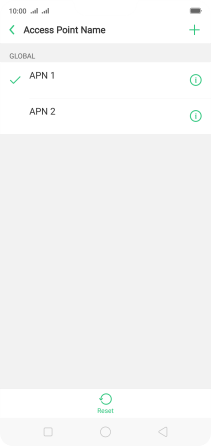

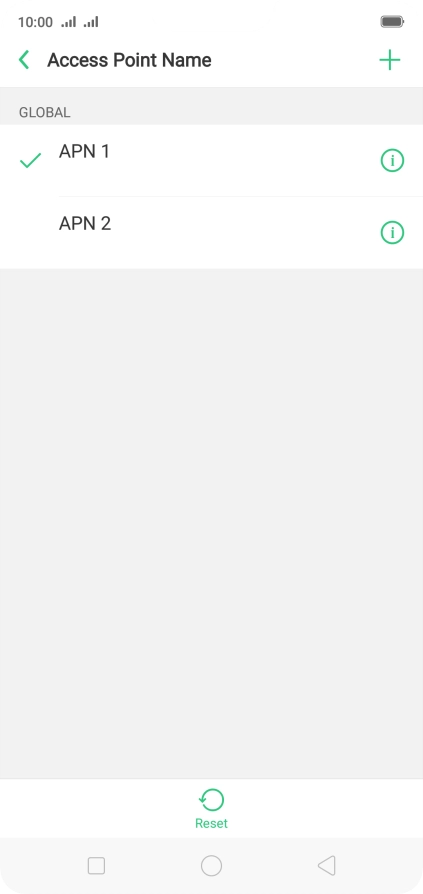

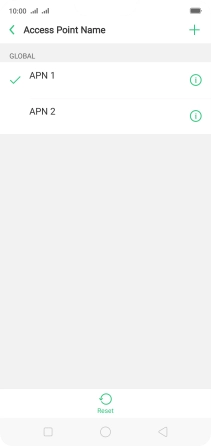

Press the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-609afa5a-a042-4f56-9b7b-d3cad77256d4.png?width=212&height=446)
10. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c35bf780-bafd-45c1-92a9-21fca0c94b8c.png?width=212&height=446)
