1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-6e1a0fe6-083b-4ced-8d19-319ccee1427c.png?width=206&height=464)

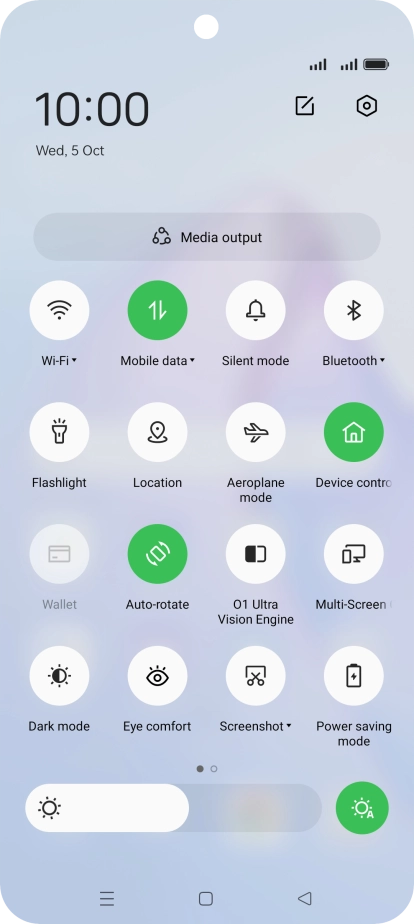

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-54bab751-adff-4cf6-8d7e-536eda42b6b6.png?width=206&height=464)

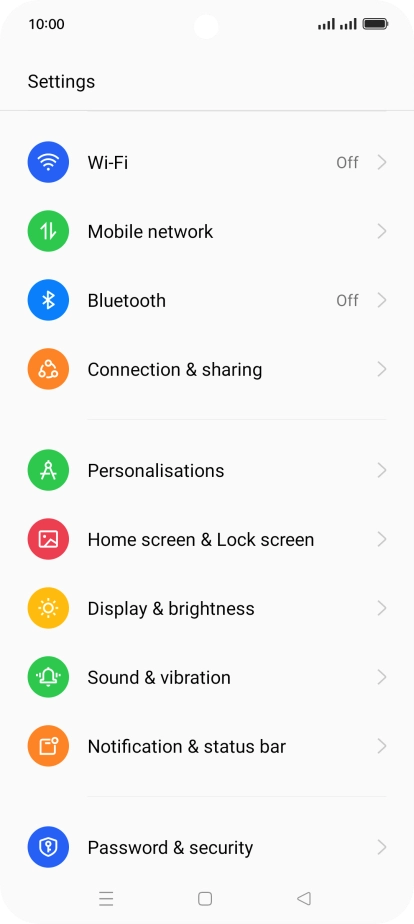

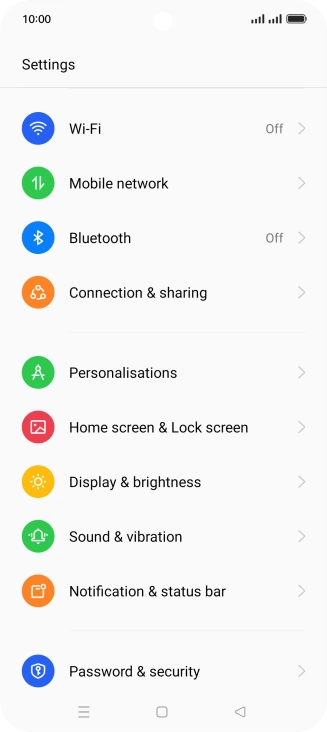

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-3b3e8671-21ce-4b1d-bbf8-e08774e8186f.png?width=206&height=464)

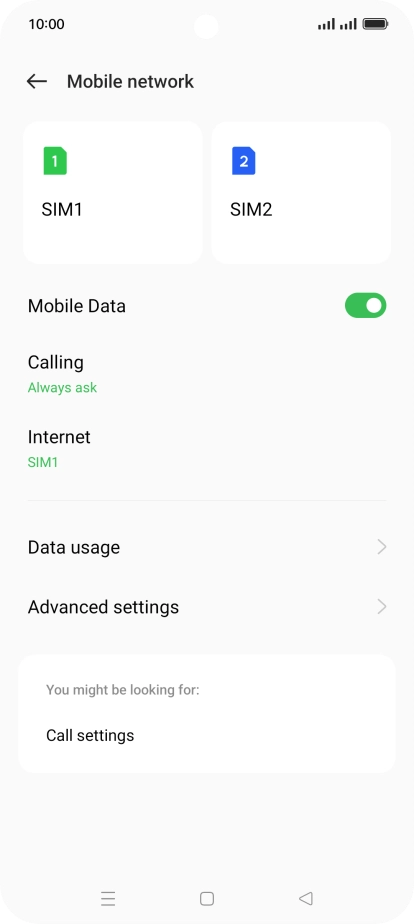

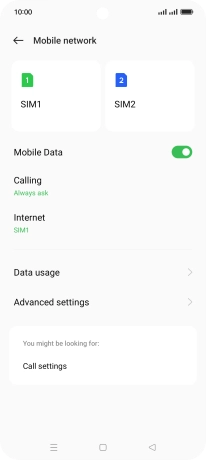

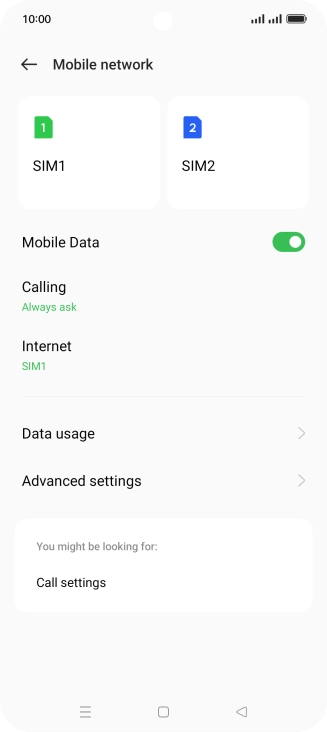

Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-0bd3bff0-fcab-4e7d-a211-bb86ac183099.png?width=206&height=464)

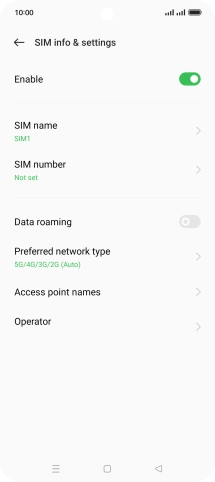

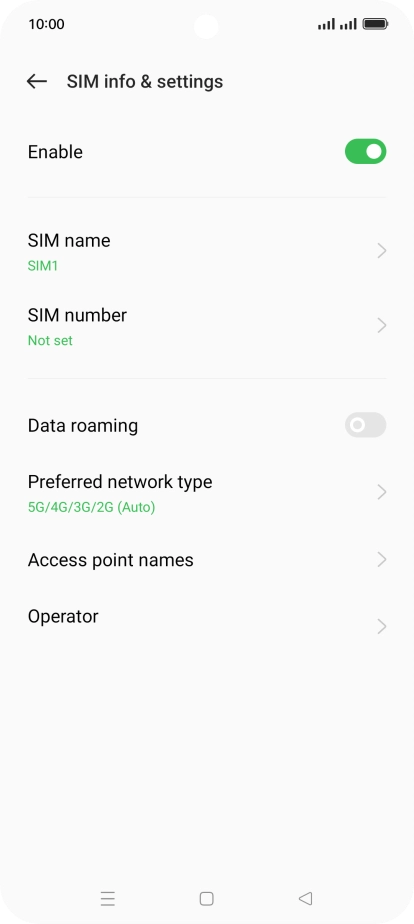

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-ef6ae6a6-bd90-4f95-8442-4e7ecf828ef2.png?width=206&height=464)
2. Create new data connection

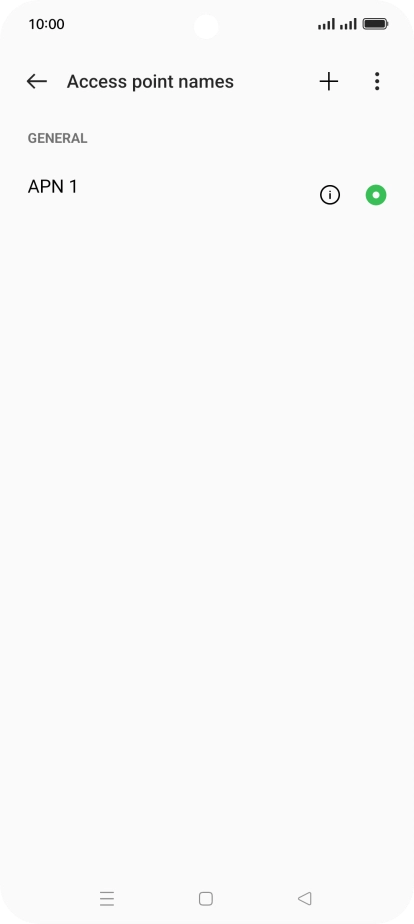

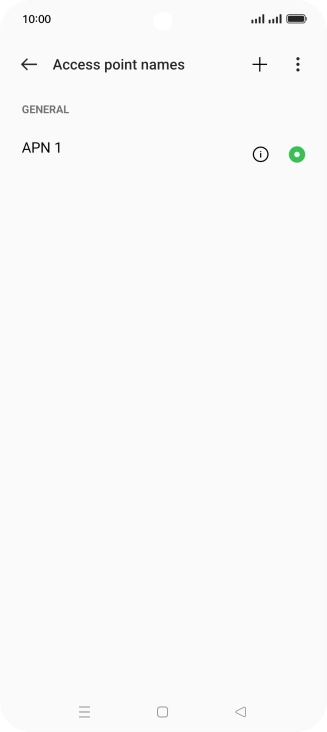

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-a7a58540-1280-49c4-a724-30e0af5a049c.png?width=206&height=464)

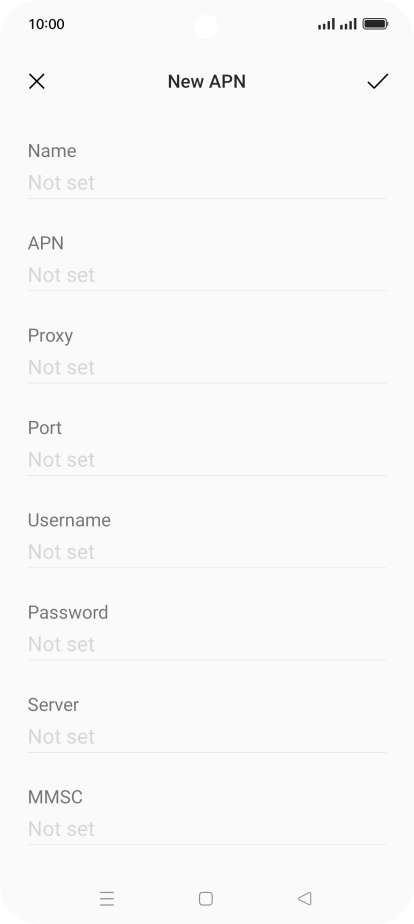

Press the field below "Name" and key in Vodafone Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-d38ebc96-69bb-4349-8243-b24c62148f8d.png?width=206&height=464)
Vodafone Internet
3. Enter APN
Press the field below "APN" and key in live.vodafone.com.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-d38ebc96-69bb-4349-8243-b24c62148f8d.png?width=206&height=464)
live.vodafone.com

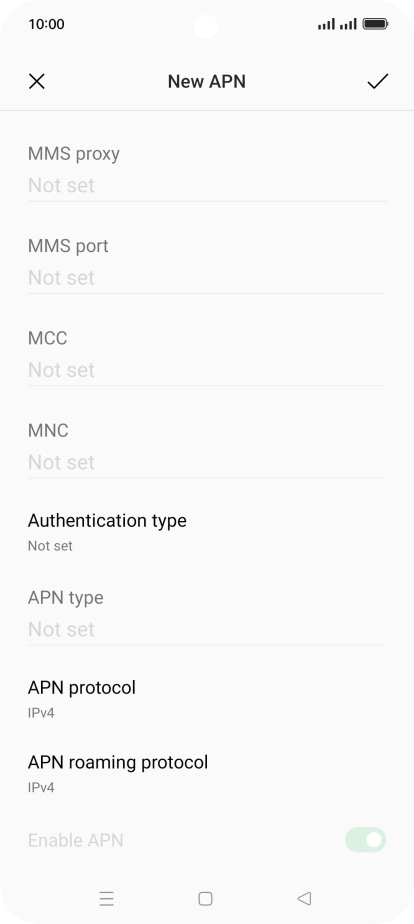

4. Enter country code
Press the field below "MCC" and key in 505.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-b10c5cfc-367f-4229-ab5e-395975f919dd.png?width=206&height=464)
505
5. Enter network code
Press the field below "MNC" and key in 03.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-b10c5cfc-367f-4229-ab5e-395975f919dd.png?width=206&height=464)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-b10c5cfc-367f-4229-ab5e-395975f919dd.png?width=206&height=464)

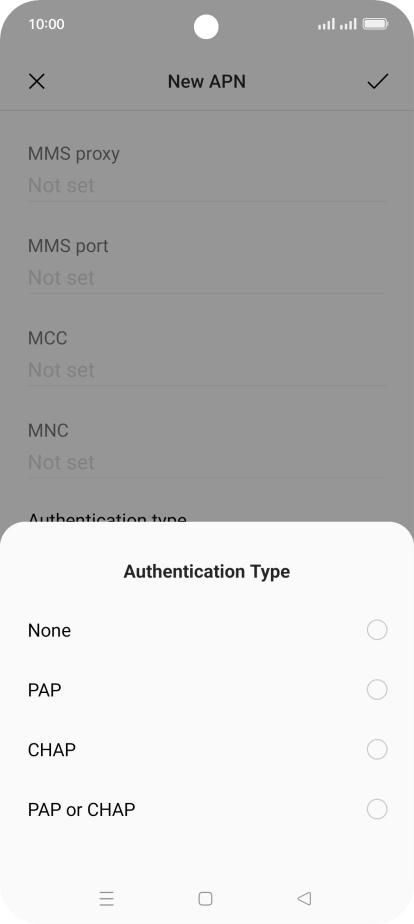

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-9c9be145-19d6-489e-aa95-3c08d5906ffb.png?width=206&height=464)
7. Enter APN type
Press the field below "APN type" and key in default.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-b10c5cfc-367f-4229-ab5e-395975f919dd.png?width=206&height=464)
default
8. Save data connection
Press the save icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-b10c5cfc-367f-4229-ab5e-395975f919dd.png?width=206&height=464)

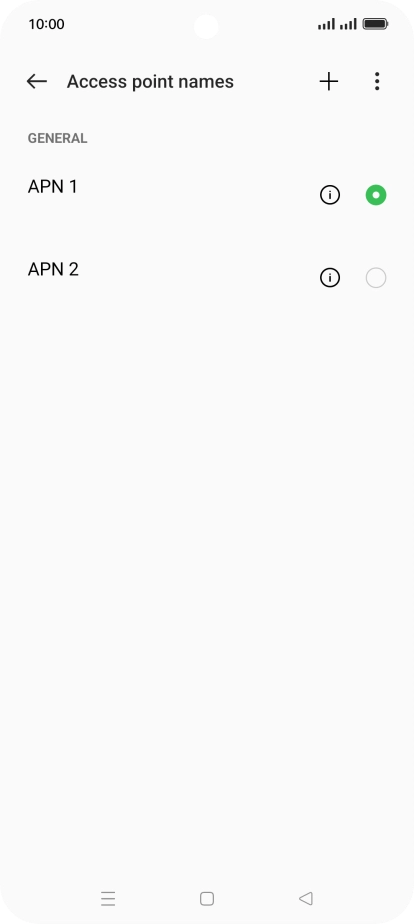

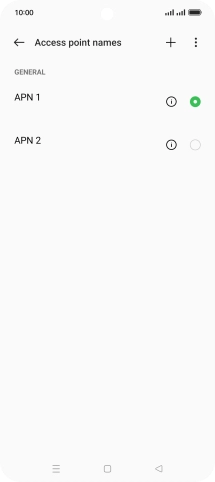

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-371a7617-20d9-425d-bb05-fa8cd91e0022.png?width=206&height=464)

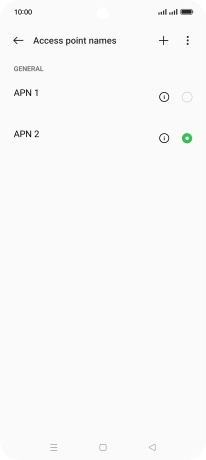

9. Return to the home screen

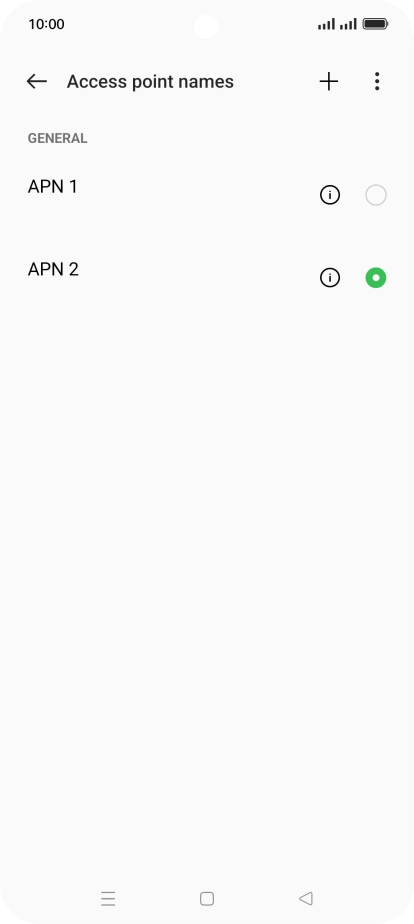

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-5e5e3057-f90f-4d25-900e-903bfec1131b.png?width=206&height=464)
