1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-eda5cc10-f4f6-4e31-a179-526ac23243a2.png?width=198&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5bc06392-eeed-46c0-b118-47d16b5244b1.png?width=198&height=444)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-227a29dd-99a7-409c-8dd9-934dbd747b90.png?width=198&height=444)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4a4de88a-426e-443a-82ef-ae026433ce29.png?width=198&height=444)

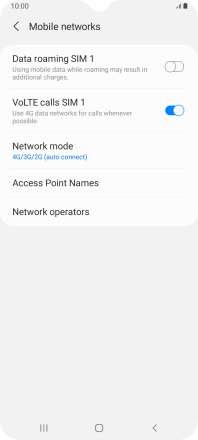

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d2453941-e3c4-4a00-9217-cb7785c41d99.png?width=198&height=444)
2. Create new data connection

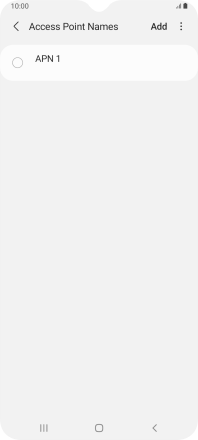

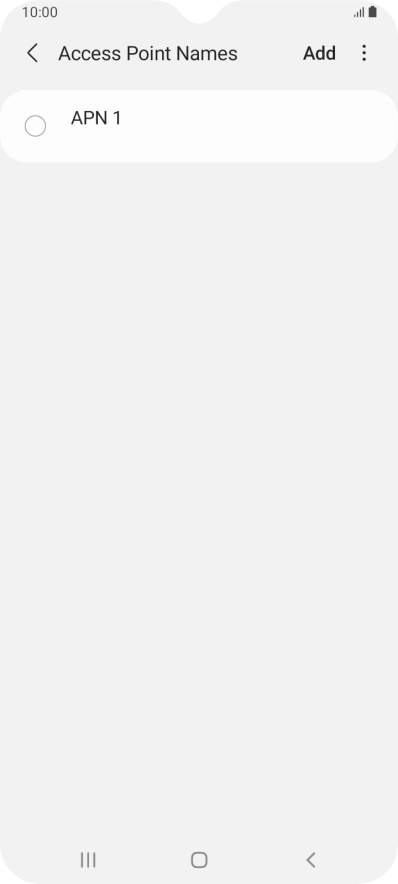

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7e6c2156-1b1c-41d9-ba57-f275e7da8840.png?width=198&height=444)

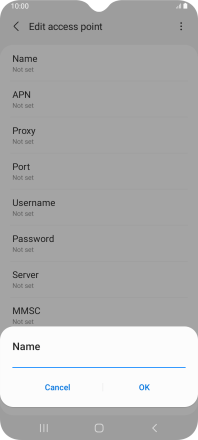

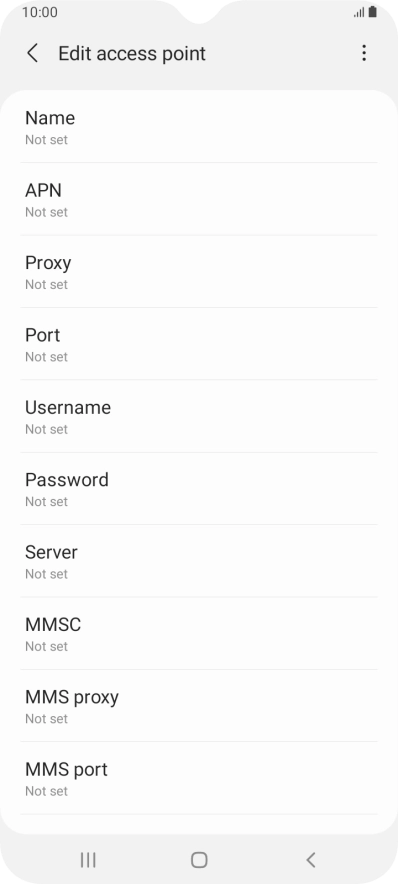

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7cef64a-11d4-4d48-b868-c14329707915.png?width=198&height=444)

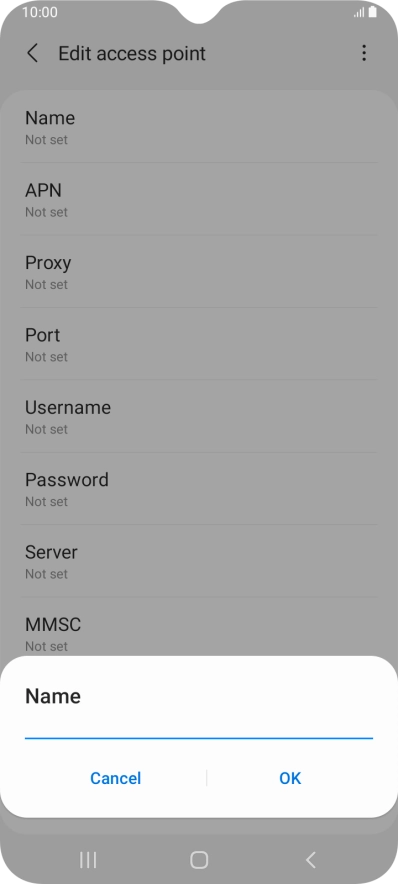

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c21cac3b-f66a-420c-b5a5-322b528e09f2.png?width=198&height=444)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7cef64a-11d4-4d48-b868-c14329707915.png?width=198&height=444)

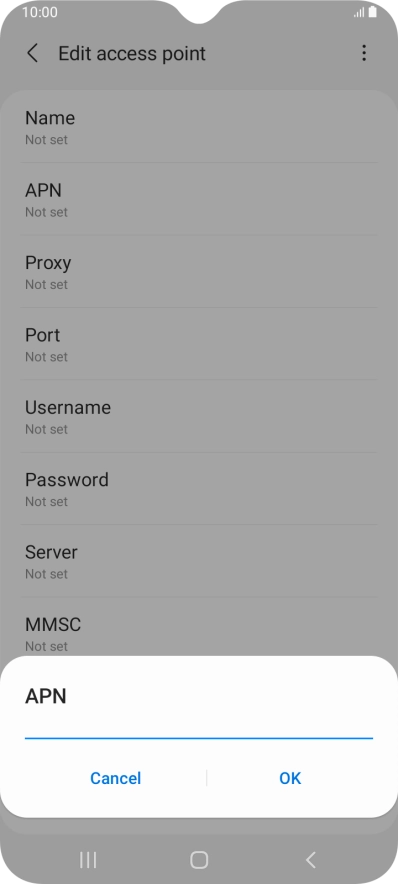

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0b37d2b9-56ee-4407-9c31-5fe755213138.png?width=198&height=444)
live.vodafone.com
4. Enter MMSC

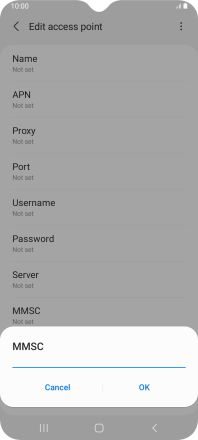

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7cef64a-11d4-4d48-b868-c14329707915.png?width=198&height=444)

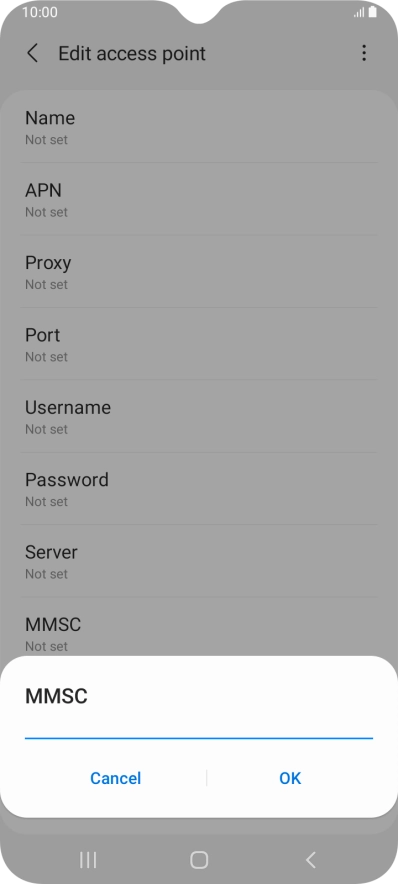

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cfbc3d75-720b-4835-929e-f219869cfebe.png?width=198&height=444)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address

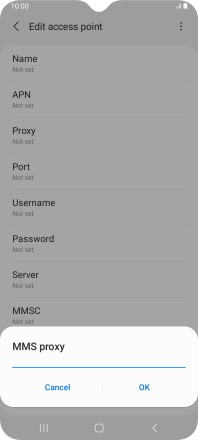

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7cef64a-11d4-4d48-b868-c14329707915.png?width=198&height=444)

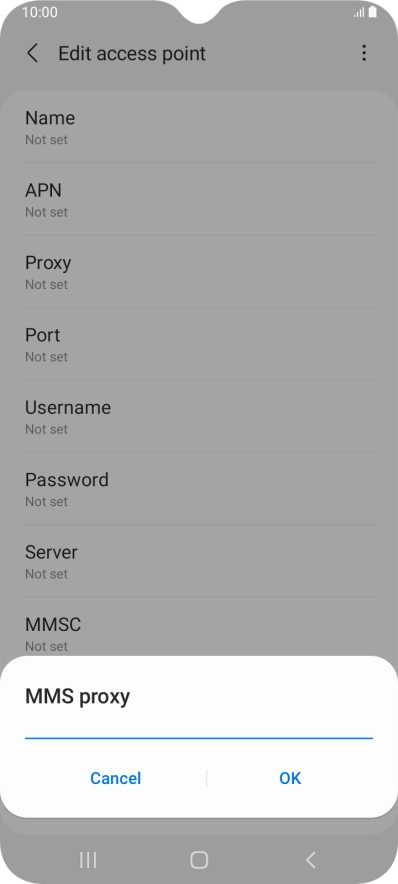

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-348fbf8a-d7fd-42a4-9661-2bba838e2823.png?width=198&height=444)
10.202.002.060
6. Enter port number

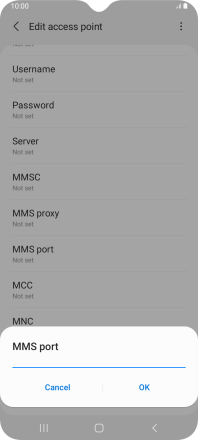

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7cef64a-11d4-4d48-b868-c14329707915.png?width=198&height=444)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bf09d0d4-605e-4cca-b479-cd69534ad254.png?width=198&height=444)
8080
7. Enter country code

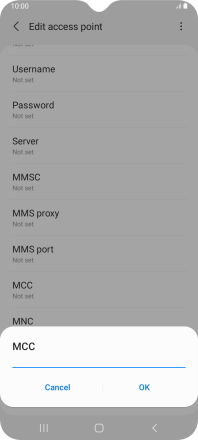

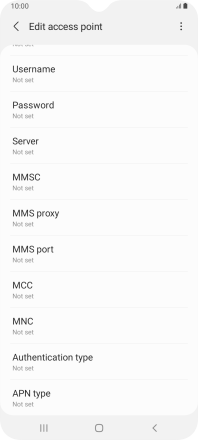

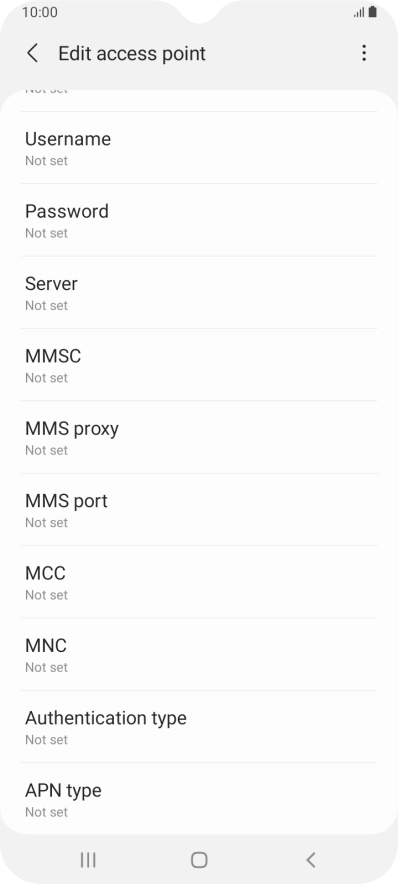

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74487636-4044-4ac3-85d4-5a85b1f9340c.png?width=198&height=444)

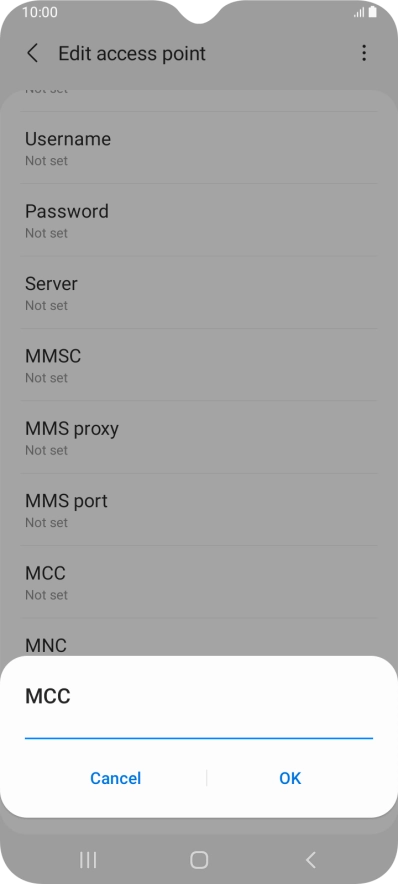

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-67e80fdb-3b7c-4403-8189-bf0e36361ea7.png?width=198&height=444)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74487636-4044-4ac3-85d4-5a85b1f9340c.png?width=198&height=444)

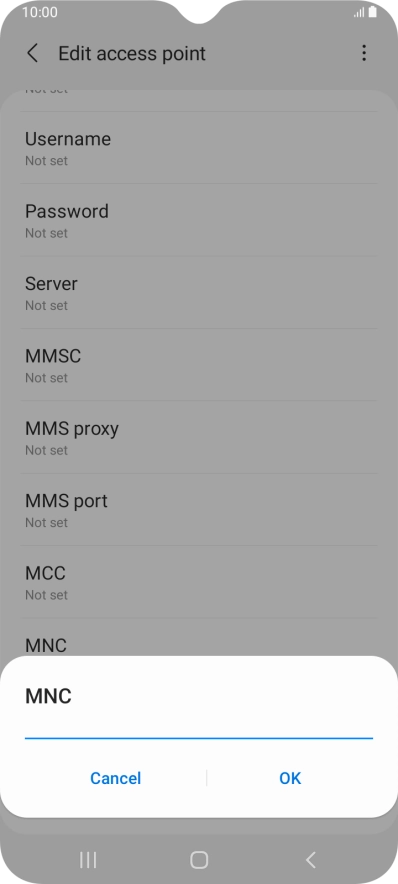

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-44fa7c5d-45be-4b36-9e83-161ed56ab4ee.png?width=198&height=444)
03
9. Select authentication type

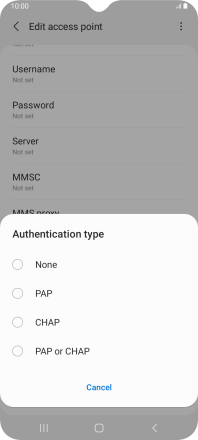

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74487636-4044-4ac3-85d4-5a85b1f9340c.png?width=198&height=444)

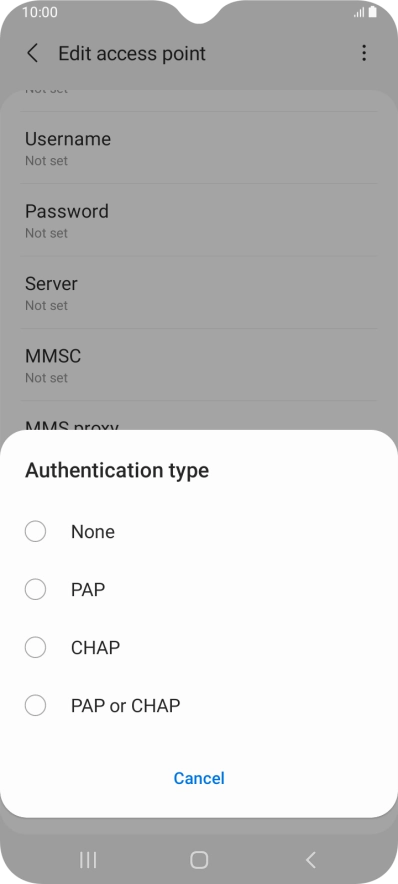

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a0c1a178-0bed-4d82-8cb1-21db650c4475.png?width=198&height=444)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74487636-4044-4ac3-85d4-5a85b1f9340c.png?width=198&height=444)

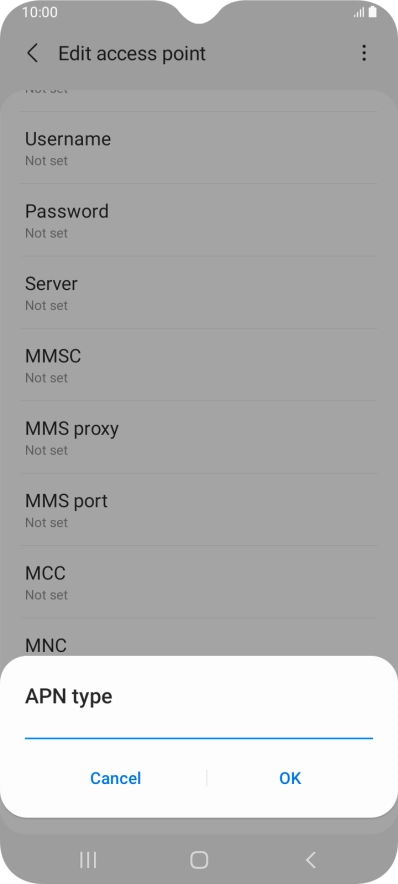

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-82765512-5955-4dbf-a580-fa76faad41ff.png?width=198&height=444)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74487636-4044-4ac3-85d4-5a85b1f9340c.png?width=198&height=444)

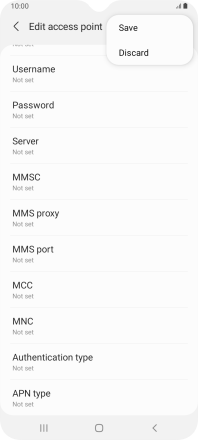

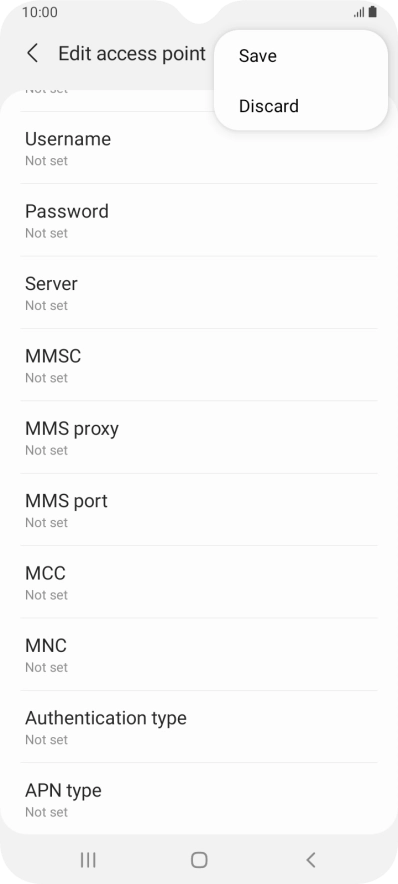

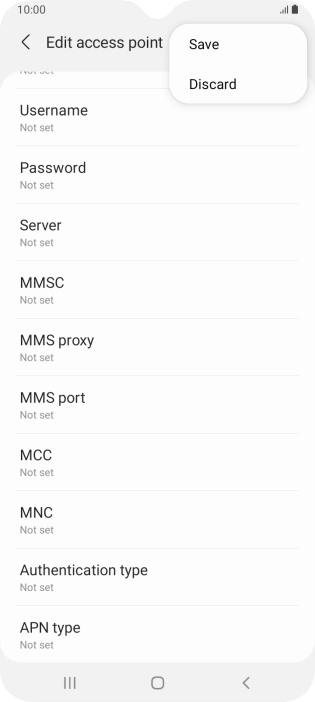

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0dbfe946-8c92-48bb-8cd9-3b0c0f4960c5.png?width=198&height=444)
12. Return to the home screen

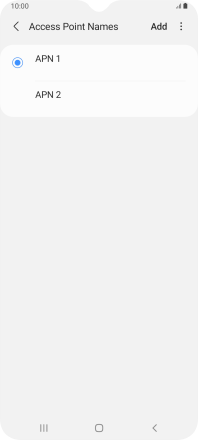

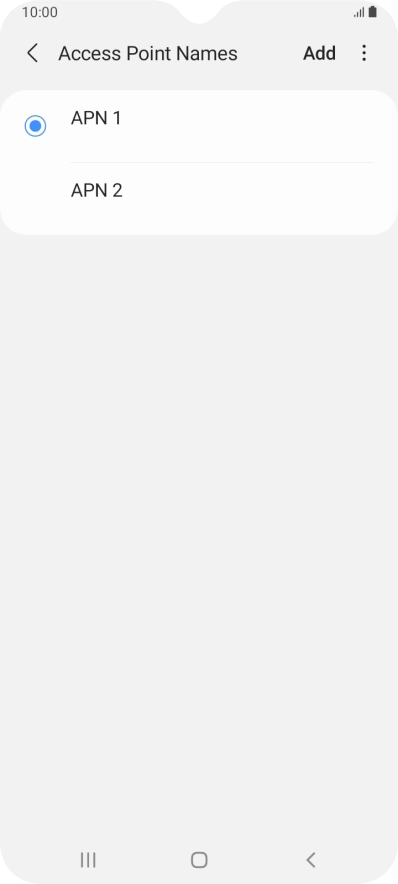

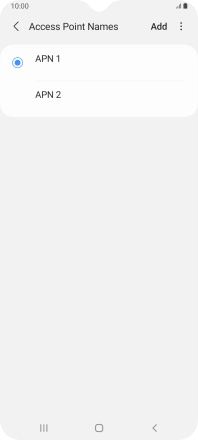

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aeb5faf4-bfb4-4a81-be72-5f892dcac915.png?width=198&height=444)
