1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-005efa7d-4293-4645-b8c6-863bef172246.png?width=200&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-61523db8-293c-48ef-a5e0-fa93519d5392.png?width=200&height=444)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-6d396542-9875-4c8a-96c9-6c9732151013.png?width=200&height=444)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-f895ceaf-aafe-41a8-9ec0-0aca35735c5f.png?width=200&height=444)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-95c33568-1ca7-4376-b139-3f8ff1453ccd.png?width=200&height=444)
2. Create new data connection

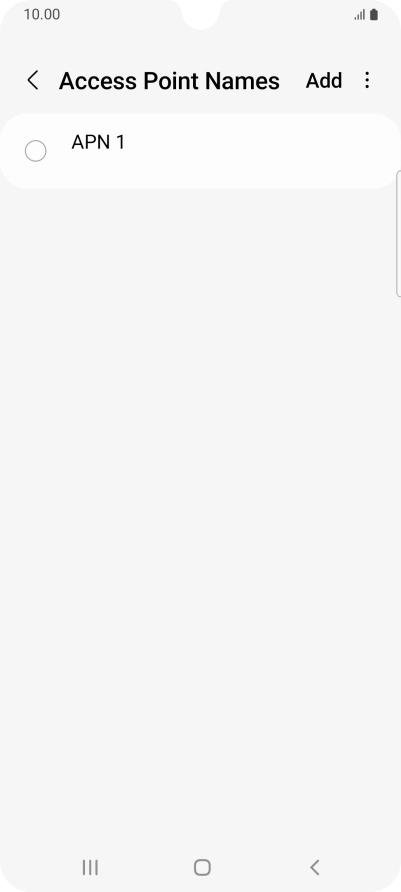

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-23cfcf65-fa39-4fba-b398-6faa5100a0c2.png?width=200&height=444)

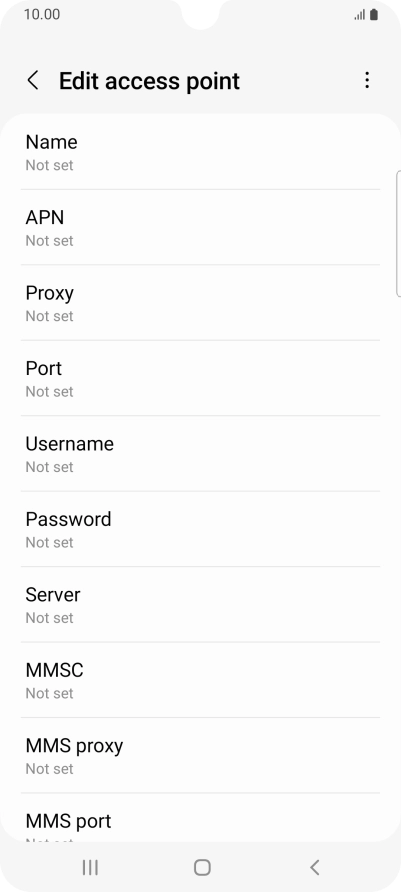

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d639ebb7-c868-47ab-b365-c21f34fac8c3.png?width=200&height=444)

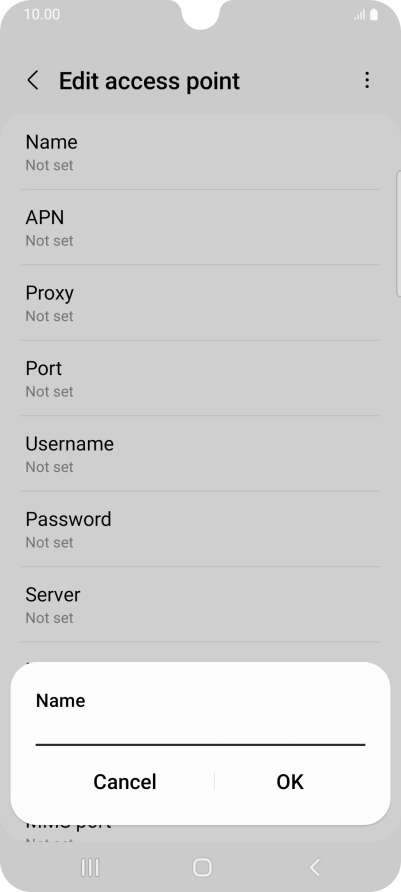

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-a3b340c8-ef11-4afb-9a43-14b4953c345d.png?width=200&height=444)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d639ebb7-c868-47ab-b365-c21f34fac8c3.png?width=200&height=444)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-2f126707-b268-44f6-a1d2-e5b793db0cd2.png?width=200&height=444)
live.vodafone.com
4. Enter country code

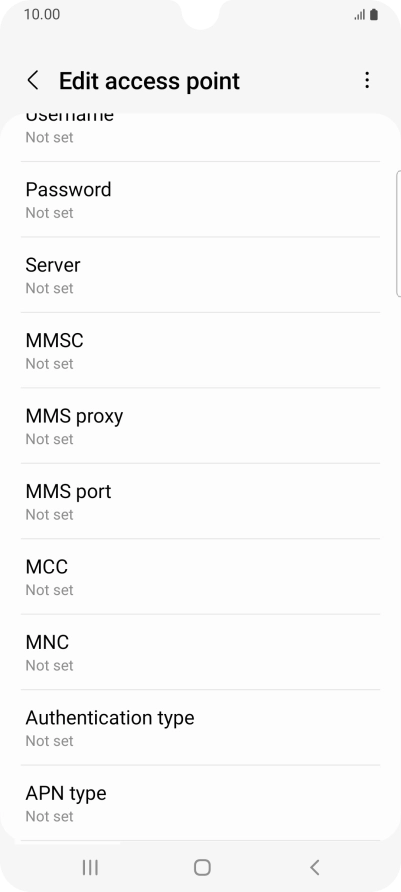

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-2106ee37-2445-4c56-a34c-abab15b8d7c8.png?width=200&height=444)

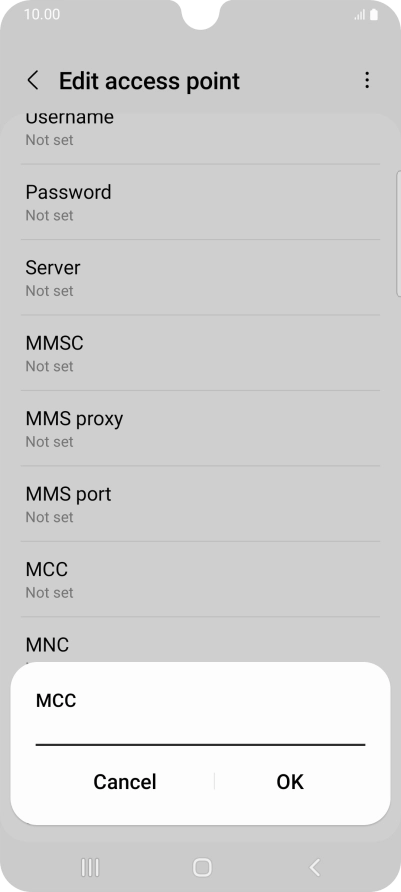

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-f8bd3e80-22bb-430b-baf0-f793468dfe65.png?width=200&height=444)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-2106ee37-2445-4c56-a34c-abab15b8d7c8.png?width=200&height=444)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-0e87ec63-88db-4b98-9dc0-ef0f84841928.png?width=200&height=444)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-2106ee37-2445-4c56-a34c-abab15b8d7c8.png?width=200&height=444)

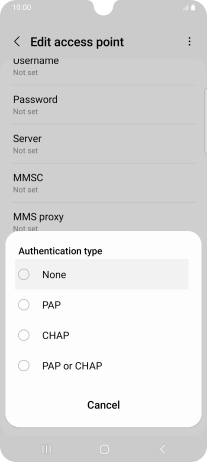

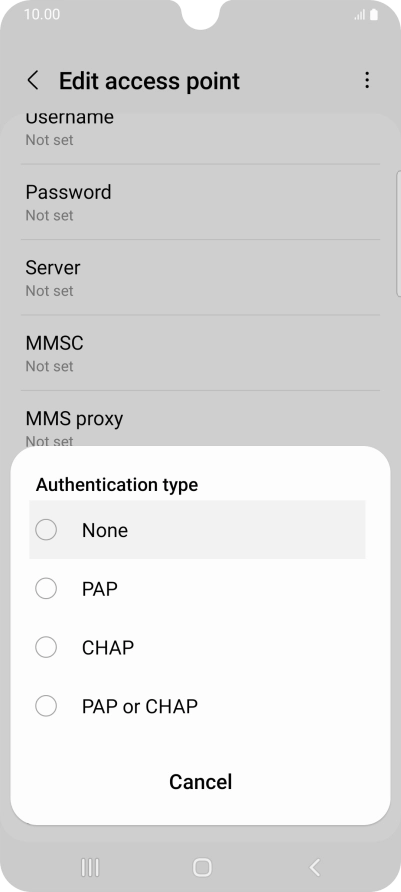

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-54f61d79-10b2-48ec-8c75-9bc263aed311.png?width=200&height=444)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-2106ee37-2445-4c56-a34c-abab15b8d7c8.png?width=200&height=444)

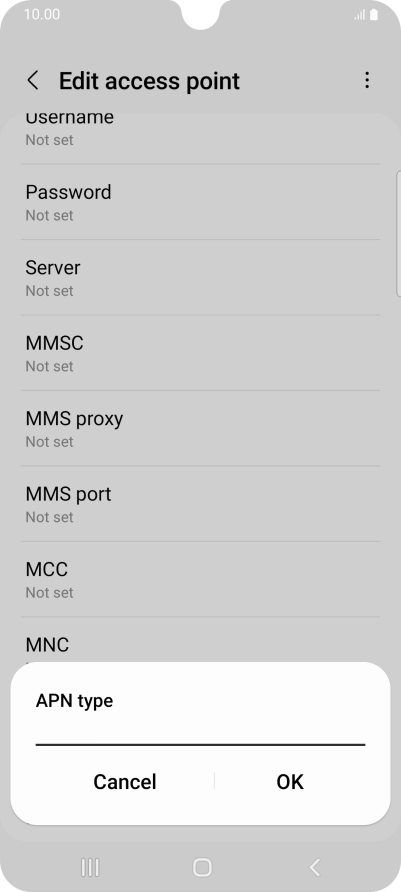

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-e3eb42f6-c074-4953-a6bf-44dc22e12cbe.png?width=200&height=444)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-2106ee37-2445-4c56-a34c-abab15b8d7c8.png?width=200&height=444)

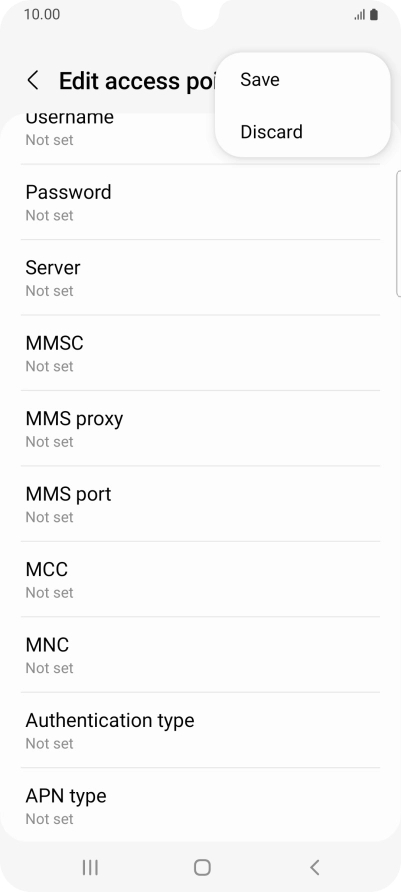

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-1e978ea0-e66f-4673-a523-32c2daf1bd13.png?width=200&height=444)
Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-04d1f8b1-a60c-4a12-b483-42bbd824e582.png?width=200&height=444)
9. Return to the home screen

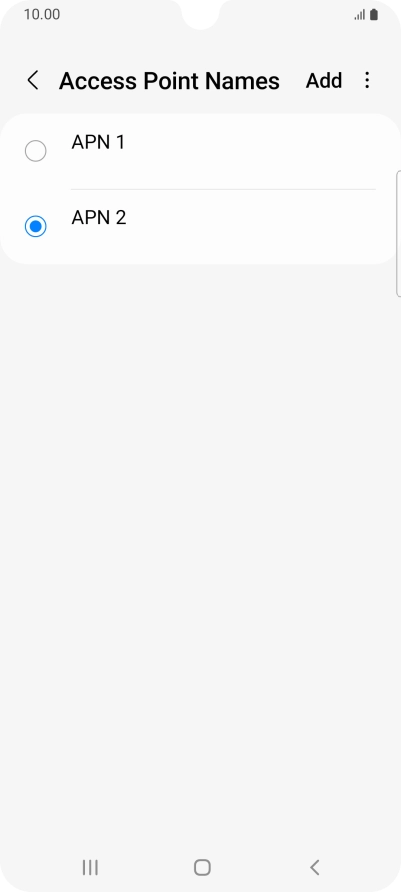

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-1074eb06-6dad-4bff-b84e-0abd9f2166f8.png?width=200&height=444)
