1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fc3dc543-0316-49e7-b86e-f7f97b045ad4.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0dccfc04-68ec-4e46-9903-cce51a1f2204.png?width=202&height=448)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-619b6514-890f-425e-8b24-b4af2396742b.png?width=202&height=448)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6875bd75-9ae8-4152-bd3c-fe74a15ed654.png?width=202&height=448)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-74a81309-a6c8-4598-9eec-7ba61c05a8d7.png?width=202&height=448)
2. Create new data connection

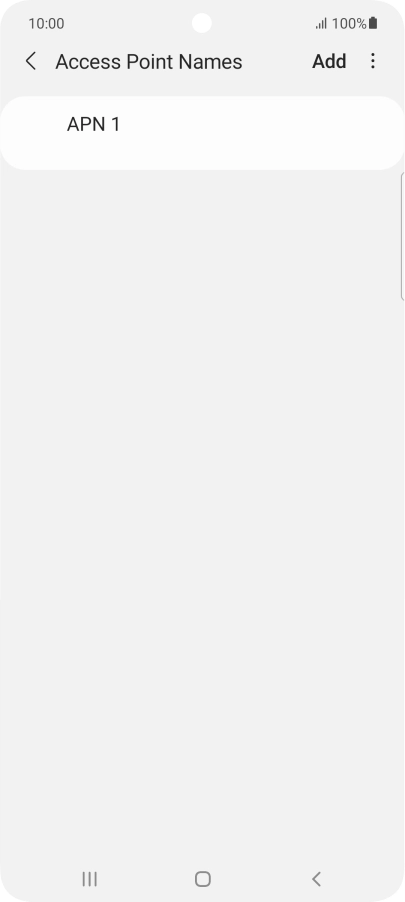

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-89ffafcc-85ea-4784-8c6e-b559f0ac5866.png?width=202&height=448)
3. Enter a name for the connection

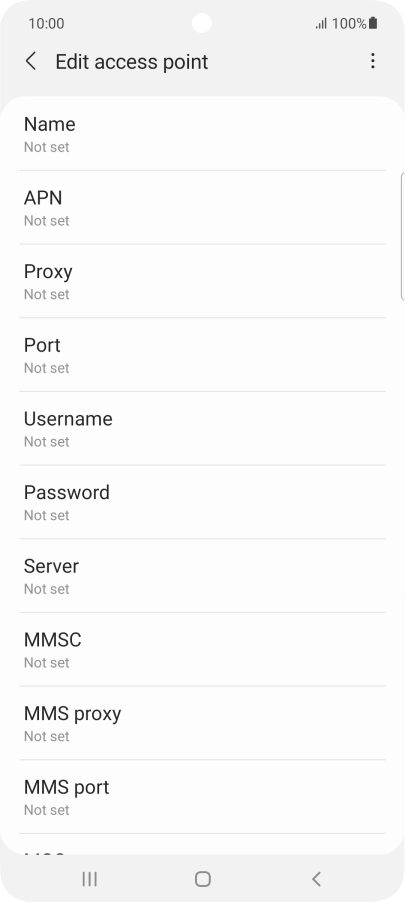

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

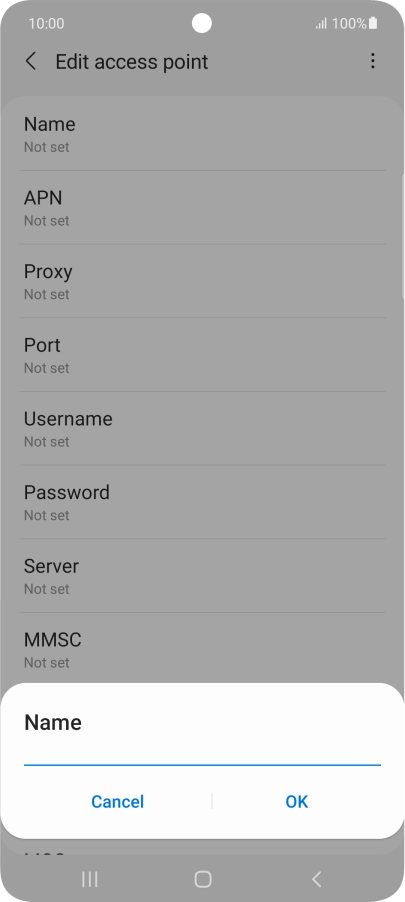

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b2a3b0e5-1703-40a0-8de4-1125555cdde4.png?width=202&height=448)
Vodafone MMS
4. Enter APN

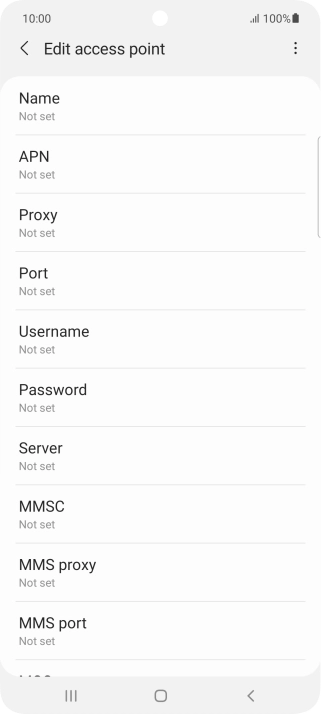

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

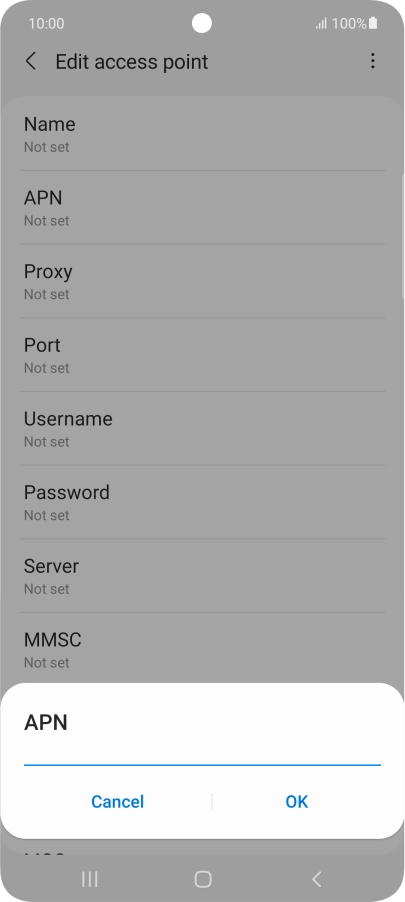

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-21a562e5-3848-42f0-9ba9-8e2ce481a75a.png?width=202&height=448)
live.vodafone.com
5. Enter MMSC

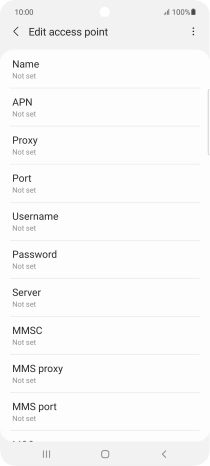

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2cab9ea6-0026-4ee3-85c2-353cadf8c7a3.png?width=202&height=448)

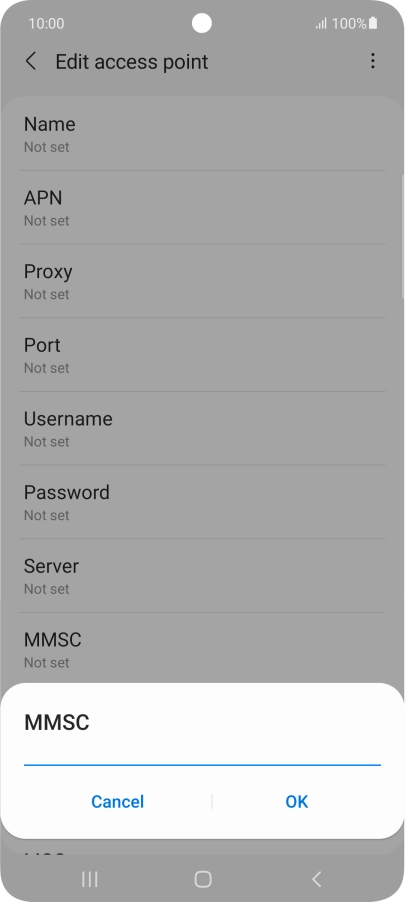

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6a40e7d1-3d84-4c00-ba47-d1c2ab47e113.png?width=202&height=448)
http://pxt.vodafone.net.au/pxtsend
6. Enter port number

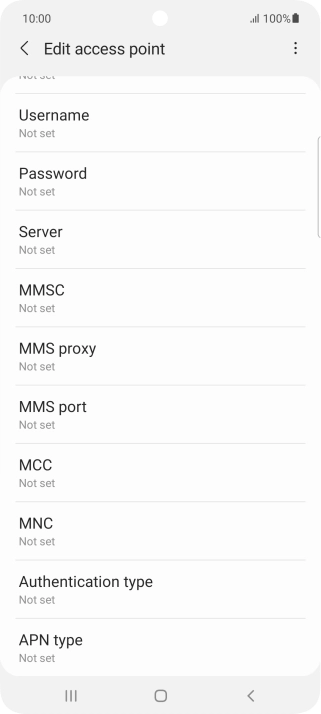

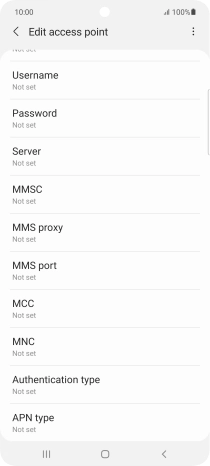

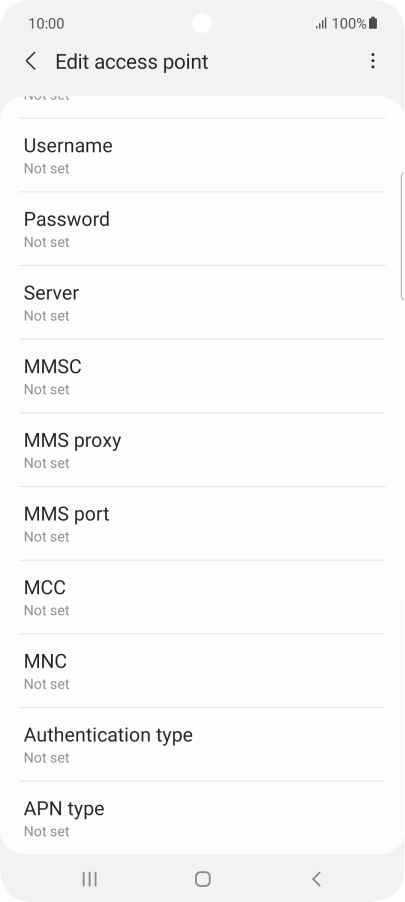

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

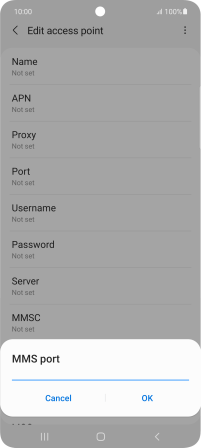

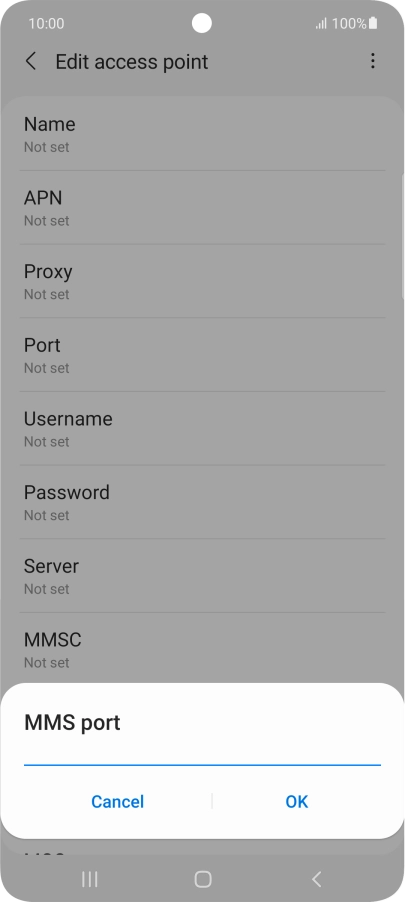

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0585f6ac-1bcd-4c87-b10e-1010b7785a96.png?width=202&height=448)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

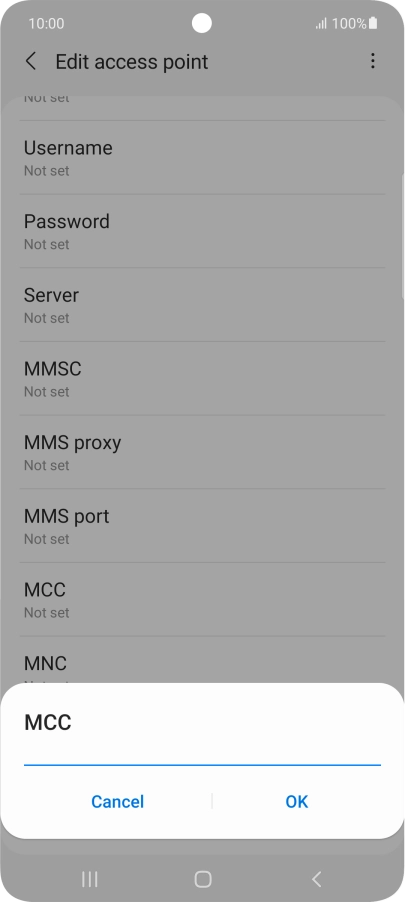

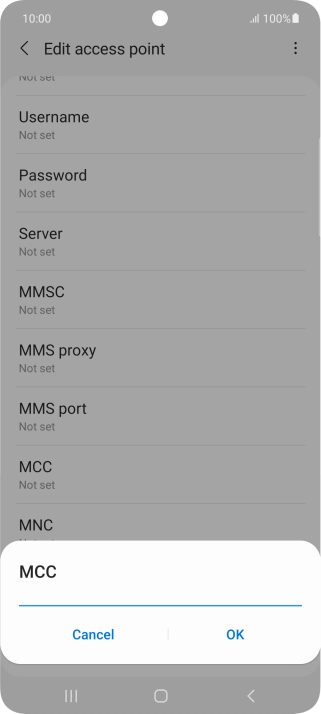

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9399ff46-f4ae-458b-875c-c201066ee6be.png?width=202&height=448)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ff1de531-a334-414e-973f-841c5d9587f0.png?width=202&height=448)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

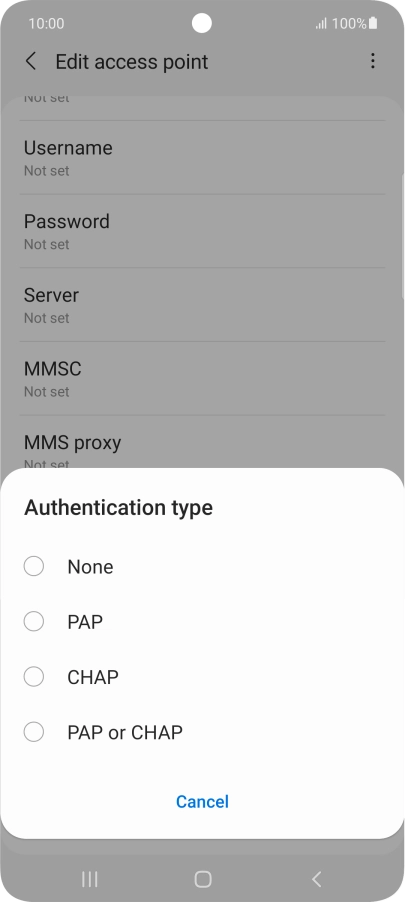

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-107eea8f-eb91-4f89-9c33-58e05e23dcc3.png?width=202&height=448)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

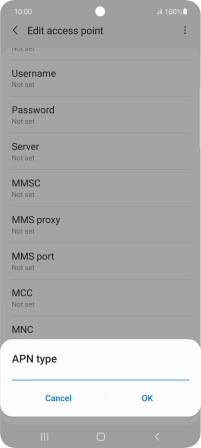

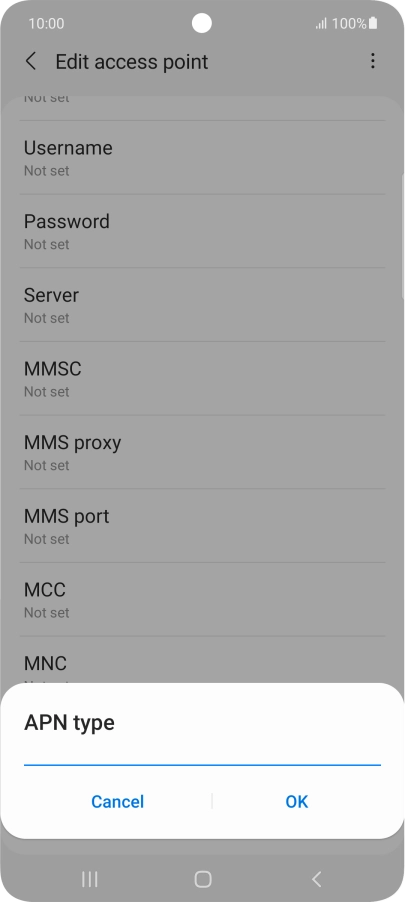

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-90d54933-5eab-4a70-89c6-b0379f92d233.png?width=202&height=448)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a8b0305-304e-4c73-8b6a-196dcf785e81.png?width=202&height=448)

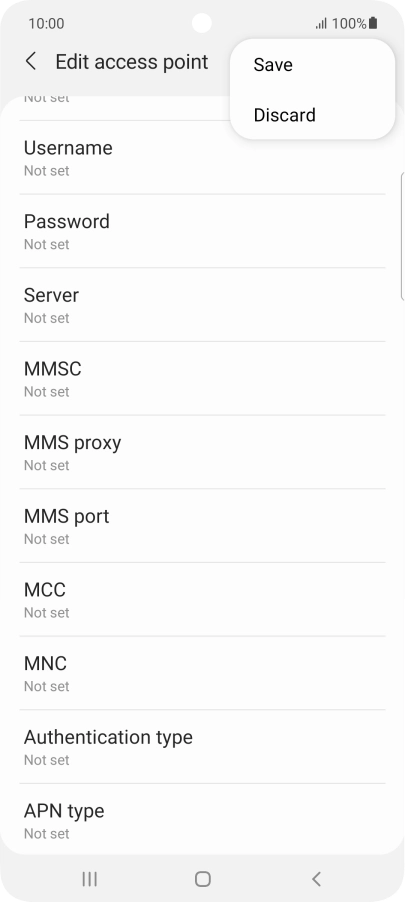

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95eeb51e-9608-42c7-ab7d-8693ad3ca2d1.png?width=202&height=448)
12. Return to the home screen

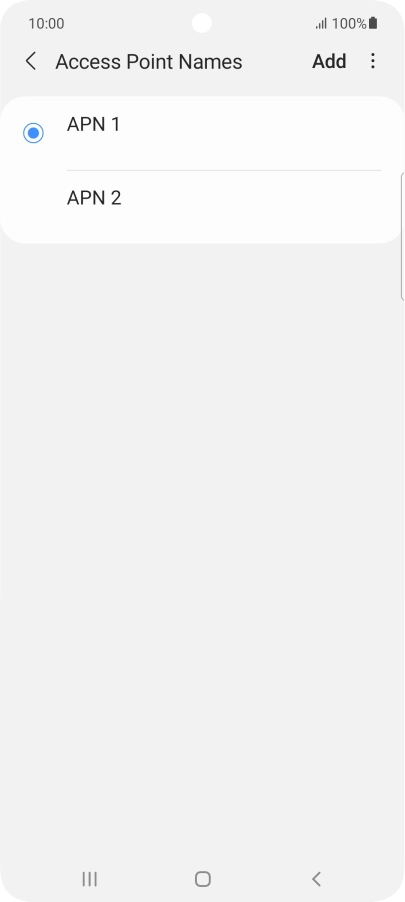

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4e18b917-b803-416d-bd6b-cf1346243e1e.png?width=202&height=448)
