1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1734b561-14aa-401e-8718-e2e7fd816fed.png?width=204&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2afd2614-7863-48d4-8c66-f0f992530803.png?width=204&height=452)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8d6b5534-d922-4a2b-830a-80ef9aaa0be9.png?width=204&height=452)

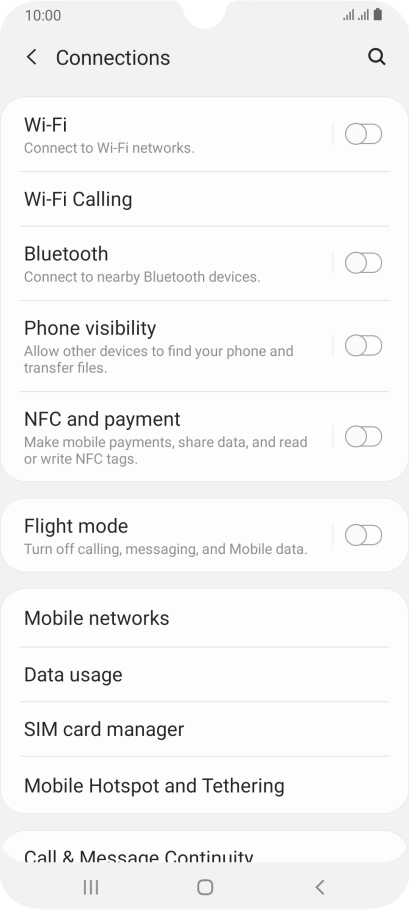

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-50250e63-6c45-4e61-a96a-4f6b44d9de65.png?width=204&height=452)

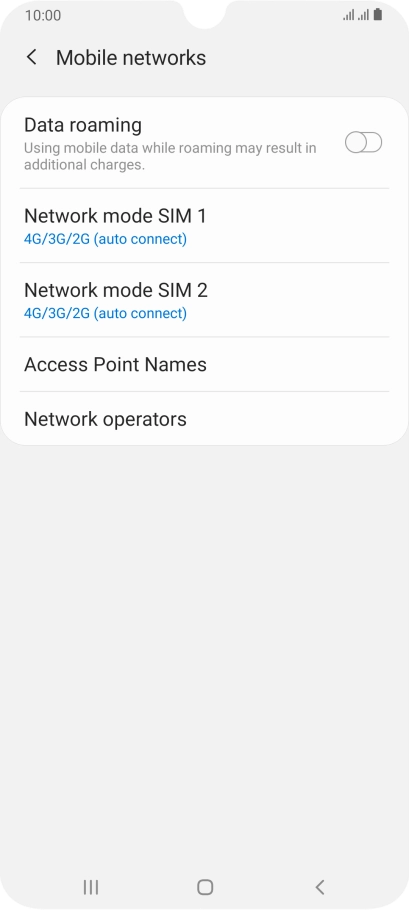

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4d4bef5f-6282-49a7-a57e-973bb9f7a212.png?width=204&height=452)
2. Create new data connection

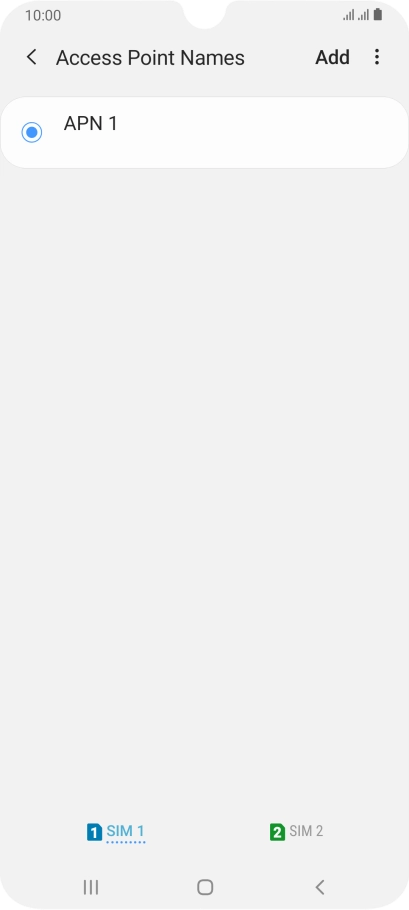

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1a1290c8-5941-4ba7-91e2-a4af48ffd4c5.png?width=204&height=452)

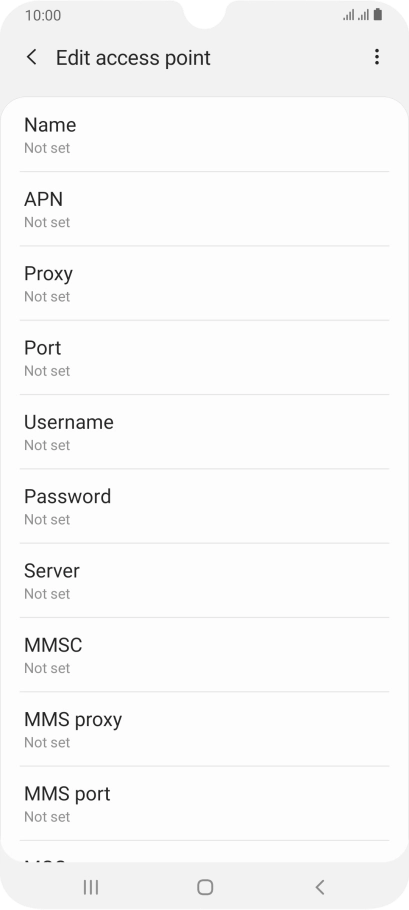

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4305bcd-f452-4c68-8877-12c9497b3d2e.png?width=204&height=452)

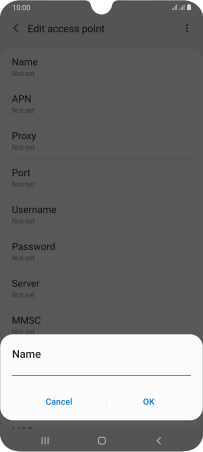

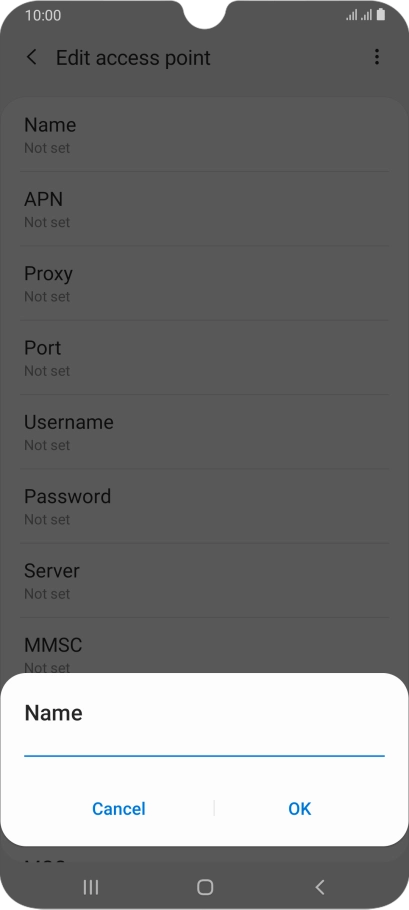

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7b03b864-80be-412a-b07a-8a0f9b893a58.png?width=204&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4305bcd-f452-4c68-8877-12c9497b3d2e.png?width=204&height=452)

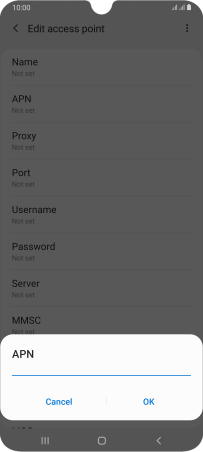

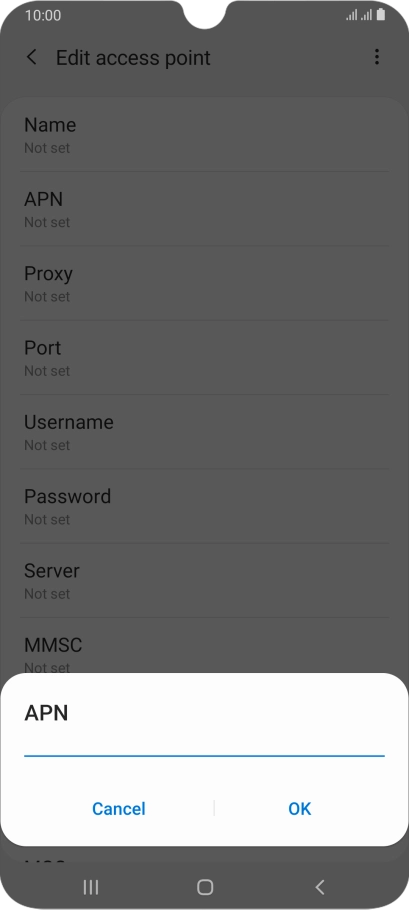

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-32e1e9cd-9c2c-4061-a547-68cc60a11870.png?width=204&height=452)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4305bcd-f452-4c68-8877-12c9497b3d2e.png?width=204&height=452)

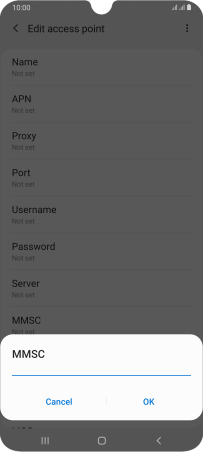

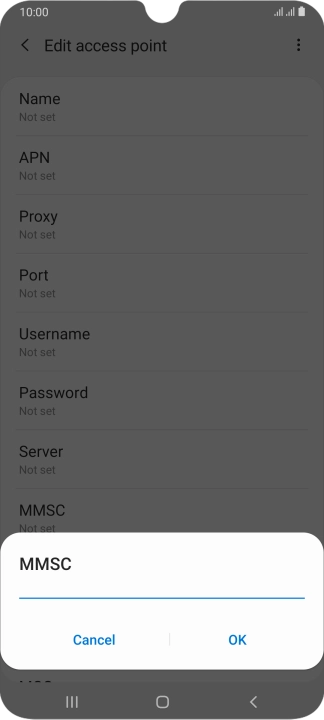

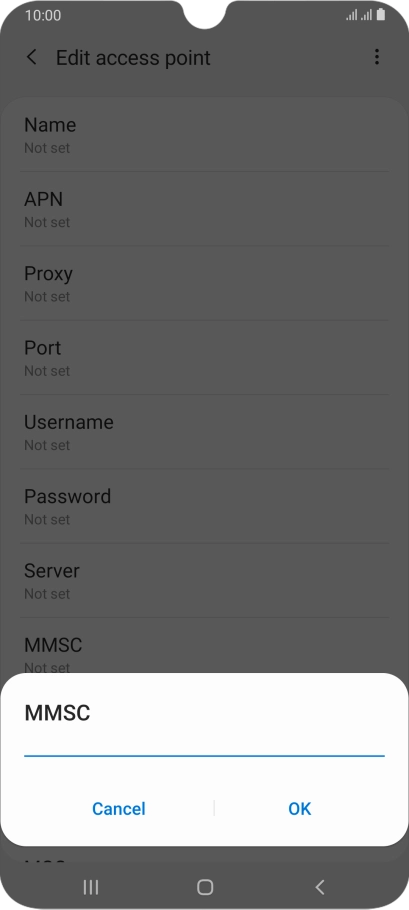

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5b2c2f66-c703-412f-b3f6-77dd31e8b434.png?width=204&height=452)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4305bcd-f452-4c68-8877-12c9497b3d2e.png?width=204&height=452)

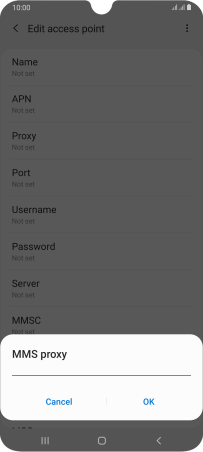

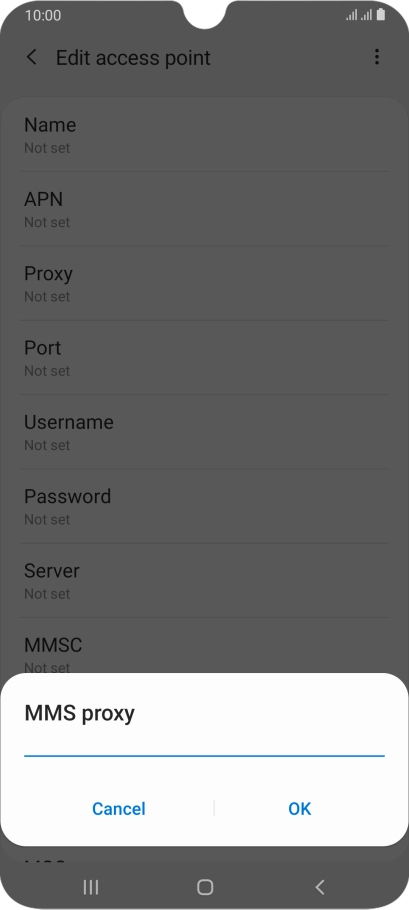

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1a0993c1-cd52-4431-a1aa-08f3245a58b4.png?width=204&height=452)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4305bcd-f452-4c68-8877-12c9497b3d2e.png?width=204&height=452)

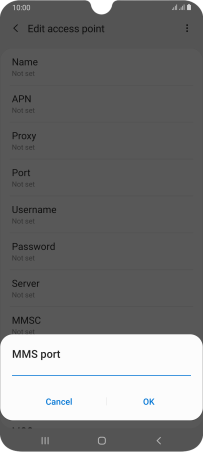

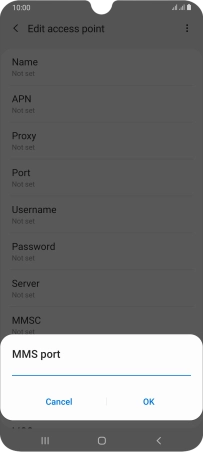

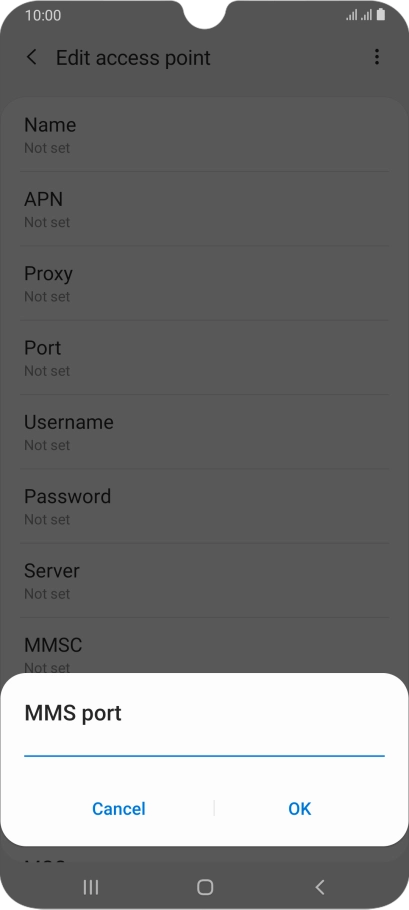

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3dffdc01-1460-47fd-889a-898d4f3f7f36.png?width=204&height=452)
8080
7. Enter country code

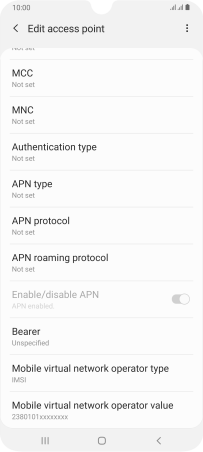

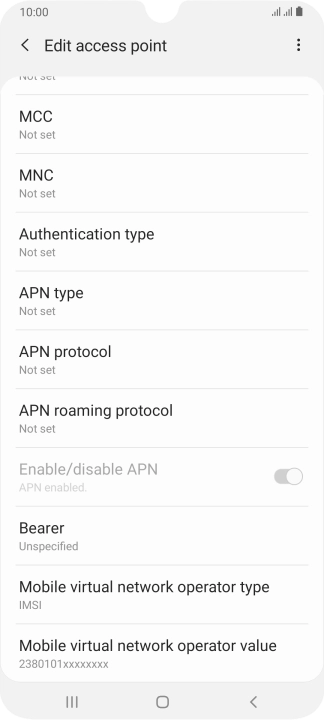

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8e809fd7-8431-459a-b00e-27e73dc32bfe.png?width=204&height=452)

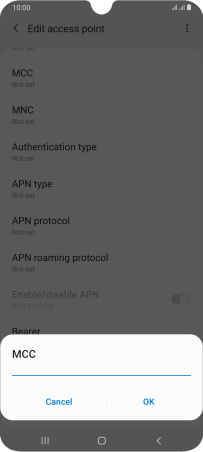

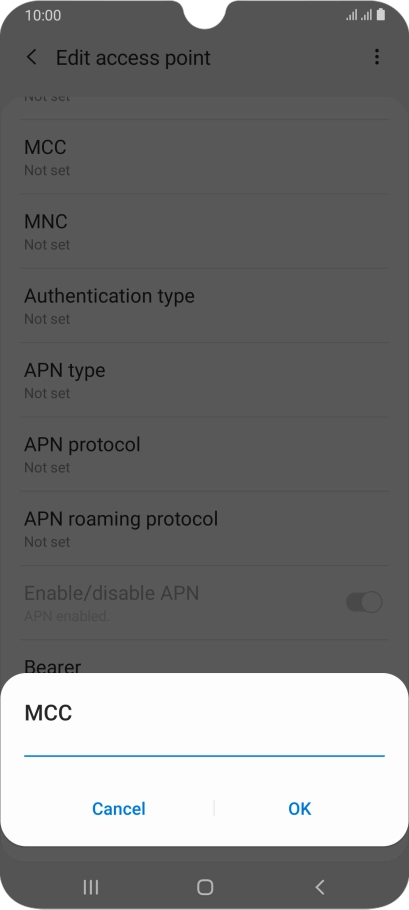

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-99050122-86b9-48e2-9c8b-427ed89ee473.png?width=204&height=452)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8e809fd7-8431-459a-b00e-27e73dc32bfe.png?width=204&height=452)

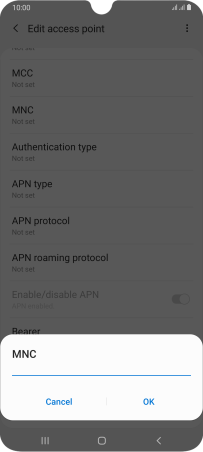

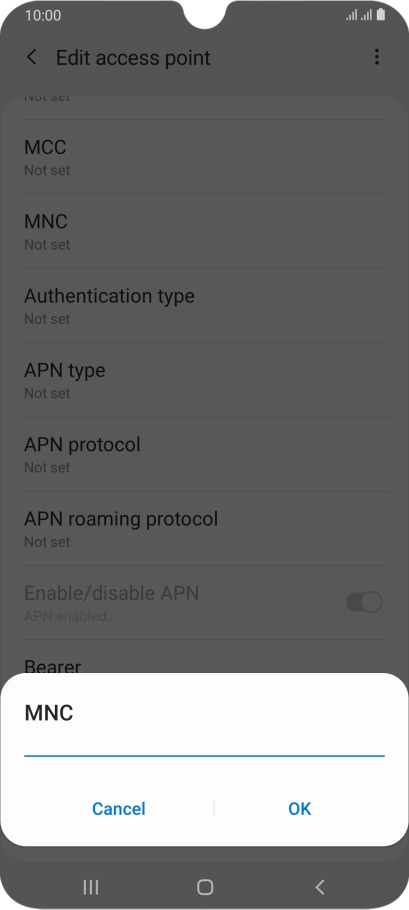

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-043f549b-600c-463e-aa4e-0f1399185a0e.png?width=204&height=452)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8e809fd7-8431-459a-b00e-27e73dc32bfe.png?width=204&height=452)

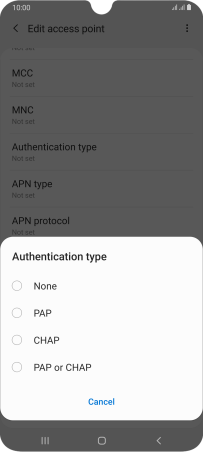

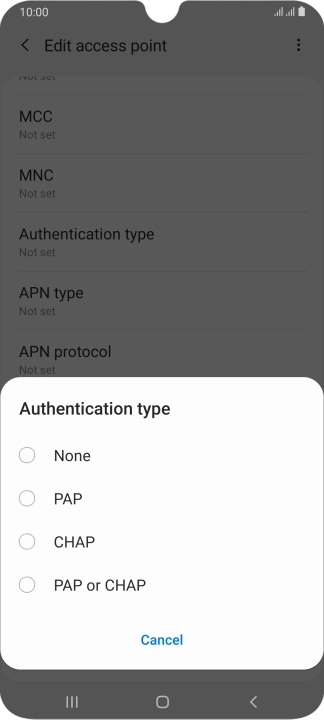

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f772d49-33e0-45a2-95c8-51f738a766b8.png?width=204&height=452)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8e809fd7-8431-459a-b00e-27e73dc32bfe.png?width=204&height=452)

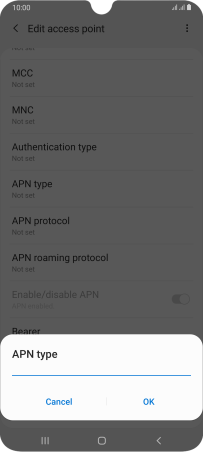

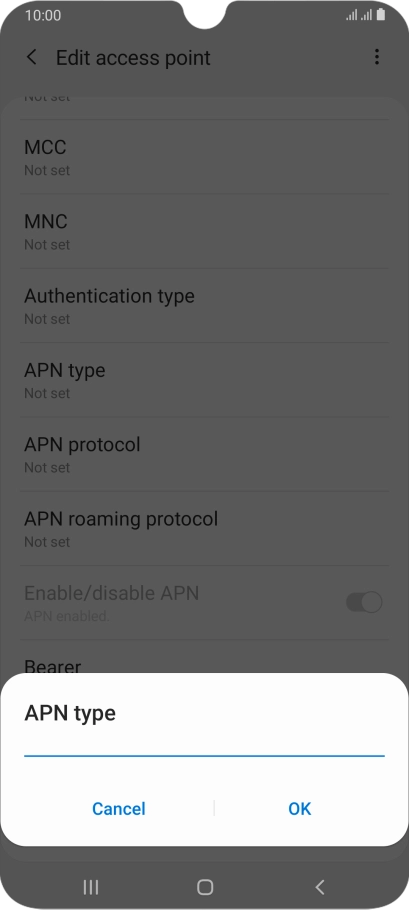

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-20bbace8-ab28-471f-967f-2d4d6f96bebd.png?width=204&height=452)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8e809fd7-8431-459a-b00e-27e73dc32bfe.png?width=204&height=452)

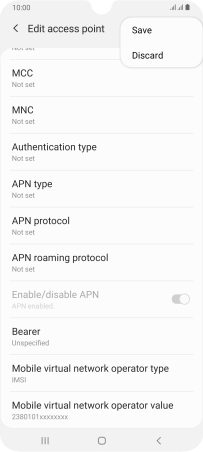

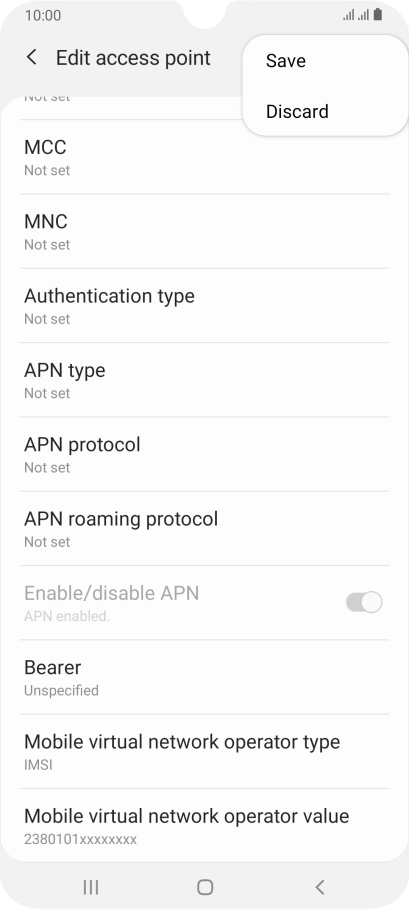

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-917a484e-fb75-4eea-aca2-afc72c1fa39c.png?width=204&height=452)
12. Return to the home screen

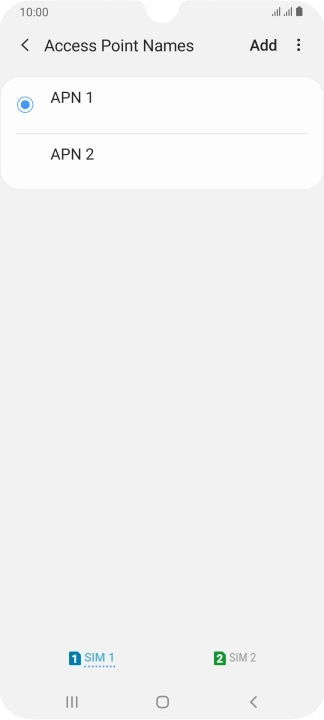

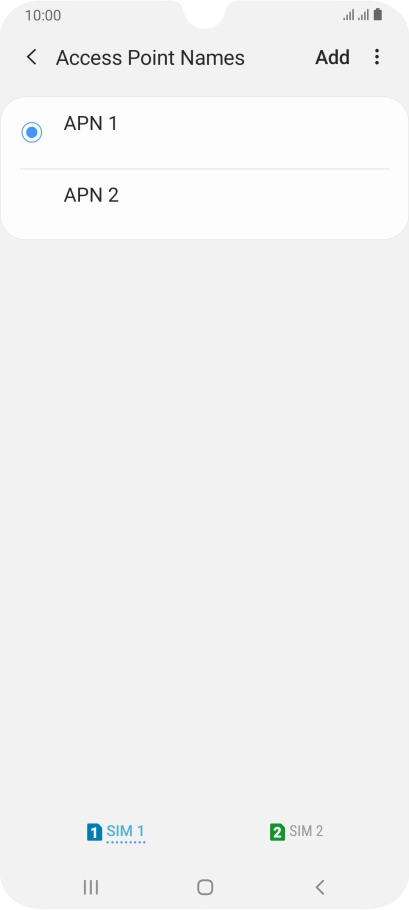

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7c9b01c7-f9df-464c-a82d-daf6eec88c75.png?width=204&height=452)
