1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6fadd150-2f14-4375-b90b-e951f2a5f0d8.png?width=204&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c00a6b9d-b513-4dac-a043-e3aafac8988d.png?width=204&height=452)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9cde9b2e-12c8-420e-a149-8153f331e5ec.png?width=204&height=452)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75c9e571-9f00-4ad5-a190-3af3b50a1940.png?width=204&height=452)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9718be62-0100-4ea2-bb54-981c2b91ab24.png?width=204&height=452)
2. Create new data connection

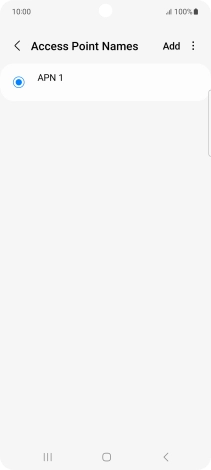

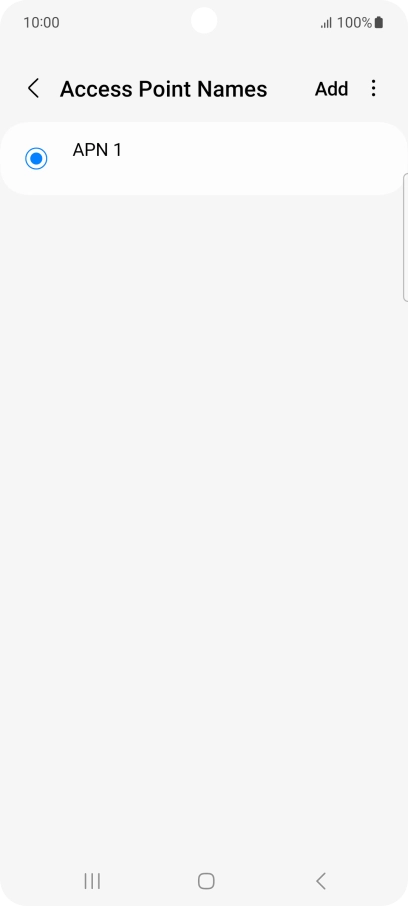

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b68c63db-ea88-4b47-ae72-f7d7e870e783.png?width=204&height=452)

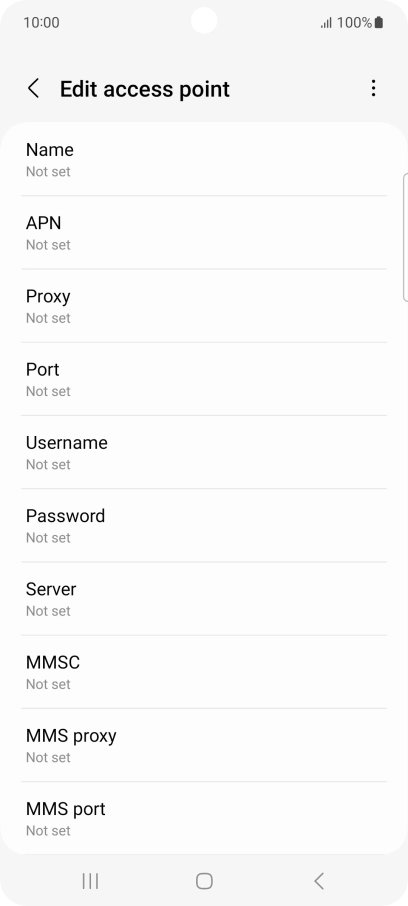

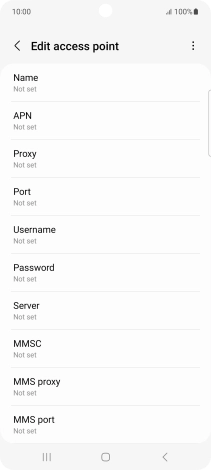

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b22fb8a2-a287-4e55-ab90-6857f61bc406.png?width=204&height=452)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)

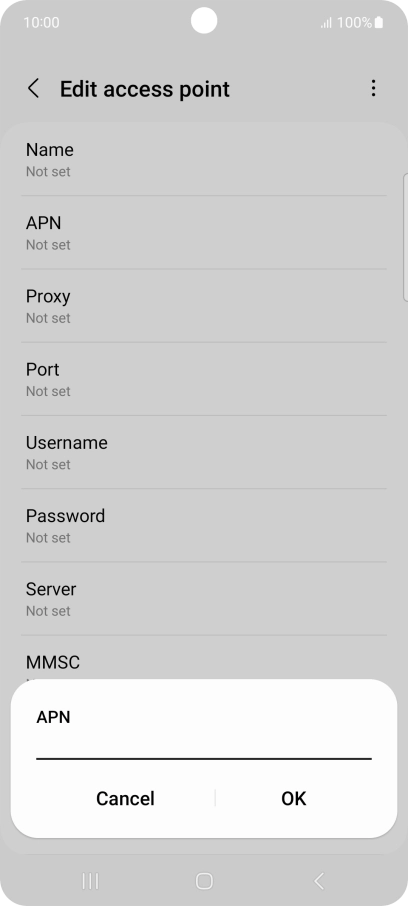

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa3e638-0c15-4e2d-8241-4671a3c0016c.png?width=204&height=452)
live.vodafone.com
4. Enter country code

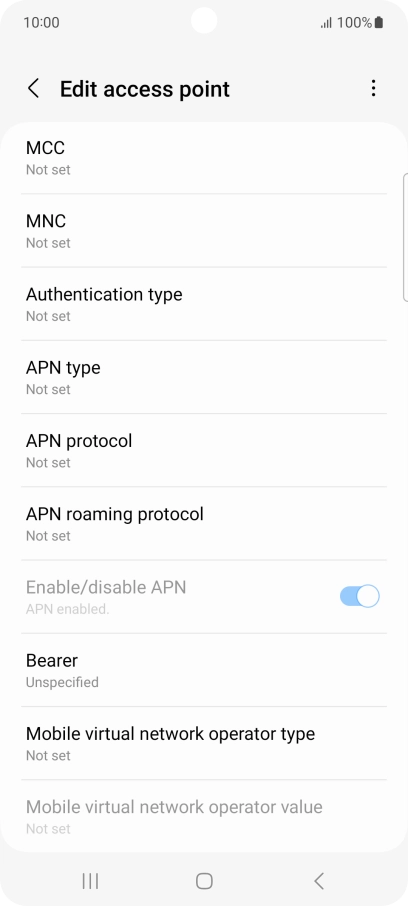

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

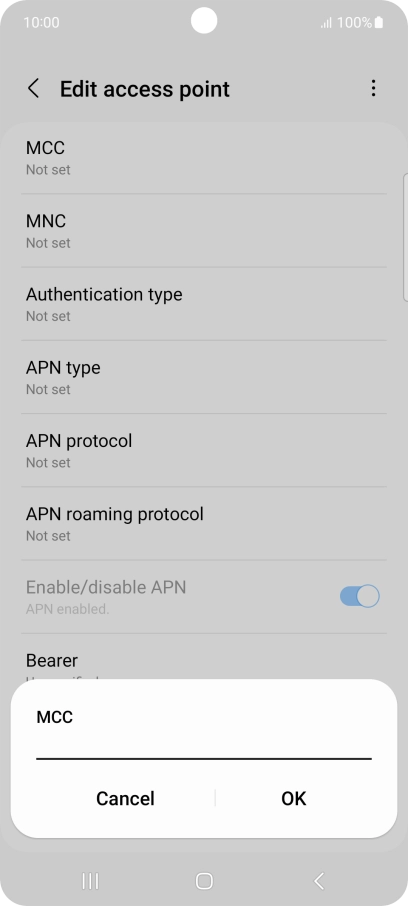

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1947e5d3-165d-48aa-aee1-fc4a6797093e.png?width=204&height=452)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

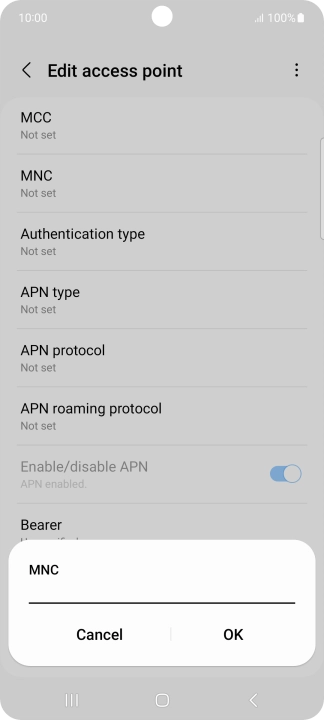

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d3c10829-5169-4b03-93db-db4b789ca668.png?width=204&height=452)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

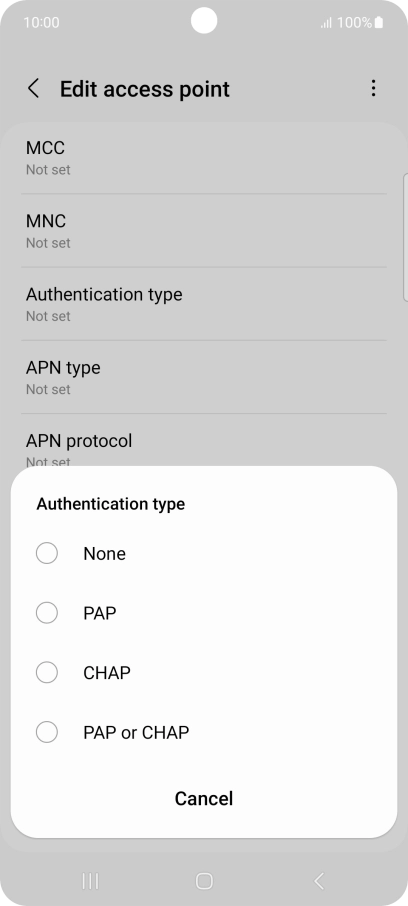

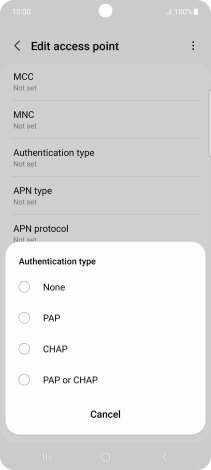

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-97b5ea53-65f3-4ec7-b77a-3c5ea776b9ba.png?width=204&height=452)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

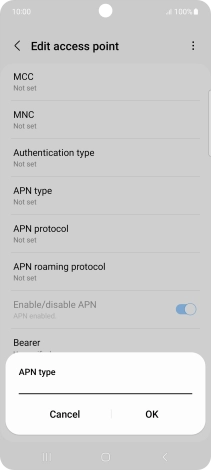

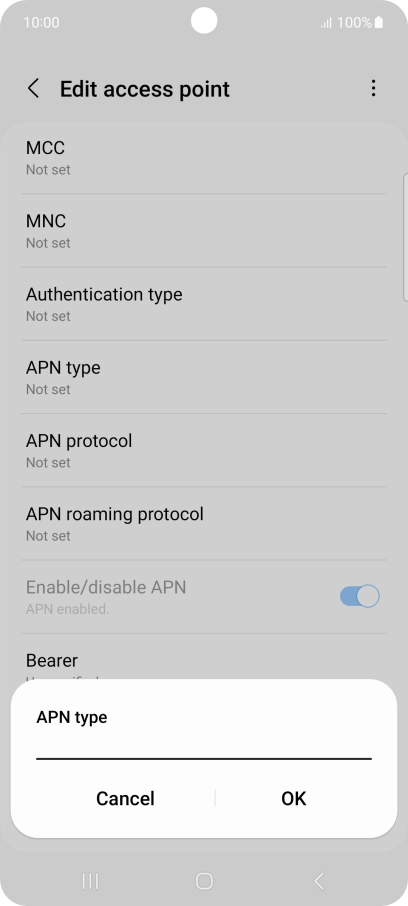

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d49df3a3-55a8-4d54-90da-aa47a2478705.png?width=204&height=452)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

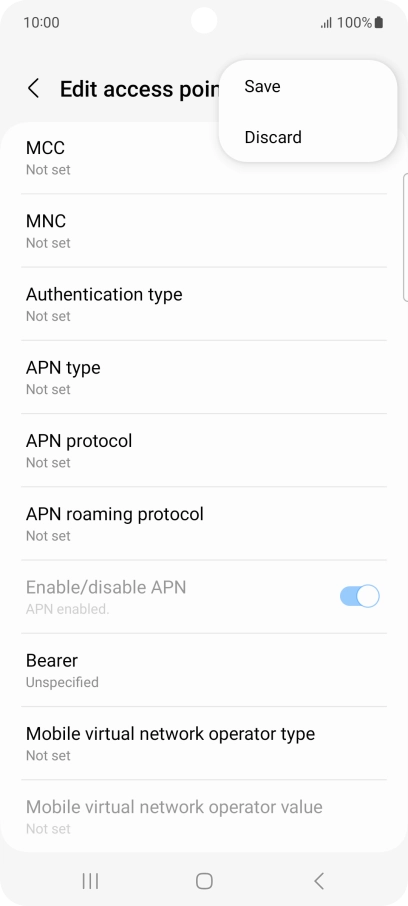

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96bff6f9-45eb-4daa-a145-1bff0cef1f93.png?width=204&height=452)

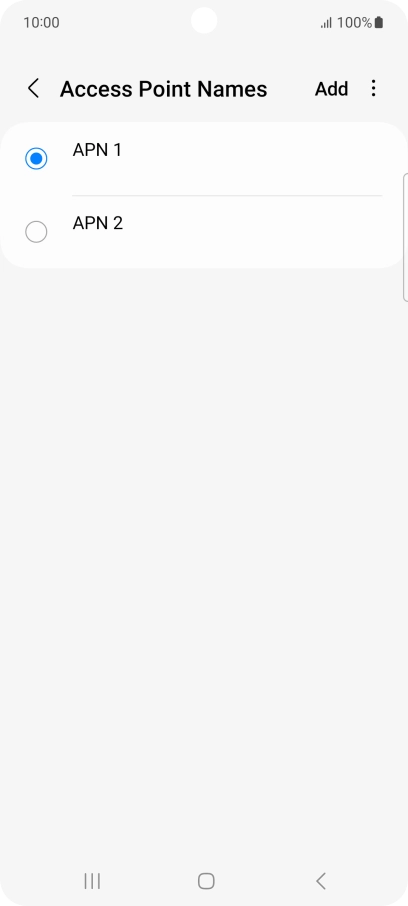

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e4e881c-b66a-4b74-897f-b5b95aa06484.png?width=204&height=452)
9. Return to the home screen

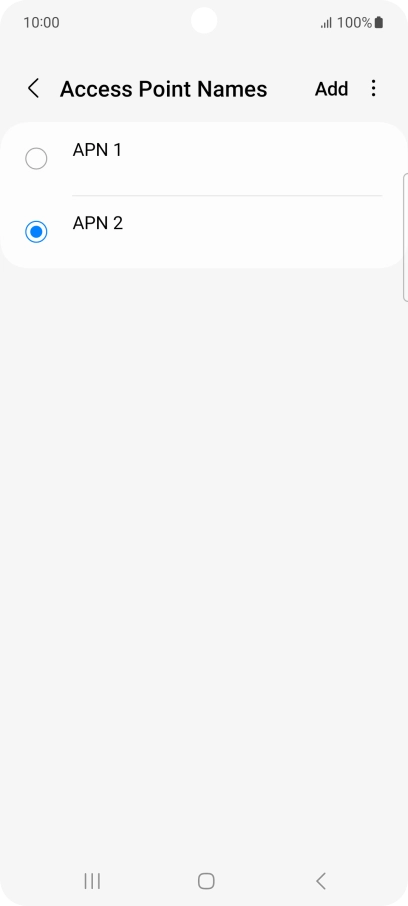

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32695ecd-6b58-4ce0-bda8-803a3e053720.png?width=204&height=452)
