Insert SIM and battery - Samsung Galaxy Ace

Read help info

Before you can start using your phone, you need to insert your SIM and battery. Follow these instructions to insert your SIM and battery.
You need to turn off your phone before you insert your SIM and battery.

Step 1 of 4

Remove the back cover

Turn the back of your phone towards you.
Take hold of the bottom of the back cover and remove it.

Step 2 of 4

Insert your SIM

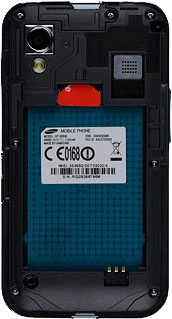

Place your SIM as illustrated next to the SIM holder.
Slide your SIM into the SIM holder.

Samsung Galaxy Ace
Step 3 of 4

Insert battery

Place the battery in your phone (bottom first), matching the battery contacts with the phone contacts, and press it into place.

Step 4 of 4

Replace the back cover

Place the back cover on your phone, matching the back cover teeth with the slots in your phone and press it into place.

Remove the back cover

Turn the back of your phone towards you.
Take hold of the bottom of the back cover and remove it.

Insert your SIM

Place your SIM as illustrated next to the SIM holder.
Slide your SIM into the SIM holder.

Insert battery

Place the battery in your phone (bottom first), matching the battery contacts with the phone contacts, and press it into place.
Samsung Galaxy Ace

Replace the back cover

Place the back cover on your phone, matching the back cover teeth with the slots in your phone and press it into place.
