Set up your phone for Exchange email - Samsung Galaxy Ace

Read help info

Follow these instructions to set up your phone for Exchange email.
You need to set up your phone for internet to use this function. Click here for information on how to set up your phone for internet.

Step 1 of 51

Find "Access Point Names"

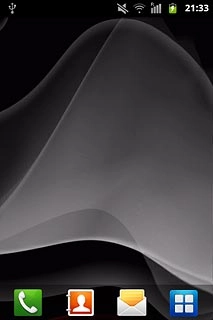

Press the menu icon.

Step 2 of 51

Find "Access Point Names"

Press Settings.

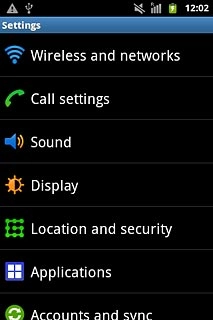

Step 3 of 51

Find "Access Point Names"

Press Wireless and network.

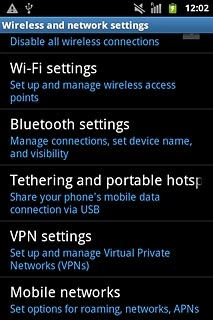

Step 4 of 51

Find "Access Point Names"

Press Mobile networks.

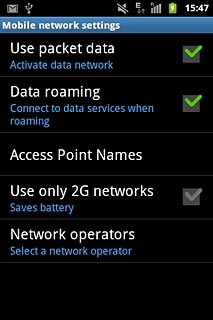

Step 5 of 51

Find "Access Point Names"

Press Access Point Names.

Step 6 of 51

Create new data connection

Press the Menu key.

Step 7 of 51

Create new data connection

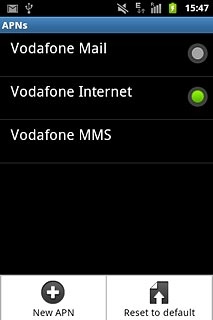

Press New APN.

Step 8 of 51

Enter data connection name

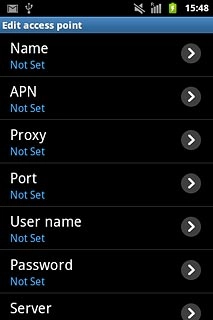

Press Name.

Step 9 of 51

Enter data connection name

Key in Vodafone Mail and press OK.

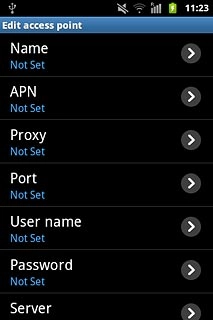

Step 10 of 51

Enter APN

Press APN.

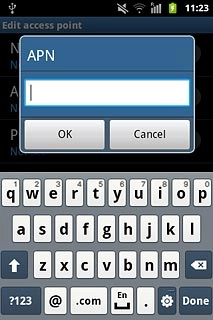

Step 11 of 51

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 51

Enter country code

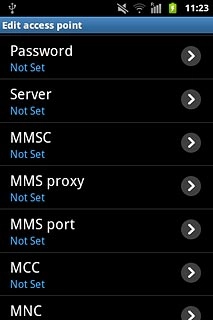

Press MCC.

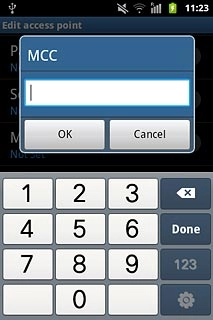

Step 13 of 51

Enter country code

Key in 505 and press OK.

Step 14 of 51

Enter network code

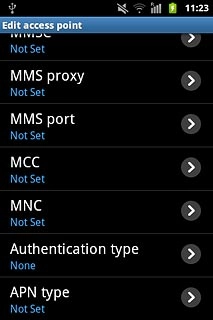

Press MNC.

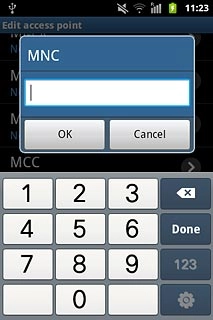

Step 15 of 51

Enter network code

Key in 03 and press OK.

Step 16 of 51

Select authentication type

Press Authentication type.

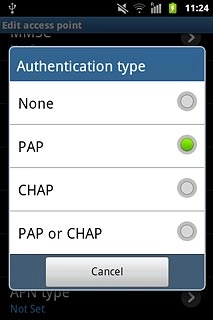

Step 17 of 51

Select authentication type

Press PAP.

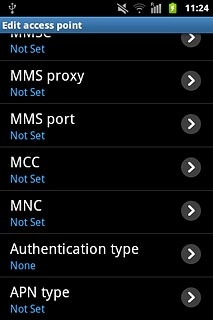

Step 18 of 51

Select APN type

Press APN type.

Step 19 of 51

Select APN type

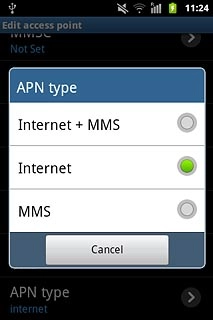

Press Internet.

Step 20 of 51

Save and activate data connection

Press the Menu key.

Step 21 of 51

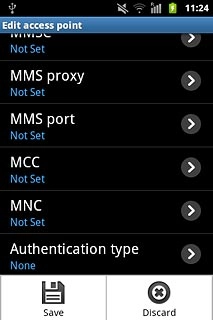

Save and activate data connection

Press Save.

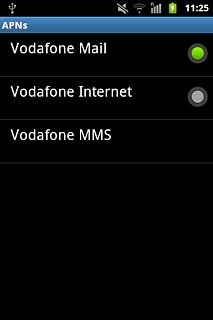

Step 22 of 51

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

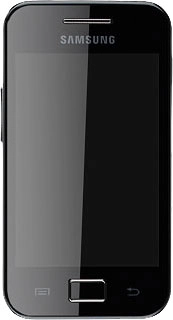

Step 23 of 51

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 51

Find "Email"

Press the menu icon.

Step 25 of 51

Find "Email"

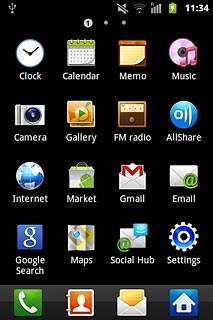

Press Email.

Step 26 of 51

Create new email account

If email accounts have been created already:
Press the Menu key.

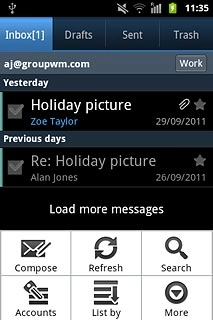

Step 27 of 51

Create new email account

Press Accounts.

Step 28 of 51

Create new email account

Press the Menu key.

Step 29 of 51

Create new email account

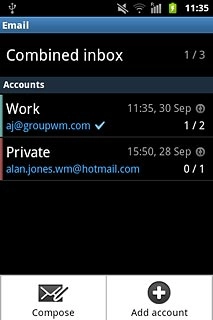

Press Add account.

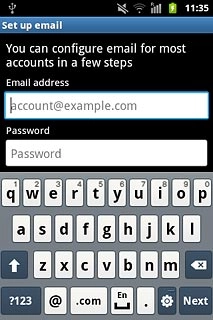

Step 30 of 51

Enter email address

Press account@example.com and key in your email address.

Step 31 of 51

Enter password

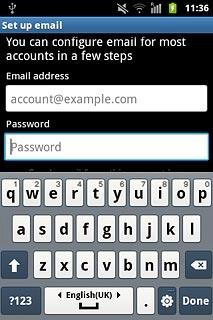

Press Password and key in the password for your Exchange account.

Step 32 of 51

Enter password

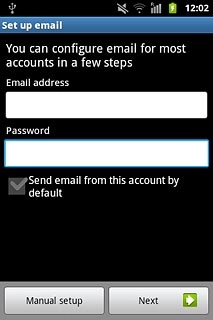

Press Manual setup.

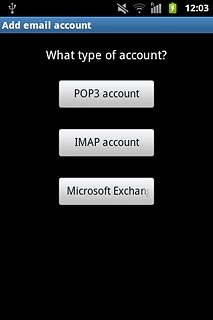

Step 33 of 51

Select server type

Press Microsoft Exchange ActiveSync.

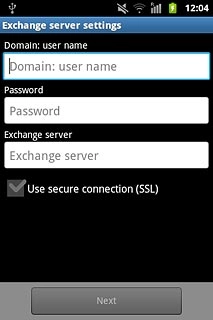

Step 34 of 51

Enter domain and username

Press the field below Domain: user name and key in the domain and username separated by a "\".

Step 35 of 51

Enter server address

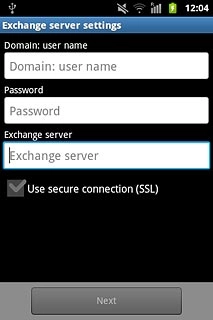

Press the field below Exchange server and key in the server address.

Step 36 of 51

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

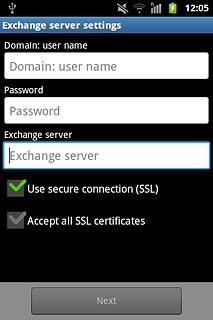

Step 37 of 51

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

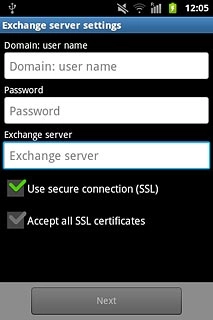

Step 38 of 51

Turn SSL encryption on or off

Press Accept all SSL certificates to allow or reject all certificates.

Step 39 of 51

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

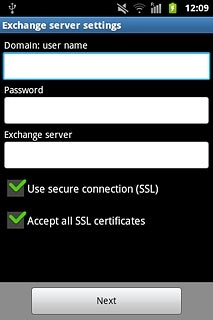

Step 40 of 51

Turn SSL encryption on or off

Press Next.

Step 41 of 51

Turn SSL encryption on or off

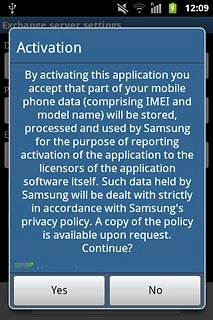

Press Yes to confirm.

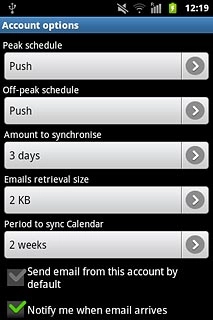

Step 42 of 51

Select interval for synchronisation

Press the drop down list below Peak schedule.

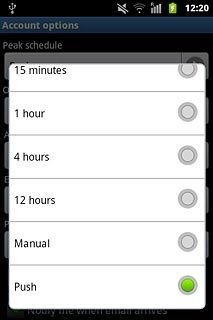

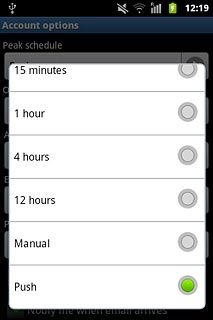

Step 43 of 51

Select interval for synchronisation

Press Push, Manual or the required frequency.

Step 44 of 51

Select interval for synchronisation

Press the drop down list below Off-peak schedule.

Step 45 of 51

Select interval for synchronisation

Press Push, Manual or the required frequency.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 46 of 51

Select data types

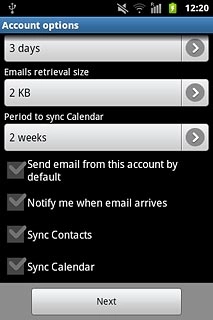

Press Sync Contacts and Sync Calendar to turn synchronisation on or off.

Step 47 of 51

Select data types

When the box next to the menu item is ticked (V), synchronisation for the required data type is turned on.

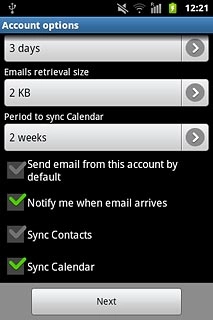

Step 48 of 51

Select data types

Press Next.

Step 49 of 51

Enter email account name

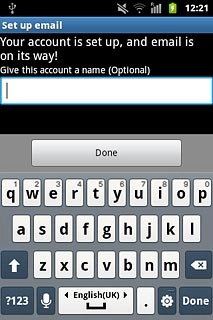

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

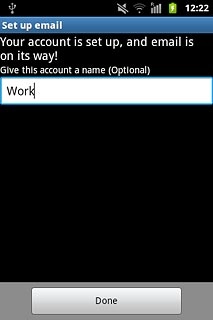

Step 50 of 51

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Step 51 of 51

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless and network.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press Internet.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

Find "Email"

Press the menu icon.
Press Email.

Create new email account

If email accounts have been created already:
Press the Menu key.
Press Accounts.
Press the Menu key.
Press Add account.

Enter email address

Press account@example.com and key in your email address.

Enter password

Press Password and key in the password for your Exchange account.
Press Manual setup.

Select server type

Press Microsoft Exchange ActiveSync.

Enter domain and username

Press the field below Domain: user name and key in the domain and username separated by a "\".

Enter server address

Press the field below Exchange server and key in the server address.

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Accept all SSL certificates to allow or reject all certificates.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.
Press Yes to confirm.

Select interval for synchronisation

Press the drop down list below Peak schedule.
Press Push, Manual or the required frequency.
Press the drop down list below Off-peak schedule.
Press Push, Manual or the required frequency.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Select data types

Press Sync Contacts and Sync Calendar to turn synchronisation on or off.
When the box next to the menu item is ticked (V), synchronisation for the required data type is turned on.
Press Next.

Enter email account name

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Exit

Press the Home key to return to standby mode.
