1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5de70e87-705b-41f5-859f-80af766b6408.png?width=218&height=460)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-efcb4e3e-feab-4557-8e56-c1b9becd84e6.png?width=218&height=460)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0c332e4-8c3f-4e66-a86e-aef56bf1582f.png?width=218&height=460)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d92d65be-b5e4-473b-8ace-5a05032f1808.png?width=218&height=460)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-75bf9bf6-fd66-4cdb-91c5-f63fb817d04d.png?width=218&height=460)
2. Create new data connection
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-39ee013c-435b-48fa-bb56-3341997140cd.png?width=218&height=460)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-04f1a989-ab11-47ec-ab26-51d291277607.png?width=218&height=460)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ec1330d6-a0a8-49ca-867c-144a6b3003f8.png?width=218&height=460)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-04f1a989-ab11-47ec-ab26-51d291277607.png?width=218&height=460)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5db8be8d-fae4-4779-b466-7487ab787c53.png?width=218&height=460)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-04f1a989-ab11-47ec-ab26-51d291277607.png?width=218&height=460)

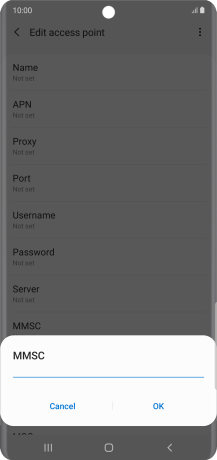

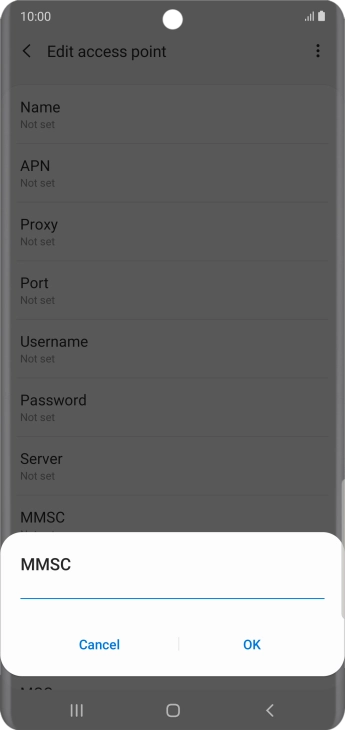

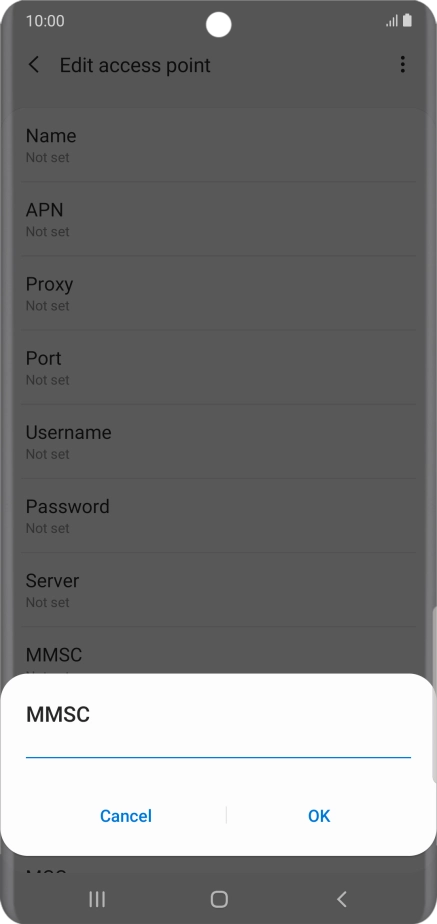

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4aa36e58-f39c-4d9c-9133-d284c5c68f22.png?width=218&height=460)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-04f1a989-ab11-47ec-ab26-51d291277607.png?width=218&height=460)

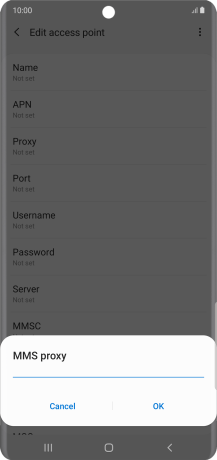

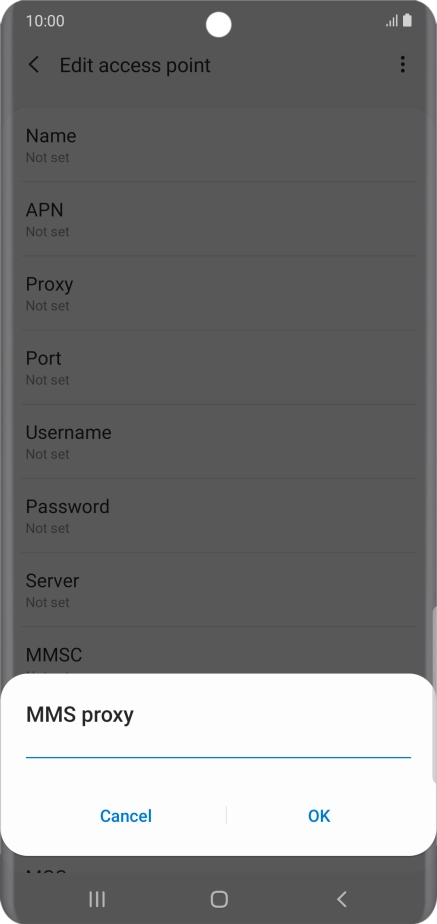

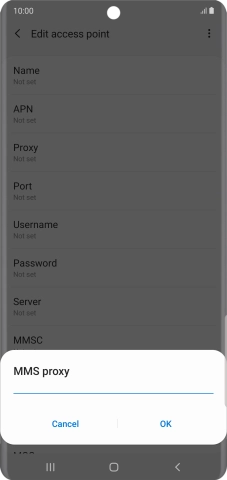

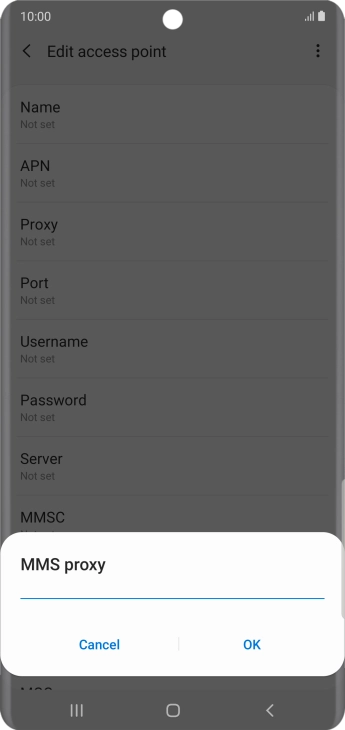

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-05560b11-aec2-4a28-b918-2ccafd39cad9.png?width=218&height=460)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-871657aa-e12d-4221-8306-5e5850840f88.png?width=218&height=460)

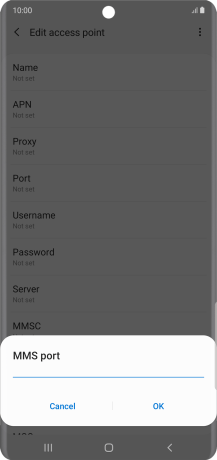

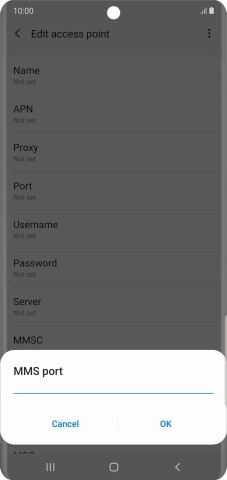

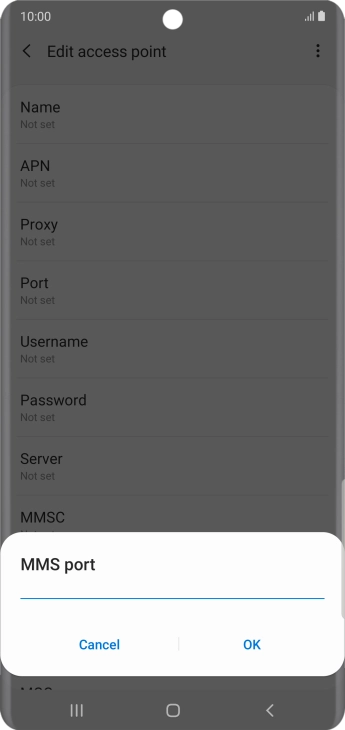

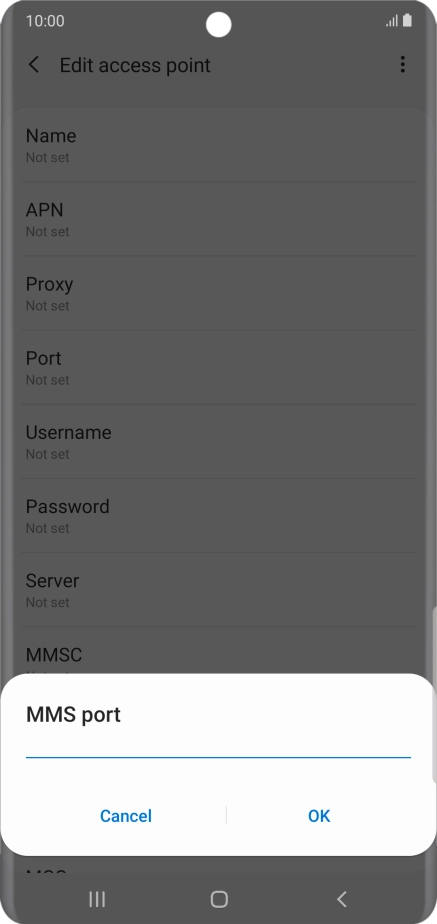

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-331488f5-ba9f-43da-a78d-a120597f54c2.png?width=218&height=460)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-871657aa-e12d-4221-8306-5e5850840f88.png?width=218&height=460)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ccc5c941-0455-48c0-951c-98881fc03452.png?width=218&height=460)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-871657aa-e12d-4221-8306-5e5850840f88.png?width=218&height=460)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7506b0a9-8717-4505-8ef3-1910800aa6fd.png?width=218&height=460)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-871657aa-e12d-4221-8306-5e5850840f88.png?width=218&height=460)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-da854e0f-8db2-4eca-a194-725a6292b836.png?width=218&height=460)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-871657aa-e12d-4221-8306-5e5850840f88.png?width=218&height=460)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d67370de-b54d-4206-b490-e83530ab85e8.png?width=218&height=460)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-871657aa-e12d-4221-8306-5e5850840f88.png?width=218&height=460)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f71ebc28-f585-45d9-86cf-87c1c615bb67.png?width=218&height=460)
12. Return to the home screen

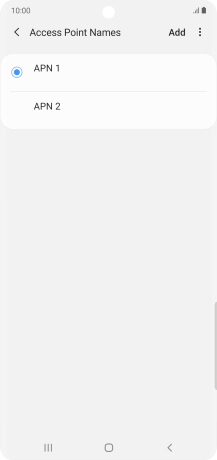

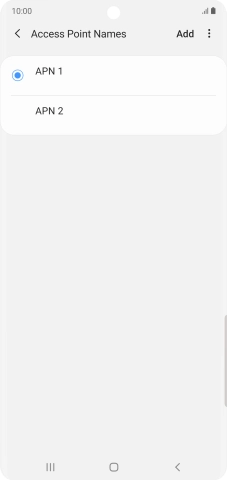

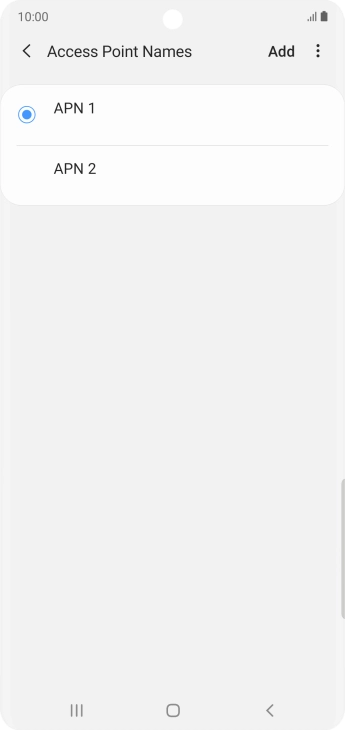

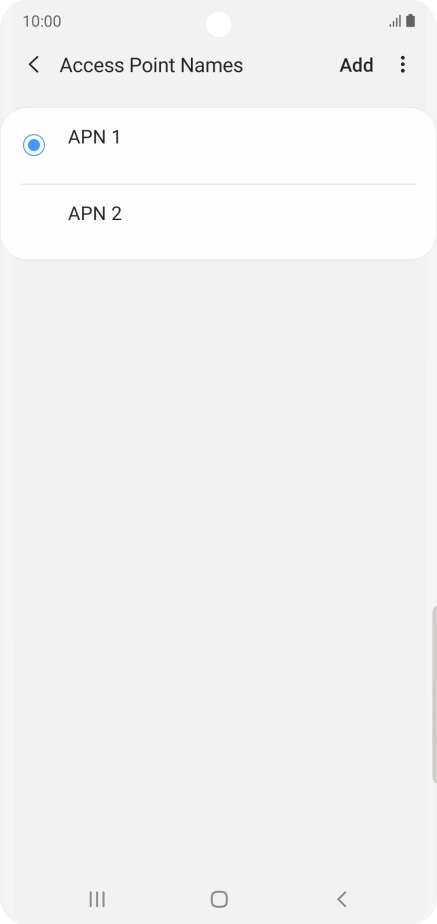

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-acb4543d-d7e1-44ff-8642-f96f5376bac9.png?width=218&height=460)
