1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0b143734-0629-42fd-8c0f-4b1f97c2cc9e.png?width=214&height=450)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-541e81d2-2b0e-4679-a153-89c08e354b8d.png?width=214&height=450)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5c7be929-9fd3-40c6-be18-61e3e5a7ff5c.png?width=214&height=450)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-768d1b5d-4519-4fd6-9955-1b354a594dba.png?width=214&height=450)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dd245cdb-f231-4685-9576-f3225bb9aac1.png?width=214&height=450)
2. Create new data connection

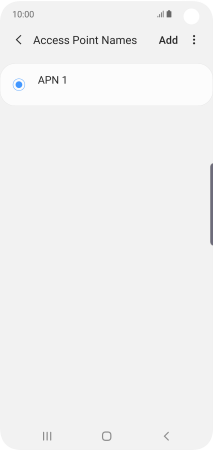

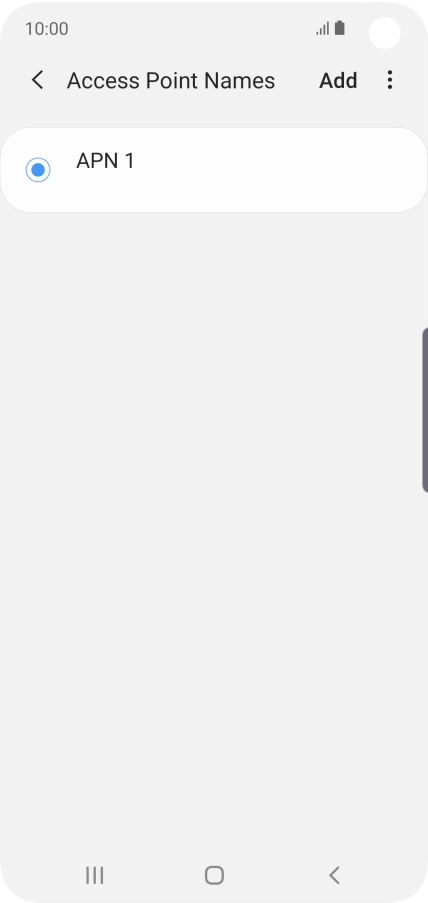

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-67684cf5-652c-454e-9ff8-75b05a2f8def.png?width=214&height=450)

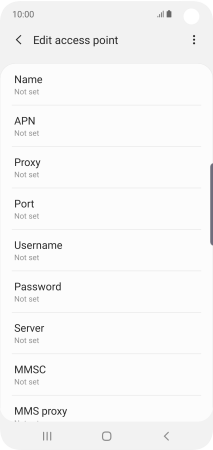

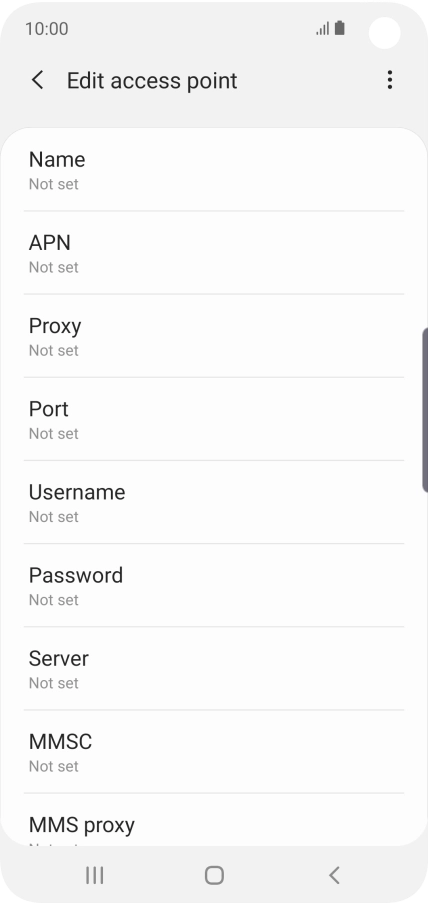

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfa712da-3a10-4052-8085-7399e5f21b23.png?width=214&height=450)

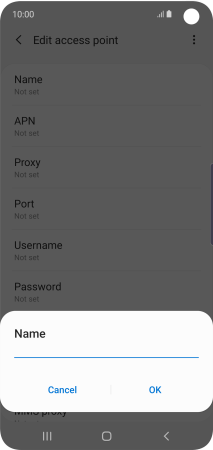

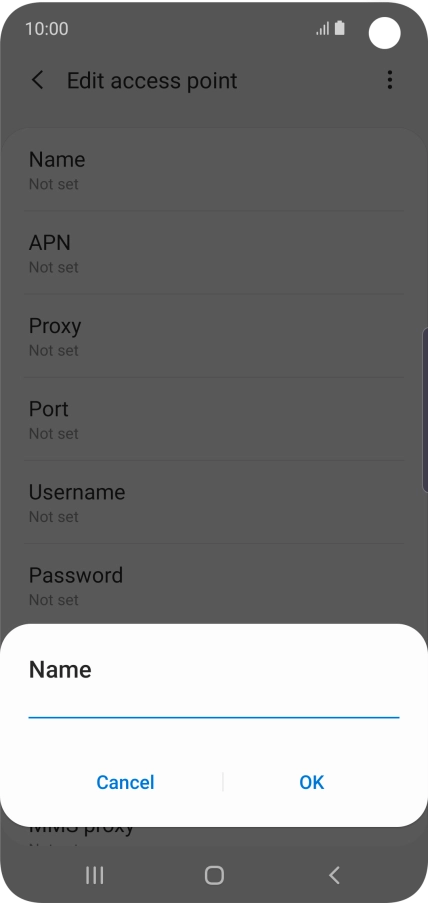

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a908e038-56e5-40f6-bd6c-7a078940b662.png?width=214&height=450)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfa712da-3a10-4052-8085-7399e5f21b23.png?width=214&height=450)

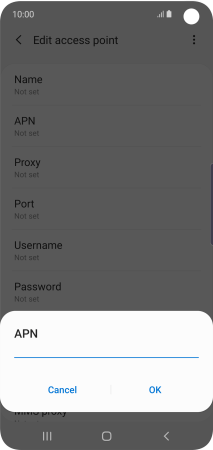

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-01dcf94d-9d44-43b5-a47a-8e315fe747e5.png?width=214&height=450)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfa712da-3a10-4052-8085-7399e5f21b23.png?width=214&height=450)

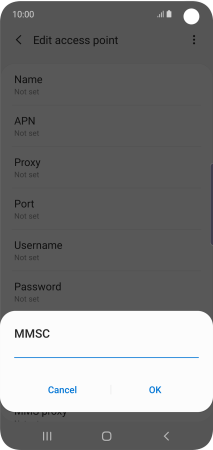

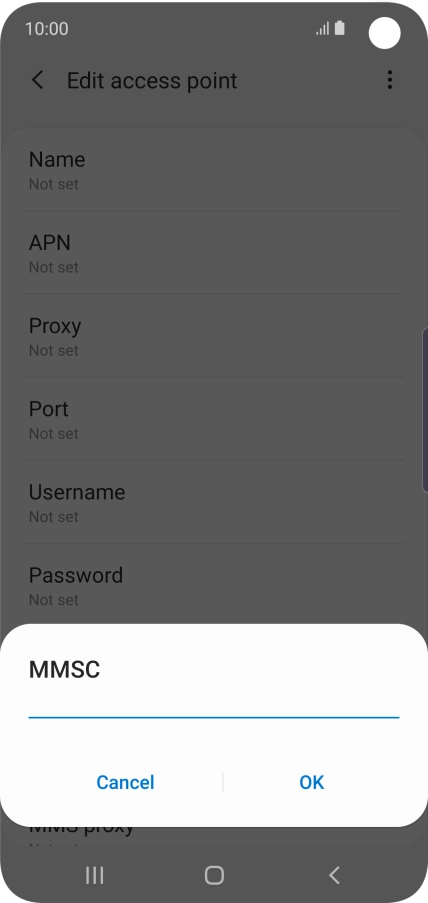

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d89bf74e-7d2d-4e5a-ab98-3773a792e371.png?width=214&height=450)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfa712da-3a10-4052-8085-7399e5f21b23.png?width=214&height=450)

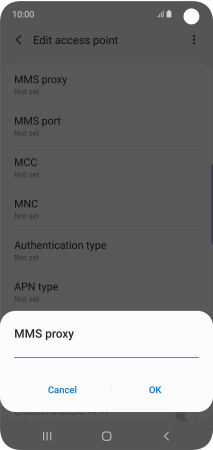

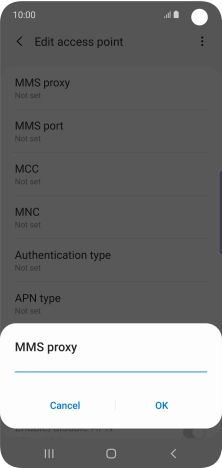

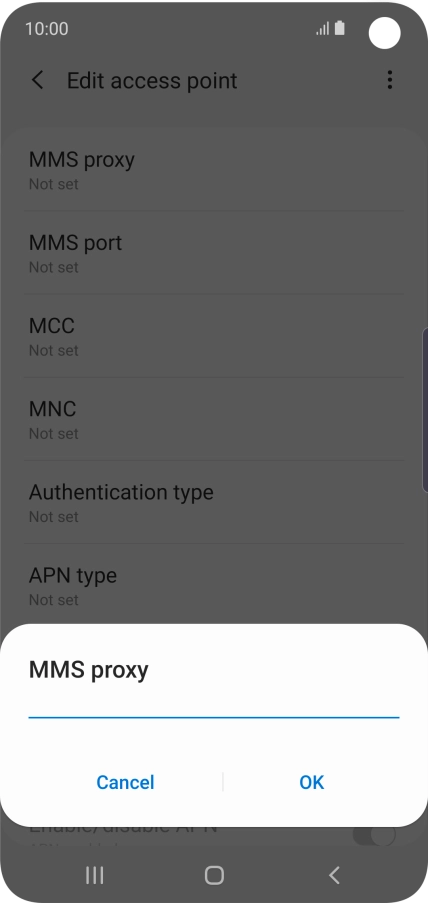

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-54bbe7b9-6775-4eec-9e68-5a0ac883d542.png?width=214&height=450)
10.202.002.060
6. Enter port number

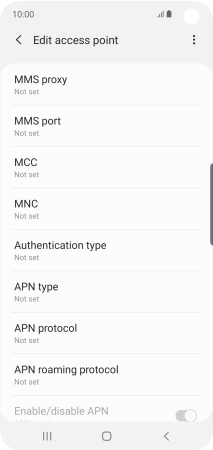

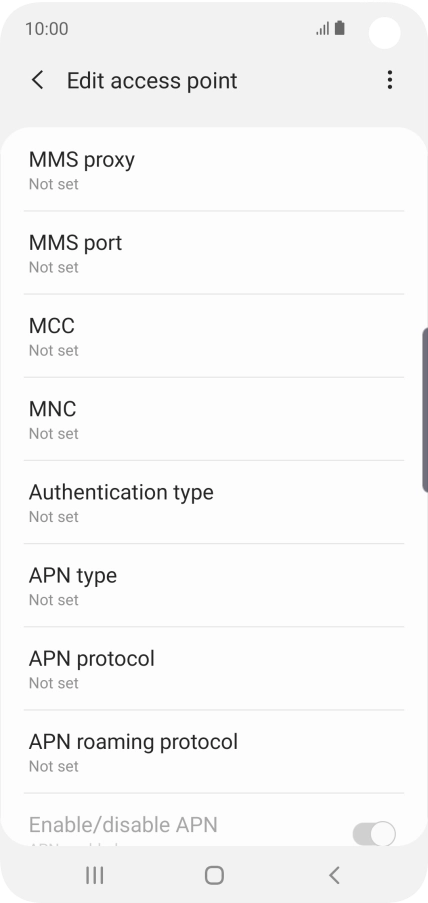

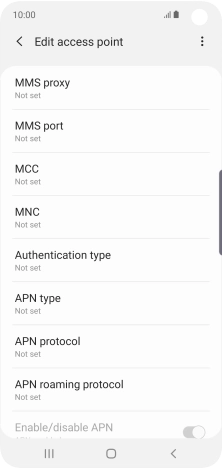

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-464c0964-ccf9-4dfa-8bb2-bf1271aca81e.png?width=214&height=450)

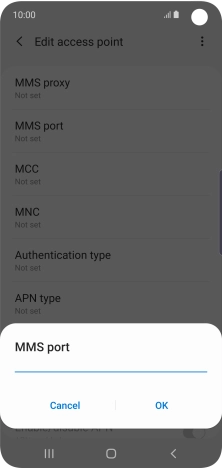

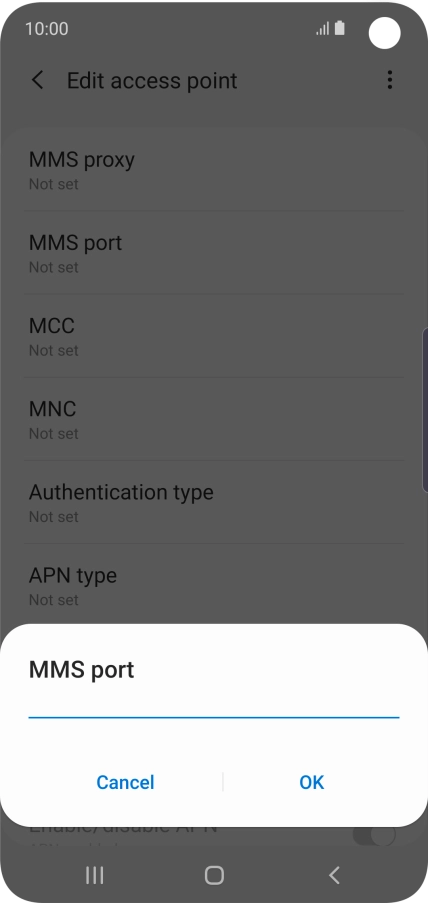

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-634455d3-e9ec-4ea0-93b8-5b681ae1d312.png?width=214&height=450)
8080
7. Enter country code

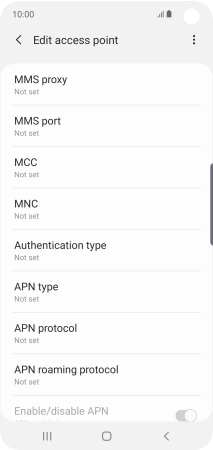

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-464c0964-ccf9-4dfa-8bb2-bf1271aca81e.png?width=214&height=450)

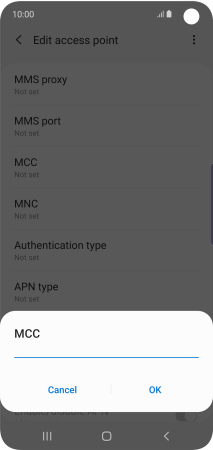

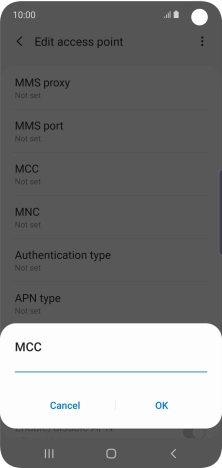

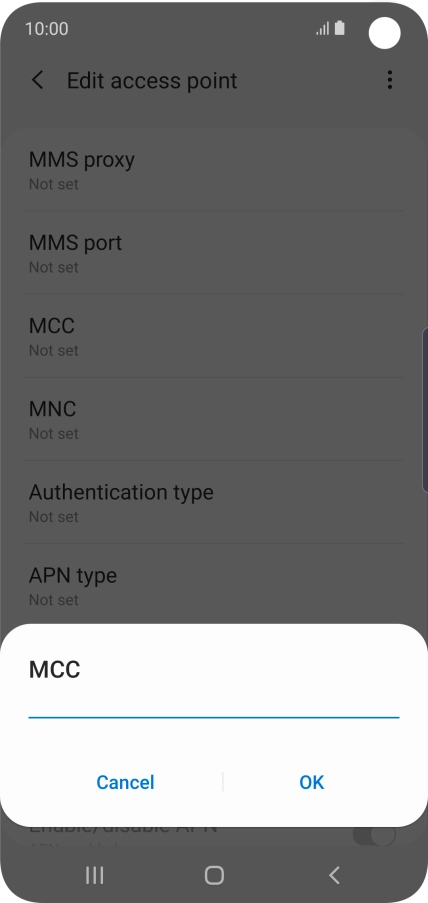

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0ba644dd-5658-4ea1-84ce-45930f2eafd3.png?width=214&height=450)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-464c0964-ccf9-4dfa-8bb2-bf1271aca81e.png?width=214&height=450)

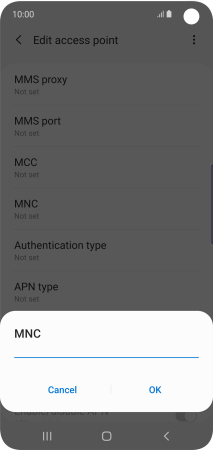

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bf89809c-8a83-459e-873b-d48f64424554.png?width=214&height=450)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-464c0964-ccf9-4dfa-8bb2-bf1271aca81e.png?width=214&height=450)

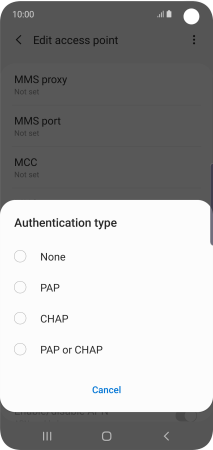

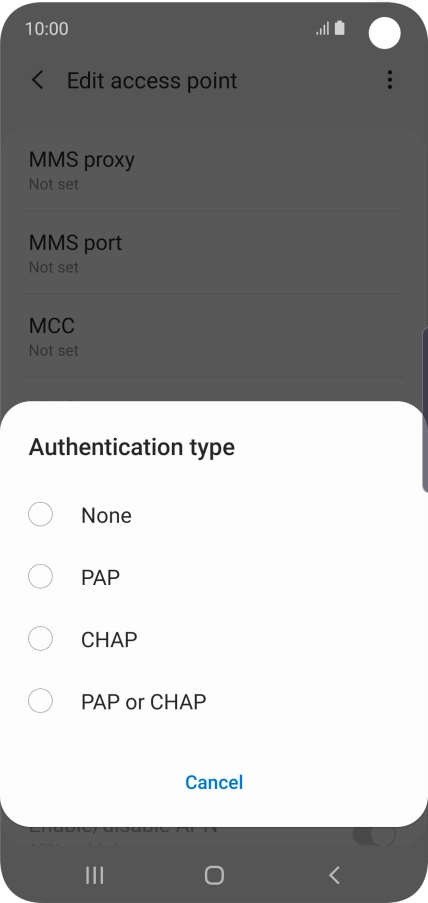

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-67c98678-c686-42d8-b82e-0d6f2b953dca.png?width=214&height=450)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-464c0964-ccf9-4dfa-8bb2-bf1271aca81e.png?width=214&height=450)

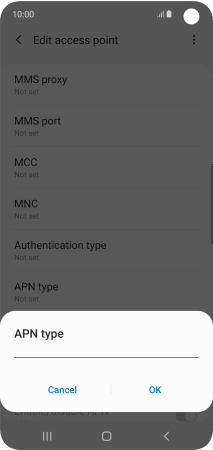

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ffc3f3c1-4b23-4c5e-a95b-2d392aaae721.png?width=214&height=450)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-464c0964-ccf9-4dfa-8bb2-bf1271aca81e.png?width=214&height=450)

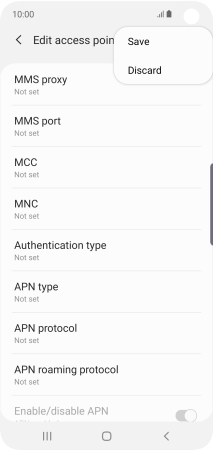

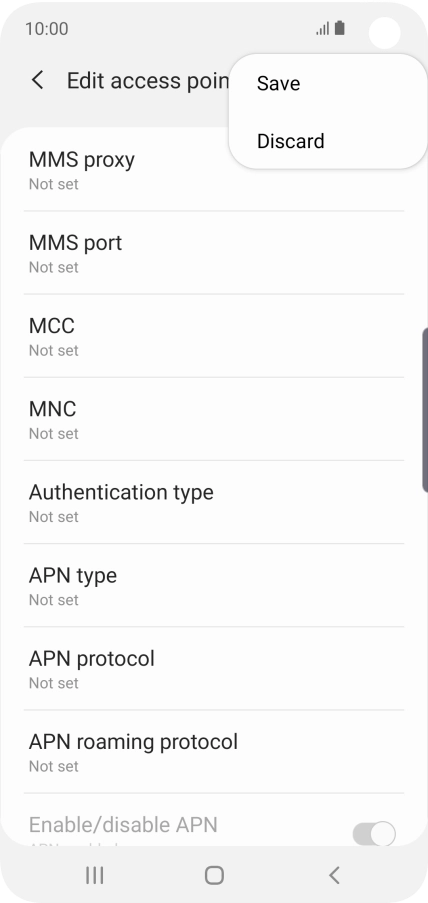

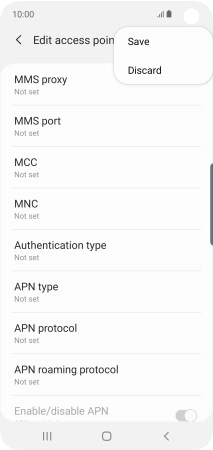

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5cfaf7d0-cd81-4004-a2f4-8387f3bc981c.png?width=214&height=450)
12. Return to the home screen

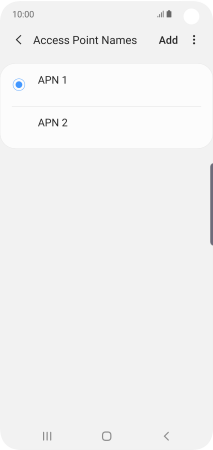

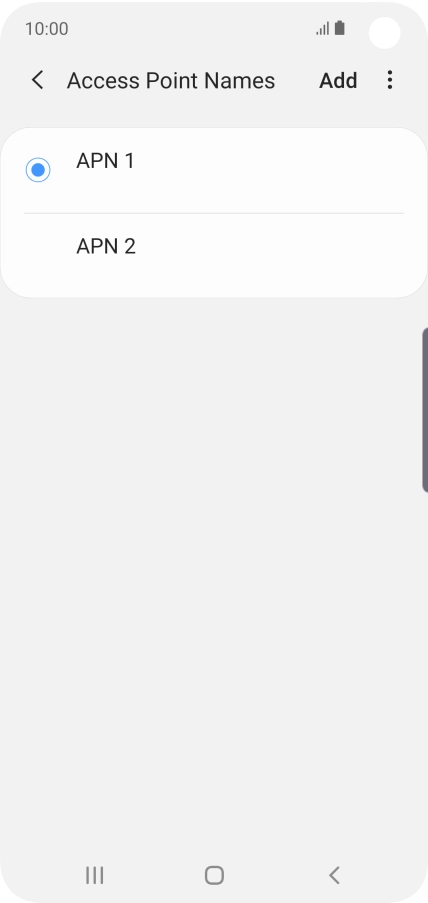

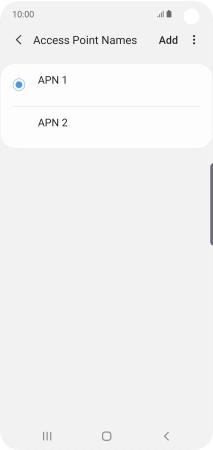

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cfc1d441-c7b0-456d-b8b5-6ce926b25329.png?width=214&height=450)
