1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-09000b95-a726-4f7a-9b7e-a762d245e690.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f1a4e613-5925-4f89-ac44-c03b864b75ae.png?width=202&height=448)

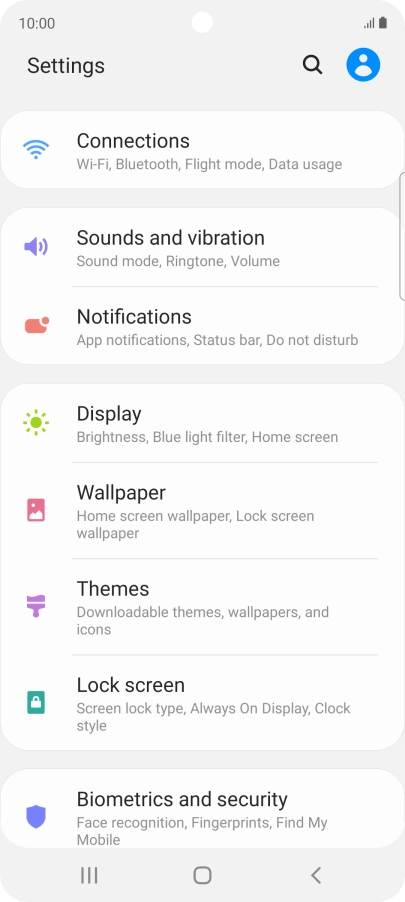

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e9d16613-c903-4649-9aca-e94dbc070c5e.png?width=202&height=448)

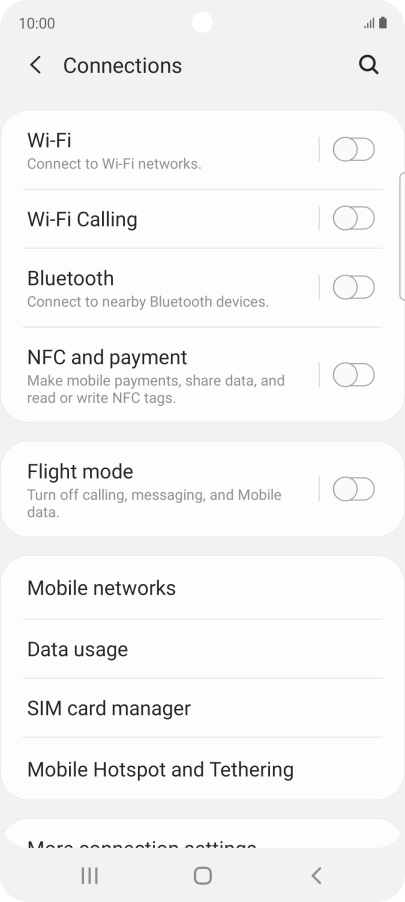

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7228f0e8-0674-41fe-8703-b7a60bc393a7.png?width=202&height=448)

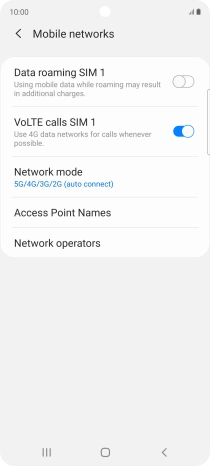

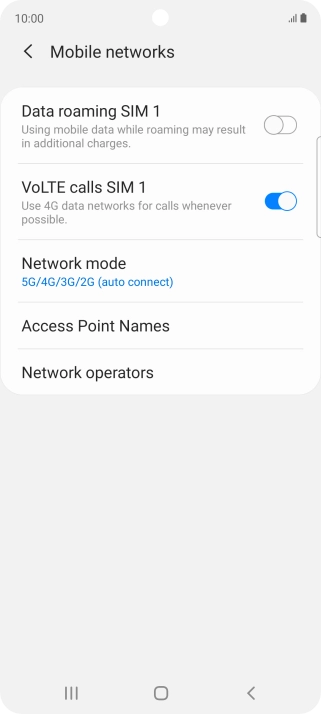

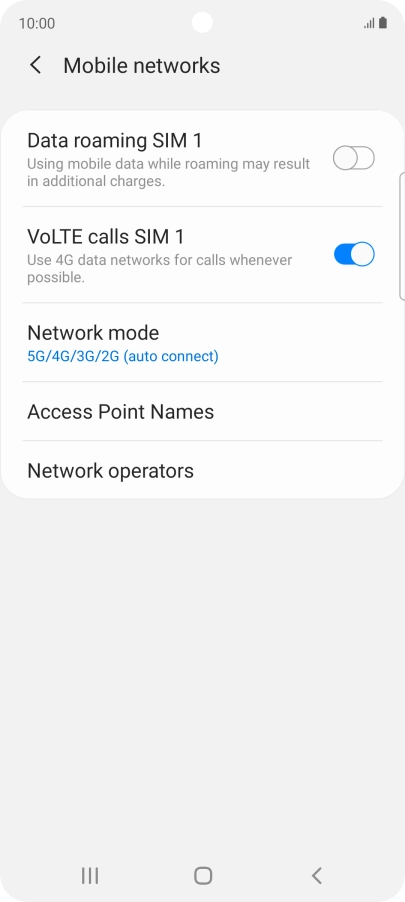

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f586a35c-c32d-49fa-9b2a-6939f884ecff.png?width=202&height=448)
2. Create new data connection

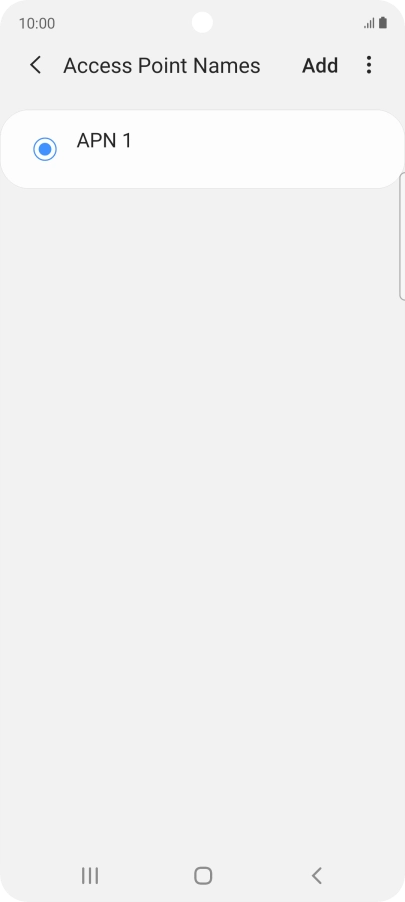

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-212cc40b-0550-4e58-bd1c-fd53da219863.png?width=202&height=448)

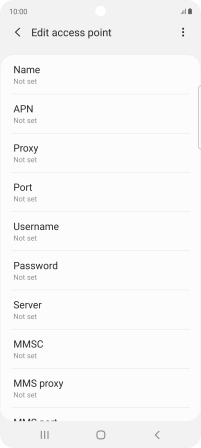

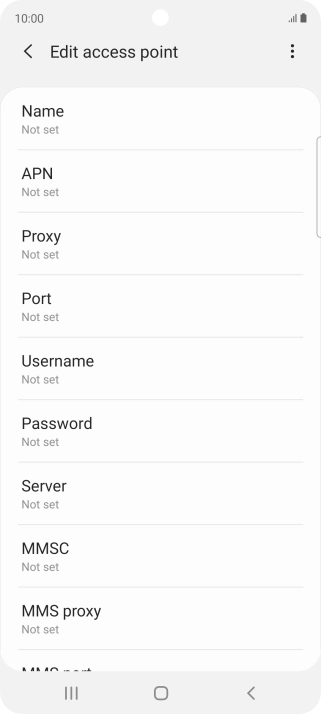

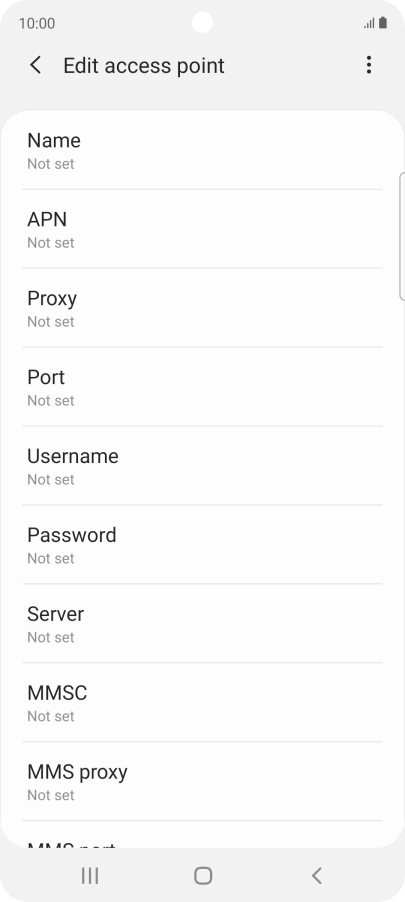

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8ec502ba-93cc-4247-bfc9-195d89289b59.png?width=202&height=448)

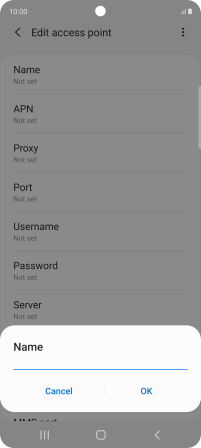

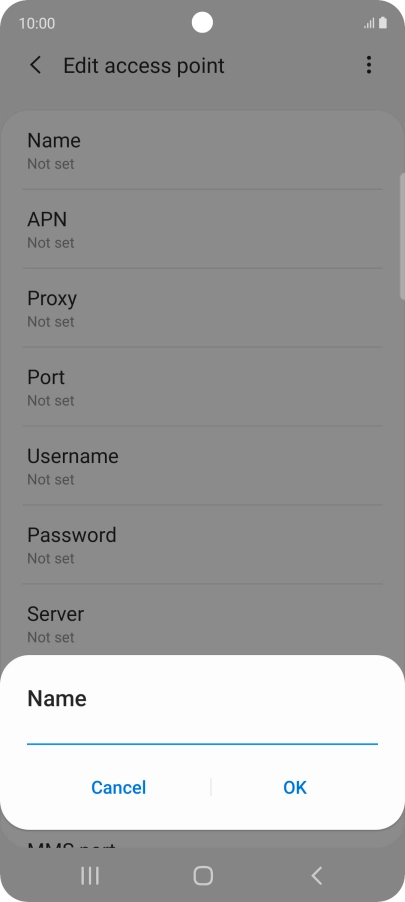

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-99038477-171a-4aa6-8c14-2403e4dc1e9a.png?width=202&height=448)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8ec502ba-93cc-4247-bfc9-195d89289b59.png?width=202&height=448)

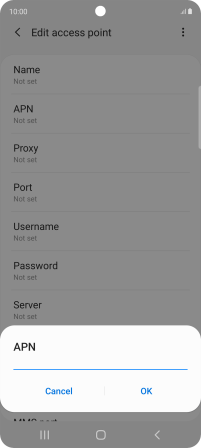

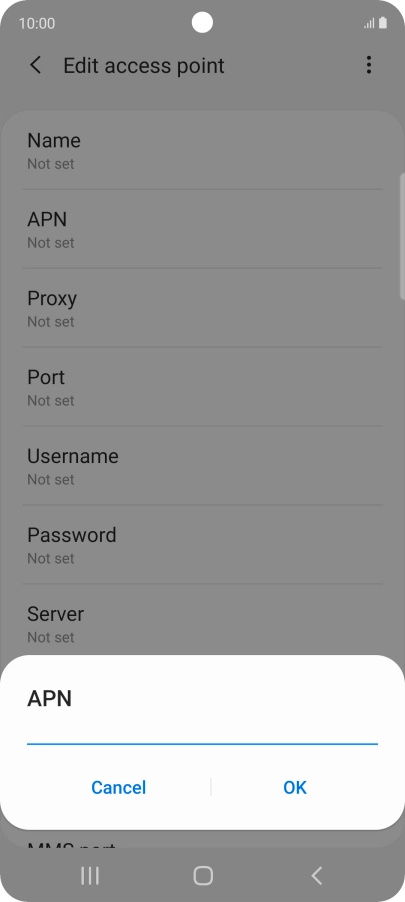

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-876c8c68-c625-4ae1-a452-f0cfbc3ecc88.png?width=202&height=448)
live.vodafone.com
4. Enter country code

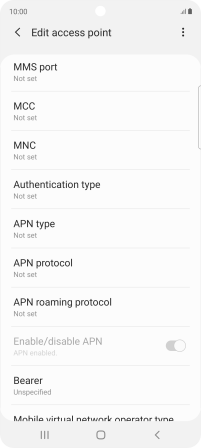

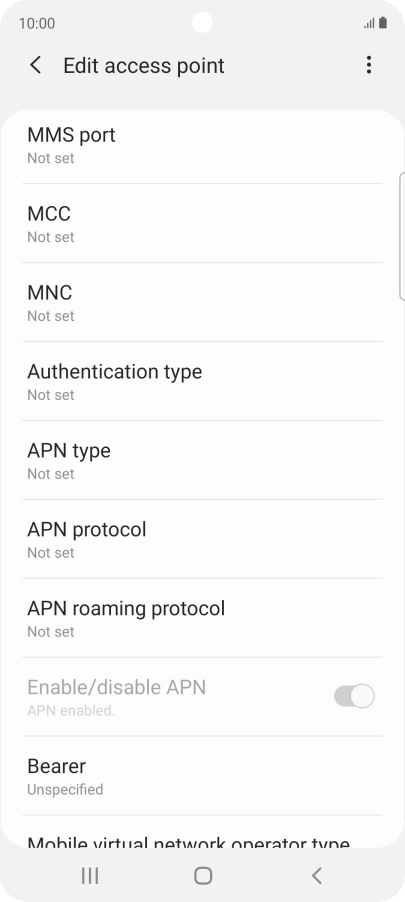

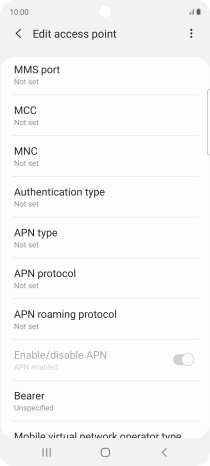

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

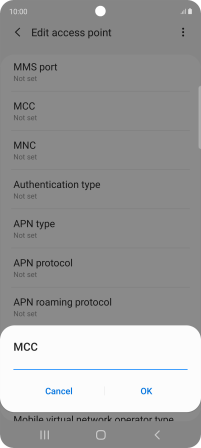

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-685c0ac6-5694-417b-b2a8-26850fcb4cc0.png?width=202&height=448)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

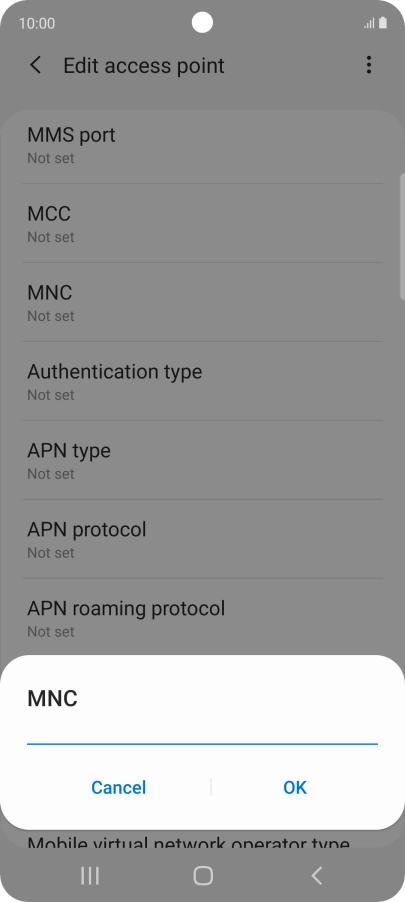

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-10c224d6-84fa-4303-9df8-4cdaa85a75a8.png?width=202&height=448)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

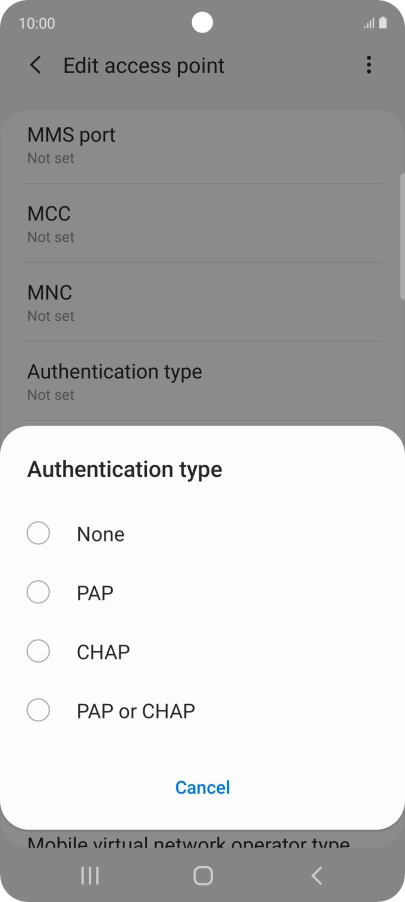

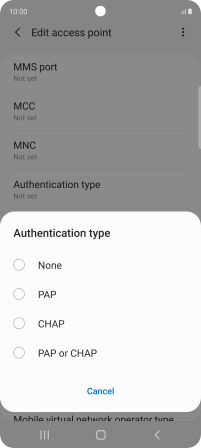

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ba0f1e6c-1a1a-4e6d-9e22-0389894d512f.png?width=202&height=448)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

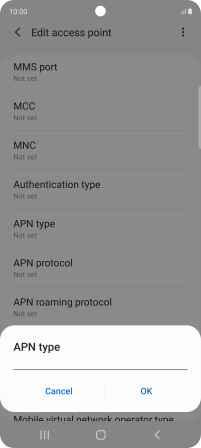

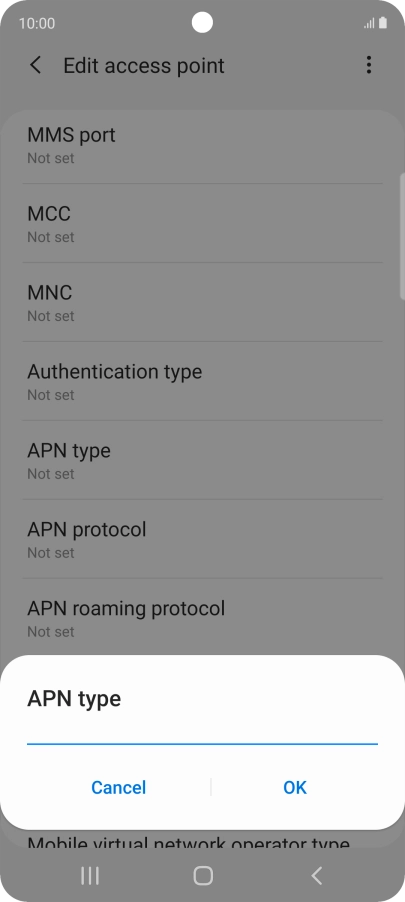

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d2ef1069-122a-4dba-9cca-5f7931489fad.png?width=202&height=448)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8f95af77-aa02-46c5-819c-4ecaffc71135.png?width=202&height=448)

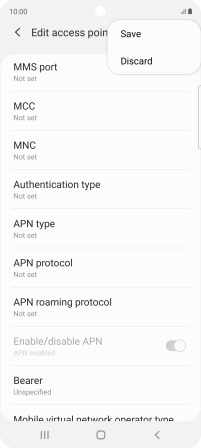

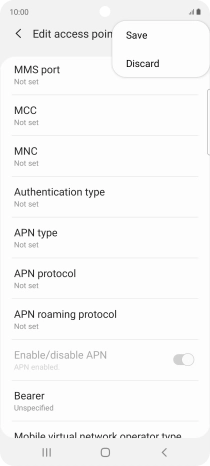

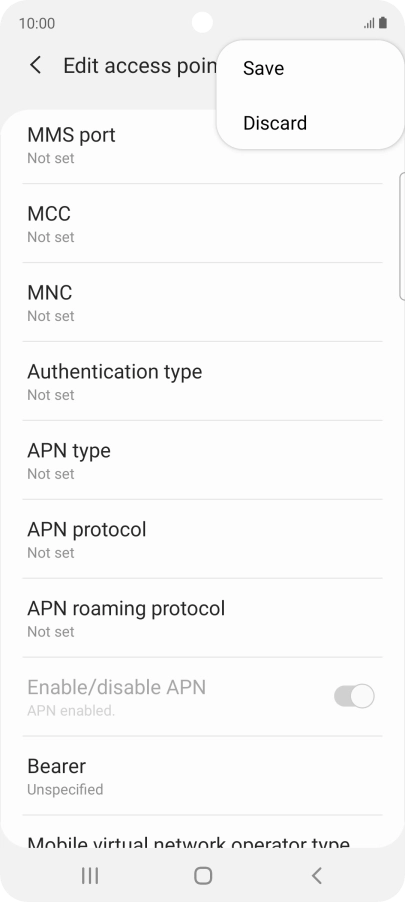

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-45b0bc3d-0dcc-4934-834a-be57d1febbcb.png?width=202&height=448)

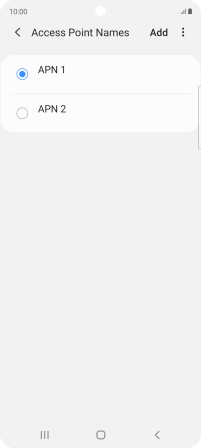

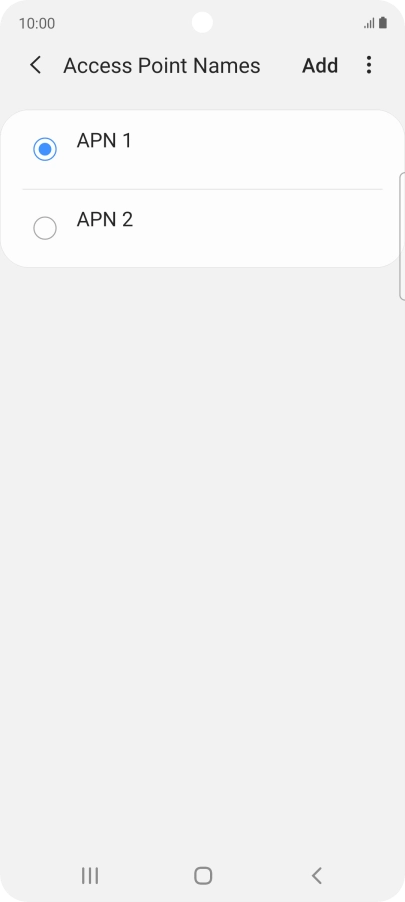

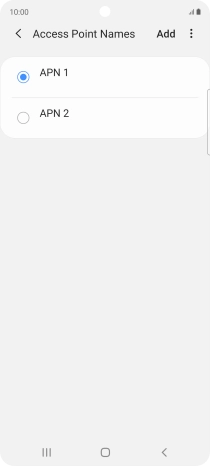

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-13e86529-8d15-4f4b-af5b-c2ba83e02752.png?width=202&height=448)
9. Return to the home screen

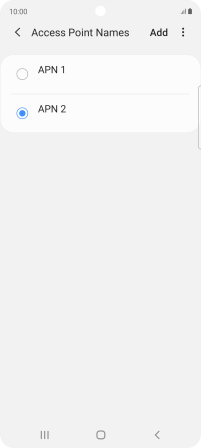

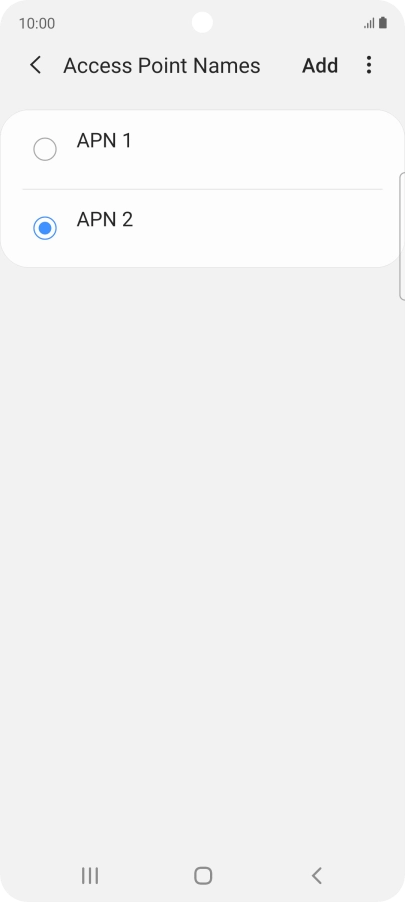

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6a645d8a-4cbb-4a28-a4ba-c4eaefaf7867.png?width=202&height=448)
