1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3e6681c7-0400-41c8-acdd-78d39e48fae0.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f4cb5d6e-8105-4e7a-990d-d33c91956a94.png?width=202&height=448)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f25d634b-28f5-4dec-aa00-648d5b88cf80.png?width=202&height=448)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d0681144-21cb-4864-a146-e4696d777fa3.png?width=202&height=448)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-31cf7c34-1b6a-4839-b18b-083bfa843ce0.png?width=202&height=448)
2. Create new data connection

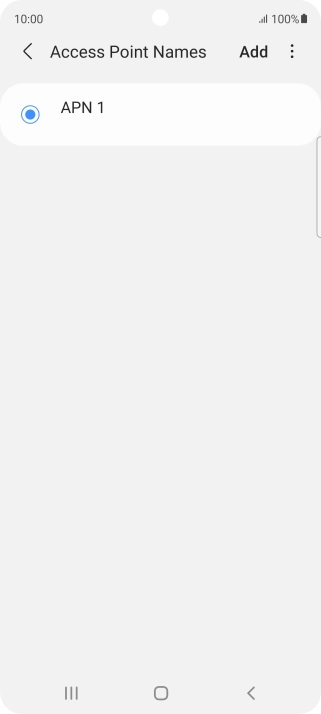

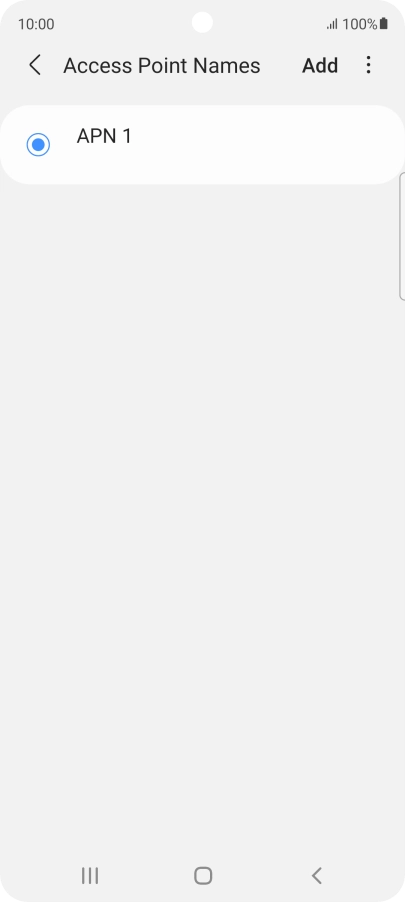

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6464f2ca-c05b-46cc-af05-5b889f504813.png?width=202&height=448)

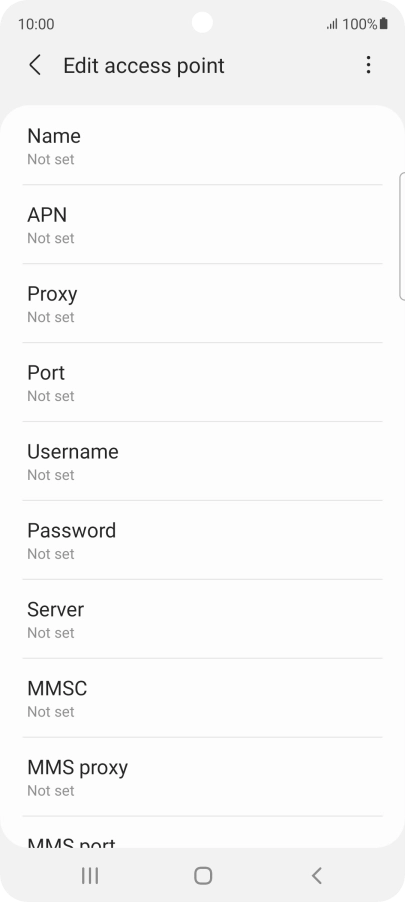

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1304c891-0d67-4146-b9f1-1e52f0af8f4f.png?width=202&height=448)

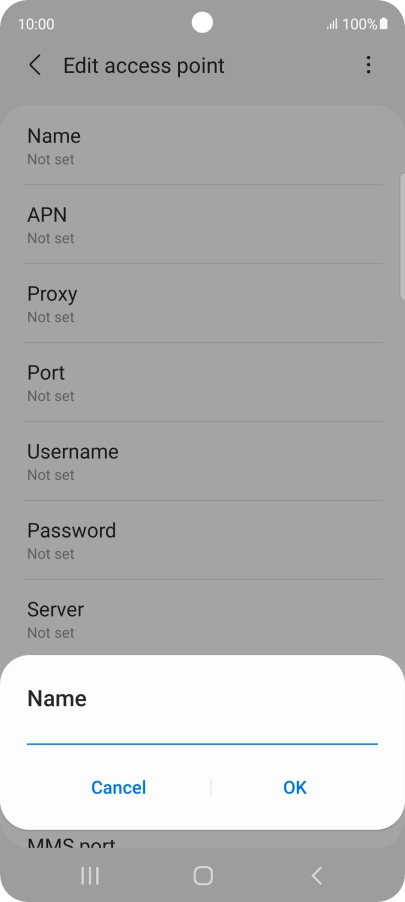

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-27a19375-f5f3-4b8e-9975-3d936a2632b1.png?width=202&height=448)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1304c891-0d67-4146-b9f1-1e52f0af8f4f.png?width=202&height=448)

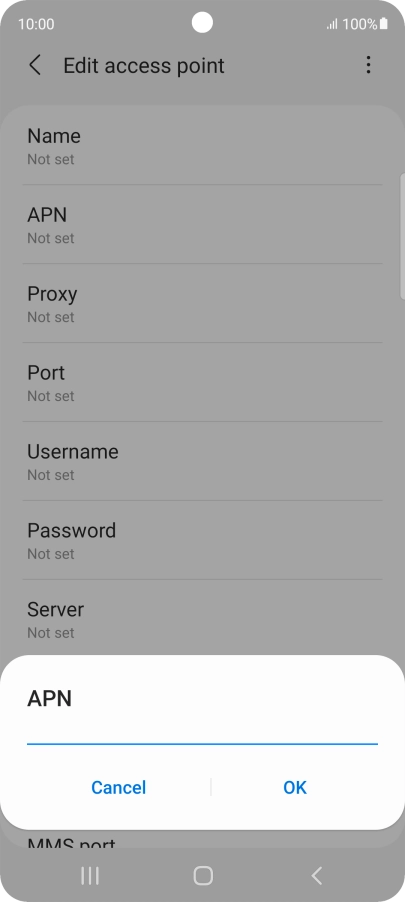

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9c06404b-673a-4cf6-b22e-632785175322.png?width=202&height=448)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1304c891-0d67-4146-b9f1-1e52f0af8f4f.png?width=202&height=448)

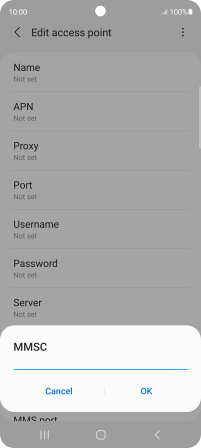

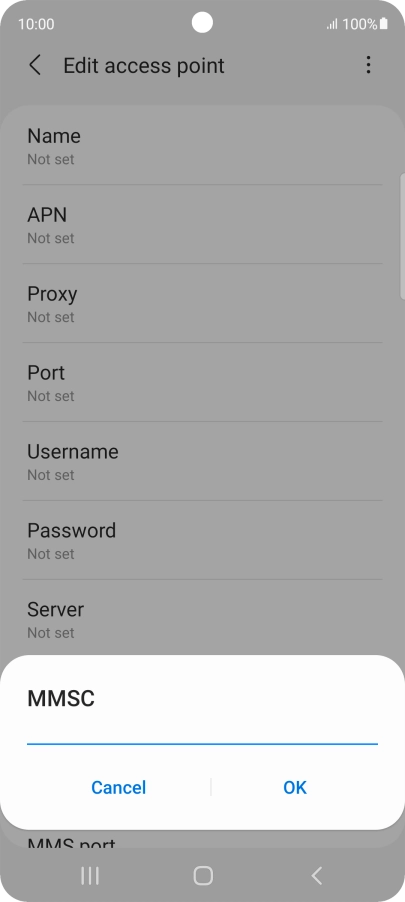

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-36b2ab31-1fc6-4b5d-9d1f-c363a11a826b.png?width=202&height=448)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1304c891-0d67-4146-b9f1-1e52f0af8f4f.png?width=202&height=448)

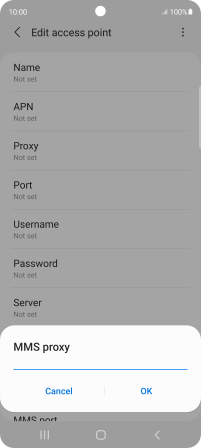

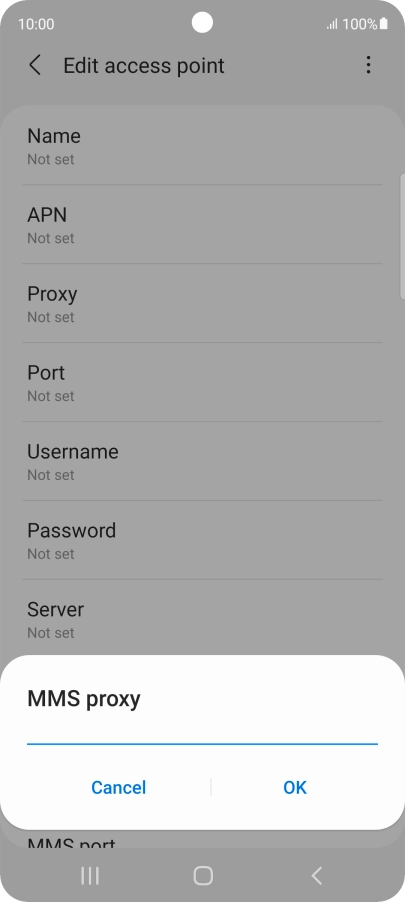

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a1302423-560a-4fee-a906-b1308d78421b.png?width=202&height=448)
10.202.002.060
6. Enter port number

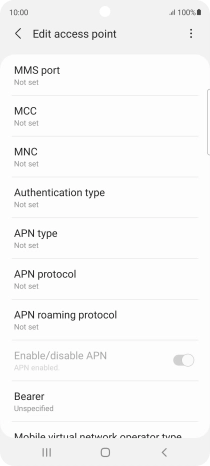

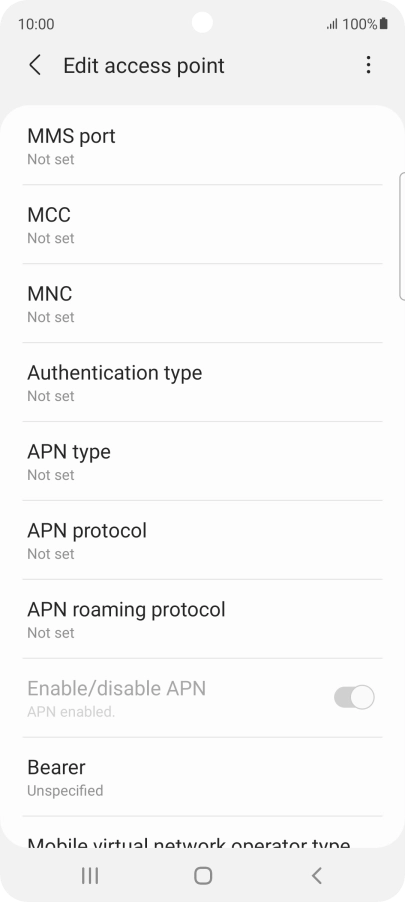

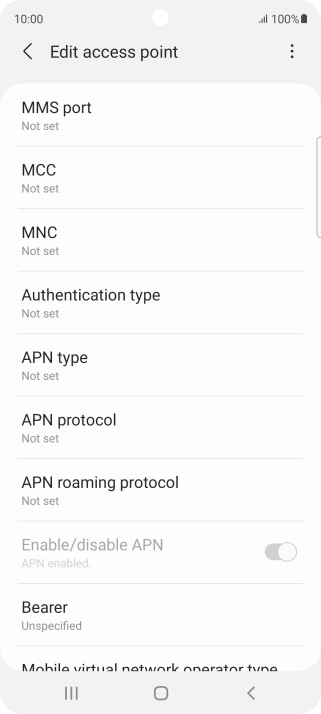

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ca2c8fb-83b9-4185-8165-23db864a65f5.png?width=202&height=448)

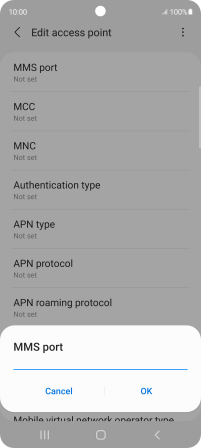

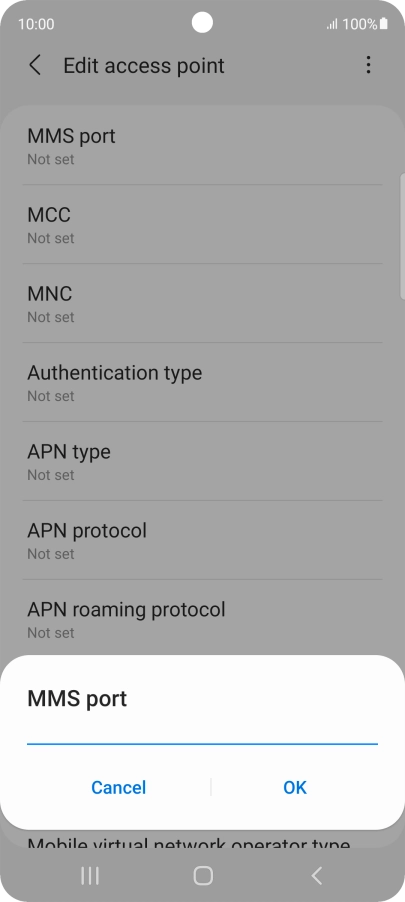

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-db2a894a-6cd8-47bd-8fe0-fff3e209013d.png?width=202&height=448)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ca2c8fb-83b9-4185-8165-23db864a65f5.png?width=202&height=448)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-65a51731-c5e5-4122-be98-6434ad4e0225.png?width=202&height=448)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ca2c8fb-83b9-4185-8165-23db864a65f5.png?width=202&height=448)

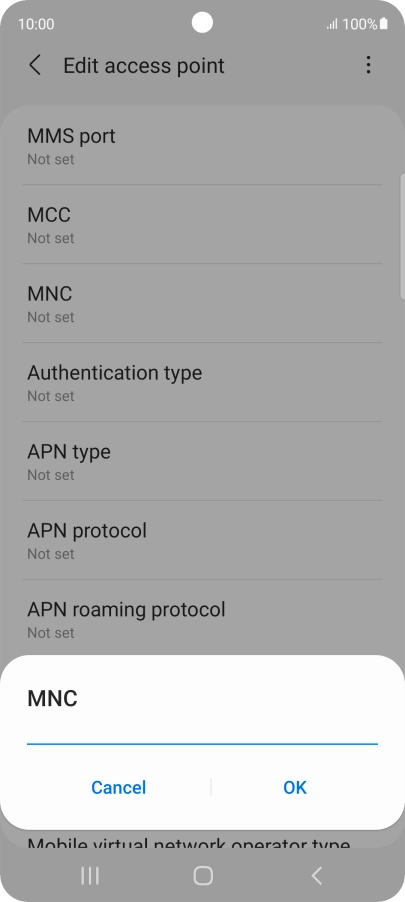

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ed823cf1-b830-4ad5-83a0-090904506da7.png?width=202&height=448)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ca2c8fb-83b9-4185-8165-23db864a65f5.png?width=202&height=448)

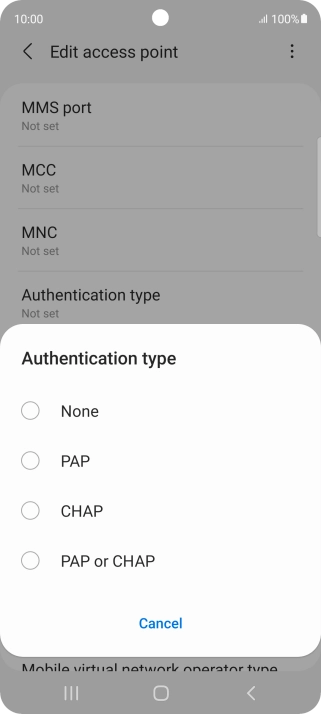

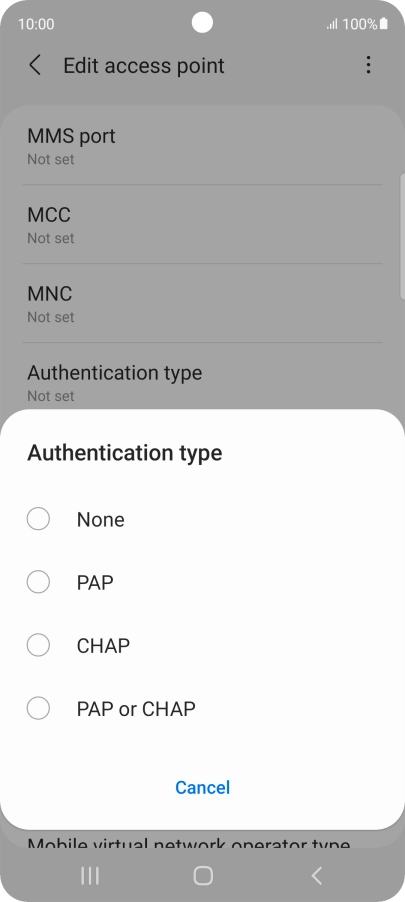

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b55d5954-181f-4d7d-9083-dc0d1edb8b39.png?width=202&height=448)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ca2c8fb-83b9-4185-8165-23db864a65f5.png?width=202&height=448)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-856d883b-7b8c-459d-aeb9-f0ce10527e91.png?width=202&height=448)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7ca2c8fb-83b9-4185-8165-23db864a65f5.png?width=202&height=448)

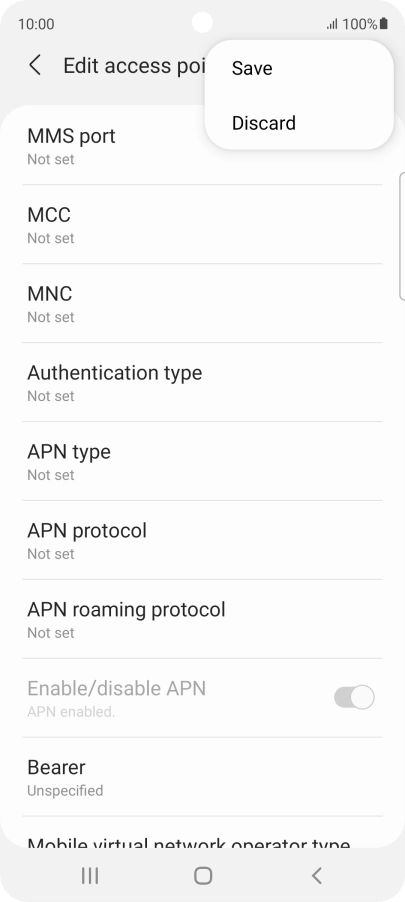

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-22db0260-1907-4899-abbd-7fb8e441d372.png?width=202&height=448)
12. Return to the home screen

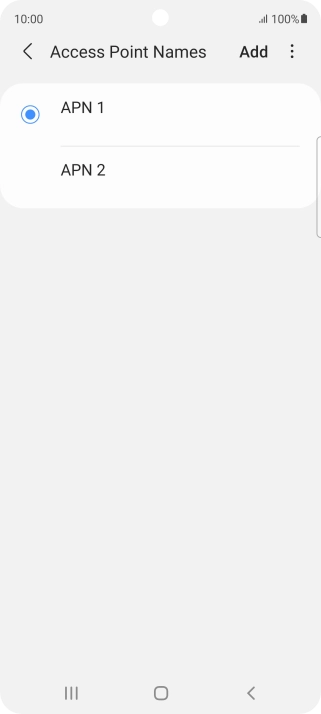

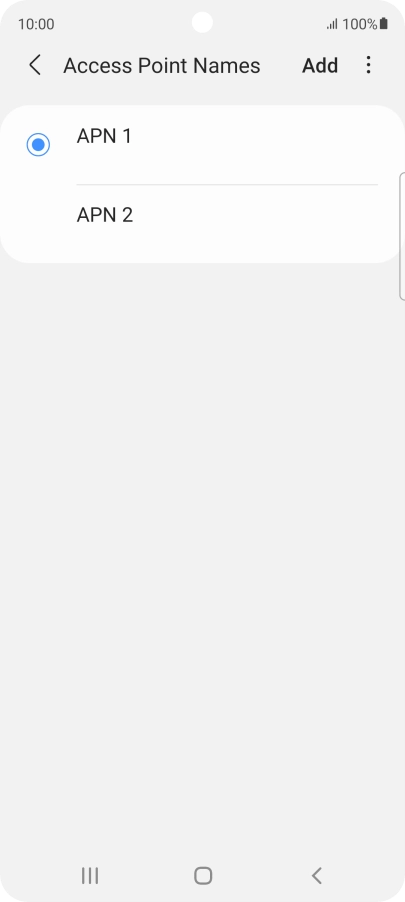

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ffb6adc7-7a69-4ddd-b62d-047f6c1e7753.png?width=202&height=448)
