1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-bc591be7-8461-47df-ad90-854c9dd83bd7.png?width=210&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-01cad80a-433d-4f47-bb59-e74de30e9bbd.png?width=210&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-019c786f-090a-482c-8e82-e870cc024fa9.png?width=210&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-0efcbbb5-c3a8-4fae-87ff-2661830ee79d.png?width=210&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-f2b62e20-1fdc-4b64-a3eb-dc22b3989f5e.png?width=210&height=458)
2. Create new data connection

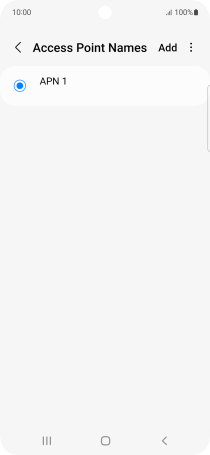

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a14af4c6-79a3-4ddf-b46e-2338119bc923.png?width=210&height=458)

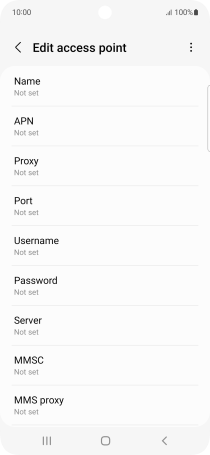

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-2c7dcb0a-34ef-4c94-9ae0-629d1c5b9b19.png?width=210&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-f3182ac0-d526-4697-9043-6238e20f9c78.png?width=210&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-2c7dcb0a-34ef-4c94-9ae0-629d1c5b9b19.png?width=210&height=458)

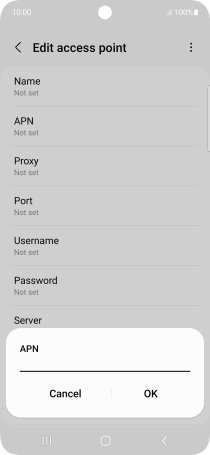

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-e1ea7a2f-dec1-4cde-9757-d9ced823024c.png?width=210&height=458)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-2c7dcb0a-34ef-4c94-9ae0-629d1c5b9b19.png?width=210&height=458)

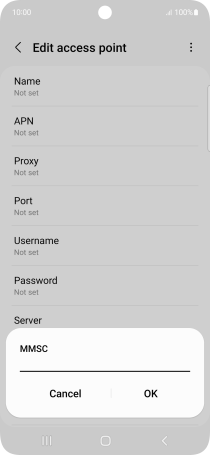

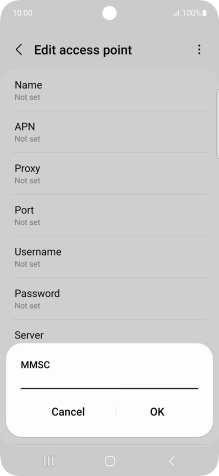

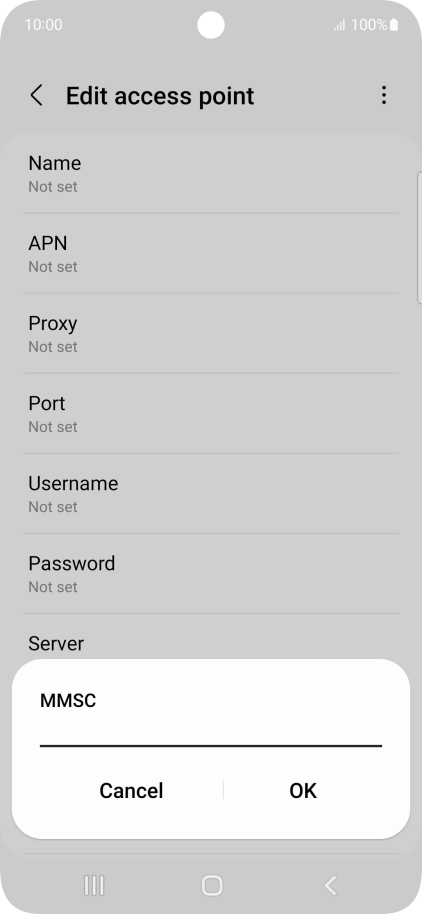

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-76faf793-65ab-4739-8f6a-a4c0e1ecf719.png?width=210&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-2c7dcb0a-34ef-4c94-9ae0-629d1c5b9b19.png?width=210&height=458)

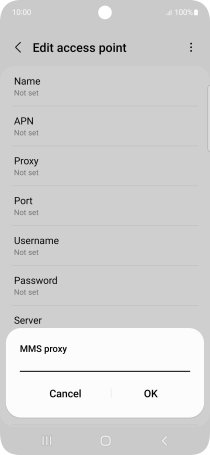

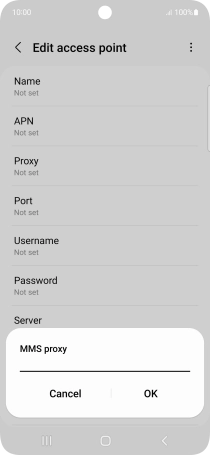

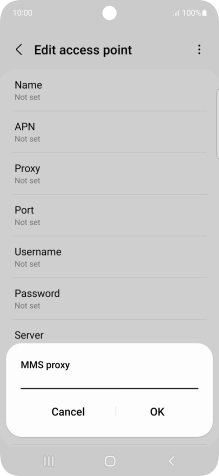

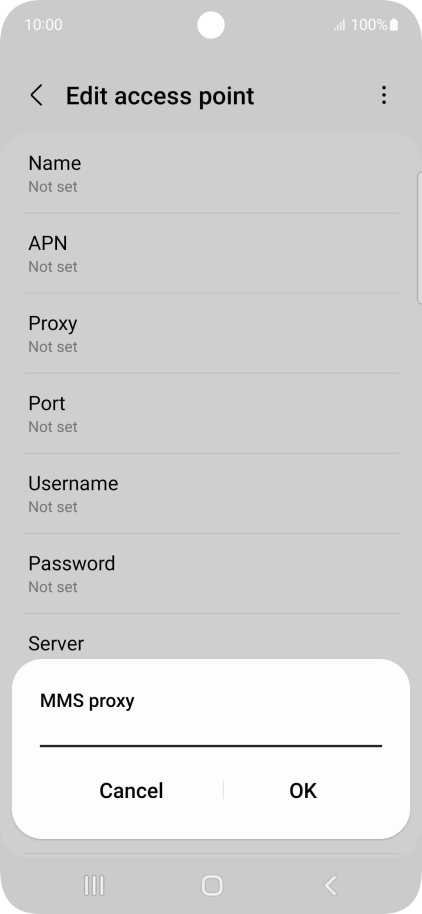

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-85f9f993-acb9-4a93-922a-e0fae02d8780.png?width=210&height=458)
10.202.002.060
6. Enter port number

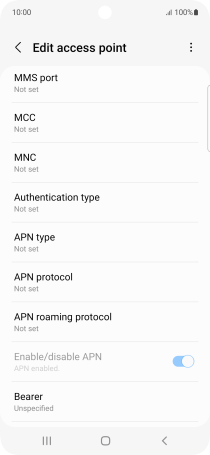

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a854aee5-21b9-41bd-bf2b-ac09d9fb864e.png?width=210&height=458)

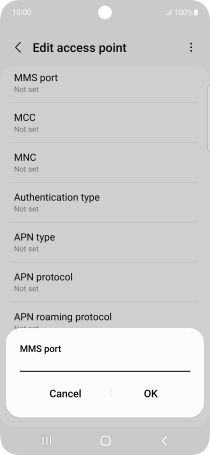

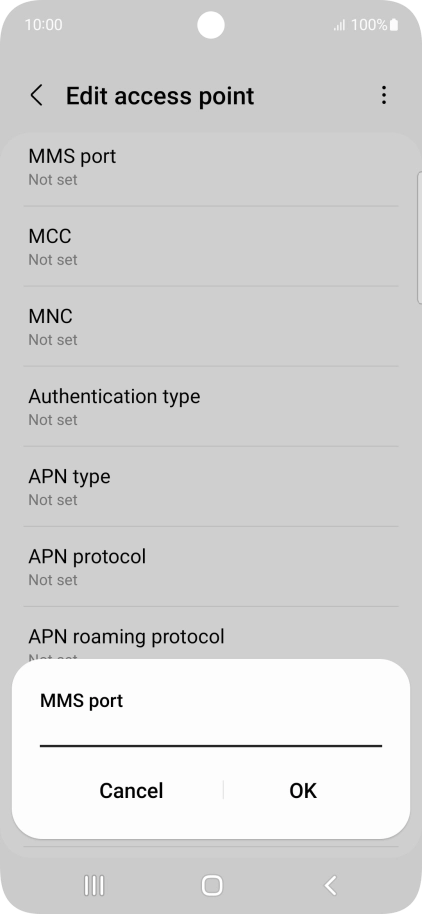

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-63a08f99-ea99-4e44-baa6-449fa295b445.png?width=210&height=458)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a854aee5-21b9-41bd-bf2b-ac09d9fb864e.png?width=210&height=458)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-b993bdd4-a9a8-4287-8aeb-7fc2bcdcf505.png?width=210&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a854aee5-21b9-41bd-bf2b-ac09d9fb864e.png?width=210&height=458)

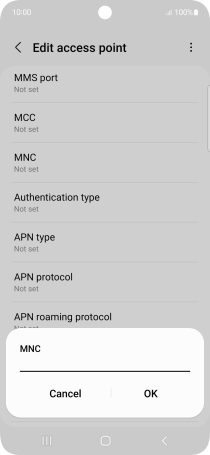

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a02759fd-a6f8-45b4-a91f-fe4b62fe9539.png?width=210&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a854aee5-21b9-41bd-bf2b-ac09d9fb864e.png?width=210&height=458)

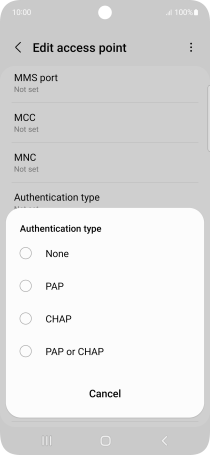

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-69958441-e1c0-4c61-9db3-b7c06bfdbb06.png?width=210&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a854aee5-21b9-41bd-bf2b-ac09d9fb864e.png?width=210&height=458)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-04f5a139-031e-4efd-921a-555acab48bb6.png?width=210&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-a854aee5-21b9-41bd-bf2b-ac09d9fb864e.png?width=210&height=458)

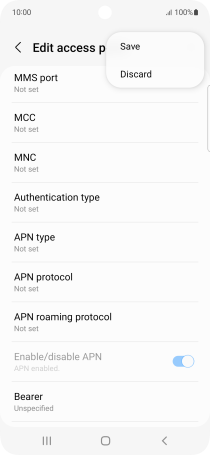

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-e709ca32-e2eb-464c-94c5-a5f31af51fcf.png?width=210&height=458)
12. Return to the home screen

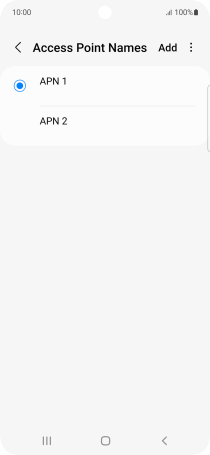

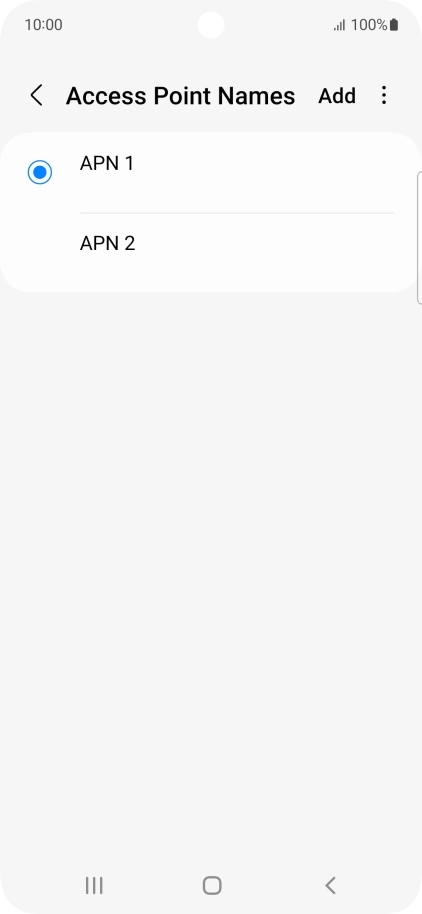

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7150922-f-8fcf4a50-4f80-43d8-9596-d8081edaa3ad.png?width=210&height=458)
