1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"
Press Connections.
1. Find "Access Point Names"
Press Mobile networks.
1. Find "Access Point Names"
Press Access Point Names.

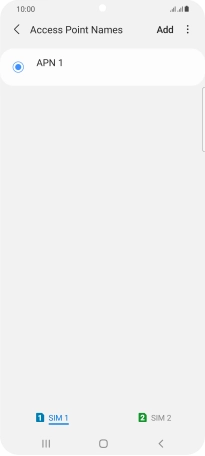

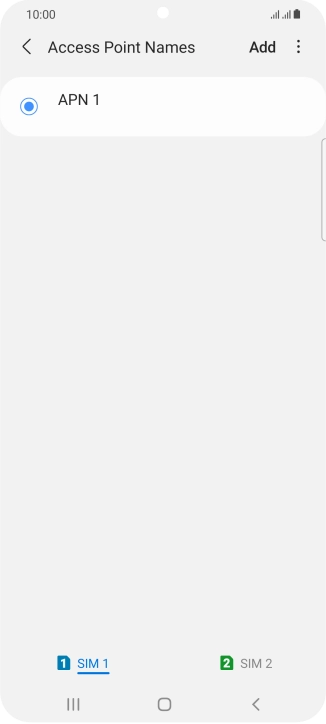

2. Create new data connection

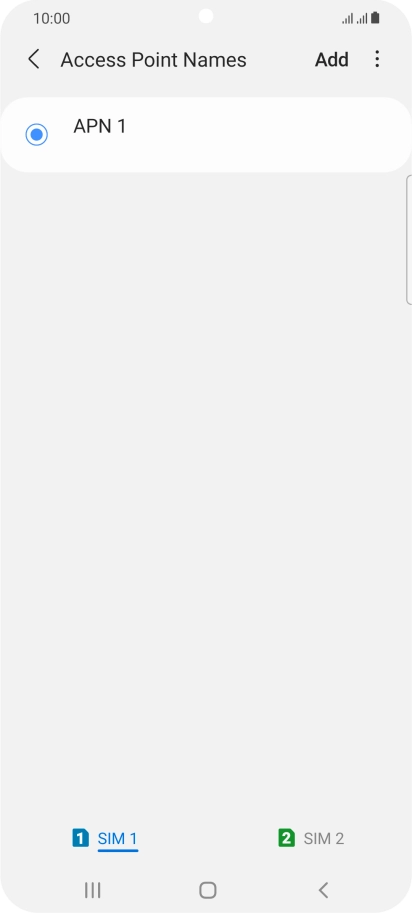

Press the name of the SIM.

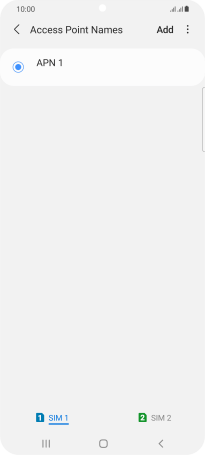

2. Create new data connection
Press Add.

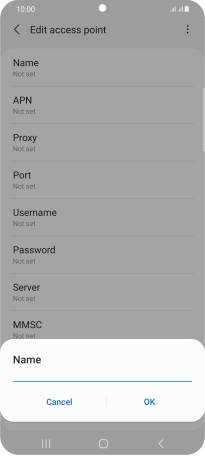

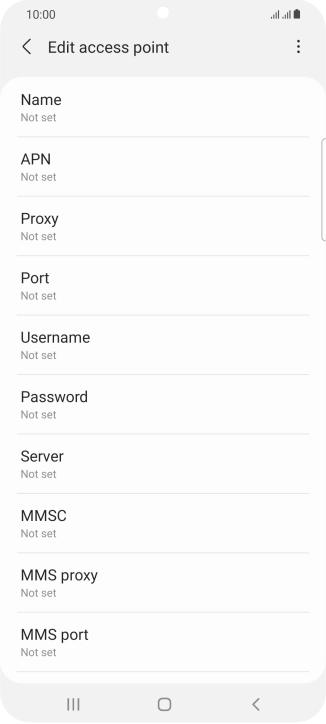

3. Enter a name for the connection

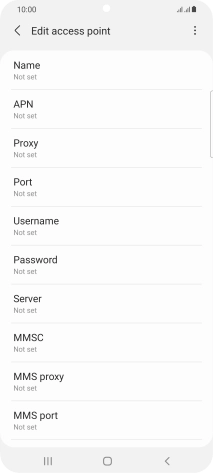

Press Name.
3. Enter a name for the connection

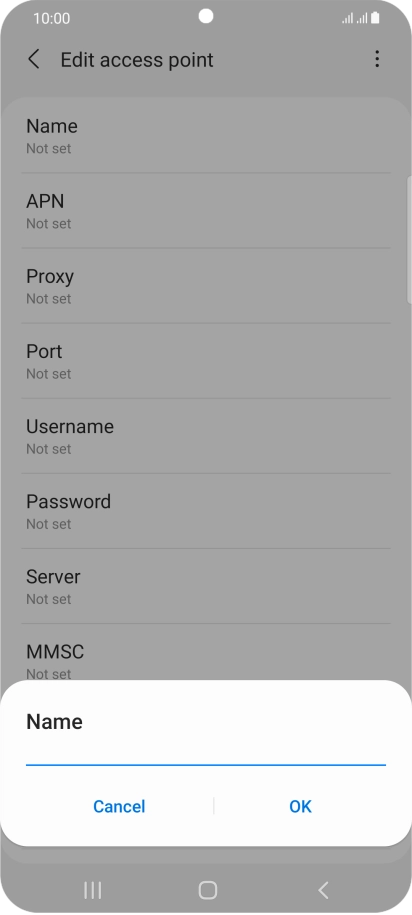

Key in Vodafone MMS and press OK.

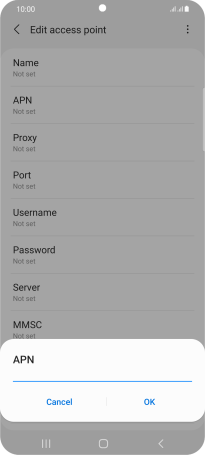

4. Enter APN
Press APN.

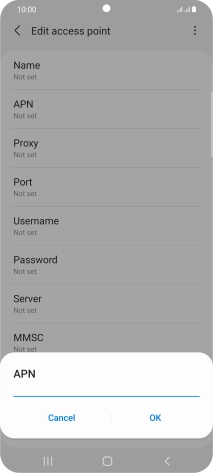

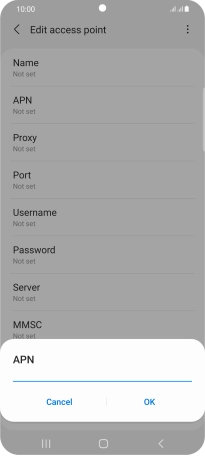

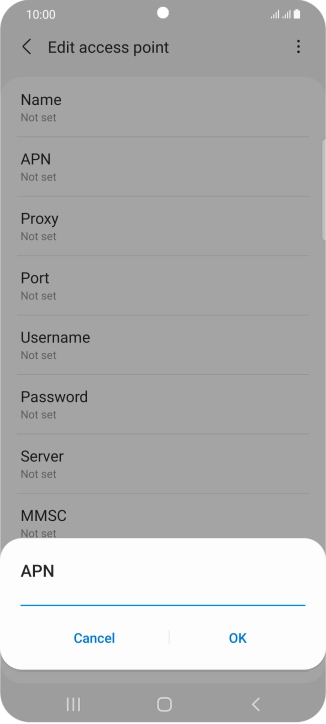

4. Enter APN

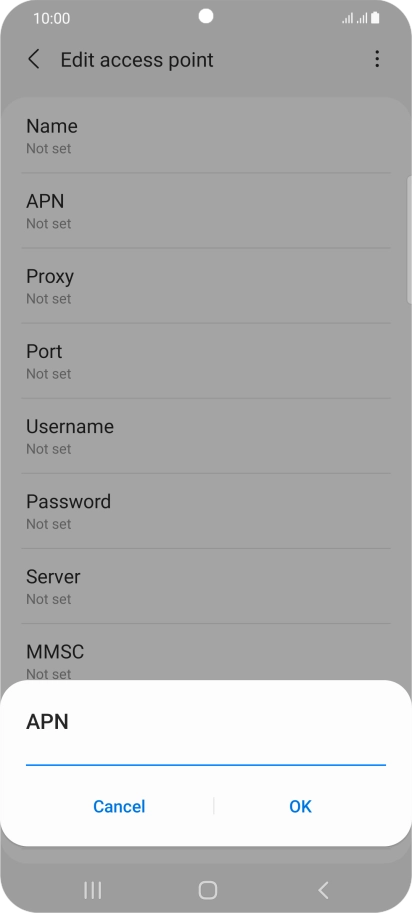

Key in live.vodafone.com and press OK.

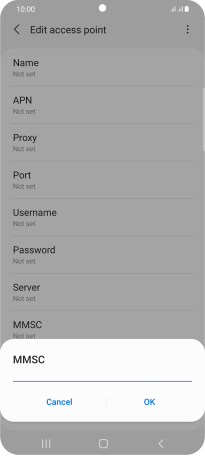

5. Enter MMSC
Press MMSC.
5. Enter MMSC

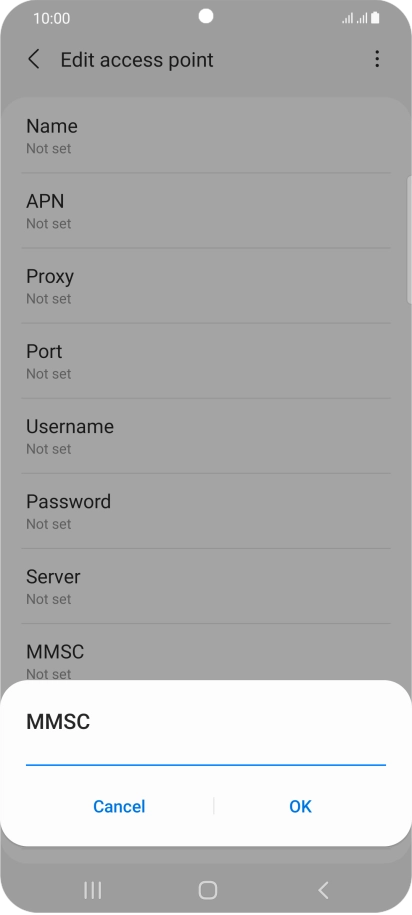

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

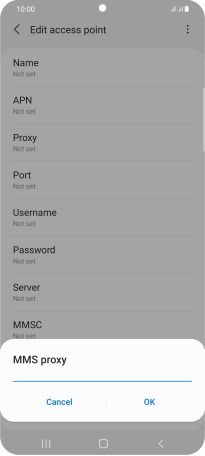

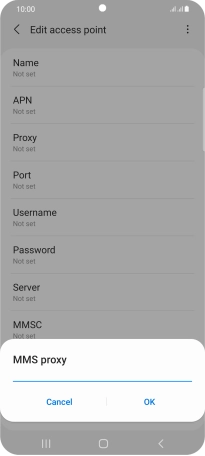

6. Enter IP address
Press MMS proxy.

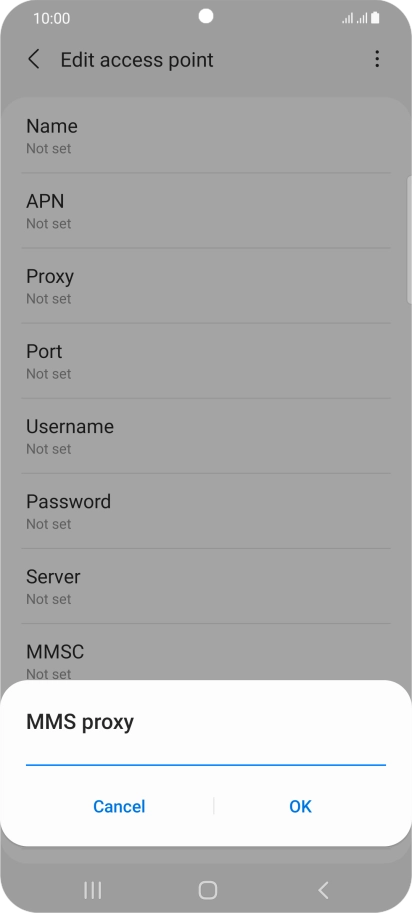

6. Enter IP address
Key in 10.202.002.060 and press OK.

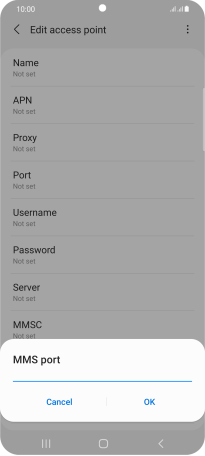

7. Enter port number
Press MMS port.

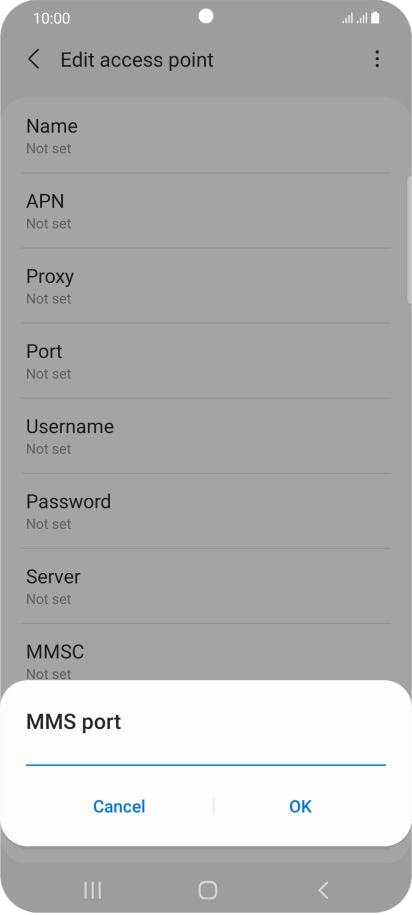

7. Enter port number
Key in 8080 and press OK.

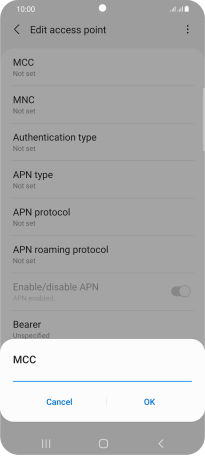

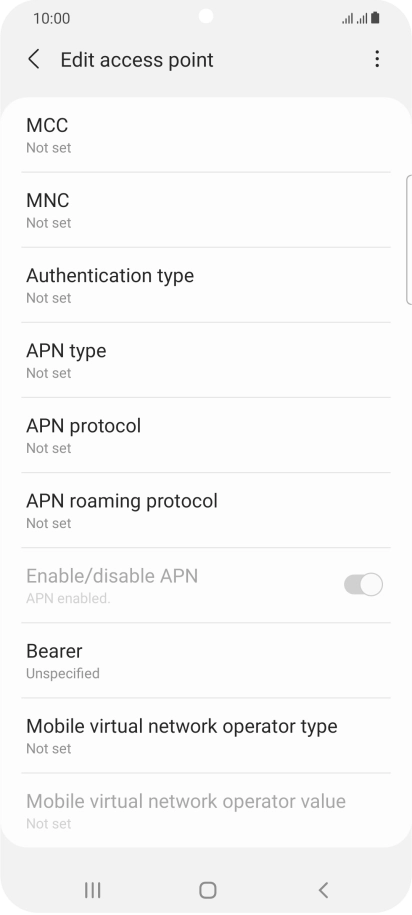

8. Enter country code
Press MCC.

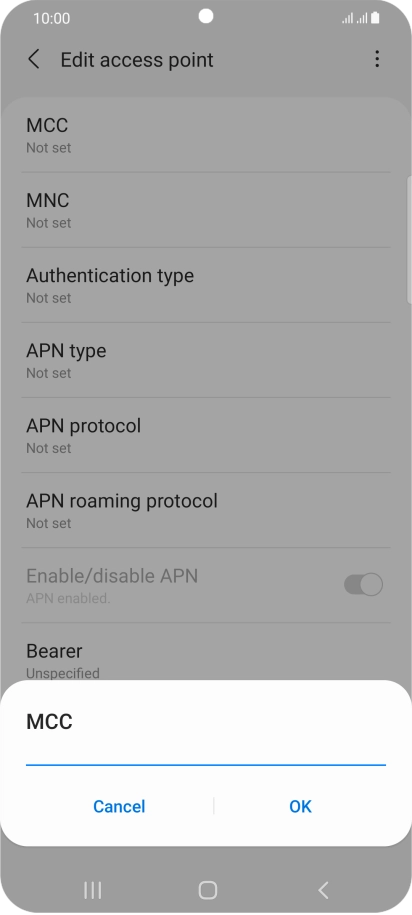

8. Enter country code
Key in 505 and press OK.
9. Enter network code
Press MNC.
9. Enter network code
Key in 03 and press OK.

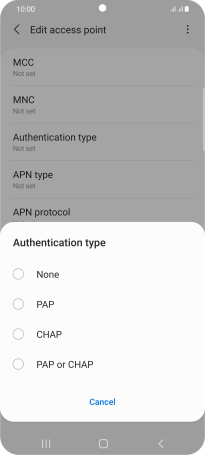

10. Select authentication type
Press Authentication type.

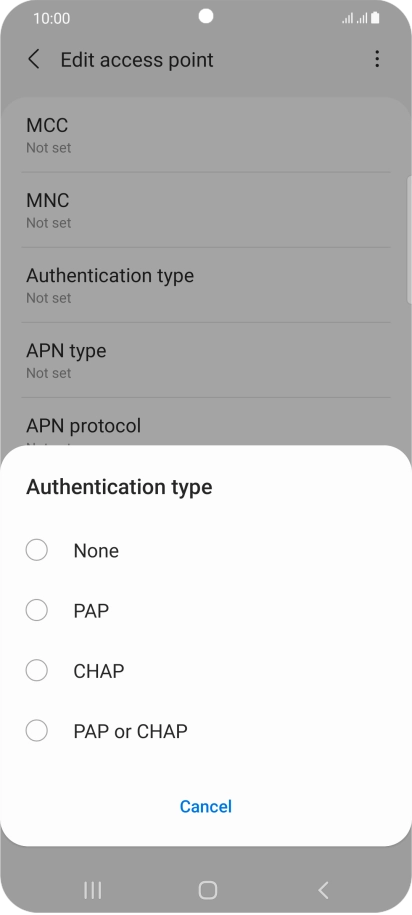

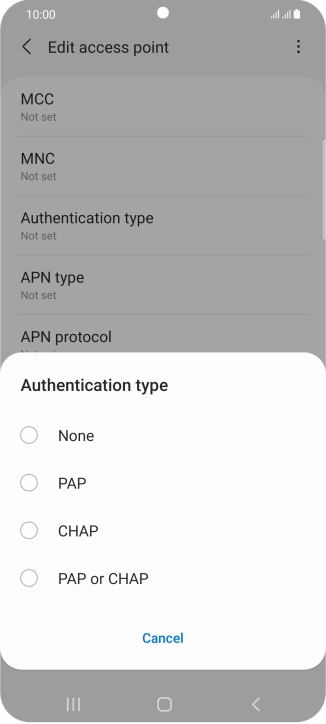

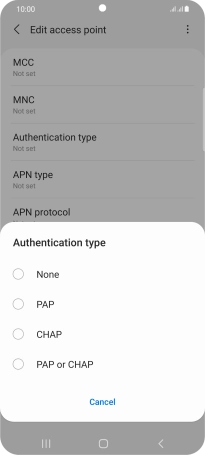

10. Select authentication type
Press PAP.

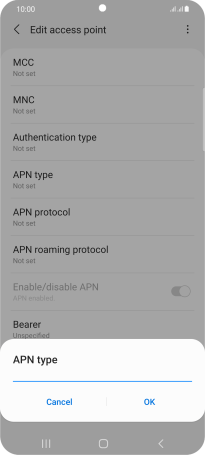

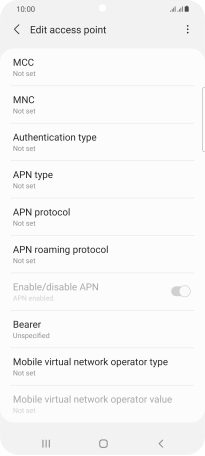

11. Enter APN type
Press APN type.

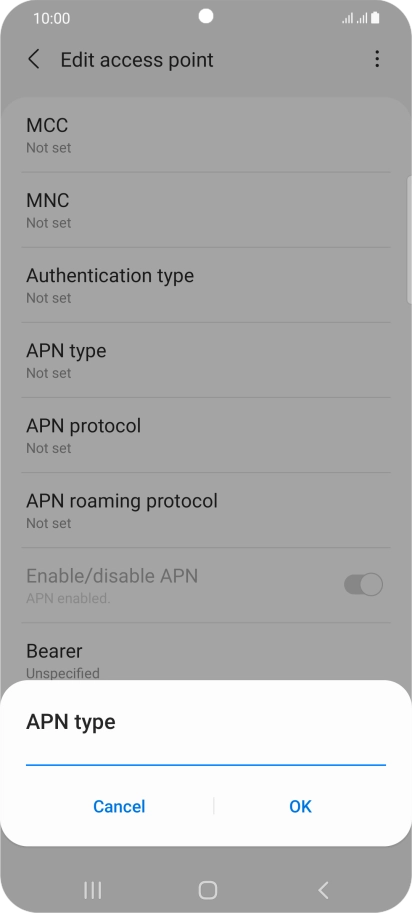

11. Enter APN type
Key in mms and press OK.

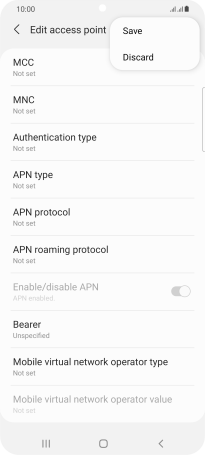

12. Save data connection
Press the menu icon.

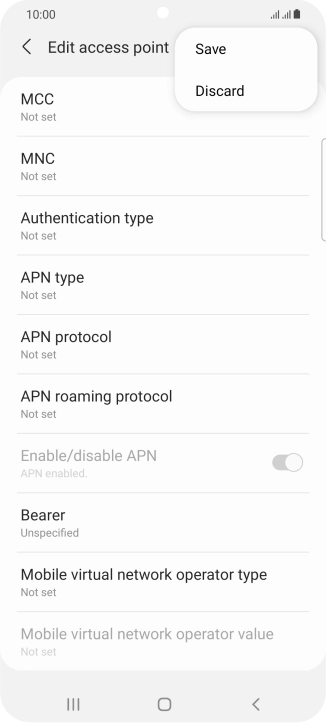

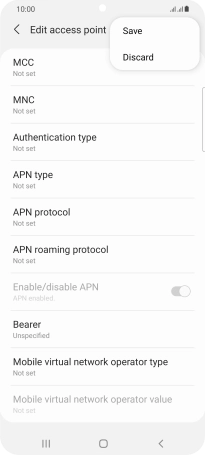

12. Save data connection

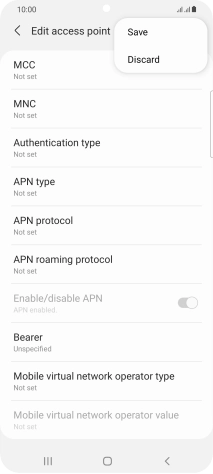

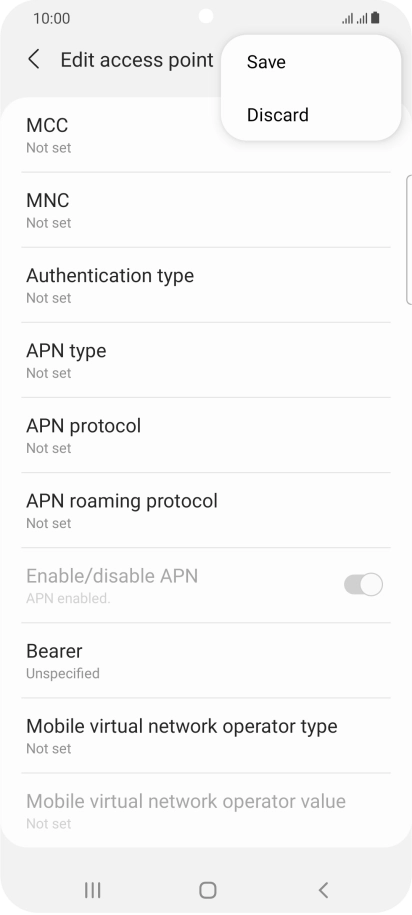

Press Save.

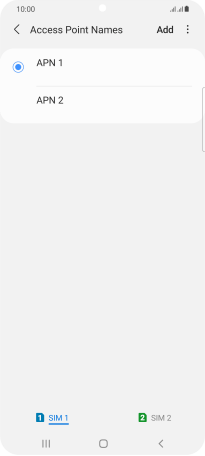

13. Return to the home screen

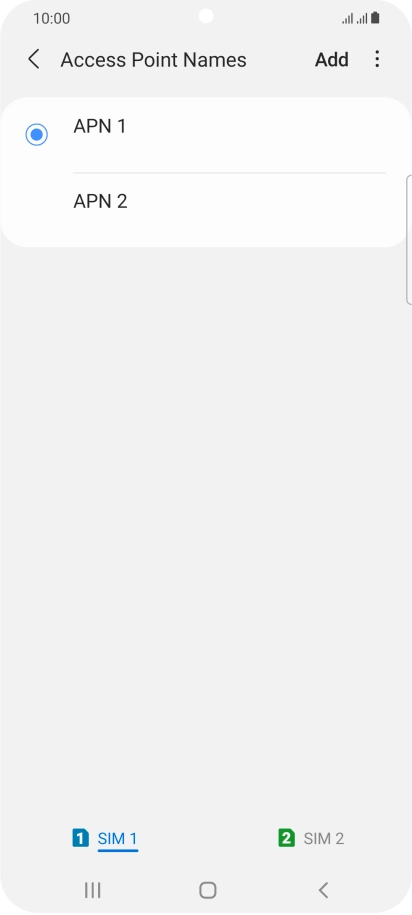

Press the Home key to return to the home screen.
1. Find "Access Point Names"
2. Create new data connection
3. Enter a name for the connection
4. Enter APN
5. Enter MMSC
6. Enter IP address
7. Enter port number
8. Enter country code
9. Enter network code
10. Select authentication type
11. Enter APN type
12. Save data connection
13. Return to the home screen
