1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-07e7039a-a51c-40c2-ab27-83ab7ca4d2df.png?width=212&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-829f36c1-81e2-445c-bed8-c7ff2136021a.png?width=212&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-d980ca8c-21c9-4e2d-936c-18d237705dea.png?width=212&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4ac69695-938a-4ce0-9d42-f82a587e6374.png?width=212&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-059a40f7-12c9-41fa-bad6-7d42b83cea57.png?width=212&height=458)
2. Create new data connection
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-d1ebd2e1-5c7a-4caf-acfb-8f1e653ef4bf.png?width=212&height=458)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-97903fd7-6c9a-46dd-80e1-dc66796670ef.png?width=212&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-a62b3b11-6b35-4c17-8ce1-c310e63afcd4.png?width=212&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-97903fd7-6c9a-46dd-80e1-dc66796670ef.png?width=212&height=458)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-a9a098b5-f987-455d-8766-1b4bc7b2a76b.png?width=212&height=458)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-97903fd7-6c9a-46dd-80e1-dc66796670ef.png?width=212&height=458)

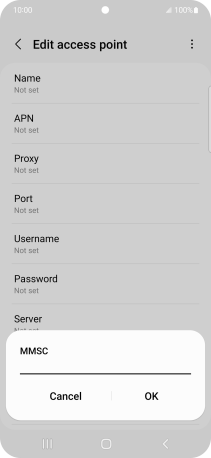

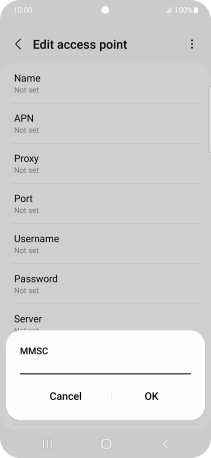

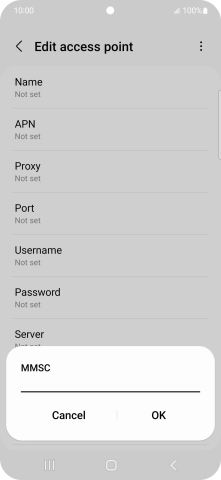

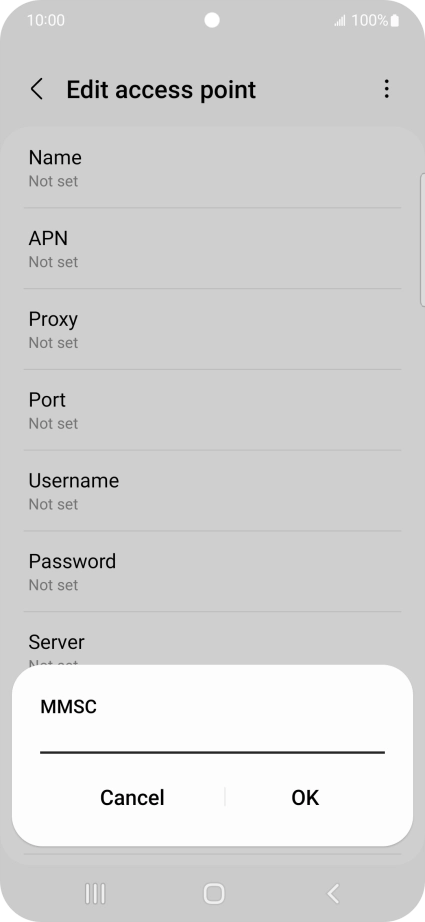

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-3d3d8fc5-f40d-417a-9aa6-7ef9ef4bf367.png?width=212&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-97903fd7-6c9a-46dd-80e1-dc66796670ef.png?width=212&height=458)

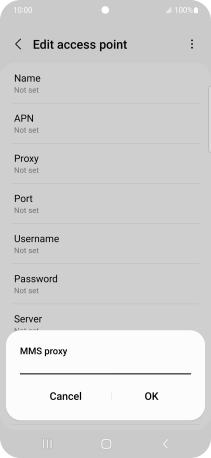

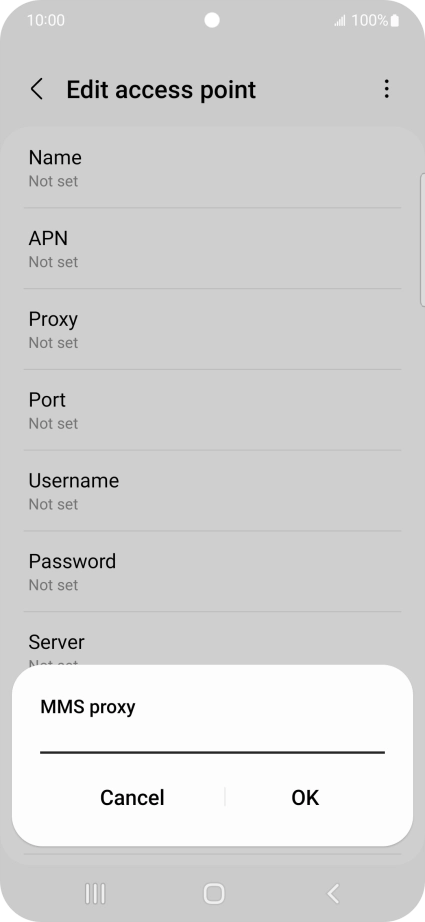

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-37857574-92dc-4fd7-9b24-c20b8d0c8c9f.png?width=212&height=458)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-cc308f04-5f21-4ffe-ab86-2cc239cb92c0.png?width=212&height=458)

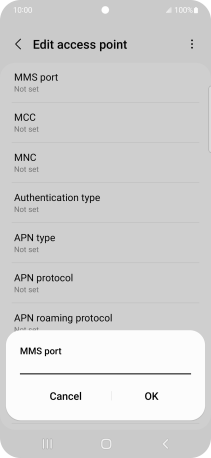

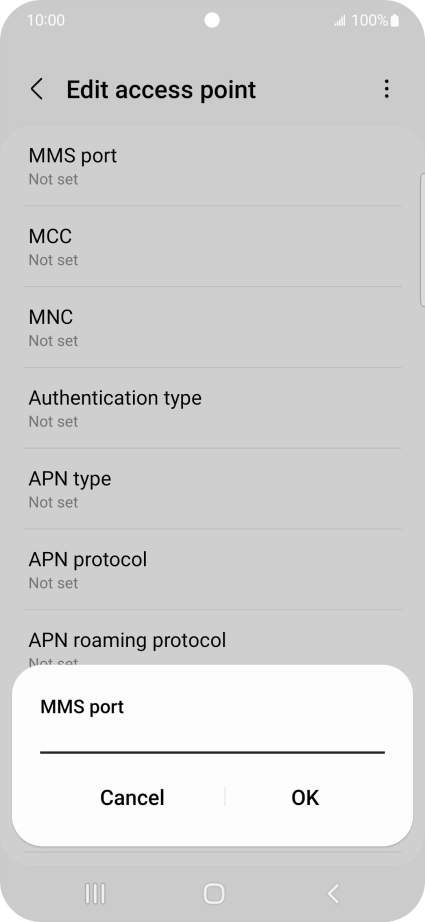

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-70a7abac-9dff-4d75-999f-0153bfecbe24.png?width=212&height=458)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-cc308f04-5f21-4ffe-ab86-2cc239cb92c0.png?width=212&height=458)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-7bc2767a-3d02-4330-be72-48749a7d051e.png?width=212&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-cc308f04-5f21-4ffe-ab86-2cc239cb92c0.png?width=212&height=458)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-c4baad89-9185-473a-9325-b417b8e83044.png?width=212&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-cc308f04-5f21-4ffe-ab86-2cc239cb92c0.png?width=212&height=458)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-7edc1dea-7679-4f11-8fd5-8d1171a34c34.png?width=212&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-cc308f04-5f21-4ffe-ab86-2cc239cb92c0.png?width=212&height=458)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-29278d54-8fd8-4a8c-bffd-7e59edd00524.png?width=212&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-cc308f04-5f21-4ffe-ab86-2cc239cb92c0.png?width=212&height=458)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-95cb8d24-2017-482e-9eec-d8b5d212698e.png?width=212&height=458)
12. Return to the home screen

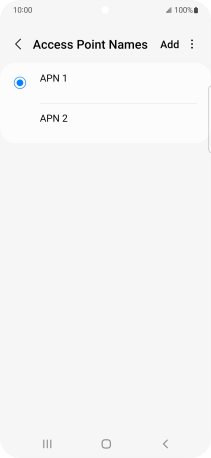

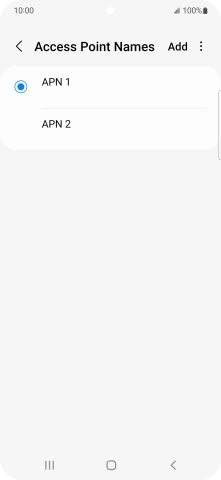

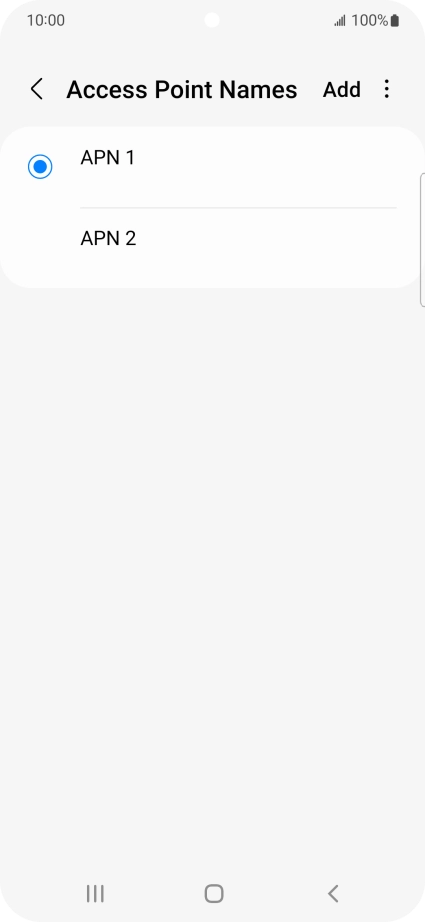

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-afff5657-4205-45b4-8231-5cbe923d3420.png?width=212&height=458)
