1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-f7901e54-99aa-4dc3-af2a-5ed88a06b239.png?width=212&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-168515e1-1a4a-446b-8aa0-d8dab412ed04.png?width=212&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-3f899b06-956b-4d47-bdb8-bd39b189ae94.png?width=212&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-5e07064c-871d-4d8c-a585-b005f7282eff.png?width=212&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-0d619e10-ac6b-4747-9196-276a786a4812.png?width=212&height=458)
2. Create new data connection

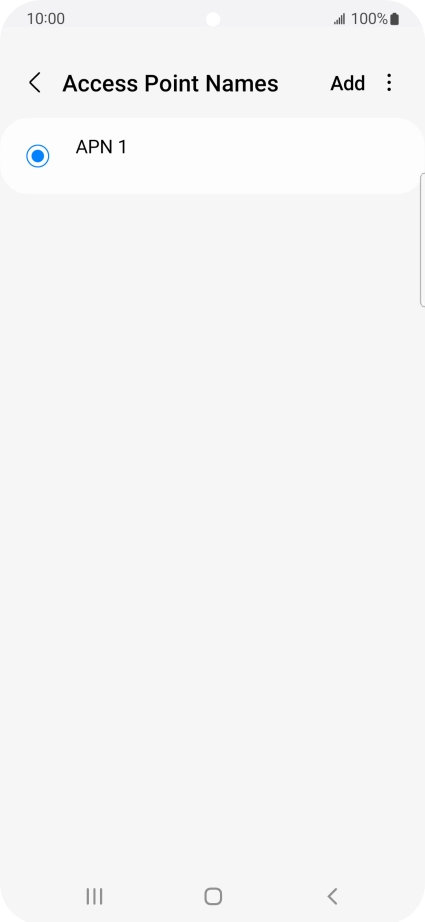

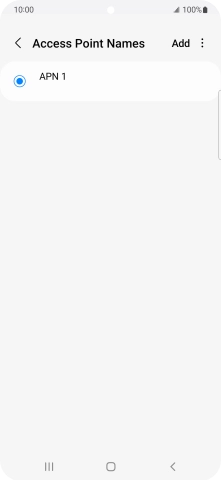

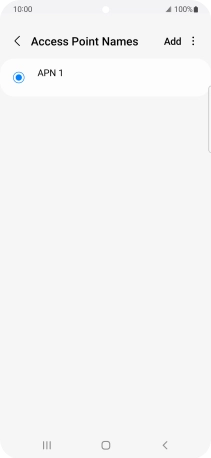

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-3dcd63e7-4e51-4c86-81b6-378e6bbc1b3f.png?width=212&height=458)

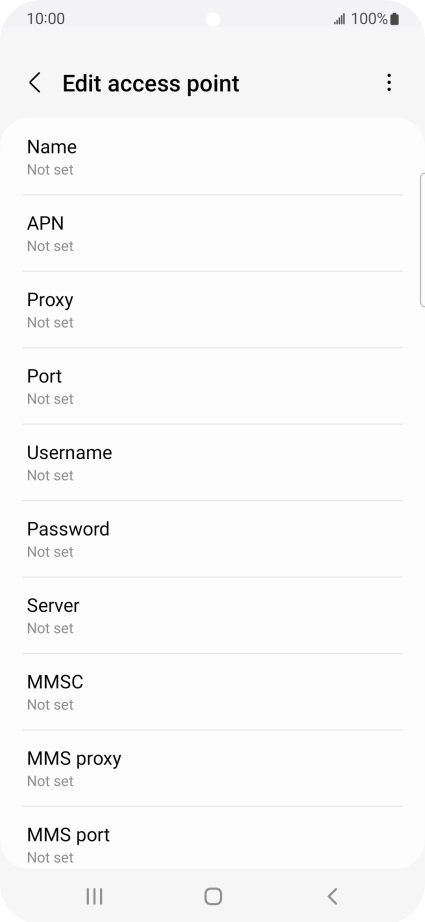

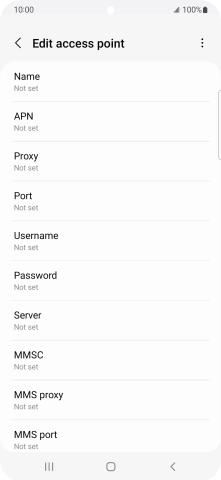

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-e1f68bc2-4291-40a2-a6d6-c2e5fc3dc9d5.png?width=212&height=458)

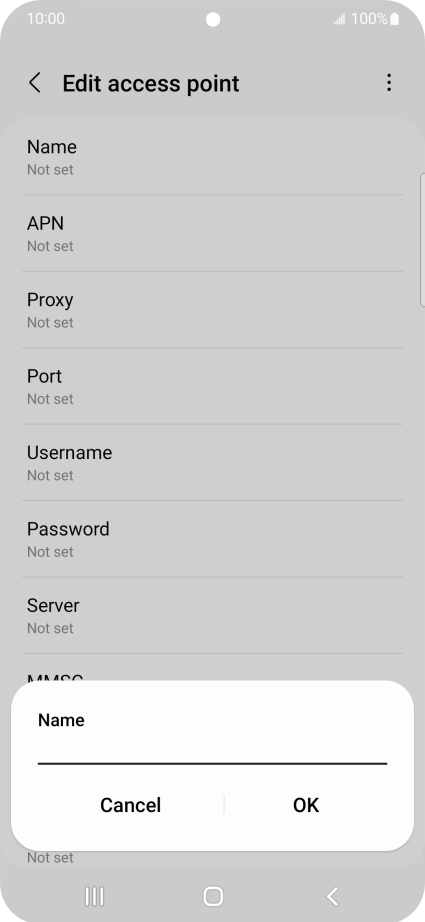

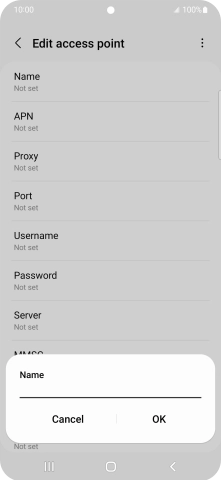

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-23dca794-ed9a-4ab3-ac0b-181210ceada9.png?width=212&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-e1f68bc2-4291-40a2-a6d6-c2e5fc3dc9d5.png?width=212&height=458)

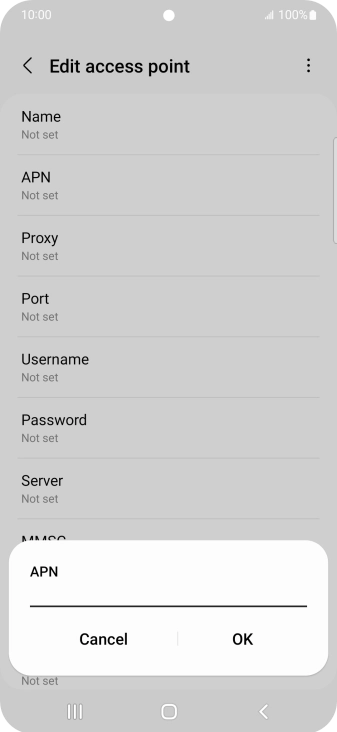

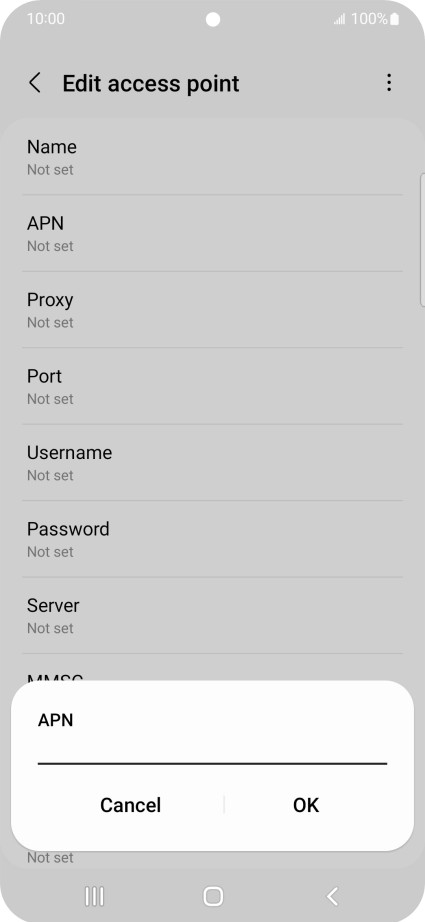

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-47151640-aa03-49a3-a7ab-7ee1b023f6d9.png?width=212&height=458)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-e1f68bc2-4291-40a2-a6d6-c2e5fc3dc9d5.png?width=212&height=458)

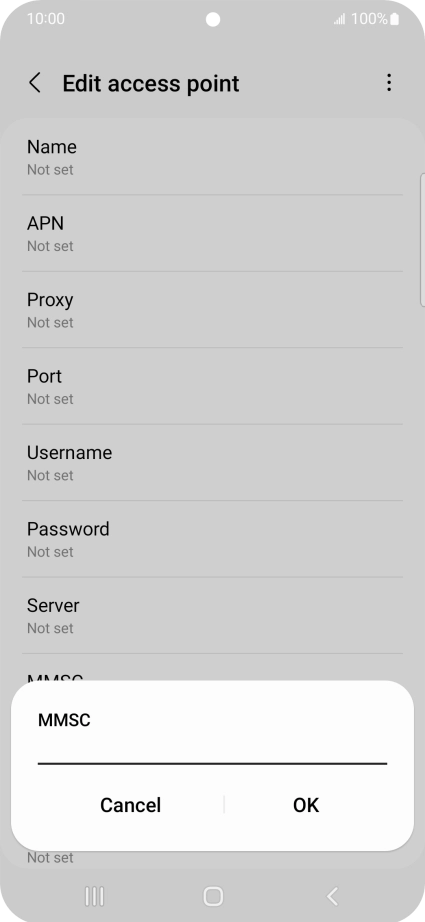

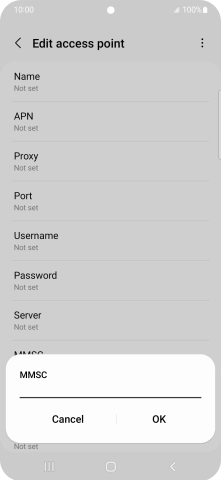

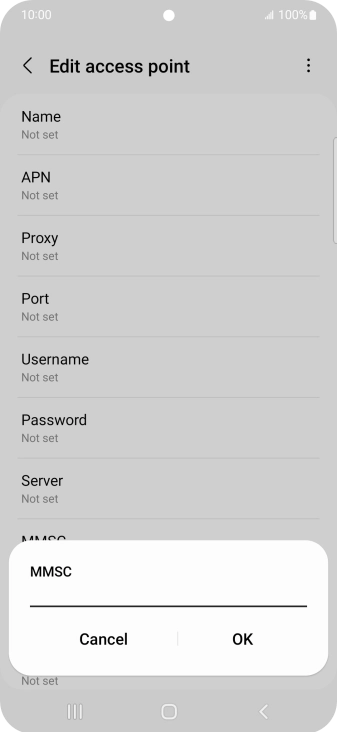

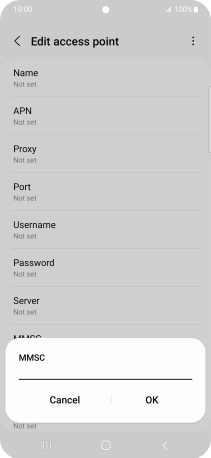

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-1c0d519c-fbf3-42bd-a5ef-127f0f0b2832.png?width=212&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-e1f68bc2-4291-40a2-a6d6-c2e5fc3dc9d5.png?width=212&height=458)

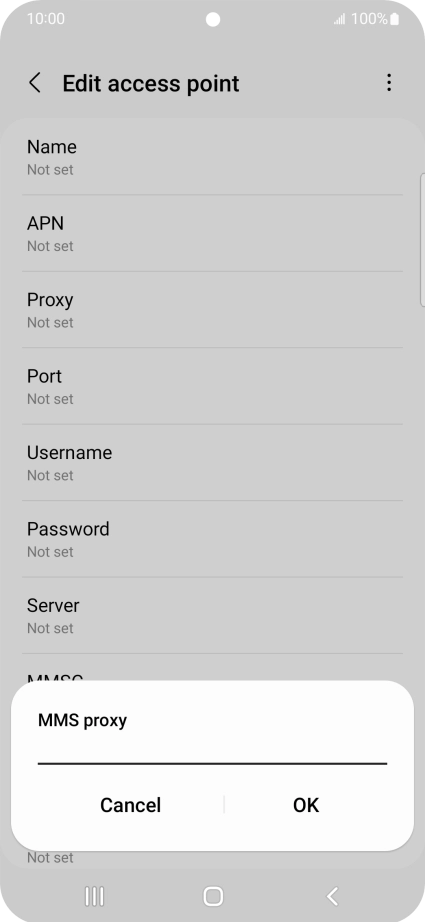

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-83d2b36f-1a83-4ee1-8470-5131b3ed07a5.png?width=212&height=458)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-e1f68bc2-4291-40a2-a6d6-c2e5fc3dc9d5.png?width=212&height=458)

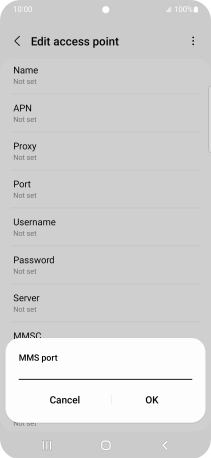

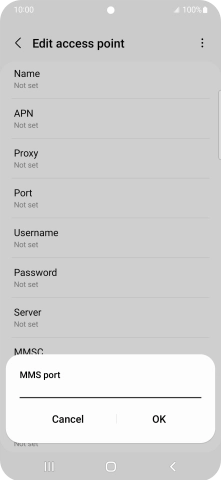

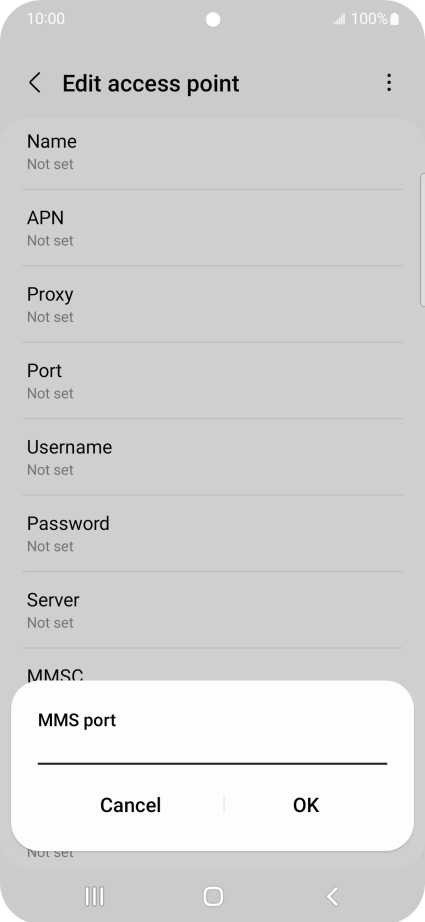

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4705aa37-0002-4e8b-a7ac-63b743d554f7.png?width=212&height=458)
8080
7. Enter country code

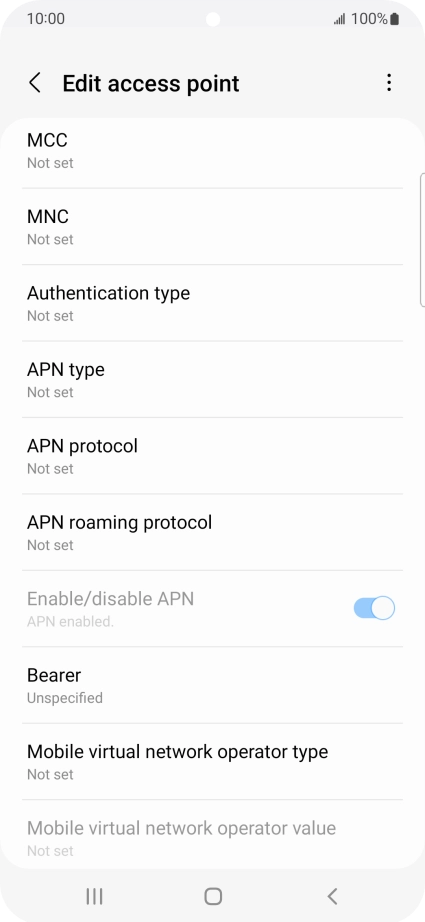

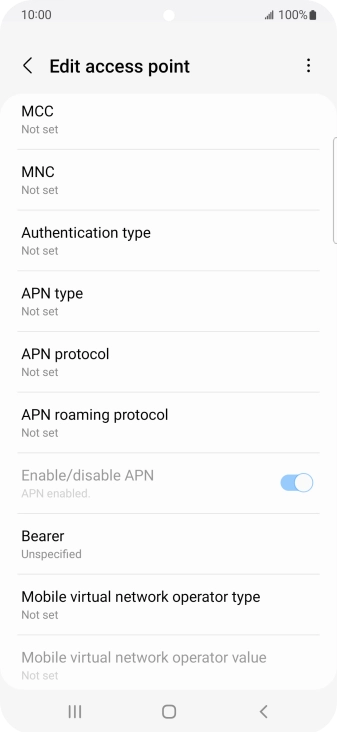

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-1f931e10-c991-42b2-a456-de9b16548bbf.png?width=212&height=458)

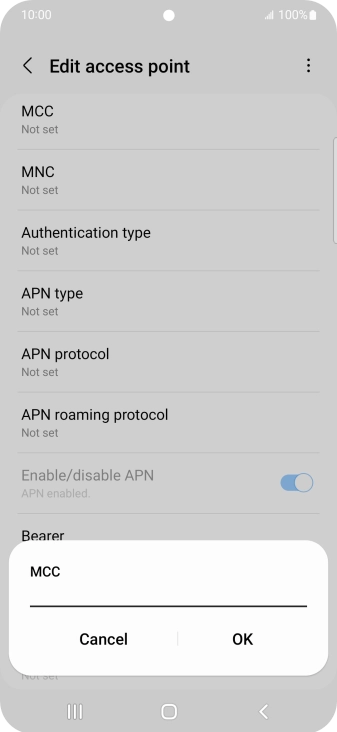

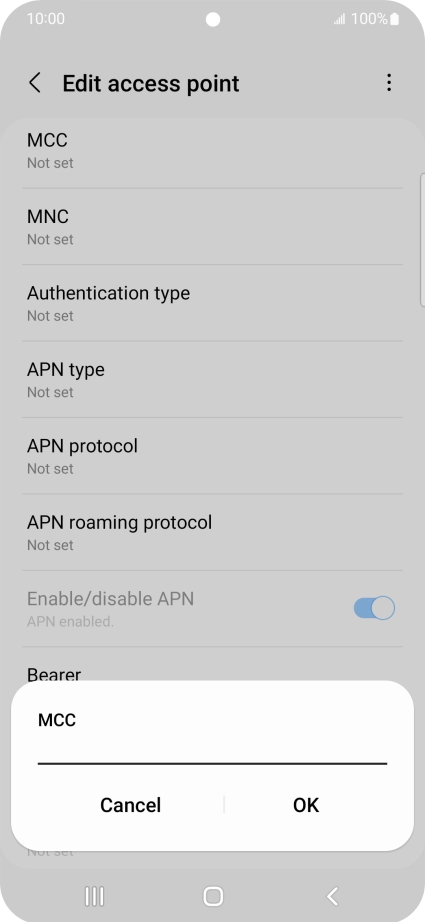

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-2a4bf818-f718-4169-be0d-e38e9d32e2f2.png?width=212&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-1f931e10-c991-42b2-a456-de9b16548bbf.png?width=212&height=458)

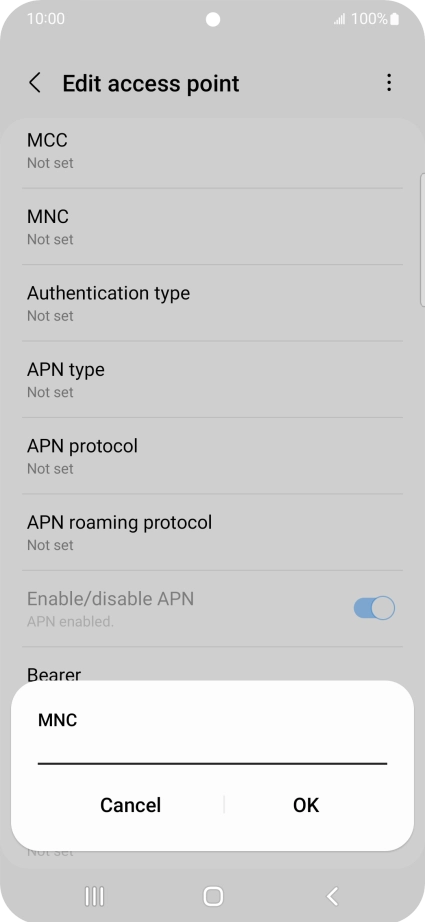

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-9482964d-658f-4657-957e-ed05bbb74392.png?width=212&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-1f931e10-c991-42b2-a456-de9b16548bbf.png?width=212&height=458)

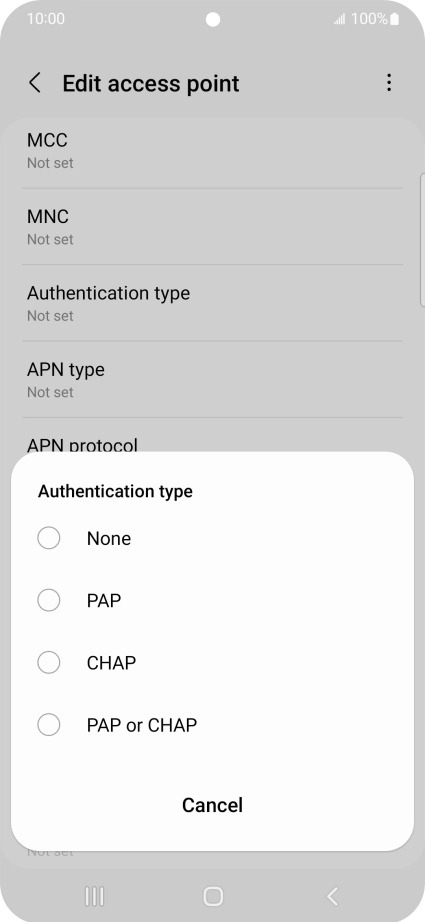

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-53e08d78-2d96-4f44-8c17-1009fd324669.png?width=212&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-1f931e10-c991-42b2-a456-de9b16548bbf.png?width=212&height=458)

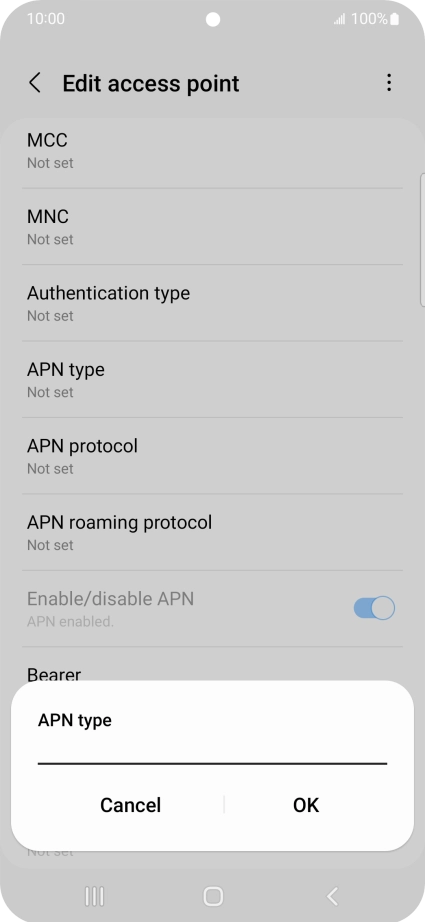

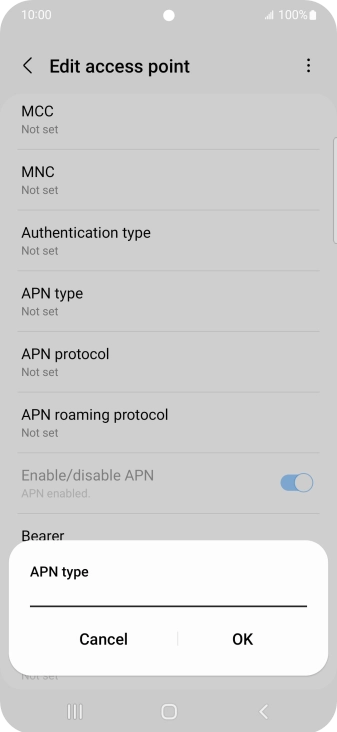

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-f13b10d3-e3aa-45ce-be0c-828924e83add.png?width=212&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-1f931e10-c991-42b2-a456-de9b16548bbf.png?width=212&height=458)

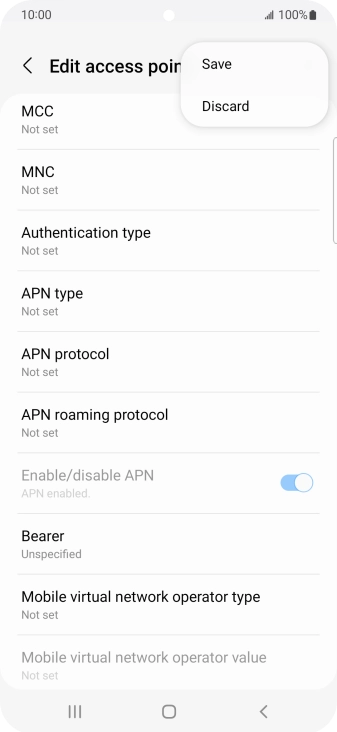

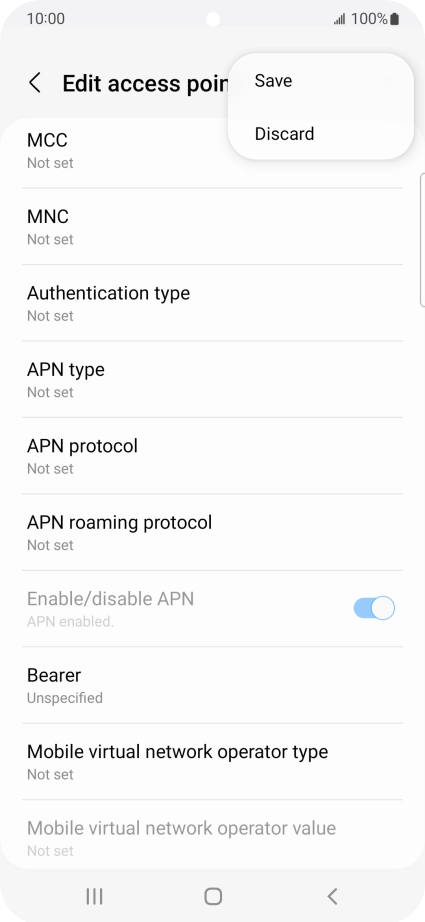

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-c3ebc1ec-8d8e-483e-94cb-b7bd41194f78.png?width=212&height=458)
12. Return to the home screen

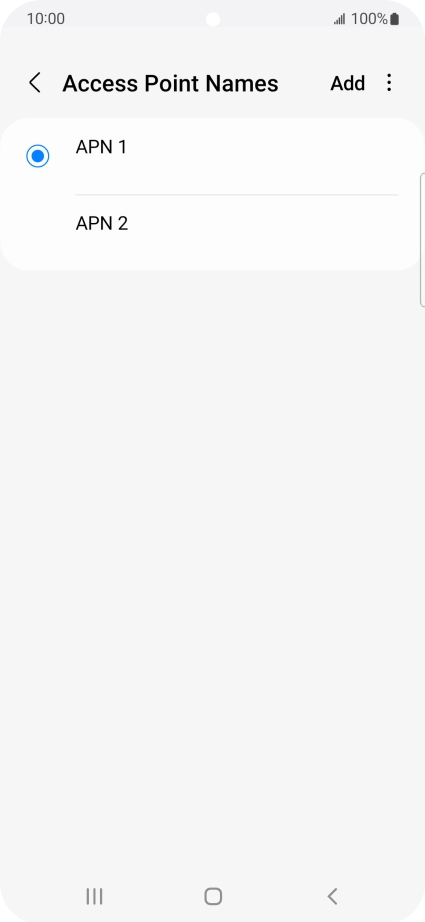

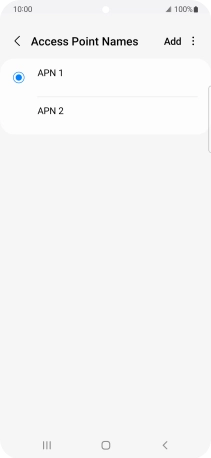

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-91e63225-a913-4328-bb2e-636e68aa325b.png?width=212&height=458)
