1. Find "Access Point Names"

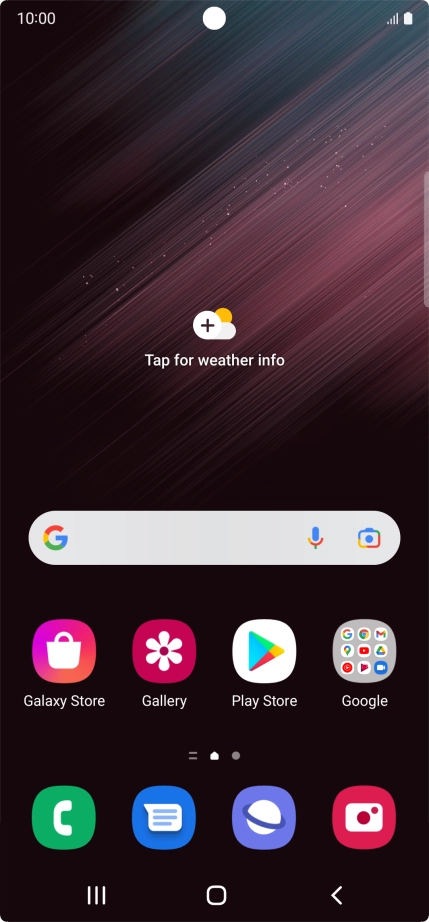

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-66925077-55c2-4a3d-bafe-ce31708d7158.png?width=214&height=458)

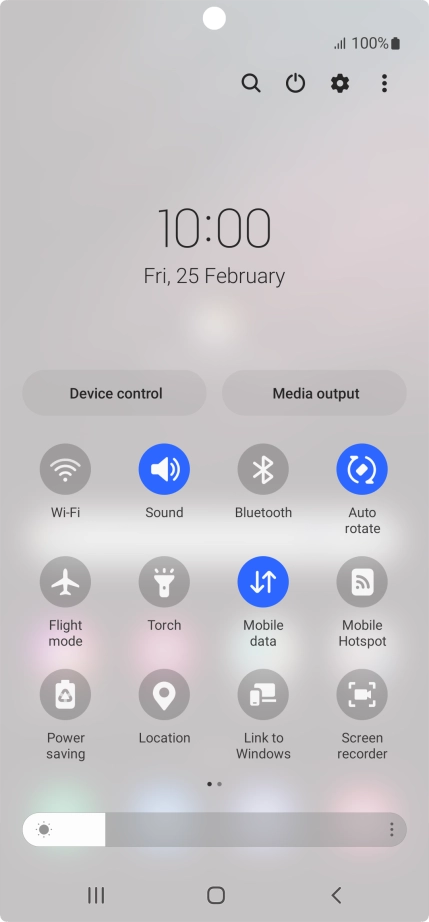

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4cb2e1d5-ec06-4a0f-ac7b-3aa7ec059ce7.png?width=214&height=458)

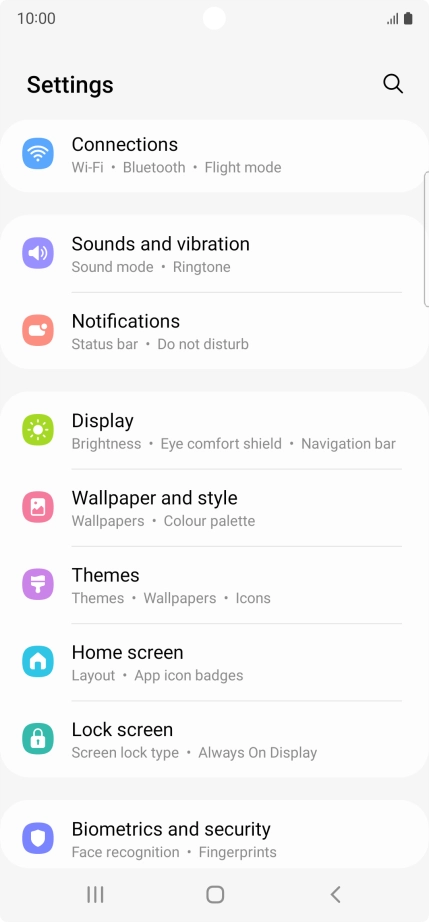

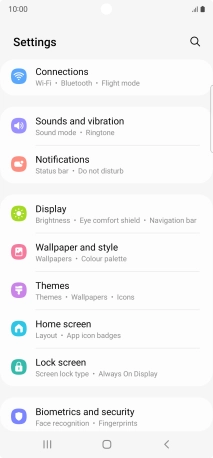

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-d2df2733-52ed-4ce0-882e-8cd571af993b.png?width=214&height=458)

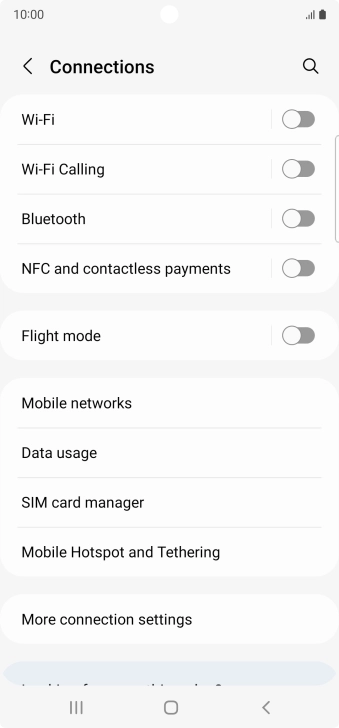

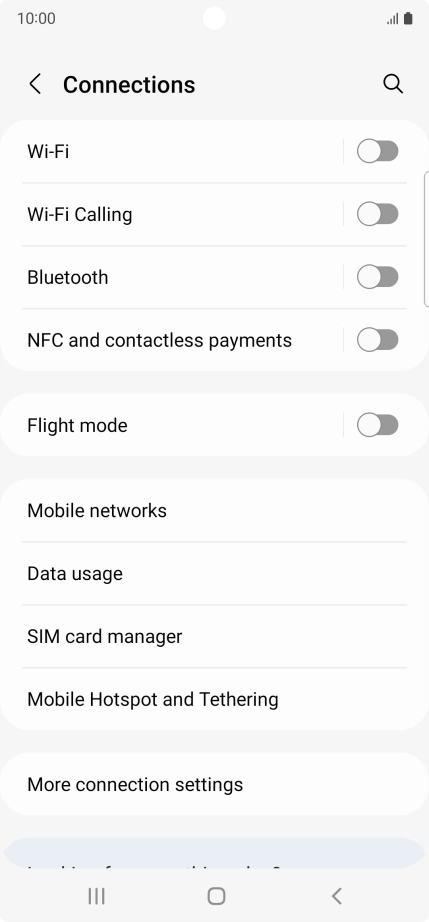

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-6f098438-0c03-43d7-ac93-54d54c2e79f3.png?width=214&height=458)

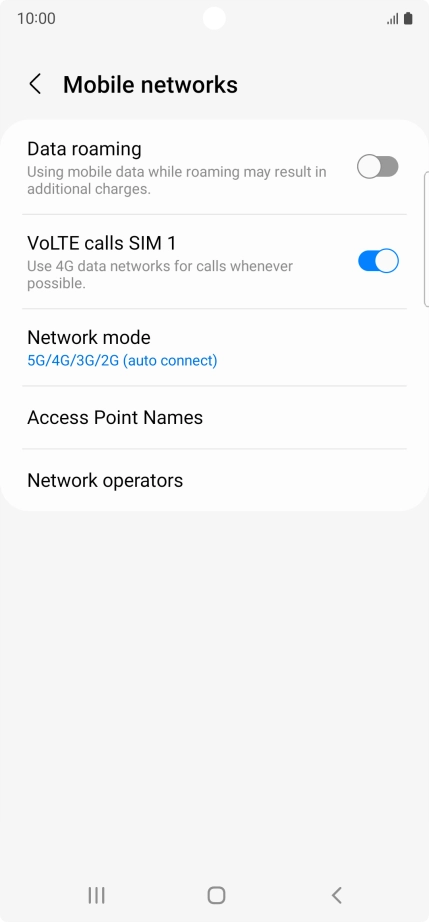

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-953b11aa-8395-4f65-9387-e1b5a33d6d05.png?width=214&height=458)
2. Create new data connection

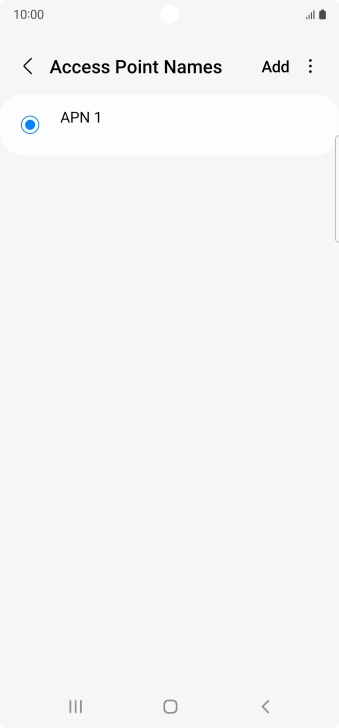

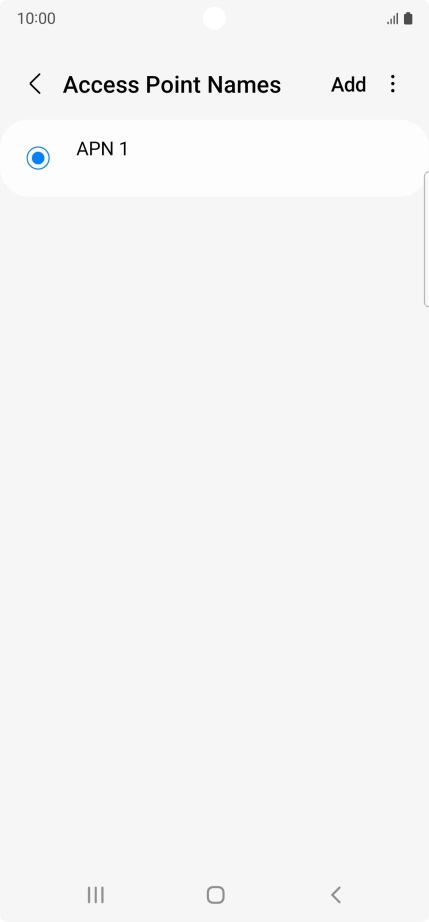

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-f05502bd-4351-458a-8c1e-cbed73f8f6c7.png?width=214&height=458)

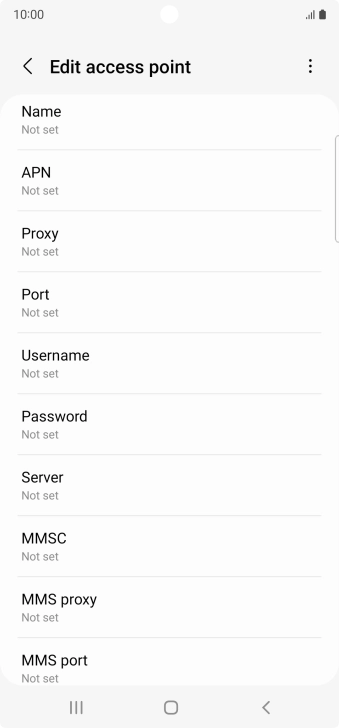

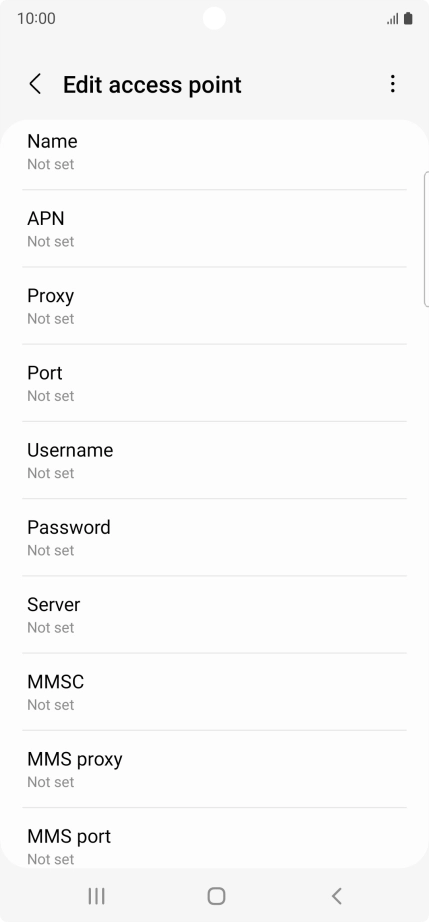

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-68a9c5ad-1f33-468c-8665-ba343158621c.png?width=214&height=458)

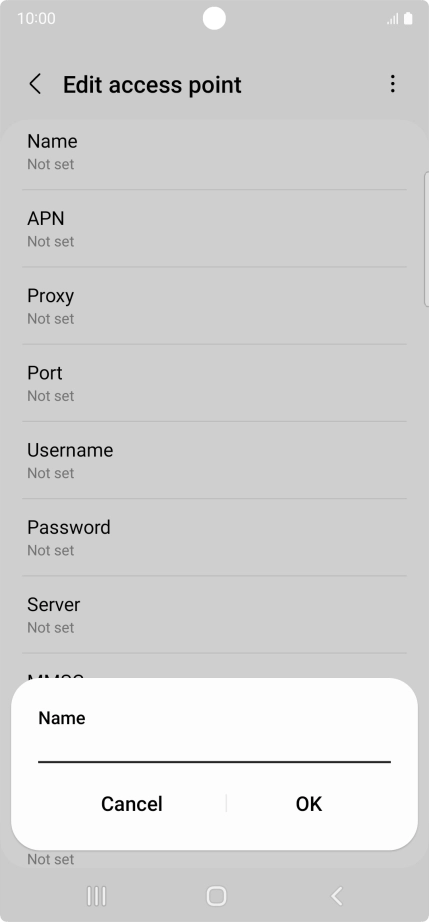

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-43157dac-0f86-45a9-95af-c442f96d97a1.png?width=214&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-68a9c5ad-1f33-468c-8665-ba343158621c.png?width=214&height=458)

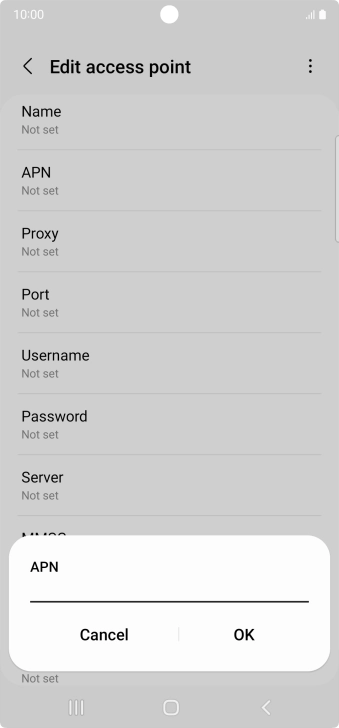

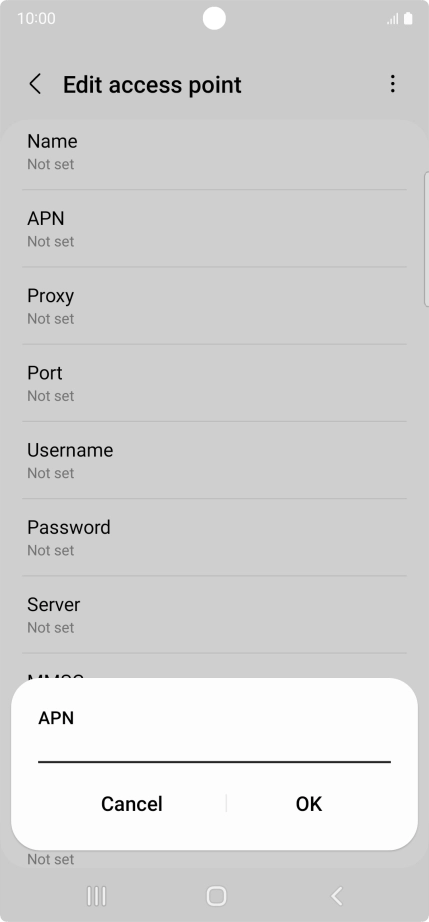

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-18a24c01-4791-4095-a50a-8d1368069dda.png?width=214&height=458)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-68a9c5ad-1f33-468c-8665-ba343158621c.png?width=214&height=458)

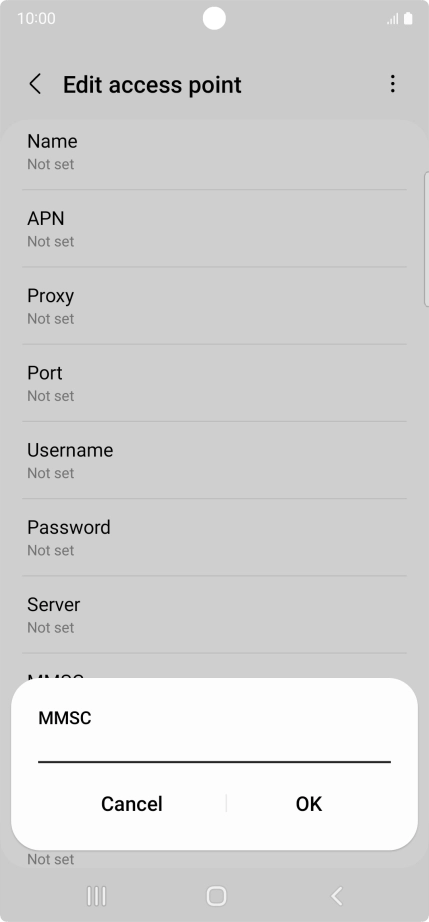

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-78ffd7c8-c0f9-42da-aa06-158c52a52172.png?width=214&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-68a9c5ad-1f33-468c-8665-ba343158621c.png?width=214&height=458)

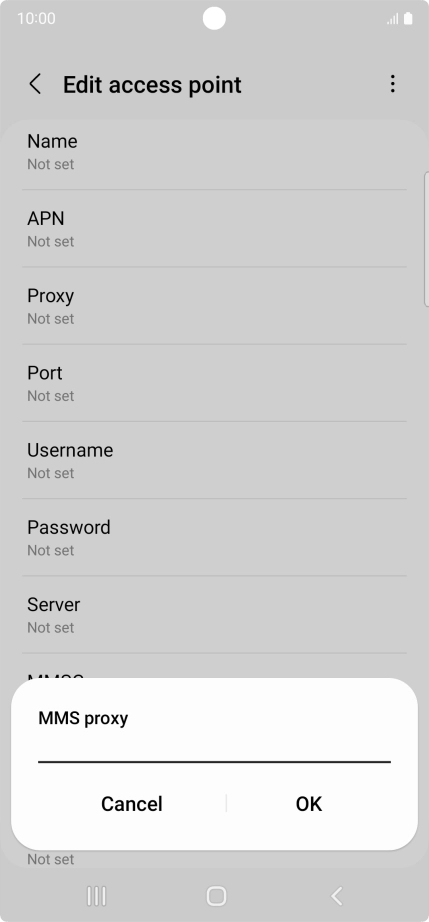

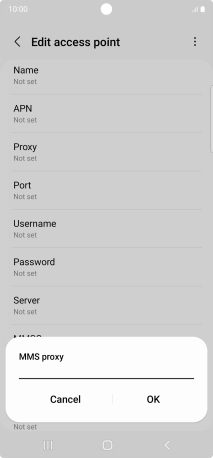

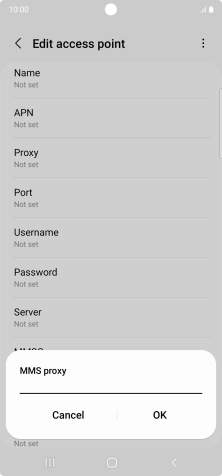

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4f7c887d-ada1-4dc5-ba46-40657c4c3322.png?width=214&height=458)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-68a9c5ad-1f33-468c-8665-ba343158621c.png?width=214&height=458)

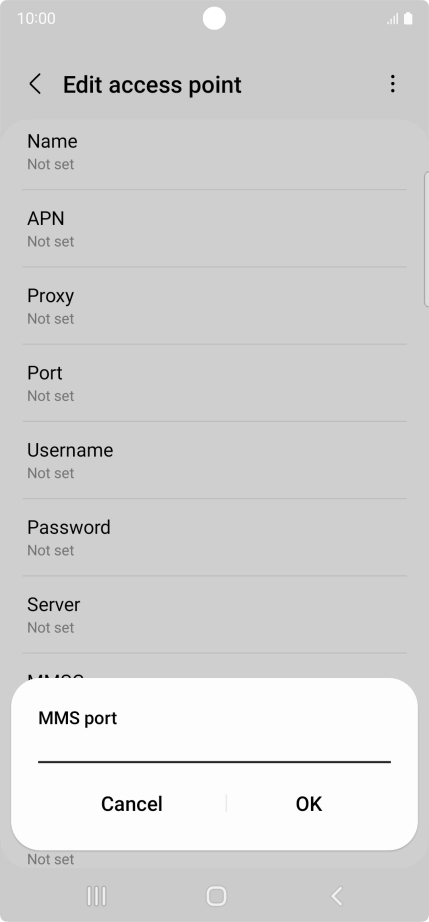

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-f9cbd158-87a9-48c5-96d9-0bc4f2c60187.png?width=214&height=458)
8080
7. Enter country code

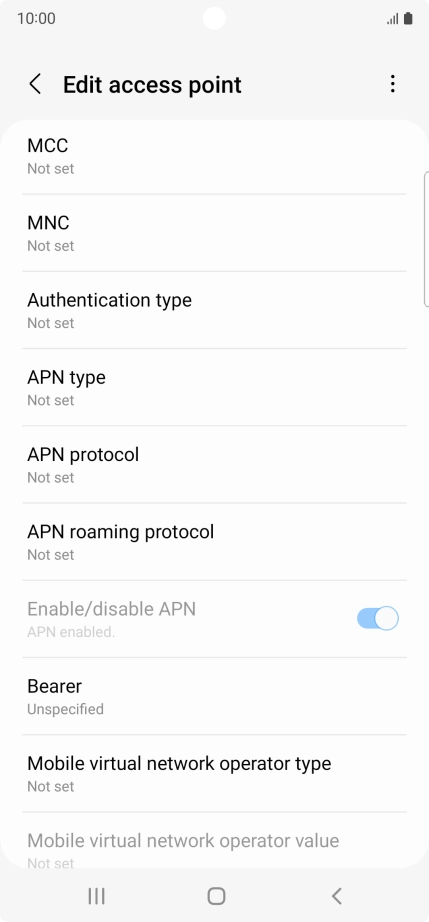

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4791139f-2989-4a84-8b72-543b3ea97578.png?width=214&height=458)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-c8acb2f7-b307-47f3-81e0-8f9b94efffe7.png?width=214&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4791139f-2989-4a84-8b72-543b3ea97578.png?width=214&height=458)

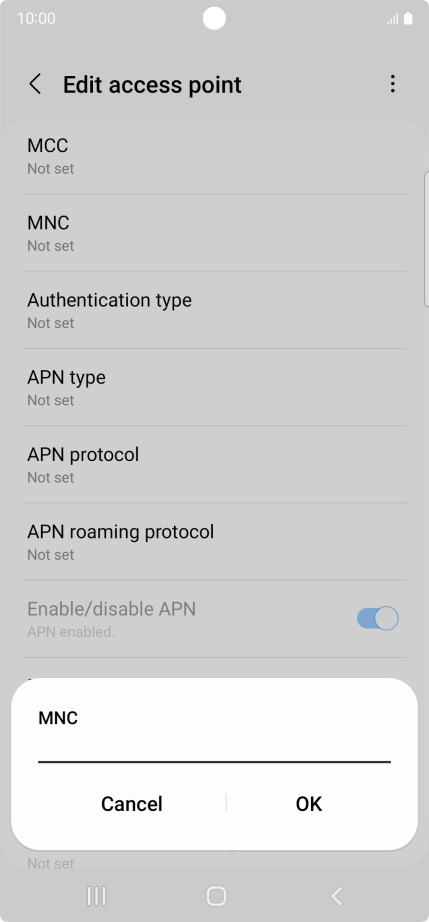

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-7c4f42ba-7fed-47d0-818a-9ff2ddaafc96.png?width=214&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4791139f-2989-4a84-8b72-543b3ea97578.png?width=214&height=458)

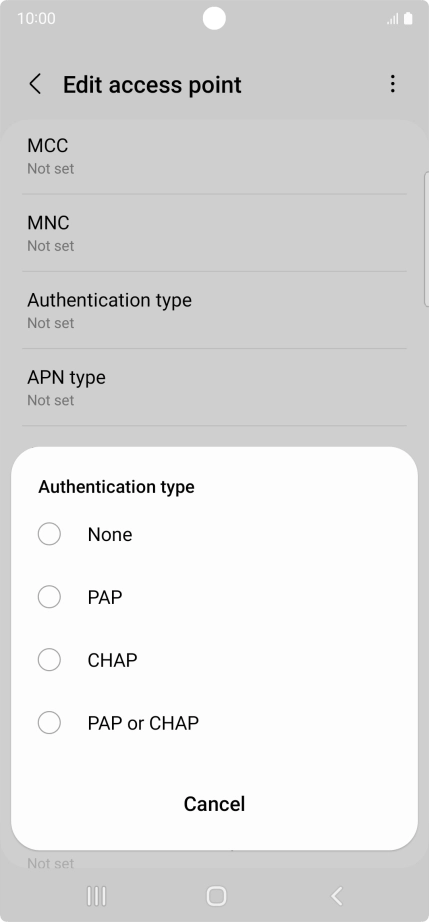

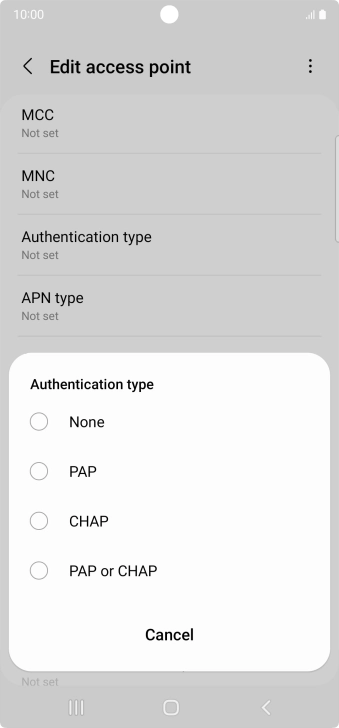

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-70a0ded8-6e84-42dd-98af-6f2e8bda10b7.png?width=214&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4791139f-2989-4a84-8b72-543b3ea97578.png?width=214&height=458)

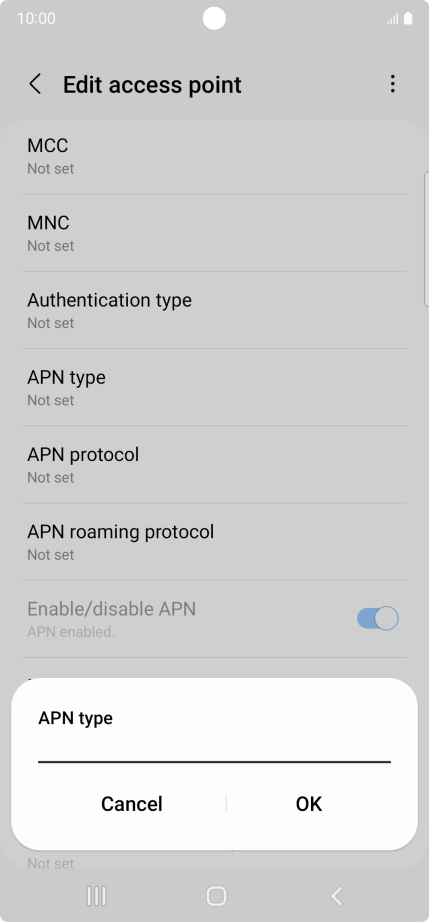

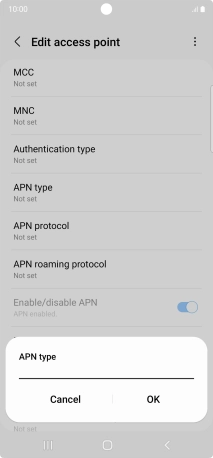

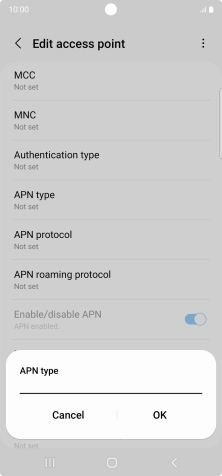

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-8f48b745-a023-4c37-bf4e-8a2c65952eb8.png?width=214&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-4791139f-2989-4a84-8b72-543b3ea97578.png?width=214&height=458)

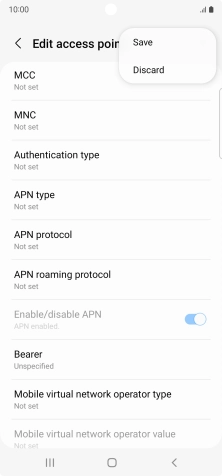

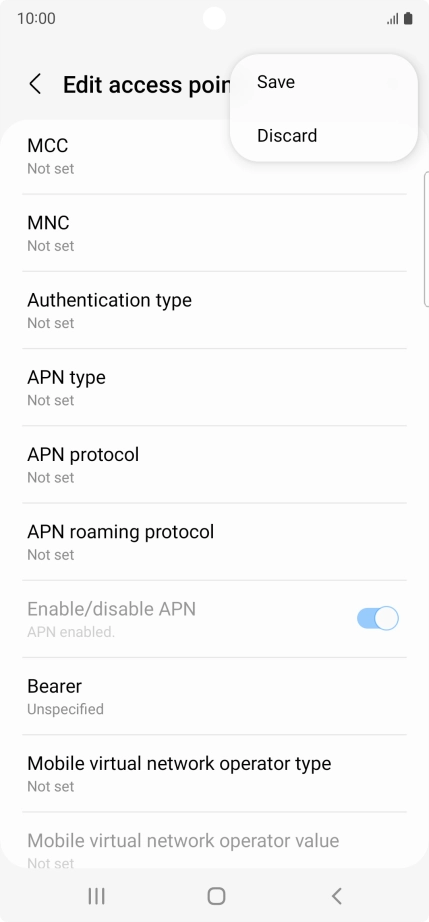

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-ef974062-6b91-4757-ad4e-4d325ded58e1.png?width=214&height=458)
12. Return to the home screen

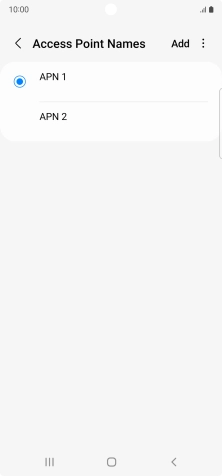

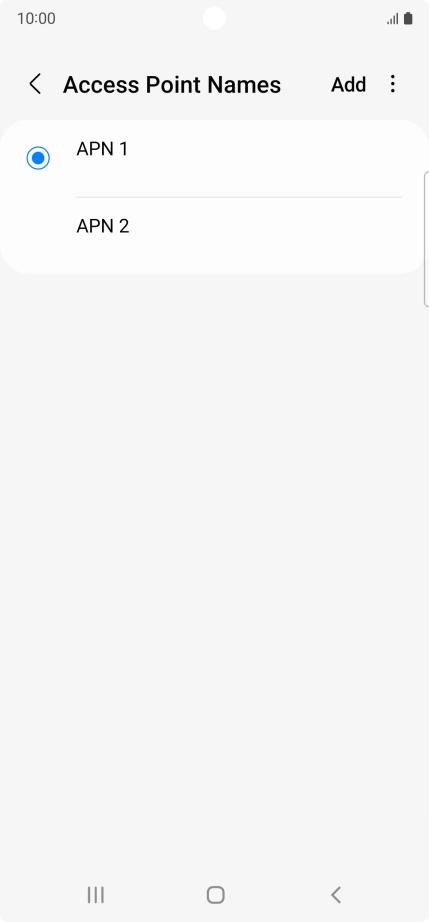

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7020922-f-79e41134-f10c-4297-b216-fa8d87884685.png?width=214&height=458)
