1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-a3819dcd-490c-44a3-a7cc-4accc06038b8.png?width=212&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-6f40b485-0a69-4cf7-aa4e-9aab8c2e10b3.png?width=212&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f130a1fb-7bd3-47be-97c4-3d17a5b92b3e.png?width=212&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f7fee7f0-e767-4a06-a5e8-a79a9a4de697.png?width=212&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-75cd13f6-f5df-48f3-a0c2-9d5b9a21f5fe.png?width=212&height=458)
2. Create new data connection

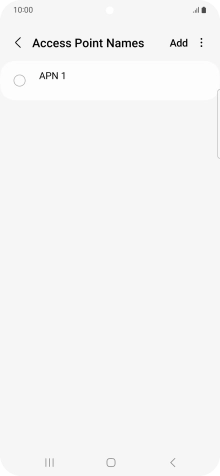

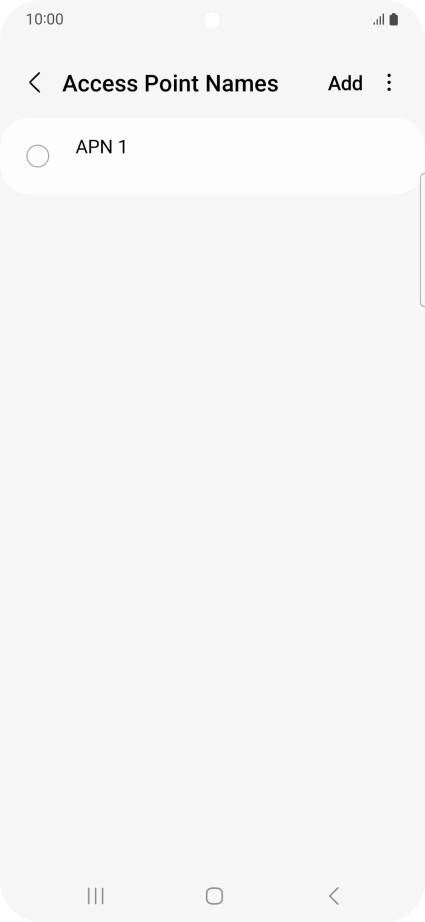

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0f3d343b-75d8-4af4-9625-fb5b9d3fffdb.png?width=212&height=458)

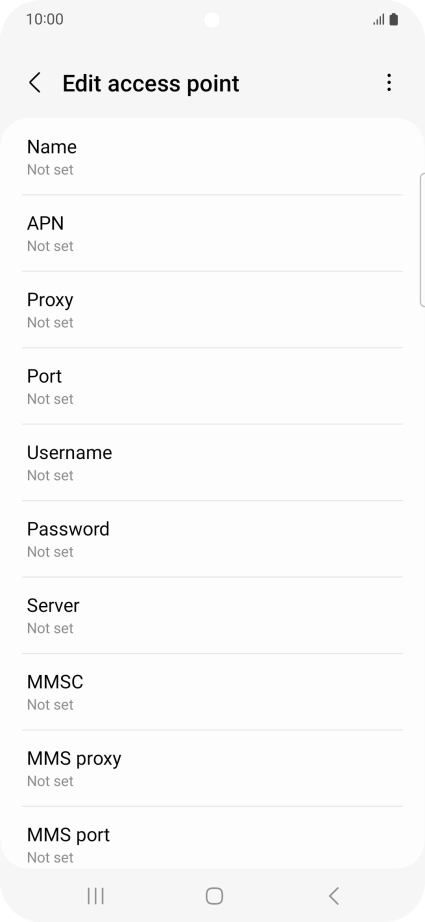

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f2f81f0f-200b-4ab0-bbee-924a2fc5f809.png?width=212&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-ac99f3b4-7dd5-4b73-a931-465e7ca221ca.png?width=212&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f2f81f0f-200b-4ab0-bbee-924a2fc5f809.png?width=212&height=458)

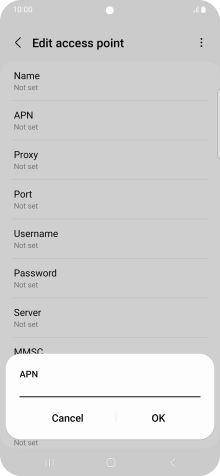

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-c0e703ba-1fa3-489c-b769-0a10a43636ef.png?width=212&height=458)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f2f81f0f-200b-4ab0-bbee-924a2fc5f809.png?width=212&height=458)

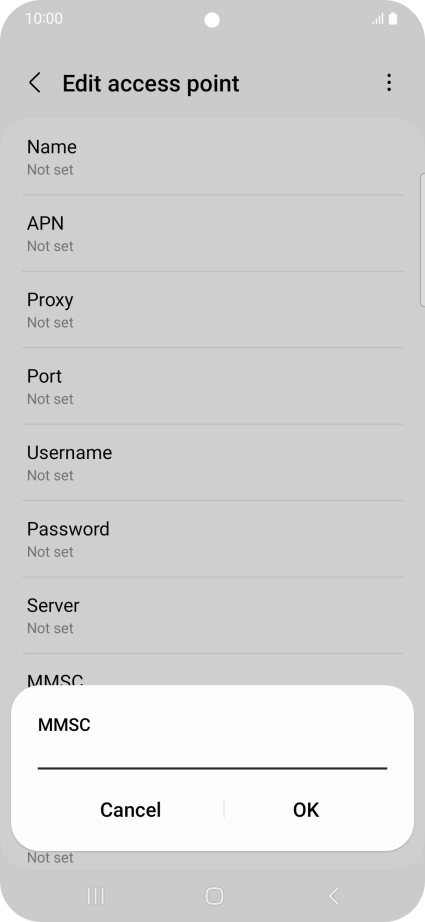

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-c37300e9-3e4c-4ebf-830a-42bb5e5ab42c.png?width=212&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f2f81f0f-200b-4ab0-bbee-924a2fc5f809.png?width=212&height=458)

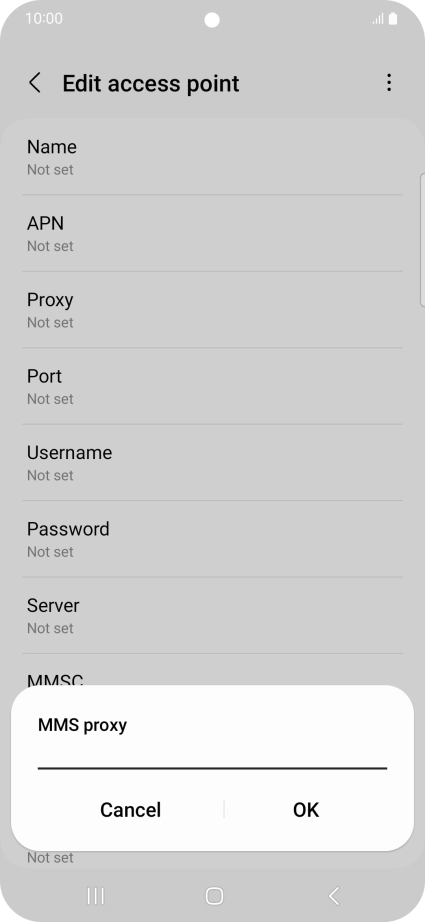

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-da0866c6-5cc7-4892-b240-9b0ca957dcc6.png?width=212&height=458)
10.202.002.060
6. Enter port number

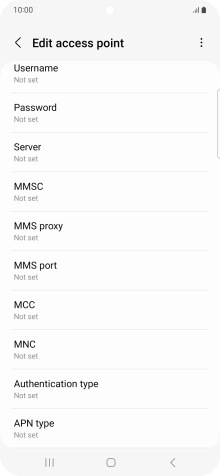

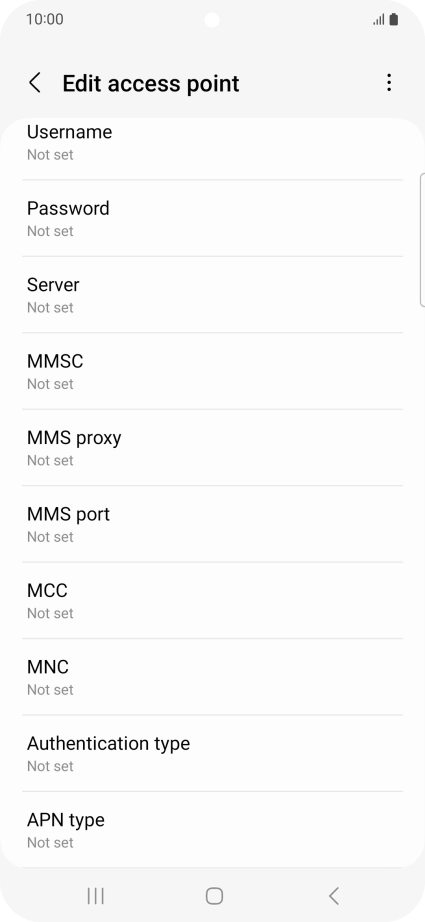

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-fb03206c-dc7a-47f5-bcf4-99d009602bfe.png?width=212&height=458)

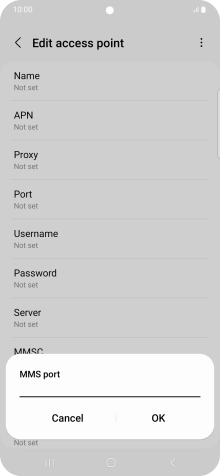

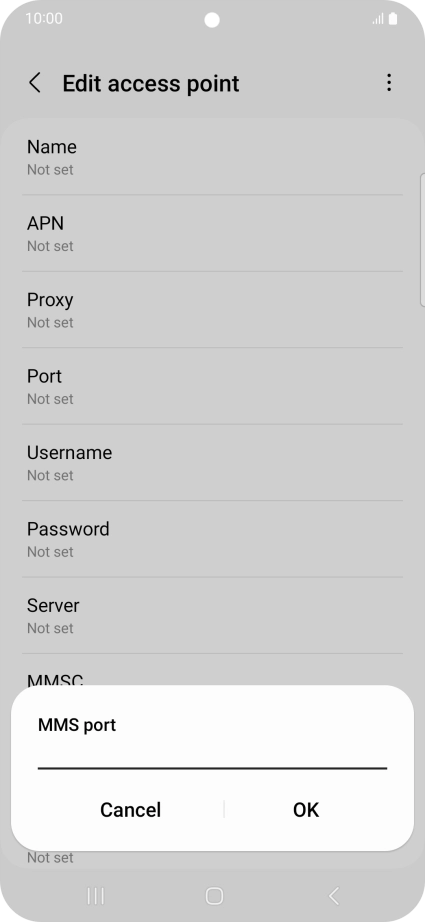

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-d8fc6dda-f9eb-465c-9c6a-ccb71874447c.png?width=212&height=458)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-fb03206c-dc7a-47f5-bcf4-99d009602bfe.png?width=212&height=458)

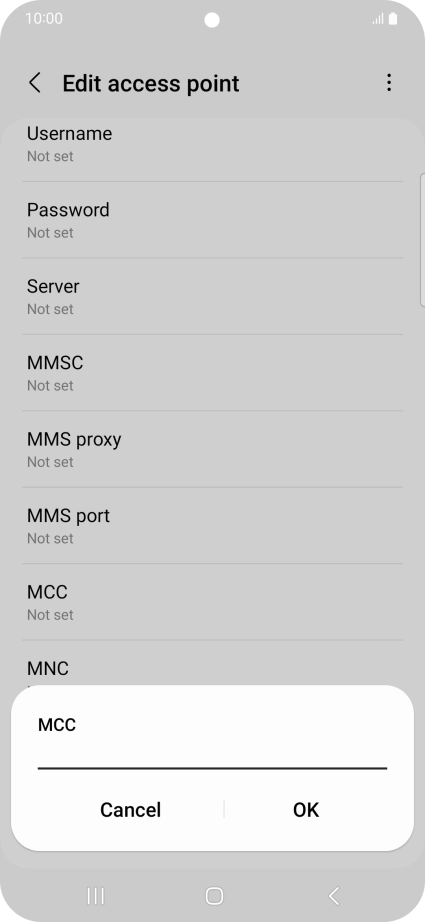

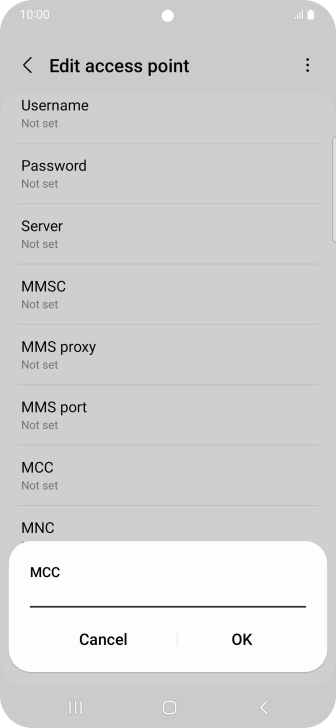

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e2a7e116-5331-48ad-9c73-d3795664a316.png?width=212&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-fb03206c-dc7a-47f5-bcf4-99d009602bfe.png?width=212&height=458)

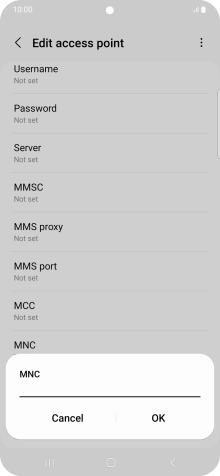

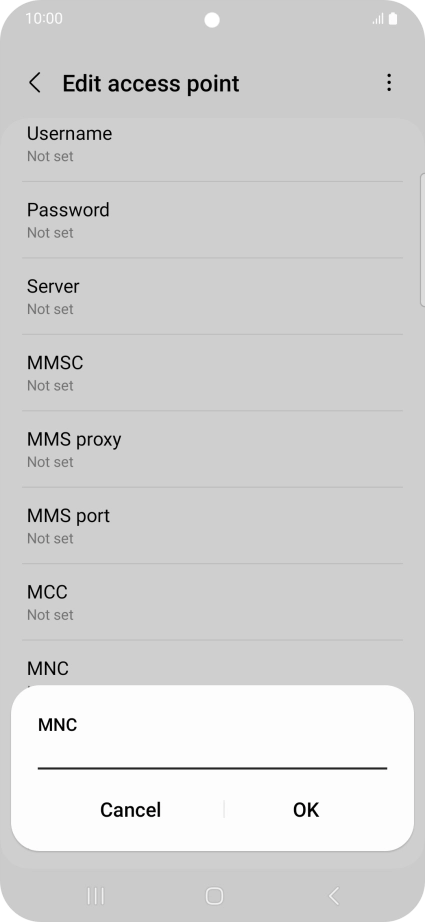

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e0fef857-47e0-4679-bbcc-ca53a338759e.png?width=212&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-fb03206c-dc7a-47f5-bcf4-99d009602bfe.png?width=212&height=458)

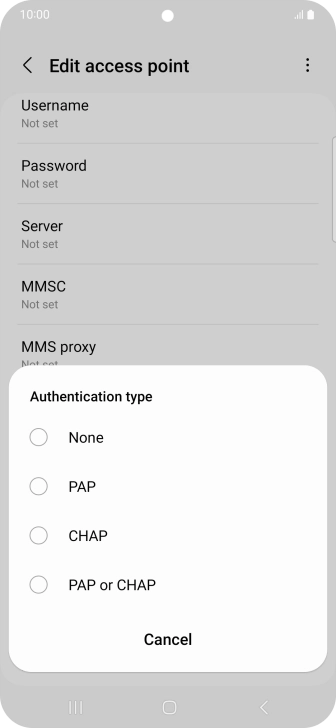

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-a44fea8b-9e73-44cb-a374-865c00453301.png?width=212&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-fb03206c-dc7a-47f5-bcf4-99d009602bfe.png?width=212&height=458)

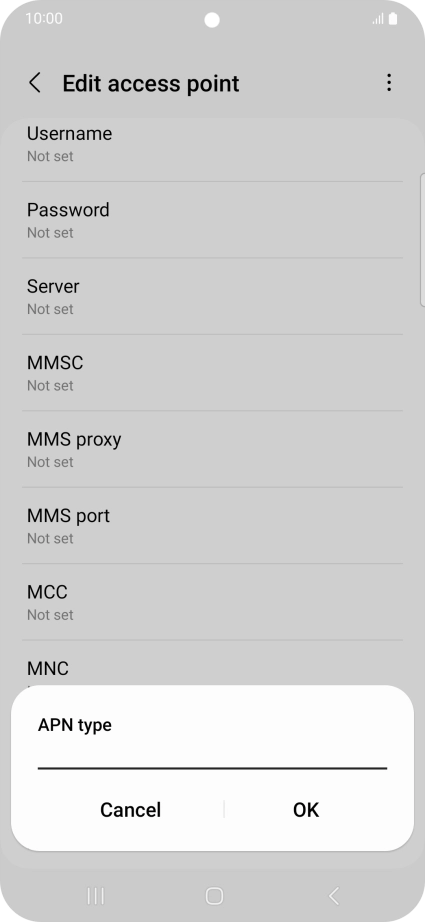

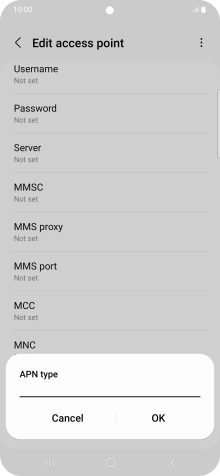

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-1f163ad9-aaad-4d1d-b586-f75ba9dfa785.png?width=212&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-fb03206c-dc7a-47f5-bcf4-99d009602bfe.png?width=212&height=458)

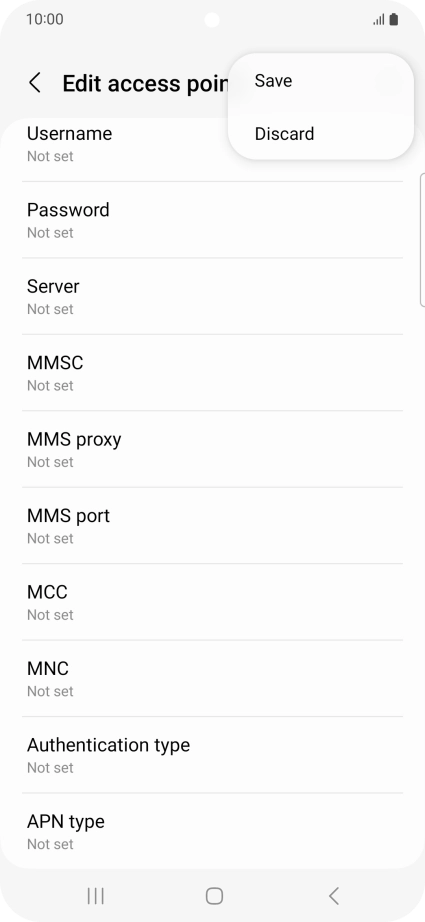

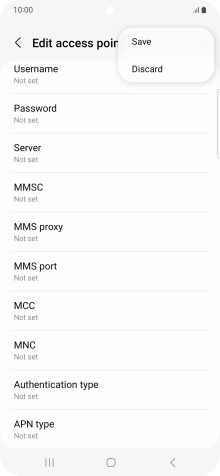

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-5b5906b2-7cb3-4a1d-b38e-ac802a34f1e4.png?width=212&height=458)
12. Return to the home screen

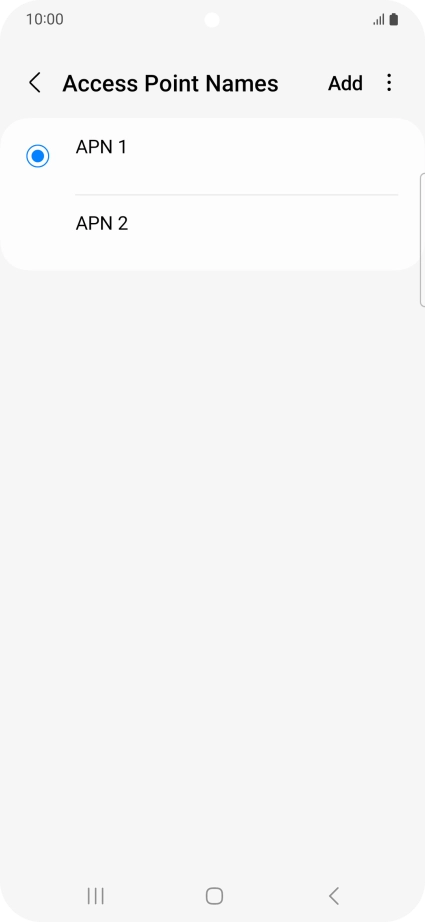

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-c38ac2f1-bc97-4f2b-9706-f59b0bdb6c26.png?width=212&height=458)
