1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-45a5b47e-7fef-4485-a936-68f59fdf0df5.png?width=212&height=376)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c0da44ea-7fdf-4ee7-abd9-e9db0221142a.png?width=212&height=376)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-963d1130-c92c-461b-b7d6-03d3d5633cc8.png?width=212&height=376)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-932a1db3-ec3b-4015-98b7-1e72d2ac4d73.png?width=212&height=376)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-510ae062-26e6-47f1-9d32-b4bc2f7593e5.png?width=212&height=376)
2. Create new data connection

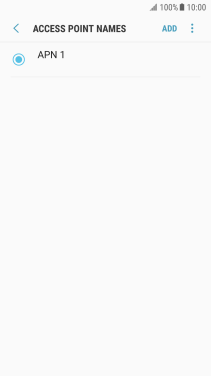

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-30fa51ff-afb2-45fe-b1ff-bd27f879994a.png?width=212&height=376)

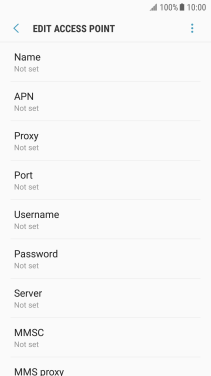

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fced7f12-82ab-4a5f-94ab-deac2e2b23d9.png?width=212&height=376)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e990c98f-56bb-4551-8481-cc2b7d53eec9.png?width=212&height=376)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fced7f12-82ab-4a5f-94ab-deac2e2b23d9.png?width=212&height=376)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7dd25c81-11ef-4bf1-a40c-7df91c7ee6fe.png?width=212&height=376)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fced7f12-82ab-4a5f-94ab-deac2e2b23d9.png?width=212&height=376)

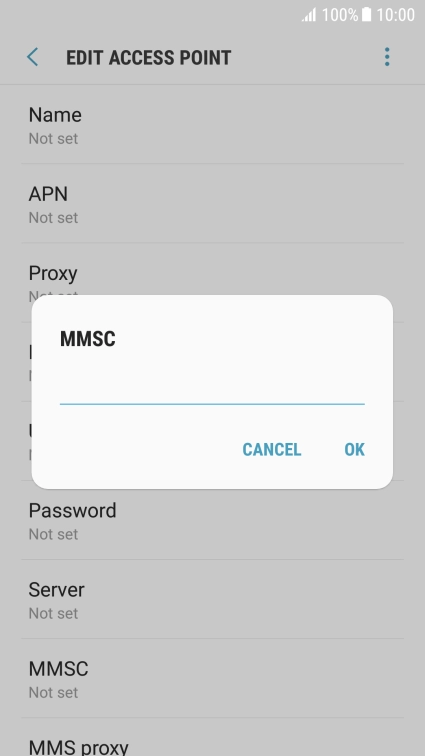

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-28ace499-c9c7-4be9-b6a3-ccf55aafb5ab.png?width=212&height=376)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address

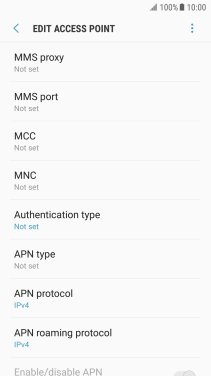

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)

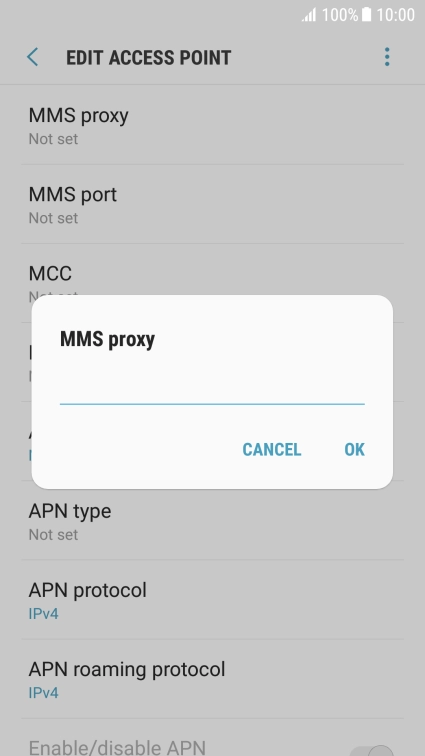

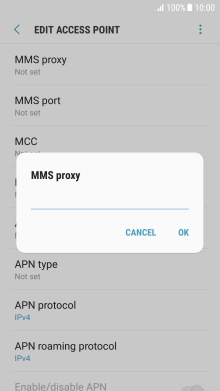

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a038e080-3af8-4045-a8c4-c6ccb2a7c526.png?width=212&height=376)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)

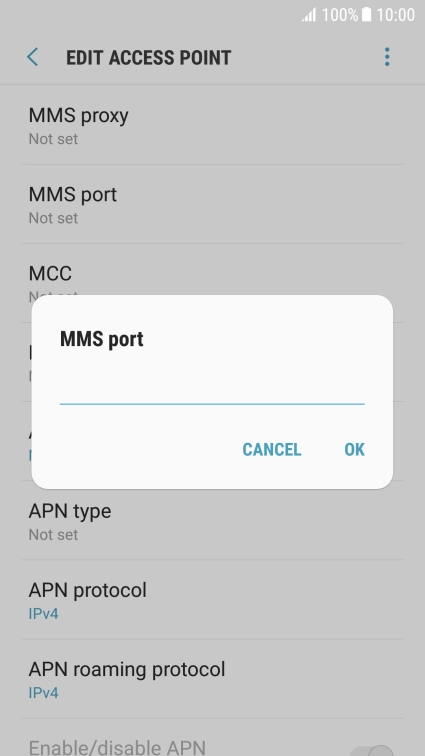

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fa6db607-357c-4b49-8ba7-28fa0292e7be.png?width=212&height=376)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)

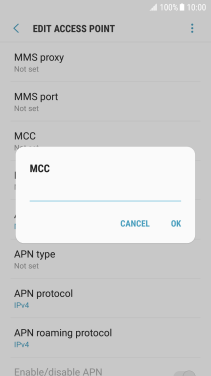

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a7e66fde-1790-4729-b82e-4e8b7d58f2b1.png?width=212&height=376)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)

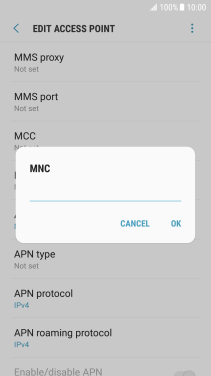

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce6492c4-46de-410a-b6eb-d0cb1483aa2e.png?width=212&height=376)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)

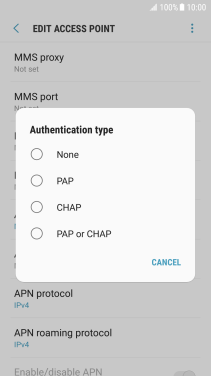

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-75ca26d6-72d0-45e9-896d-7ca7c58eb938.png?width=212&height=376)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-386a584d-7c0e-49de-95b2-cfd8e47274c1.png?width=212&height=376)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1fdd49dc-fe06-4c25-b6a8-191665fd7184.png?width=212&height=376)

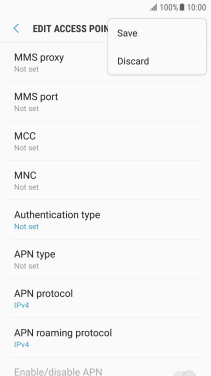

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb40bba8-335e-4483-b91b-578e80e42305.png?width=212&height=376)
12. Return to the home screen

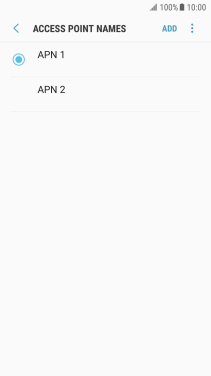

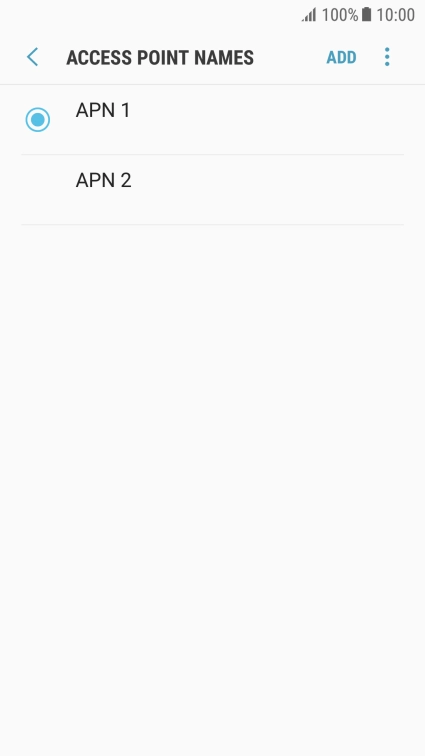

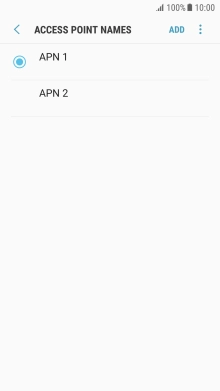

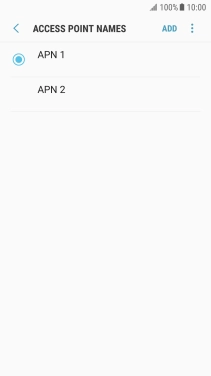

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78f5d018-c875-4844-8b08-29183c3877dd.png?width=212&height=376)
